AVANT 200 Series Operator's Manual For Attachment

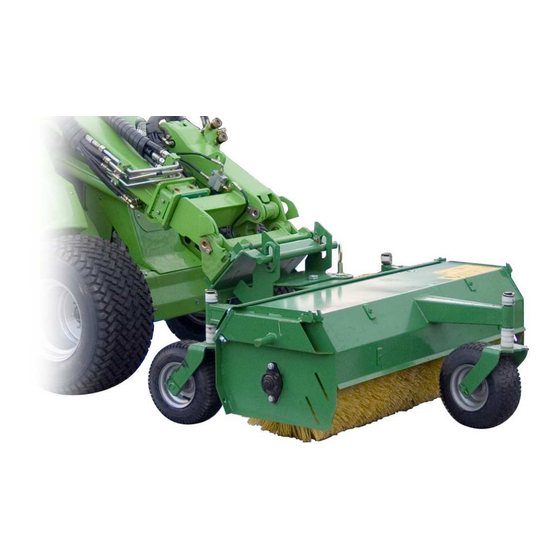

Rotary broom
Hide thumbs Also See for 200 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Operator's manual for Attachment
Operator's
Operator's
Operator's
Product number:
Please read this manual carefully before using the equipment, and follow all
instructions.
Keep this manual for later reference.
manual for Attachment
manual for Attachment
manual for Attachment
R
o
t
a
r
y
B
r
o
R
o
t
a
r
y
B
r
o
300-700-series loaders:
200-series loaders:
o
m
o
m
A33260
A1334
A33540
A2968
A2941
A33261
A33539
Rotary Broom 2012 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 200 Series and is the answer not in the manual?

Questions and answers

Related Manuals for AVANT 200 Series

Summary of Contents for AVANT 200 Series

  • Page 1 Rotary Broom 2012 1 Operator’s Operator’s Operator’s Operator’s manual for Attachment manual for Attachment manual for Attachment manual for Attachment Product number: 300-700-series loaders: A33260 A1334 A33540 A2968 A2941 200-series loaders: A33261 A33539 Please read this manual carefully before using the equipment, and follow all instructions.

  • Page 2: Table Of Contents

    Rotary Broom 2012 1 CONTENTS Foreword .............................3 Designed purpose of use ......................3 Safety instructions for using the broom ..................3 Technical specifications .......................5 Assembly of the rotary broom ......................6 5.1. Attaching the broom to the loader ......................6 5.2. Connecting and disconnecting the hydraulic fittings ................7 5.3.

  • Page 3: Foreword

    3(16) 1. Foreword Avant Tecno Oy would like to thank you for your purchase of this AVANT attachment. It has been designed and manufactured on the basis of years of product development and experience. By familiarising yourself with this manual and following the instructions, you ascertain your safety and ensure the reliable operation and long service life of the equipment.
  • Page 4 4(16) • Be sure not to tilt the attachment too far up, since this will make it fall onto the boom due to the movement made possible by the floating system. Never go under a raised attachment. Support the attachment carefully before performing inspections or cleaning. •...

  • Page 5: Technical Specifications

    5(16) 4. Technical specifications Listed below are the labels and markings, which must be visible on the equipment. Replace the warning labels, if they have become unclear or detached completely. New labels are available via your retailer or contact information provided on the cover. The warning labels contain important safety information.

  • Page 6: Assembly Of The Rotary Broom

    22,5 MPa (225 bar) 22,5 MPa (225 bar) Watering system A2882: nozzle tube with four nozzles, Availabel options: Tank volume 80 litres Suitable AVANT loader: 216, 218, 220 300-700 400-700 5. Assembly of the rotary broom The broom is ready for use as delivered. Monut the attachment and its hydraulic hoses to the loader as instructed below.

  • Page 7: Connecting And Disconnecting The Hydraulic Fittings

    The attachment is equipped with either standard quick couplings or the multiconnector system. If you want to change the type of the hydraulic couplings, contact your Avant dealer or service point for instructions or installation services. For 200-series loaders only conventional quick couplings are available.

  • Page 8: Electrical Connection

    8(16) Make sure that all three couplings are properly connected, otherwise the hydraulic motors of the attachment may get damaged. In a 200-series machine, the hose can be connected by pushing the coupling directly into its counterpart. When connecting and disconnecting the 200-series hydraulics quick couplings, you should pay attention to their locking.

  • Page 9: Storage

    9(16) 5.4. Storage When finished working with the broom, lower it on an even surface, where it cannot move by accident. Prevent unintended movements of the attachment by placing it e.g. on blocks of wood. Do not store the attachment directly against the ground. Before winter storage, clean the brush carefully. Touch up the paint where needed and grease the lubrication points to prevent rust damage.

  • Page 10: Floating Attachment Bracket

    10(16) The broom may be operated only to the intended rotating direction. Do not use the broom for pushing purposes, without rotating it simultaneously. The broom may get damaged. Use high engine rpm for the best operating performance. Depending on the loader model, one or two hydraulic pumps may be used.

  • Page 11: Broom Slewing

    The later installing of the water spraying system should be left to AVANT service. Contact your dealer for information. The water spraying system consists of an 80-litre water tank, an electric pump and a nozzle tube with four spraying nozzles.

  • Page 12: Maintenance And Servicing

    Finding any of these faults means that the hydraulic hose or component in question must be replaced. Spare parts are available from your nearest AVANT retailer or service point. Leave the repairing task to service professionals, if not certain about how to perform the tasks safely.

  • Page 13: Brush

    13(16) 7.2. Brush The material of the brush bristles is nylon and in normal operating conditions they it has a good wear resistance capability. As the brush wears down it loses its effectiveness, and an excessively worn brush should be replaced. As the diameter of the brush decreases, its circumferential velocity decreases as well and at some point it becomes insufficient for throwing material efficiently for collecting operation.

  • Page 14: Warranty Terms

    14(16) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: • Work costs are covered, if the repair is not performed at the factory.
  • Page 15 SFS-EN ISO 12100-1, SFS-EN ISO 12100-2, SFS-EN 982, SFS-EN 13019 Kuvaus: Avant-kuormainten kanssa käytettävä hydraulitoiminen harjalaite Beskrivning: Hydraulisk sopvals; arbetsredskap för Avant lastare Description: Hydraulic rotary broom; attachment for Avant loaders Beschreibung: Hydraulische Kehrmaschine; Anbaugerät für Avant Radlader Mallit / Modeller / Models / Modellen: 200 series 300-700 series...
