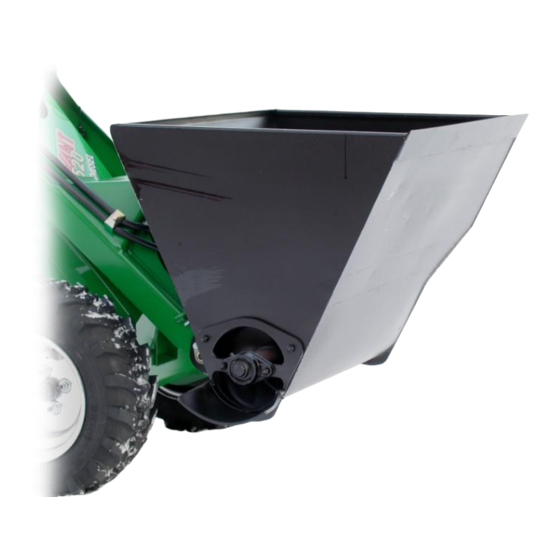

- Page 1 Grain/flour dispenser bucket 2015 1 Operator's Manual for Attachment Grain/flour dispenser bucket Product number Grain/flour dispenser bucket Discharge to the right A1194 Discharge to the left A36559 www.avanttecno.com...
- Page 2 Grain/flour dispenser bucket 2015 1...
-
Page 3: Table Of Contents
Grain/flour dispenser bucket 2015 1 CONTENTS 1. Foreword ................................. 4 2. Designed purpose of use ..........................5 3. Safety instructions for using the bucket ......................6 4. Technical specifications ..........................10 Safety labels and main components of the attachment ....................10 Safety labels and main components of the attachment .................... -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Designed Purpose Of Use
Spare parts must be identical with original specifications, which can be ensured by using only original spare parts. A separate spare parts catalog may be available, consult your Avant dealer. Familiarise yourself with the manual's instructions regarding service and maintenance. Please contact your AVANT retailer if you have additional questions about the operation or maintenance of the equipment, or if you require spare parts or maintenance services. -
Page 6: Safety Instructions For Using The Bucket
6 (22) 3. Safety instructions for using the bucket Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. - Page 7 7 (22) Operate the controls of the loader in a slow and calm manner. Be careful when lifting load to high level or lifting load from high. Avoid sudden changes in speed or direction to maintain balance of the loader especially when handling heavy loads. Drive slowly and carefully especially on inclined terrain or slippery surfaces.
- Page 8 8 (22) Remember to wear proper protective clothing: The noise level at the driver's seat may exceed 85 dB(A). Wear hearing protection while working with the loader. Wear protective gloves. Wear safety boots whenever working with the loader. Wear safety glasses when handling hydraulic components. Never wear loose clothing, long scarves, jewellery, or other items while operating the attachement.
- Page 9 9 (22) Safe stopping of the attachment, before going near the attachment: Always stop the attachment following safe stopping procedure before leaving the driver's seat. Safe stopping procedure prevents all unintentional movements of the attachment. Note that the loader boom can move down even if the engine of the loader is turned off.
-
Page 10: Technical Specifications
30 l/min Maximum input of hydraulic energy: 50 l/min, 22,5 MPa (225 bar) Suitable Avant loaders: See Table 1 4.1 Safety labels and main components of the attachment Listed below are the labels and markings, which must be visible on the equipment. Replace the warning labels, if they have become unclear or if they have detached completely. - Page 11 11 (22) Table 3 - Decal locations and warning messages Decal Explanation A46771 Read instructions before use.. A46772 Crushing hazard - Do not go under a raised attachment; stay away from raised equipment. A46803 Entanglement hazard, keep clear of moving parts, leave equipment...
-
Page 12: Attaching The Attachment
12 (22) 5. Attaching the attachment Attaching the attachment to the loader is quick and easy, but it must be done carefully. The attachment is mounted to the loader boom by using the quick attach plate on the loader boom and the counterpart on the attachment. -
Page 13: Connecting And Disconnecting The Hydraulic Hoses
On 400-700 series loaders hydraulic hoses are connected using the multi connector system. If you have an Avant 300-700 series loader with the conventional quick couplers and wish to change to the multi connector system, contact your Avant dealer or service point for instructions or installation services. - Page 14 14 (22) To disconnect the multi connector system, 1. Switch off the auxiliary hydraulics of the loader. 2. While pushing unlock button, turn the lever to disconnect the connector. Conventional quick couplings (alternative couplings for some loader models): Before connecting or disconnecting the standard quick couplings, the residual pressure must be released as shown below.
-
Page 15: Storage
15 (22) 5.2 Storage To ensure the stability of the bucket during storage, use it until it is empty or empty it on purpose before taking it off from the loader. The bucket should be stored so that its longest side is against the ground surface, as shown in figure below. -
Page 16: Using The Bucket
16 (22) 6. Using the bucket Practise the use of the attachment and its controls in an open and safe area. If you are unfamiliar with the loader in use, it is recommended to practice its use without any attachments. Always stop the attachment before leaving the driver’s seat. -
Page 17: Checks Before Use
17 (22) 6.1 Checks before use Ensure that bystanders are at a safe distance when operating the equipment. Do not let anyone to enter danger area of the boom or to stay directly in front of the loader. Also make sure that it is safe to reverse with the loader. -
Page 18: Maintenance And Service
Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and... -
Page 19: Inspections, Maintenance And Service
19 (22) 7.2 Inspections, maintenance and service It is recommended to empty the bucket completely right after using it. Do not let water to stay in the bucket and prevent water from staying in bucket by placing a suitable block of wood under the bucket, for example. You may use a pressure washer and mild detergent to clean the bucket. -
Page 20: Warranty Terms
20 (22) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory. - Page 21 Hydraulisk skovl; redskab til Avant Minilæssere A36559 Hydraulic bucket; attachment for Avant loaders Hydraulische Schaufel; Anbaugerät für Avant Radlader Godet à commande hydraulique destinée à être utilisée avec les chargeuses Avant 31.8.2015 Ylöjärvi, Finland Risto Käkelä, Toimitusjohtaja / Verkställande direktör / Administrerende direktør /...
