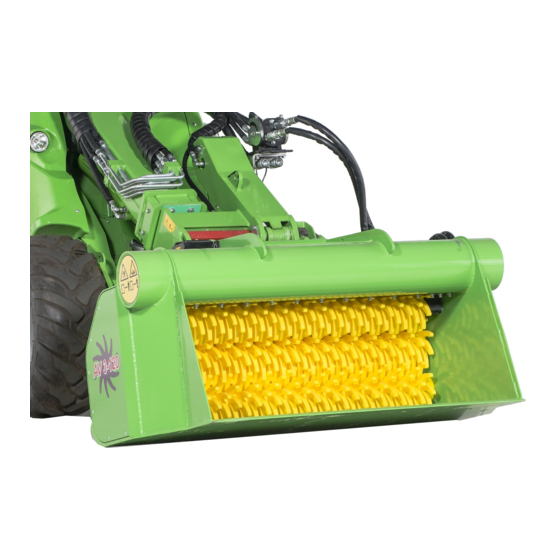

- Page 1 Avant Screening Bucket A36503 Operator`s manual ORIGINAL INSTRUCTIONS Please Read This Document Before Operating The Machinery Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 1/48...
- Page 2 Wheatway Solutions Ltd would like to take this opportunity to thank you for choosing a Gyru-Star product, which is built to high quality standard and designed for durability. we are confident the product will give you an excellent service. Please see and sign back page for you warranty cover This manual covers: Adjustment •...
-
Page 3: Table Of Contents
Lifting and Handling Instructions______________________________________ 22 Lifting using a forklift _____________________________________________________ 24 Installation Instructions _____________________________________________ 26 Coupling to Avant loader __________________________________________________ 26 Coupling hydraulic hoses to Avant loader _____________________________________ 30 Operating Instructions ______________________________________________ 32 Rotor direction __________________________________________________________ 33 Operation angle _________________________________________________________ 34... -
Page 4: Introduction
Introduction These operation instructions for the Avant compact screening system are de- signed to help the user become familiar with the technical details, operating proce- dure, safety precautions and maintenance to ensure the Avant compact screening system is used safely, correctly and for it`s intended purpose. -
Page 5: Product Description
Product Description Scope The Avant compact screening system is a bucket type attachment fitted either to a hydraulic excavator or a wheeled loader replacing the standard digging bucket. The bucket shell is a steel structure with welded joints, integrated driveline cavities, triple skin floor and wear resistant cutting edge. - Page 6 CE Certification The CE certification indicates that the Avant compact screening system ful- fils the relevant machinery directives and recognised safety regulations. Gyru-Star Screening Bucket Model Serial Number Weight Year of Mfg Max Pressure Max Flow B3 Brealey Place, Baird road, Gloucester Gl2 2AF...
- Page 7 Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 7/48...
-
Page 8: Technical Data
Technical Data The operator is responsible for ensuring the Avant compact screening system is suitable for the intended carrier. The Avant compact screening system should never exceed the carrier’s safe working capacity limit when fully loaded. Under no circumstances may the specified limit values be exceeded. - Page 9 Screening Area (mm) 3-120A 1,200 Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 9/48...
-
Page 10: Dimensions
Dimensions General Dimensions (mm) 3-120A 1,410 Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 10/48... -
Page 11: Compatibility With Avant Loaders
Compatibility with Avant loaders Avant 313S 320S series 2 525LPG 860i 320S+ 760i A36856 (•) • • • (•) It is recommended to use the attachment only with loaders marked with ·in Table 1. When • using with models marked with ( ), full performance may not be achieved. -
Page 12: Safety Instructions
Safety Instructions WARNINGS Throughout this manual these symbols & notes are used to indicate the following; DANGER Imminent danger that is likely to cause serious injury or loss of life. WARNING Safety situations that may cause serious injury or loss of life. CAUTION Safety situations that may cause problems or damage to the equipment. -
Page 13: General
Special attention must always be paid to the safe use and maintenance of • the Avant compact screening system. Do not use, the Avant compact screening system for anything other than its • intended purpose e.g. lifting, or use as a primary digging bucket. -
Page 14: Before Operation
The Avant compact screening system must be fitted correctly to the exca- • vator or wheel loader before use. The operator is responsible for ensur- ing that all locking devices, mounting pins, and hydraulic connections are made and fitted correctly. -
Page 15: Safety Instructions
Under no circumstances should the Avant compact screening system be • used as a battering ram. Do not operate the Avant compact screening system at a speed which cannot • be controlled. Only operate the Avant compact screening system while safely inside the •... - Page 16 • until the excavator or wheeled loader has fully stopped and the auxiliary hydraulics has been isolated. Ensure the Avant compact screening system is on a flat level surface be- • fore carrying out any maintenance, cleaning or adjustments. Copyright © 2020 Wheatway Solutions Ltd - All rights reserved.
- Page 17 Operators must observe Instructions and safety warnings. • Operating instructions must be read and understood before • using the Avant compact screening system. Environmental Concerns National Laws applying to hazardous materials in the country in which the Bucket is being operated must be observed and upheld.
-
Page 18: Safety Decals
Safety Decals Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 18/48... - Page 19 Safety Decals Thrown or Wear eye flying objects protection stay at safe distance. Read operations Warning! manual Oil flow Turn off direction machinery and isolate auxiliary oil flow. Entanglement in machinery Stay safe distance away from hazard. Warning! Entanglement in belt drive Copyright ©...
- Page 20 For description please see operating instructions Advisory Decal location Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 20/48...
- Page 21 On all models this decal is found on the left side of the bucket on the belt box when standing with the stars closest to you. Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 21/48...
-
Page 22: Lifting And Handling Instructions
Lifting and Handling Instructions WARNING General operation The Avant compact screening system should only be lifted or moved by its • carrier interface bracket securely attached to the carrier. The Avant compact screening system must be sited on firm and level •... - Page 23 • The combined weight of the Avant compact screening system and packaging must not exceed the maximum weight limit of the Avant loader. • The transport vehicle should never be driven in excess of it maximum permissible speed. •...
-
Page 24: Lifting Using A Forklift
Lifting using a forklift Under no circumstances should the Avant compact screening system be picked up from the sides. It is advised to keep the weight of the bucket on the back of the forks when being lifted. Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. - Page 25 Under no circumstances should the Avant compact screening system lifted by tines reaching inside the bucket; e.g. the top tube. When moving the Avant compact screening system, without a pallet, use a lifting appliance to fix into the interface plate Copyright ©...
-
Page 26: Installation Instructions
(see carrier operator’s manual for correct operating and locking instructions). Once the Avant compact screening system is connected to the carrier by it`s dedicated carrier interface bracket, lower the Bucket on to a suitable flat level site. - Page 27 Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1: • Lift the quick attach plate locking pins up and turn them backwards into the slot so that they are locked in the upper position.
- Page 28 Step 3: • Lift the boom slightly – pull the boom control lever backward to raise the attachment off the ground. • Turn the boom control lever left to turn the bottom section of the quick attach plate onto the attachment. •...
- Page 29 If your loader is not listed in Table 1 on page 6, ask your Avant dealer before using this attachment.
-
Page 30: Coupling Hydraulic Hoses To Avant Loader
Coupling hydraulic hoses to Avant loader On Avant loaders the hydraulic hoses are connected using the multi connector system. Keep all fittings as clean as possible; use the protective caps on both the attachment and the loader. Dirt, ice, etc. may make using the fittings significantly more difficult. Never leave the hoses hanging on the ground;... - Page 31 To disconnect the multiconnector system: Before disconnecting put the attachment down on a solid and even surface. Before disconnecting the fittings, lower the attachment to safe position on solid and level surface. Turn the control lever of the auxiliary hydraulics to its neutral position. When uncoupling the attachment, always disconnect the hydraulic couplings before unlocking the quick coupling plate, to prevent hose damage and any oil spills.
-
Page 32: Operating Instructions
It is not to be used as a primary digging bucket or used in contaminated areas. The material to be screened is loaded in to the Avant compact screening system in the same manner as a standard excavator or wheeled loader bucket. -
Page 33: Rotor Direction
Rotor direction NOTE Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 33/48... -
Page 34: Operation Angle
Operation angle NOTE Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 34/48... -
Page 35: Material Handling
Material handling Do not over fill the Bucket as this will reduce the performance of the screening process and can damage your Avant compact screening system. There is too much material in your Avant compact screening system if you are unable to see the top shaft when material has been loaded. - Page 36 Material handling The Avant compact screening system’s efficient screening process is created by the star rotors, rotating the pre screened material in the bucket, allowing fines to flow through the star rotors leaving the oversize material in the bucket. Less material in the bucket = more production Once the screening process is completed, the oversize material is tipped out and the process is repeated.
-
Page 37: Maintenance
NOTE Long Term Storage Place the Avant compact screening system on firm and level ground. Power-wash the Avant compact screening system carefully. Avoid prolonged high pressure water around the flexi-star rotor bearings. -
Page 38: Maintenance Instructions
If attached to the excavator or wheeled loader ensure the Avant compact screening system is both lowered to the ground and sitting flat on its base, en- suring that the excavator or wheeled loader has been suitably isolated to pre- vent unexpected operation. -
Page 39: Flexi-Star Replacement
PLC units. NOTE Flexi-Star replacement Before commencing flexi-star replacement, ensure the Avant compact screening system is sited on firm and level ground and detached from the ex- cavator or wheeled loader. Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. - Page 40 Remove both drive line covers. Next, remove the bearing support plate. Then remove the carbon chain belt and drive wheel by releasing the belt adjuster of the intended rotor. Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 40/48...
- Page 41 Support the flexi-Star rotor and remove both rotor support bearing fixings. This will be a bearing support plate and 3 flange nuts or 3 bolts. With the rotor supported, pull out both stub shaft assemblies complete with bearings out from the rotor shaft.
- Page 42 Slide the flexi-star discs from the square section of shaft observing the staggered pattern. Ensure all the stars “face” the same way in the staggered pattern. To reassemble repeat above instructions in reverse. Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 42/48...
-
Page 43: Stripper Plate And Combs
Stripper plate and combs Your Avant screening bucket will have been fitted with an adjustable stripper plate. Where to find it They lie between the top shaft and the tube. Fixed with one bolt, spring and flat washer. As the stars on the top shaft wear, the gap between the stars and the stripper plate will get bigger adjust the striper plate so that the gap in no more than 5mm. -
Page 44: Troubleshooting
Connect, repair or replace couplings QRC coupling fitted correctly? Avant screening Contact your Avant dealer/ system over- distributer for more assis- loaded with ma- tance terial? Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 44/48... - Page 45 Top rotor See fault flow diagram 10.3 rotates? Motor shaft Replace coupling, Contact couplings Avant dealer/ distributor for defective? more assistance Replace the hydraulic motor Hydraulic motor contact your Avant dealer/ defective? distributer for more assis-...
- Page 46 Flow diagram 10. Top rotor rotates, one or more does not rotate Replace broken or damaged carbon belt, Carbon belt Contact Avant dealer/ dis- broken? tributer for more assis- tance. Check Rosta belt adjuster unit. Carbon belt Contact Avant dealer/ dis-...
-
Page 47: Hydraulic Circuits
Hydraulic Circuits Hydraulic Circuit for 3-120A Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 47/48... - Page 48 Copyright © 2020 Wheatway Solutions Ltd - All rights reserved. 48/48...
