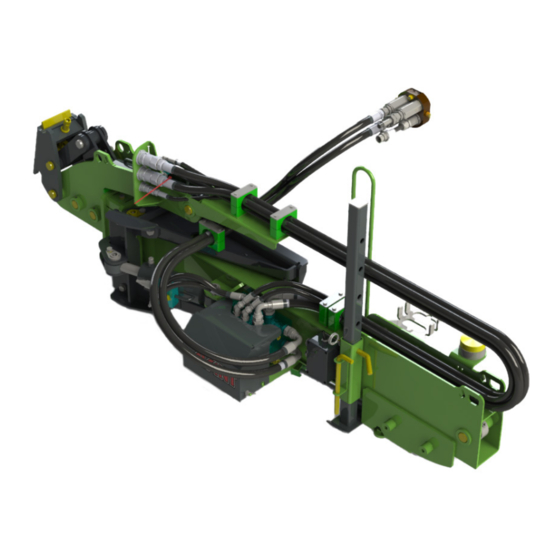

Hydraulic boom
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
English

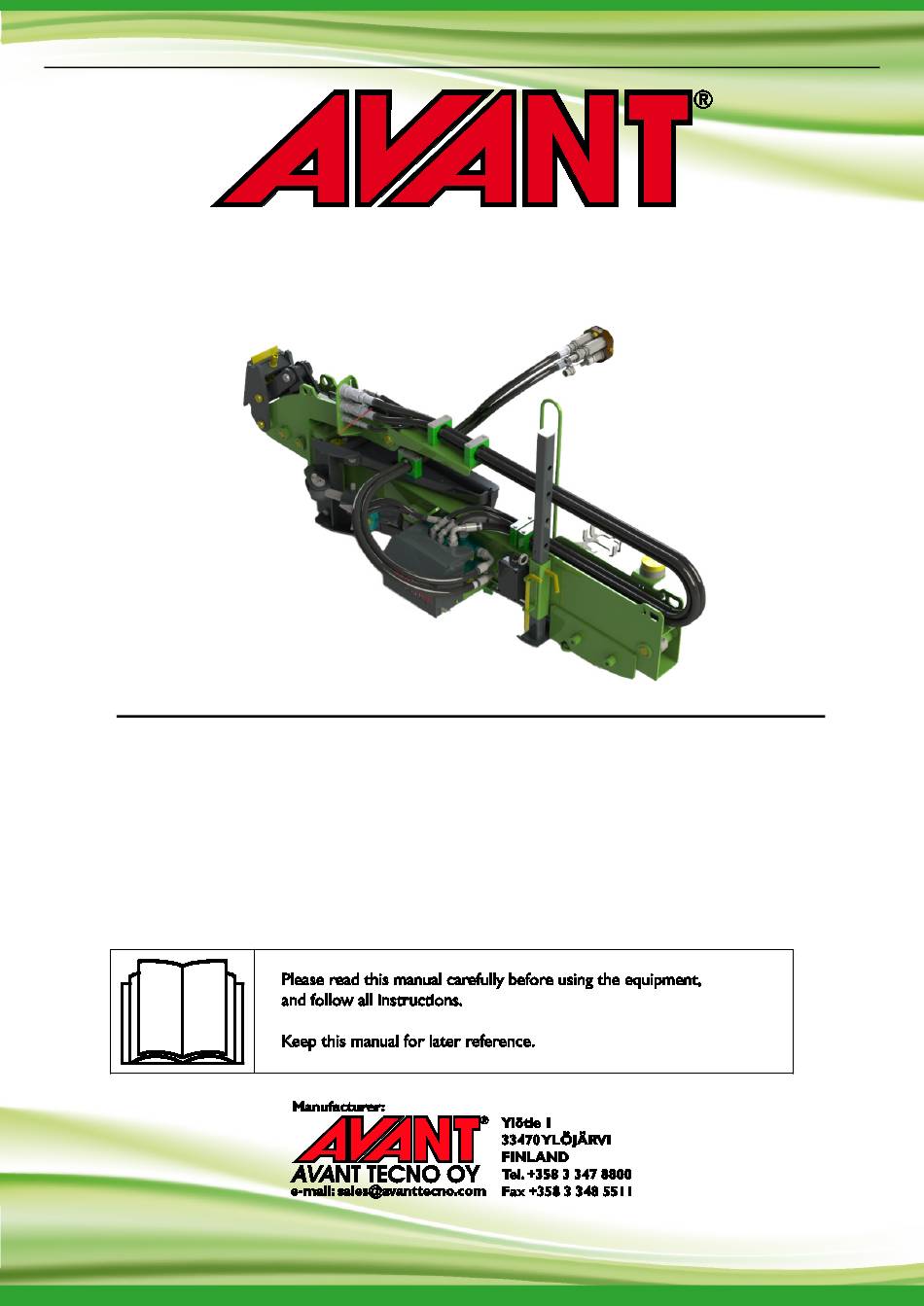

Hydraulic boom 2018 1
Operator's Manual for Attachment
Hydraulic boom
Product number:
Hydraulic boom
A424552
www.avanttecno.com
A431453 2018 1 EN 2018-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A424552 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AVANT A424552

Summary of Contents for AVANT A424552

  • Page 1 English Hydraulic boom 2018 1 Operator's Manual for Attachment Hydraulic boom Product number: Hydraulic boom A424552 www.avanttecno.com A431453 2018 1 EN 2018-...
  • Page 2 Hydraulic boom 2018 1...

  • Page 3: Table Of Contents

    Hydraulic boom 2018 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ..........................5 2. DESIGNED PURPOSE OF USE ......................6 3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT ............7 4. TECHNICAL SPECIFICATIONS ......................10 Outreach ................................. 10 Safety labels and main components of the attachment.................. 11 5.

  • Page 4: Foreword

    If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer.

  • Page 5: Warning Symbols Used In This Manual

    5 (30) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING: SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”...

  • Page 6: Designed Purpose Of Use

    It is recommended that the Avant is equipped with a cab (L, LX or DLX) in order to protect the driver against flying debris. When mounted on Avant 600 series, the extra side weights (A49063) are also recommended for better stability.

  • Page 7: Safety Instructions For Using The Attachment

    7 (30) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage.
  • Page 8 8 (30)  Use the attachment only for its intended use and only with original tools and spare parts.  When unlocking and dismounting the attachment off from the loader, ensure that it is secured against accidental movement. To secure the attachment from tipping over WARNING lower it firmly on the ground and disconnect only on level surface.
  • Page 9 9 (30) Remember to wear proper personal protective equipment:  The noise level at the driver's seat may exceed 85 dB(A) depending on loader model and operating cycle. Extended exposure to loud noise can cause hearing impairment. Wear hearing protection while working with the loader. ...

  • Page 10: Technical Specifications

    Width (boom retracted): 1 870 mm Total width (boom extended): 2850 mm Weight: 290 kg Compatible Avant loaders: See Table 1 Options: Additional weights A49063 / 90 kg, max 2 pcs 4.1 Outreach The outreach diagram below is illustrated with the hydraulic boom and flail mower. Naturally, the outreach depends on the attachment in use, therefore the diagram should be used as an estimation.

  • Page 11: Safety Labels And Main Components Of The Attachment

    Replace damaged or missing warning labels with new ones. WARNING Attachment identification plate A424552 A46771 A46772 A46803 To apply a new label: Clean the surface thoroughly to remove all grease. Allow it to dry completely. Peel off...
  • Page 12 Pinching and cutting hazard, keep clear of moving parts, do not leave the 3 A36803 equipment running. Operate the attachment only from the driver’s seat. 4 A424552 Attachment identification plate Table 4 - Hydraulic boom - Main components Multiconnector holder Multiconnector...

  • Page 13: Assembling The Attachment

    Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1:  Lift the quick attach plate locking pins up and turn them backwards into the slot so that they are locked in the upper position.

  • Page 14: Connecting And Disconnecting Hydraulic Hoses

    5.1 Connecting and disconnecting hydraulic hoses On Avant loaders the hydraulic hoses are connected using the multi connector system. If you have an Avant 300-700 series loader with the conventional quick couplers and wish to change to the multi connector system, contact your Avant dealer or service point for instructions or installation services.
  • Page 15 15 (30) Keep all fittings as clean as possible; use the protective caps on both the attachment and the loader. Dirt, ice, etc. may make using the fittings significantly more difficult. Never leave the hoses hanging on the ground; place the couplings onto the holder on the attachment.

  • Page 16: Instructions For Use

    16 (30) 6. Instructions for use Check the attachment and the operating environment once more before starting to work, and that all obstacles have been removed from the operating area. Quick inspection of the equipment and the operating area before use are parts of ensuring safety and the best performance of the equipment.

  • Page 17: Checks Before Use

    17 (30) 6.1 Checks before use Remove or mark visibly all obstacles, such as trash, large tree branches or stones, from the working  area before operation. Check the area for possible hidden ditches, manholes, or other dangerous areas. Remember that tall grass can hide obstacles. Drive carefully on uneven terrain and note the effect of heavy load at the front of the loader to the ...

  • Page 18: Using The Hydraulic Boom

    18 (30) Risk of injuries related to sudden stop - Drive slow and always stay alert for possible obstacles. For the safety of the operator, the hydraulic boom is equipped with hydraulic safety function to reduce the risk of sudden stopping of the loader and the WARNING possibility of injuries that could follow.
  • Page 19 19 (30) Collision risk - Check the operating area before using the equipment. Running into an obstacle may stop the machine suddenly and unexpectedly causing injuries from impact to head and body, regardless of the collision protection system or other safety WARNING systems.

  • Page 20: Collision Protection

    Adjusting downwards is only possible by means of the pushbutton (3) of the attachment control switch pack. The hydraulic safety function is adjusted for the use of the flail mower. With lighter attachments it may be useful to adjust the system to allow the boom tilt back easier. Contact Avant service for correct adjustment settings.

  • Page 21: Warning Beacon

    21 (30) 6.4 Warning beacon To improve the visibility of the loader and attachment at workplace, there is a flashing warning light on the hydraulic boom as standard equipment. The light will flash when the electric harness is connected to the loader.

  • Page 22: Extra Weights (Optional Extra)

    Some operations may require more weigh on the boom for the best result. Typically when greater outreach with a heavy attachment is necessary, the stability of the loader is increased with the Avant counterweights significantly. The same counterweights (A49063) can also be used as counterweights on the loader.

  • Page 23: Adjustments

    23 (30) 6.8 Adjustments If necessary, the speed of the movements of the hydraulic cylinders of the boom can be adjusted. By default the adjustment is at the highest speed setting. To reduce the speed of the tilt cylinder or the telescopic extension cylinder: ...

  • Page 24: Uncoupling And Storage

    24 (30) 6.9 Uncoupling and storage The hydraulic boom can be uncoupled from the loader for short period storage with an attachment fitted. For long term storage the attachment should be disconnected from the hydraulic boom. Uncouple and store the attachment on level ground. The best way to store the attachment is a place where it is protected from direct sunlight, rain, and extreme temperatures.

  • Page 25: Storage With Flail Mower

    25 (30) 6.9.2 Storage with flail mower For short term storage the flail mower can be uncoupled from the loader together with the hydraulic boom using the storage support stand of the hydraulic boom. 1. Place the flail mower head to horizontal position just above ground. 2.

  • Page 26: Maintenance And Service

    Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and experience about hydraulic assemblies and how to perform the repairing safely.

  • Page 27: Cleaning The Attachment

    27 (30) 7.2 Cleaning the attachment Clean the attachment regularly to prevent accumulation of dirt which is more difficult to remove. A pressure washer and mild detergent can be used for cleaning. Do not use strong solvents, and do not spray directly at the hydraulic components, or at the labels on the attachment.

  • Page 28: Warranty Terms

    28 (30) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows:  Work costs are covered, if the repair is not performed at the factory.
  • Page 29 Mallit / Modeller / Models: Avant Hydraulitoiminen sivupuomi; Avant-kuormaajan työlaite Hydraulisk bom; arbetsredskap för Avant lastare A424552 Hydraulic side shift boom; attachment for Avant loaders 13.8.2018 Ylöjärvi, Finland Risto Käkelä, Toimitusjohtaja / Verkställande direktör / Managing Director Original language version...
