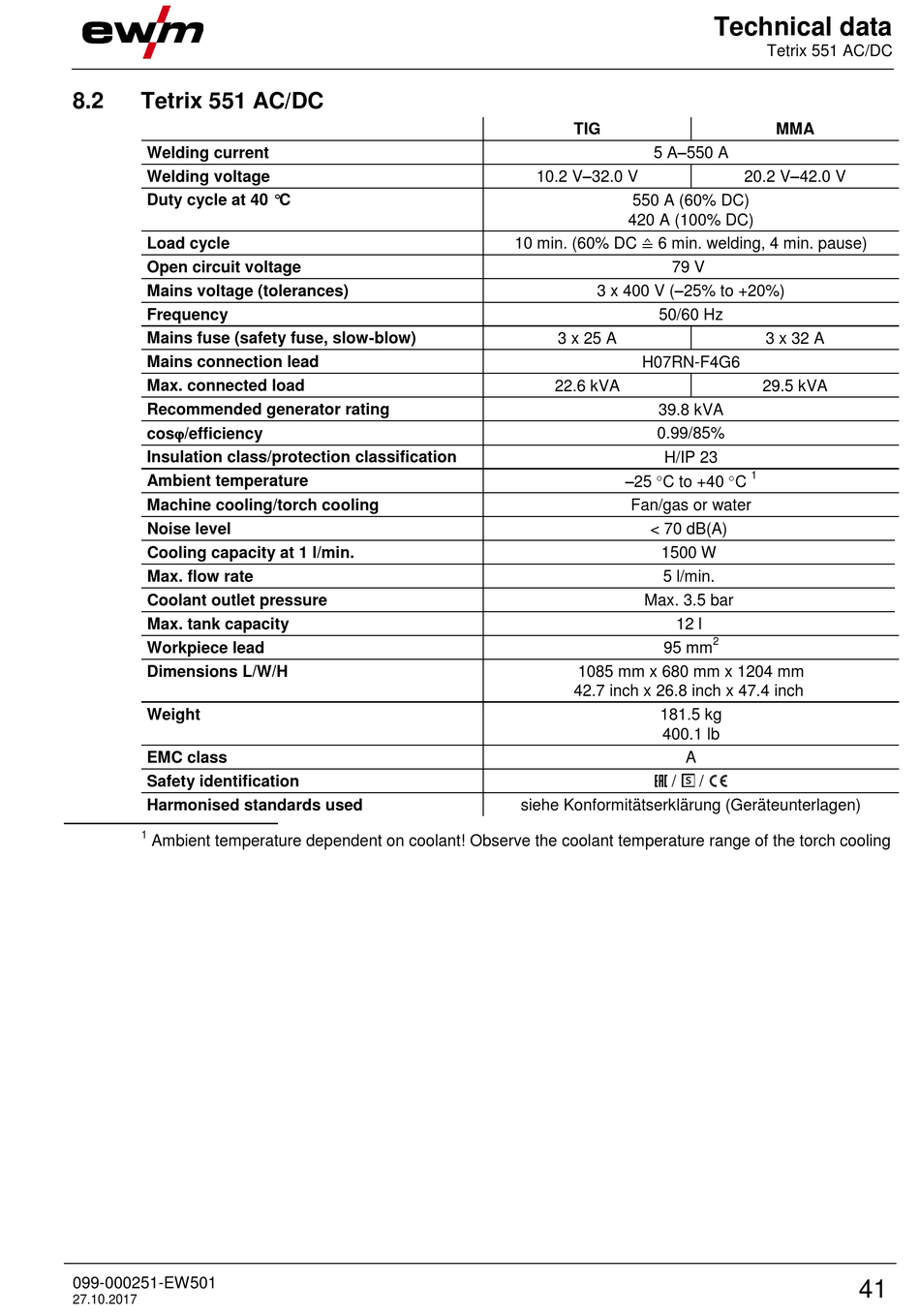

Tetrix 551 AC/DC

Welding current
Welding voltage
Duty cycle at 40 °C
Load cycle
Open circuit voltage
Mains voltage (tolerances)
Frequency
Mains fuse (safety fuse, slow-blow)
Mains connection lead
Max. connected load
Recommended generator rating
cos/efficiency
Insulation class/protection classification
Ambient temperature
Machine cooling/torch cooling
Noise level
Cooling capacity at 1 l/min.
Max. flow rate
Coolant outlet pressure
Max. tank capacity
Workpiece lead
Dimensions L/W/H
Weight
EMC class
Safety identification
Harmonised standards used
1
Ambient temperature dependent on coolant! Observe the coolant temperature range of the torch cooling
099-000251-EW501
27.10.2017
TIG
5 A–550 A
10.2 V–32.0 V
550 A (60% DC)
420 A (100% DC)
10 min. (60% DC ≙ 6 min. welding, 4 min. pause)
79 V
3 x 400 V (–25% to +20%)
50/60 Hz
3 x 25 A
H07RN-F4G6
22.6 kVA
39.8 kVA
0.99/85%
H/IP 23
–25 C to +40 C
Fan/gas or water
< 70 dB(A)
1500 W
5 l/min.
Max. 3.5 bar
12 l
95 mm
1085 mm x 680 mm x 1204 mm
42.7 inch x 26.8 inch x 47.4 inch
181.5 kg
400.1 lb
A
/
siehe Konformitätserklärung (Geräteunterlagen)
Technical data
Tetrix 551 AC/DC
MMA
20.2 V–42.0 V
3 x 32 A
29.5 kVA
