VERSION # 20-03- 11
1 / 9
MODEL #
CM7068CK/EK/Q/F
CM7066EK/CK/Q/F
CM7088CK/EK/Q/F
Questions?
GIVE US A CALL: 1-888-980-5122
MON – FRI 8:30AM – 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
3 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America Enrico CM7068CK
Summary of Contents for Furniture of America Enrico CM7068CK

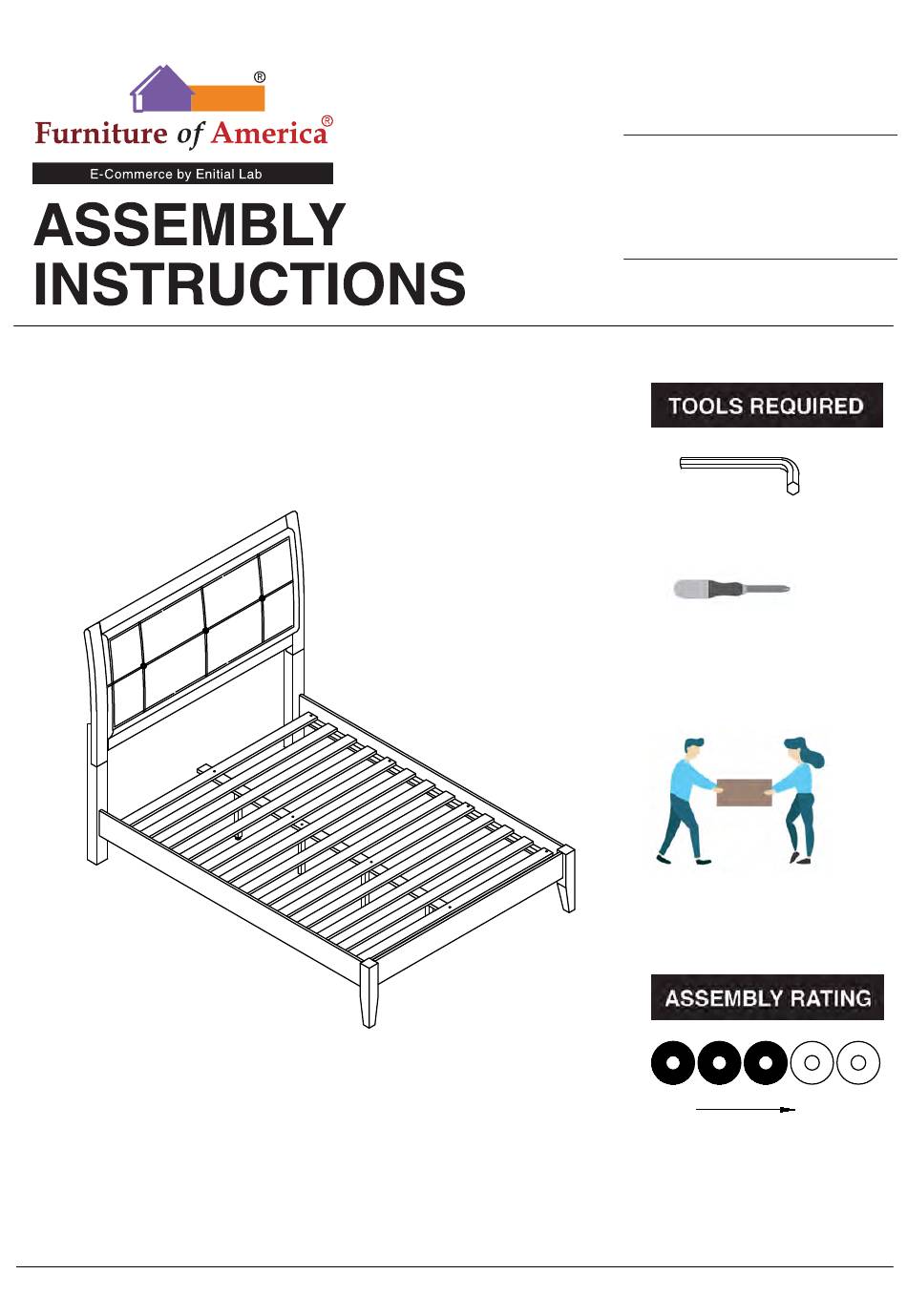

- Page 1 MODEL # CM7068CK/EK/Q/F CM7066EK/CK/Q/F CM7088CK/EK/Q/F Questions? GIVE US A CALL: 1-888-980-5122 MON – FRI 8:30AM – 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 3 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 9...
- Page 5 CM7068CK/EK/Q/F CM7088CK/EK/Q/F #1 1pc #2 2pcs #3 1pc #4 2pcs Headboard leg(L&R) Headboard Footboard Siderail #7 1 Set #5 1pc #6 4pcs (Ø5/16") Slat support leg Center Support Slat (13pcs) (150x30x30mm) #A 8pcs #B 8pcs #C 8pcs Lock Washer Ø5/16" Flat Washer Ø5/16"...
-
Page 6: Exploded View
Exploded View 6 / 9... - Page 7 CM7068-CM7088CK/EK/Q/F is packed in 3 cases Carton Disignation Part Hardware #A x 8pcs Headboard #B x 8pcs CM7068-CM7088 CK/EK/Q/F-HB #C x 8pcs Headboard leg (L&R) #D x 1pc CM7068-CM7088 Footboard CK/EK/Q/F-FB #E x 12pcs Siderail Center Support CM7068-CM7088 CK/EK/Q/F-R Slat support leg (150x30x30mm) Slat 7 / 9...
- Page 8 ASSEMBLY INSTRUCTIONS Align HB legs (#2R/L) to the headboard (#1), then secure by using bolts (#A) with Part #1 x1pc washers (#B,C). Part #2 x2pcs Hardware #A x8 pcs Hardware #B x8 pcs Hardware #C x8 pcs Part #3 x1pc Part #4 x2pcs Align and hook the side rails (#4) to the headboard (#1) and footboard (#3).
- Page 9 ASSEMBLY INSTRUCTIONS Part #5 x1pc Part #6 x4pcs Attach support legs (#6) to the slats (#5). Part #7 x1 Set Align slats (#7) to the side rails Hardware #E x12 pcs (#4), then secure by using screws (#E). 9 / 9...
