VERSION # 21-06-15
1 / 15
MODEL #
CM7031
Questions?
GIVE US A CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PT)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
3 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM7031
Summary of Contents for Furniture of America CM7031
- Page 1 MODEL # CM7031 Questions? GIVE US A CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PT) Allen Wrench (Included) Phillips Screwdriver (Not Included) 3 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X 1 5...
- Page 5 DAYBED CM7031 #1 1pc #2 1pc #3 2pcs #4 2pcs Headboard (L) Headboard (R) Bedside Bugs Trundle Side Panel #5 3pcs #6 2set #7 1pc #8 1pc Trundle Front Trundle Back Drawer Bottom Twin Slats Kit Frame Rail Panel (13pcs)
- Page 6 #D 8pcs #A 8pcs #B 8pcs #C 8pcs Lock Washer Bolt Barrel Nut Bolt Ø5/16" x 4" Ø1/4"x 1-3/16" #H 24pcs #E 8pcs #F 1pc #G 24pcs Screw Flat Waher Screw Allen Wrench #4x25mm #4x30mm #L 4pcs #I 8pcs #J 3pcs #K 6pcs Wheel Screw...
-
Page 7: Exploded View

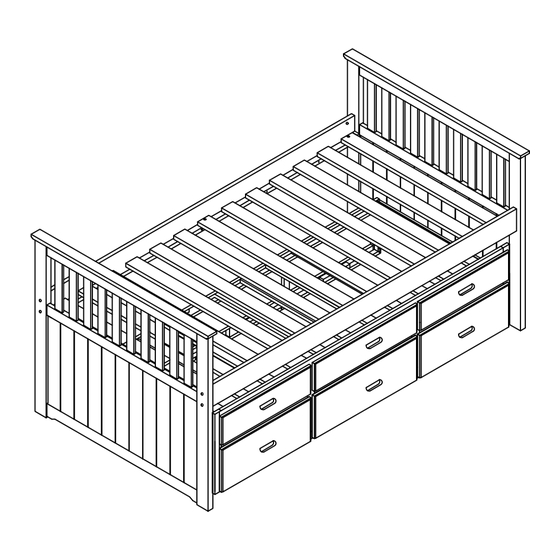

Exploded View #5,#10,#11,#12,#13 7 / 15... - Page 8 CM7031 is packed in 2 cases Carton Disignation Part Hardware Headboard (L) Headboard (R) Bedside Bugs(2pcs) CM7031-1 Trundle Side Panel (3pcs) Drawer Bottom Panel Twin Slats Kit (2 sets) #A x 8pcs Trundle Front Frame #B x 8pcs #C x 8pcs...
- Page 9 ASSEMBLY INSTRUCTIONS Part #1 x 1pc Part #2 x 1pc Part #3 x 2pcs Hardware #G x 6pcs 1. Align each end of the side rails (#9) to the holes along the head- boards (#1,2), Insert the barrel nuts (#C) into the holes along the sides of the side rails (#9), make sure the openings face the holes.
- Page 10 ASSEMBLY INSTRUCTIONS Place the twin slat kit (#6) onto the side rails (#9), then insert a screw (#G) into each end. Secure using a screwdriver. Part #6 x 1set Hardware #G x 6pcs Align the wheels (#L) to the holes along the bottom of the trundle front and back frames (#7,8).
- Page 11 ASSEMBLY INSTRUCTIONS Align the trundle side panels (#3) to the holes along the ends of the trundle back and front frames (#7,8). Insert a bolt (#B) with lock washer (#D) and flat washer (#E) into each hole. Secure using the Allen wrench. Part #4 x 2pcs Hardware...
- Page 12 ASSEMBLY INSTRUCTIONS Insert the wood dowels (#M) into the holes along the drawer front (#10), then place the drawer sides (#12,13) onto the other end of those dowels. Insert the screws (#H) into each hole, secure using a screwdriver. Part #5 x 1pc Part #10 x 1pc...
- Page 13 ASSEMBLY INSTRUCTIONS Align the guide rail (#N) to the holes along the bottom of the drawer, then insert the screws (#J,K) into the indicate Hardware #J x 1pc d hole. Secure using a screwdriver Hardware #K x 2pcs Hardware #N x 1pc Part #11 x 4pcs Part...
- Page 14 ASSEMBLY INSTRUCTIONS Place the twin slat kit (#6) onto the trundle, then insert a screw (#G) into each hole. Secure using a screwdriver. Part #6 x 1set Hardware #G x 6pcs 14 / 15...
- Page 15 ASSEMBLY INSTRUCTIONS 15 / 15...
