Related Manuals for Furniture of America CM7083D-M
Summary of Contents for Furniture of America CM7083D-M

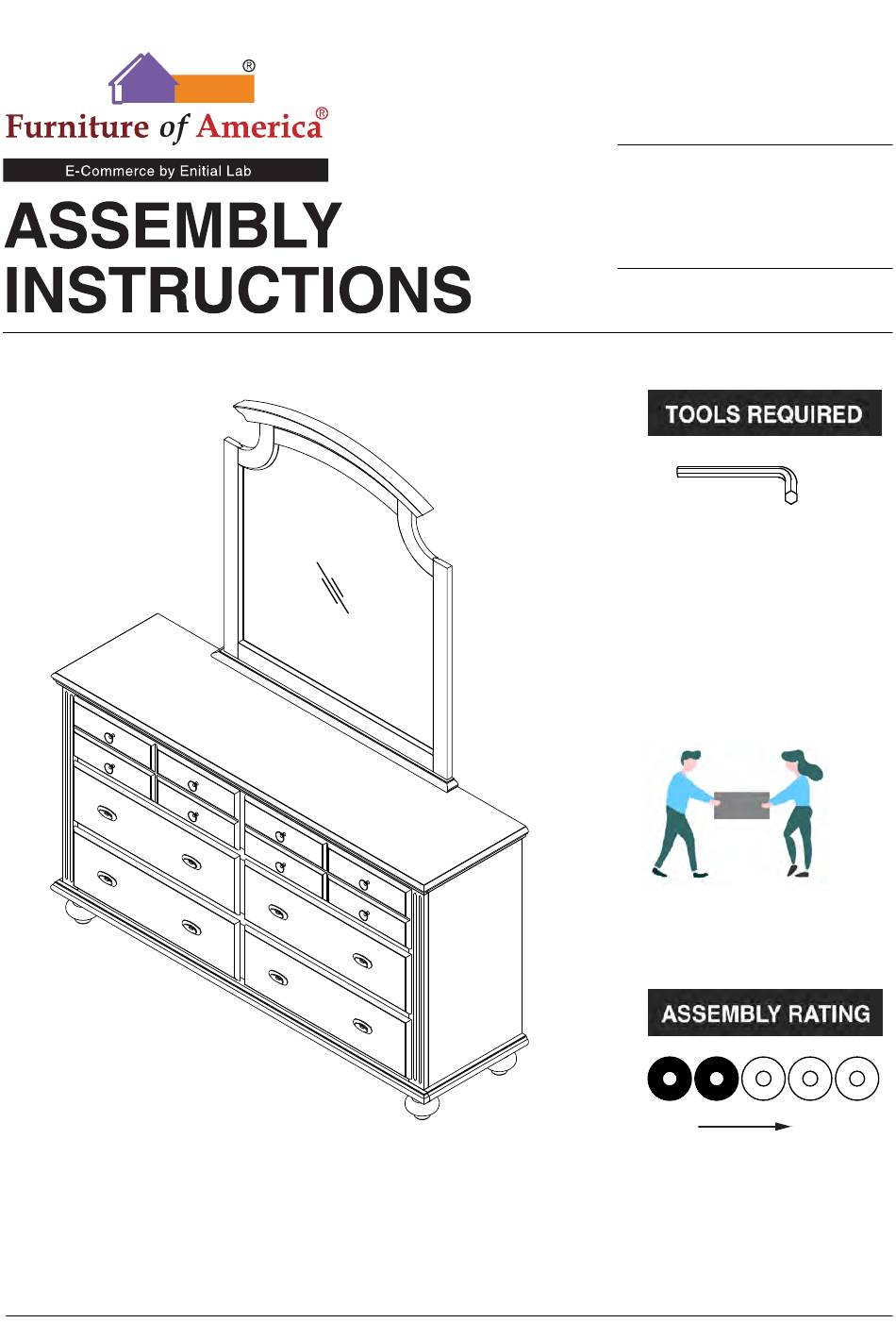

- Page 1 MODEL # CM7083D-M Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 Furniture America FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 1 0...
- Page 5 DRESSER & MIRROR CM7083D&M #1 1pc #5 1pc #4 2pcs #3 1pc #2 4pcs Dresser Bun Foot Support Leg Mirror Support Rail 103x30x30mm #A 6pcs #B 6pcs #C 1pc Bolt Ø1/4"x1-3/8" Flat washer Ø1/4" x 20mm Allen wrench (M4) #D 1set Anti-tip Skit 5 / X X X X X X X 1 0...
- Page 6 Exploded View 6 / X X X X X X X 1 0...
- Page 7 (packed With Dresser) 7 / X X X X X X X 1 0...
- Page 8 ASSEMBLY INSTRUCTIONS Attach feet (#2) to the dresser (#1). Part #1 x1pc Part #2 x4pcs Part #3 x1pc Attach support leg (#3) to the dresser (#1). 8 / X X X X X X X 1 0...
- Page 9 ASSEMBLY INSTRUCTIONS Align mirror supports (#4 4 ) to the mirror (#5 5 ), then secure by using bolts (#A) with washers (#B). Part #4 x2pcs Part #5 x1pc Hardware #A x6pcs Hardware #B x6pcs Hardware #D x1Set WALL 9 / X X X X X X X 1 0...
- Page 10 10 / X X X X X X X 1 0...
