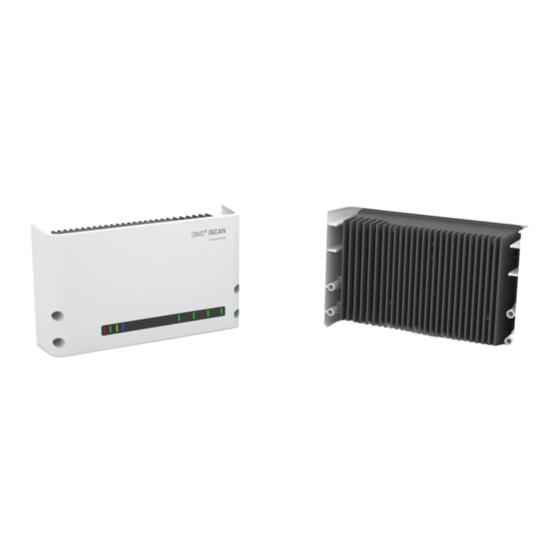

- Page 1 IDENTIFICATION Installation ID ISC.LRU3000 / ID ISC.LRU3500 UHF Long Range Reader M21015-4e-ID-B...
- Page 2 Composition of the information in this document has been done to the best of our knowledge. FEIG ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since, despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips.
-
Page 3: Table Of Contents
IDENTIFICATION ID ISC.LRU3000 / LRU3500 Contents Contents Contents Safety Instructions / Warning - Read before start-up ! Performance Features of Reader Family ID ISC.LRU3000 Performance features ......................6 Available Reader types ..................... 6 Available Accessories ....................... 6 Installation Terminals Antenna Connection ......................9 Power Supply ........................ - Page 4 IDENTIFICATION ID ISC.LRU3000 / LRU3500 Contents Technical Data Radio Approval Europe (CE) ........................27 USA (FCC) and Canada (IC) .................... 28 7.2.1 USA (FCC) and Canada (IC) warning notices ............28 7.2.2 Label Information ....................29 7.2.3 Installation with FCC / IC Approval ............... 29 7.2.4...
- Page 5 IDENTIFICATION ID ISC.LRU3000 / LRU3500 1 Safety Instructions 1 Safety Instructions ► The device may only be used for the intended purpose designed by for the manufacturer. ► The operation manual should be conveniently kept available at all times for each user.
-
Page 6: Performance Features Of Reader Family Id Isc.lru3000
2 Performance Features of IDENTIFICATION Reader Family ID ISC.LRU3000 2 Performance Features of Reader Family ID ISC.LRU3000 2.1 Performance features The Reader has been developed for reading passive data carriers, so-called „Smart Labels“, using an operating frequency in the UHF range. -
Page 7: Installation
IDENTIFICATION ID ISC.LRU3000 / LRU3500 3 Installation 3 Installation The Reader is designed for wall-mount, including outdoors. Holes for mounting on a wall are provided in the housing. It is not necessary to open the reader housing mounting. Fig. 1: Installation Drawing... -
Page 8: Terminals
IDENTIFICATION ID ISC.LRU3000 / LRU3500 4 Terminals 4 Terminals On the lower side of the reader housing the different cable connectors are positioned. Figure 2 shows the arrangement of the connectors and table 3 shows which connection for the different cables are used for. Table 4 shows the available push buttons. -
Page 9: Antenna Connection
IDENTIFICATION ID ISC.LRU3000 / LRU3500 4 Terminals 4.1 Antenna Connection The external SMA antenna connectors are positioned on the lower side of the reader. The maximum tightening torque for the SMA sockets is 0.45 Nm (4.0 lbf in). CAUTION: ... -
Page 10: Power Supply
IDENTIFICATION ID ISC.LRU3000 / LRU3500 4 Terminals 4.2 Power Supply 4.2.1 Power Supply via connection X1 The supply voltage of 24 V DC has to be connected to Terminal X1 Table 6: Pin assignment for power supply Terminal Abbreviation Description Vcc –... -
Page 11: Power Supply Via Power Over Ethernet (Poe)
IDENTIFICATION ID ISC.LRU3000 / LRU3500 4 Terminals 4.2.2 Power Supply via Power over Ethernet (PoE) Optional the reader (only LRU3500) can be powered via the LAN connector on X2 with the use of a PoE „Power over Ethernet“ power supply according to IEEE802.3at*, Class4 (30/25,5Watt). The DC supply can be achieved via the free pin’s 4,5 and 7,8 (Midspan-Power). -
Page 12: Interfaces
IDENTIFICATION ID ISC.LRU3000 / LRU3500 4 Terminals 4.3 Interfaces 4.3.1 Ethernet Interface on connector X2 (10/100Tbase) The Reader has an integrated 10 / 100 base-T network port for an RJ-45. Connection is made on X2 and has an automatic “Crossover Detection” according to the 100BASE-T Standard. -
Page 13: Usb Host Interface On Connector X4
IDENTIFICATION ID ISC.LRU3000 / LRU3500 4 Terminals 4.3.3 USB Host Interface on connector X4 The USB-Port X4 can be used for a standard USB Flash drive. Fig. 7: USB-Host Interface NOTE: USB Host shall not be used when the reader is powered via Power over Ethernet (PoE) 4.3.4 RS232 Interface on connector X6... -
Page 14: Rs485 Interface On Connector X6
IDENTIFICATION ID ISC.LRU3000 / LRU3500 4 Terminals 4.3.5 RS485 Interface on connector X6 The connection of the RS485 interface take place via the X6 connector as well. The interface parameter can be configured via software protocols.. Fig. 10: RS485 interface pin-outs on X6 (RS485-Interface) -
Page 15: Data-Clock Interface On Connector X5 For Scan Mode Only
IDENTIFICATION ID ISC.LRU3000 / LRU3500 4 Terminals 4.3.5.1 Address assignment of RS485 for bus operation For bus operation the Reader can be assigned the required bus address via software. The address is assigned by the host computer. The software is used to assign addresses “0” through “254” to the Reader. - Page 16 IDENTIFICATION ID ISC.LRU3000 / LRU3500 4 Terminals The digital outputs OUT1 and OUT2 are not available, if the data-clock interface is activated. The data as well as the clock need to be supplied with an external voltage. The output is configured for max.
-
Page 17: Digital Inputs On Connector X5
IDENTIFICATION ID ISC.LRU3000 / LRU3500 4 Terminals 4.4 Digital Inputs on connector X5 The optocouplers on Terminal X5 are galvanically isolated from the Reader electronics and must therefore be externally supplied. Fig. 13: Optocoupler pin-outs IN1 – IN5 Fig. 14: Internal and possible external wiring of the optocoupler inputs Optocoupler input (X5 / IN1-5): The input LED associated with the optocoupler is connected internally to a series resistor of 500 Ω. - Page 18 IDENTIFICATION ID ISC.LRU3000 / LRU3500 4 Terminals Table 10: Shows the necessary external resistors for various external voltages U External voltage U Required external series resistor 5 V ... 10 V 270 11 V ... 15 V 560 ...
-
Page 19: Outputs On Connector X5
IDENTIFICATION ID ISC.LRU3000 / LRU3500 4 Terminals 4.5 Outputs on connector X5 4.5.1 Digital outputs on connector X5 Optocoupler output (X5/1-2): The transistor connections, collector and emitter, of the optocoupler output are galvanically isolated from the Reader electronics and are carried to the outside without any internal ancillary circuitry on Terminal X5. The output must therefore be powered by an external power supply. -
Page 20: Relay Outputs On Connector X5
IDENTIFICATION ID ISC.LRU3000 / LRU3500 4 Terminals 4.5.2 Relay outputs on connector X5 There are 3 relay outputs available on connector X5. Fig. Relay output pin-outs REL1-3 CAUTION: The relay output is configured for max. 24 V DC / 2 A constant load. -
Page 21: Operating And Display Elements
ID ISC.LRU3000 / LRU3500 5 Operating and Display IDENTIFICATION Elements 5 Operating and Display Elements 5.1 Status LEDs Table 11 Shows the possible status of the LEDs: Host Warning ANT 1- 4 Communication Input Output Description Green Yellow Boot sequence (ca.10s) after power on... -
Page 22: Reset Push Buttons
ID ISC.LRU3000 / LRU3500 5 Operating and Display IDENTIFICATION Elements Green Yellow Description Configurations-Reset: FLASH FLASH FLASH While T1 is pushed and hold for at least 5s (light in sequence) After T1 has been pushed and hold for 5s. Configuration Reset has been finished. -
Page 23: Reader Power Adjustment
ID ISC.LRU3000 / LRU3500 5 Operating and Display IDENTIFICATION Elements 5.3 Reader Power adjustment To achieve the optimum reading performance it is necessary to set the reader output power to the highest allowed value. This depends on the used reader type (EU / FCC) and the regulation in the country were the reader is used. - Page 24 ID ISC.LRU3000 / LRU3500 5 Operating and Display IDENTIFICATION Elements If a linear polarized antenna is used which gain is less then 6 dBi (factor 4), or if a circular polarized antenna is used which gain is less then 9dBic the reader can always be configured to an output power of 1W.
- Page 25 IDENTIFICATION ID ISC.LRU3000 / LRU3500 6 Technical Data 6 Technical Data MECHANICAL DATA Housing Aluminum powder-coated Dimension (W x H x D) 259,8 mm x 157,3 mm x 68 mm 10.23 inch x 6.19 inch x 2.68 inch Weight 2,0 kg (4.4 lb)
- Page 26 IDENTIFICATION ID ISC.LRU3000 / LRU3500 6 Technical Data Outputs 2 x Optocoupler 24 V DC / 30 mA (galvanically isolated) 3 x Relay (1 x normal open) 24 V DC / 1 A (switching current), (2A constant load)
-
Page 27: Radio Approval
7 Radio Approval 7.1 Europe (CE) Hereby, FEIG ELECTRONIC GmbH declares that the radio equipment type ID ISC.LRU3000/3500 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.feig.de/en/downloads-support/declarations-of-conformity.html... -
Page 28: Usa (Fcc) And Canada (Ic)
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. NOTE: Changes or modification made to this equipment not expressly approved by FEIG ELECTRONIC GmbH may void the FCC authorization to operate this equipment. Page 28 of 30... -
Page 29: Label Information
IDENTIFICATION ID ISC.LRU3000 / LRU3500 7 Radio Approval 7.2.2 Label Information The following information must be placed at the outer side of the housing in which the reader is mounted. Contains FCC ID PJMLRU3000 Contains IC: 6633A-LRU3000 7.2.3 Installation with FCC / IC Approval FCC-/IC-NOTICE: To comply with FCC Part 15 Rules in the United States / with IC Radio Standards in Canada, the system must be professionally installed to ensure compliance with the Part 15 certification / IC certification. -
Page 30: Annex A: Accessories Following Optional Accessories Are Available
IDENTIFICATION ID ISC.LRU3000 / LRU3500 7 Radio Approval Annex A: Accessories Following optional accessories are available: Order No. Article Description Plastic Sealing Cap for Reader Connectors with Steel Conduit Pipe Thread (PG) for ID ISC.LRU3x00 and ID ISC.LRU1002 ID ISC.LR.CSC-IP64 3558.000.00...
