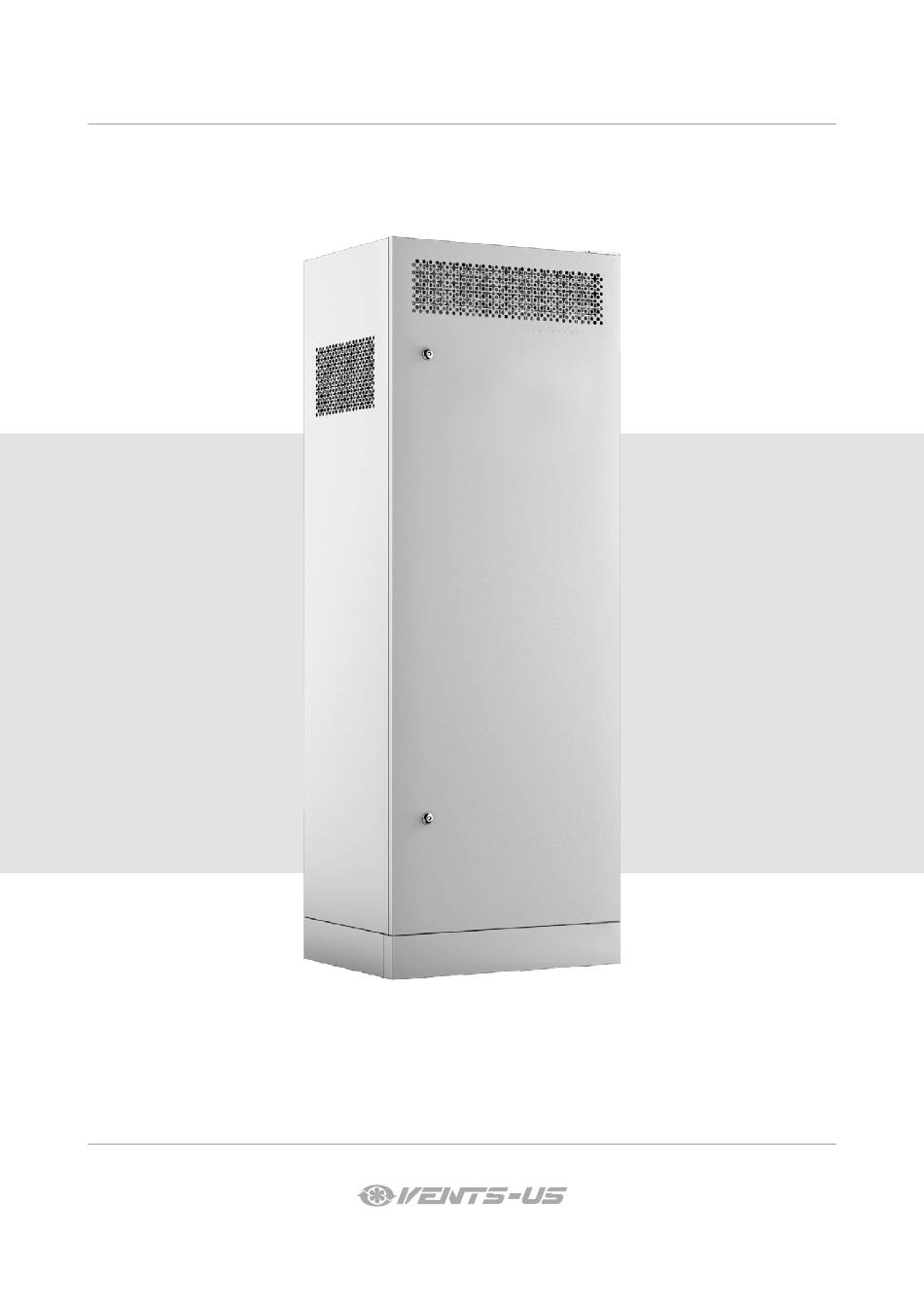

- Page 1 USER’S MANUAL DVUT 300 HB EC DVUE 300 HB EC Single-room heat recovery air handling unit...
-
Page 2: Table Of Contents
• Failure to follow the rules and safety precautions noted in this user’s manual may result in an injury or unit damage. • After a careful reading of the manual, keep it for the entire service life of the unit. • While transferring the unit control, the user’s manual must be turned over to the receiving operator. www.vents-us.com... - Page 3 • Do not sit on the unit and avoid placing foreign objects on it. • Use the unit only for its intended purpose. THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE. DO NOT DISPOSE THE UNIT AS UNSORTED DOMESTIC WASTE. www.vents-us.com...
-
Page 4: Purpose
Rated air capacity [m3/h (CFM)] 300 (188) Mounting features H: floor mounting, horizontal spigots Bypass air damper B: bypass damper included Motor type EC: electronically commutated motors Control A17; A18 Control panel location _ : remote control panel 1: built-in control panel www.vents-us.com... -
Page 5: Technical Data
69 11/16" 58 1/8" 11 9/16" *The unit height may be adjusted by means of leveling feet. Model DVUT 300 HB EC DVUE 300 HB EC Power supply voltage, 60 Hz [V] 1~120 Unit power consumption excl. electric heater [W]... -
Page 6: Design And Operating Principle
• CO2 sensor. Measures the level of concentration of carbon dioxide in the room and generates a signal that controls the performance of the fan. Air flow control based on CO2 concentration is an efficient energy saving solution. www.vents-us.com... -
Page 7: Mounting And Set-Up
MODEL D, inch А, inch B, inch Sewage system U-trap (hydraulic lock) DVUT 300 HB EC 8 7/8 23 5/8 13 3/4 DVUE 300 HB EC Condensate drain pipe * the dimension may be increased during adjustment of the unit by means of the levelling feet www.vents-us.com... - Page 8 After connecting the humidity sensor, it is necessary to change the control configuration in the controller. Contact the product Seller for doing that. Humidity sensor wiring white 0-10 VDC From the unit green controller brown +U (24 V AC/DC) www.vents-us.com...
-
Page 9: Connection To Power Mains
It is recommended to select the nominal current of the circuit breaker from the standard series, following the maximum current of the connected unit. The circuit breaker is not included in the delivery set and can be ordered separately. www.vents-us.com... - Page 10 *Additionally connected devices are not included in the delivery set, purchased separately. Connection of the external pGDE control panel (A18) Connection of the pGDE control panel is carried out with the 6P6C* (PLUG-6P6C-P-C2) phone connector. The connector is located on the top of the unit. www.vents-us.com...
-
Page 11: Control
Open the service door using the key. • Press slightly and release the retaining clips to remove the supply filters. • Pull the filters to remove. Install the filters in the reverse order. Release the supply filters by releasing the retaining clips www.vents-us.com... - Page 12 Duct maintenance means regular cleaning or replacement. 6. Control unit maintenance (as required). The control unit is located inside of the unit casing. For accessing the control unit remove the fixing screws on the panel and remove the control unit lid. www.vents-us.com...
-
Page 13: Troubleshooting
The unit must be transported only in the working position. • Avoid sharp blows, scratches, or rough handling during loading and unloading. • Prior to the initial power-up after transportation at low temperatures, allow the unit to warm up at operating temperature for at least 3-4 hours. www.vents-us.com... -
Page 14: Manufacturer's Warranty
If proof of sales date is absent, warranty period is calculated from the production date. The unit can be exchanged at the following address: Vents-US 400 Murray Road, Cincinnati, OH 45217, USA Tel: 1-888-640-0925, 513-583-5786, Fax: 513-268-4597 E-mail: support@ventsus.com... -
Page 15: Certificate Of Acceptance
The unit operates normally as intended by the manufacturer. Signature: WARRANTY CARD Unit Type Single-room heat recovery air handling unit Model DVUT/DVUE 300 HB EC A ________ Serial Number Manufacture Date Purchase Date Warranty Period Seller Seller’s Stamp www.vents-us.com... - Page 16 VUSA142EN-06...
