Related Manuals for AVANT A460917
Summary of Contents for AVANT A460917

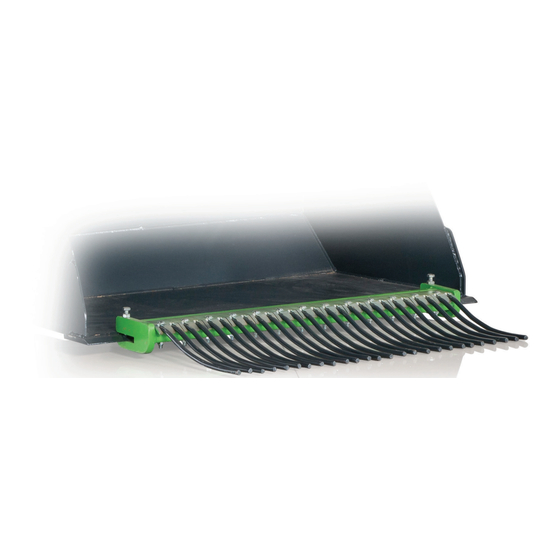

- Page 1 English Horse manure collector 2023 1 Operator's Manual for Attachment Horse manure collector Product number A36292 www.avanttecno.com A460917 2023 1 EN 2015-...
- Page 2 Horse manure collector 2023 1...
-
Page 3: Table Of Contents
Horse manure collector 2023 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ........................... 5 2. DESIGNED PURPOSE OF USE......................6 3. SAFETY INSTRUCTIONS FOR USING THE FRONT RAKE ............7 Personal protective equipment ..........................8 Safe shutdown procedure ............................8 4. -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Warning Symbols Used In This Manual
5 (18) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”... -
Page 6: Designed Purpose Of Use
A separate spare parts catalogue may be available, consult your Avant dealer. Familiarise yourself with the manual's instructions regarding service and maintenance. Please contact your AVANT dealer if you have additional questions about the operation or maintenance of the equipment, or if you require spare parts or maintenance services. -
Page 7: Safety Instructions For Using The Front Rake
7 (18) 3. Safety instructions for using the front rake Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. -
Page 8: Personal Protective Equipment
8 (18) 3.1 Personal protective equipment Remember to wear proper personal protective equipment: The noise level at the driver's seat may exceed 85 dB(A) depending on loader model and operating cycle. Extended exposure to loud noise can cause hearing impairment. Wear hearing protection while working with the loader. ... -
Page 9: Technical Specifications
Gap between forks: 23 mm Number of forks: 13 (double tines) Fits to: All Avant buckets with straight edge and minimum width of 960 mm Suitable AVANT loaders: See page 6 Table 3 - Main components of the Horse manure collector Frame... -
Page 10: Attaching The Attachment
10 (18) 5. Attaching the attachment The attachment is mounted to the bucket by using two fastening bolts as shown in the adjacent figure: 1. Fasten the Horse manure collector to the bucket by using fastening bolts (1). The bolts are tightened against the edge plate of the bucket. -
Page 11: Operating The Attachment
11 (18) 6. Operating the attachment Check the attachment and the operating environment once more before starting to work, and that all obstacles have been removed from the operating area. Quick inspection of the equipment and the operating area before use are parts of ensuring safety and the best performance of the equipment. -
Page 12: Use
12 (18) 6.3 Use Before starting to work: Read all safety instructions. Using the Horse manure collector: 1. Set attachment working position. Keep the bucket low and at a low angle as shown in the adjacent figure. 2. Drive slowly and carefully forwards. If your loader is equipped with a telescopic boom, you can utilize it for a better view to the working area. -
Page 13: Transport Position
13 (18) 6.4 Transport position When driving with the loader, keep the Horse manure collector and its base attachment in the position shown in the adjacent figure. Risk of tipping over - Keep the loader stable. Always transport the attachment as low and close to the ground as possible. -
Page 14: Storage With Base Attachment
14 (18) 6.5.1 Storage with base attachment Carefully lower the Horse manure collector together with a base attachment on pallets. For short term storage the attachment can be uncoupled from the loader together with the base attachment, if for example, the base attachment is needed only with the Horse manure... -
Page 15: Maintenance And Service
15 (18) 7. Maintenance and Service The attachment has been designed to be as maintenance free as possible. Continuous maintenance includes regular cleaning and lubrication, and monitoring the condition of the attachment. Because of the crushing hazard caused by lowering machine parts, all maintenance work must be done when moving parts have been lowered down completely and the attachment is lowered flat against the ground. -
Page 16: Warranty Terms
16 (18) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory.
