Installation, Operation, and Maintenance

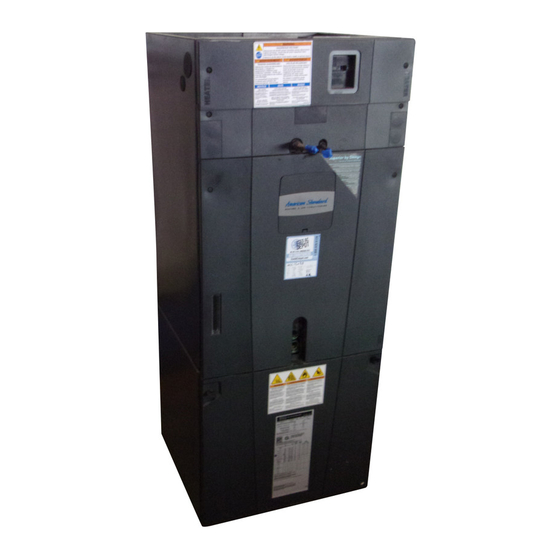

Convertible Air Handlers
1-1/2 – 5 Ton
Black Epoxy Coil
GAM5B0A18M11EB
GAM5B0A24M21EB
GAM5B0B36M31EB
GAM5B0C42M31EB
GAM5B0C48M41EB
GAM5B0C60M51EB
Only qualified personnel should install and service the equipment. The installation, starting up, and servicing of heating, ventilating,
and air-conditioning equipment can be hazardous and requires specific knowledge and training. Improperly installed, adjusted or
altered equipment by an unqualified person could result in death or serious injury. When working on the equipment, observe all pre-
cautions in the literature and on the tags, stickers, and labels that are attached to the equipment.
July 2023
Note: "Graphics in this document are for representation only.
SAFETY WARNING
18-GJ04D1-15B-EN
Actual model may differ in appearance."
