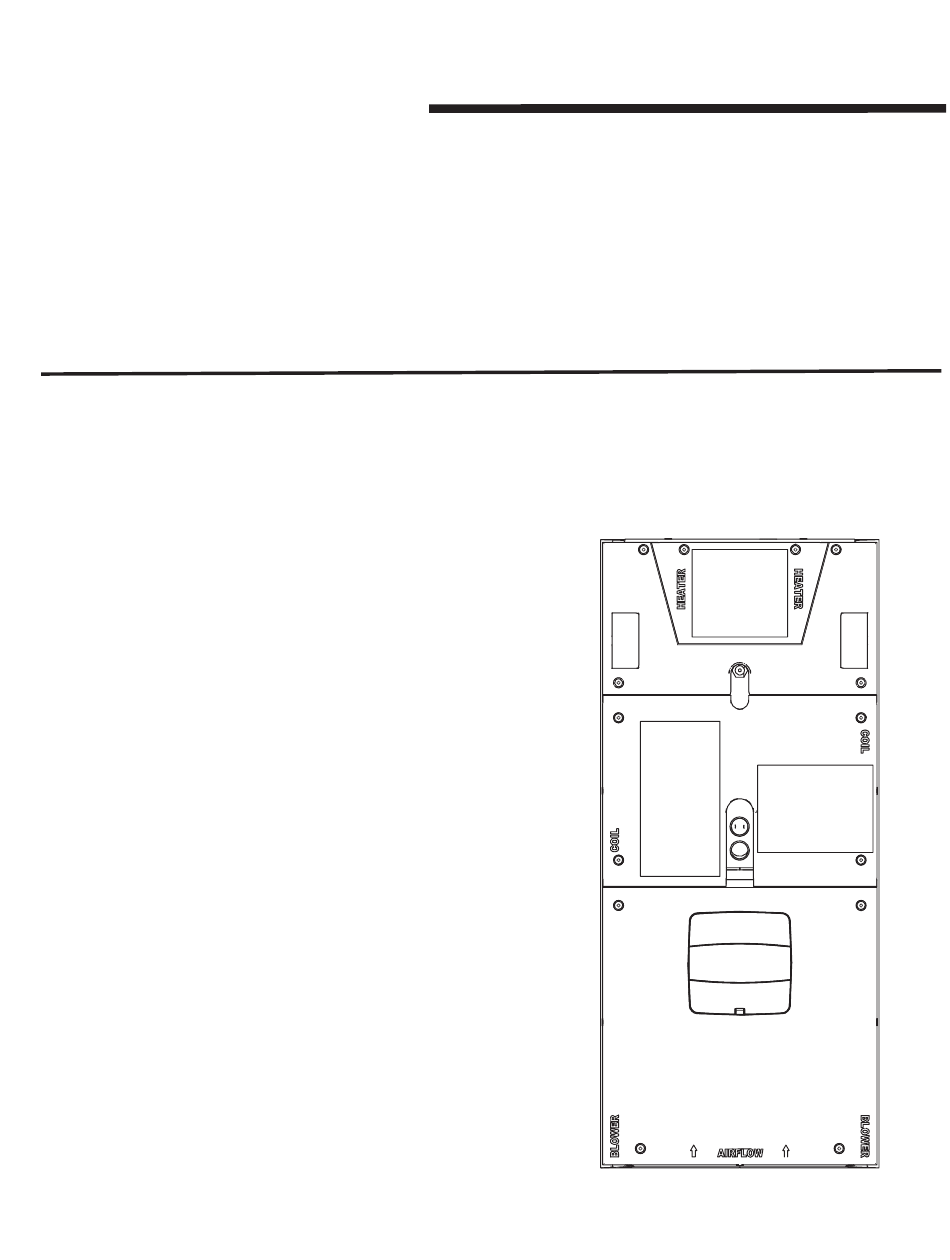

ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES
Important: This Document is customer property and is to remain with this unit. Please return to service information
pack upon completion of work.
Important: These instructions do not cover all variations
in systems nor provide for every possible contingency to
be met in connection with the installation. Should further
information be desired or should particular problems
arise which are not covered sufficiently for the pur-
chaser's purposes, the matter should be referred to your
installing dealer or local distributor.
Note: The manufacturer recommends installing ONLY
AHRI approved, matched indoor and outdoor systems.
Some of the benefits of installing approved matched
indoor and outdoor split systems are maximum efficien-
cy, optimum performance, and the best overall system
reliability.
Note: All AHRI ratings use a 90 second fan off delay.
Use your branded thermostat or separate relay to enable
this delay.
Note: Condensation may occur on the surface of the air
handler when installed in an unconditioned space. When
units are installed in unconditioned spaces, verify that
all electrical and refrigerant line penetrations on the air
handler are sealed completely.
Important: The GAF2 air handlers will only use the fol-
lowing internal electric heaters:
BAYECAA05LG1, BAYECAA08LG1, BAYECAA10LG1
Installer's Guide
60 HZ Convertible Air Handlers
1-1/2 – 3 Ton
Black Epoxy Coil
GAF2A0A18S11EE
GAF2A0A24S21EE
GAF2A0A30S21EE
GAF2A0A36S31EE
18-GJ24D1-9
Standard Coil
GAF2A0A18S11SE
GAF2A0A24S21SE
GAF2A0A30S21SE
GAF2A0A36S31SE
Advertisement
Table of Contents
Related Manuals for Trane GAF2A0A36S31EE
Summary of Contents for Trane GAF2A0A36S31EE
- Page 1 GAF2A0A24S21EE GAF2A0A24S21SE GAF2A0A30S21EE GAF2A0A30S21SE GAF2A0A36S31EE GAF2A0A36S31SE ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES Important: This Document is customer property and is to remain with this unit. Please return to service information pack upon completion of work.
-
Page 2: Table Of Contents
Table of Contents Section 1. Safety Information..................2 Section 2. Unit Design....................3 Section 3. Unit Preparation................... 5 Section 4. Optional Cabinet Disassembly..............6 Section 5. Place Unit at Location................. 9 Section 6. Unit Location Considerations..............10 Section 7. -
Page 3: Section 2. Unit Design
Section 2. Unit Design 2.1 Cabinet Penetration Important: Due to the unique design of this unit, which allows the electrical wiring to be routed within the insulation, do not screw, cut, or otherwise punc- ture the unit cabinet in any location other than the ones illustrated. - Page 4 To remove Coil Panel: 1. Use a screwdriver to remove the four screws on Coil Panel. Line Set Panel 2. Pull panel straight out, away from cabinet. 3. Set aside. Heater Panel To remove Blower Panel: 1. Use a screwdriver to remove the two screws on Blower Panel.
-
Page 5: Section 3. Unit Preparation
Section 3. Unit Preparation 3.1 Prepare The Unit For Installation STEP 1 - Check for damage and report promptly to the carrier any damage found to the unit. Note: If the unit must be transported in a horizontal position, it must be laid on its back (marked “REAR” on carton). -
Page 6: Section 4. Optional Cabinet Disassembly
Section 4. Optional Cabinet Disassembly 4.1 Disassemble cabinet for installation in tight areas or as needed. Note: If the unit must be transported in a horizontal position, it must be laid on its back (marked “REAR” on carton). Note: To reassemble cabinet, follow the steps in reverse order. - Page 7 STEP 3 - Slide Blower assembly out of unit using built-in blower support channels and set aside. Note: Remove the cardboard from the bottom of the blower. Cut the tie wrap and remove the foam block located at the motor. Blower Support Channel STEP 4 - Slide the Coil assembly out of unit using...
- Page 8 STEP 5 - For extremely tight spaces where the cabinet needs to be rotated through a small opening, remove the top panel and all cross members. Use a manual driver to avoid stripping screw holes. Note: Cross Members are removed by rotating them toward the door opening and then lifting up and out of the unit.
-
Page 9: Section 5. Place Unit At Location
Section 5. Place Unit at Location 5.1 Carry Unit STEP 1 - Carry the unit to the installation location. STEP 2 - Reassemble by reversing the steps listed in Section 4 if disassembly was required. Important: Under no conditions should metal strap- ping be attached to the unit to be used as support mechanisms for carrying or suspension purposes. -
Page 10: Section 6. Unit Location Considerations
Table 7.1 Unit Model H x D x W Net Weight Number lbs. GAF2A0A18S11EE 39 x 22 x 17.5 GAF2A0A18S11SE GAF2A0A24S21EE 39 x 22 x 17.5 GAF2A0A24S21SE GAF2A0A30S21EE 39 x 22 x 17.5 GAF2A0A30S21SE GAF2A0A36S31EE 39 x 22 x 17.5 GAF2A0A36S31SE... - Page 11 6.2 Three-Way Conversion To place the unit in the configuration your application requires (upflow, horizontal right, or horizontal left), simply turn the unit to that orientation. Note: The air handlers are shipped from the factory suitable for three-way application. Note: Entry for low voltage connections is allowed on either side of cabinet. Refrigerant Connections Low Voltage...
- Page 12 Airflow Low Voltage Horizontal Left Refrigerant Connections Condensate Connections Drains inside unit Horizontal Left Configuration Low Voltage Connections Refrigerant inside unit Connections Airflow Horizontal Right Condensate Drains Horizontal Right Configuration...
- Page 13 6.3 Minimum Clearance Table Minimum Unit Clearance Table To Combustible Material Service Clearance (Required) (Recommended) Sides 0” 2” Front 0” 21” Back 0” 0” Inlet Duct 0” Outlet Duct 0” 6.4 Non Ducted Applications CAUTION Supply Duct HAZARDOUS VAPORS! Do not install an air handler with a non-ducted return in the same closet, alcove, or utility room as a fossil fuel device.
- Page 14 6.6 Additional Unit Preparation Considerations • Consider the overall space needed when external For proper installation the following items must be con- accessories are used, additional height and width sidered prior to moving the unit to its installation site: requirements may exist. •...
-
Page 15: Section 7. Setting The Unit - Vertical Installation
Section 7. Setting the Unit - Vertical Installation 7.1 Considerations Provide a minimum height of 14 inches for proper unrestricted airflow below the unit. Allow a minimum of 21 inches clearance in front of the air handler to permit maintenance and removal of filter. •... -
Page 16: Section 8. Setting The Unit - Horizontal Installation
Section 8. Setting the Unit - Horizontal Installation 8.1 Considerations Important: Due to the unique design of this unit, which allows the electrical wiring to be routed within the insulation, do not screw, cut, or otherwise puncture Field Supplied the unit cabinet in any location other than the ones Isolators illustrated in this Installer Guide or in an approved ac- cessory’s Installer Guide. -
Page 17: Section 9. Connecting The Ductwork
Section 9. Connecting the Ductwork 9.1 Duct Connection Considerations Important: Due to the unique design of this unit, which allows the electrical wiring to be routed within the insulation, do not screw, cut, or otherwise punc- ture the unit cabinet in any location other than the ones illustrated in this Installer Guide or in an ap- proved accessory’s Installer Guide. -
Page 18: Section 10. Refrigerant Line
Connection GAF2A0A18S11EE, GAF2A0A18S11SE GAF2A0A24S21EE, GAF2A0A24S21SE GAF2A0A30S21EE, GAF2A0A30S21SE GAF2A0A36S31EE, GAF2A0A36S31SE Notes: 1. This table indicates the tubing connection diameters at the indoor coil. A field supplied re- ducing coupling may be required. 2. All AHRI listed systems are tested with 25 feet of refrigeration tubing; the rated tubing diam- eters are located in the electronic performance data system. -
Page 19: Section 11. Refrigerant Line Brazing
Section 11. Refrigerant Line Brazing 11.1 Braze The Refrigerant Lines STEP 1 - Remove Heater, Coil, and Line Set panels. Heater (See Section 2.2 Panel Removal) Panel Line Set Panel Coil Panel Important: Do NOT unseal coil refrigerant connec- tion stubs until ready to make connections. Important: Heat Sensitive Bulb. - Page 20 Important: Heat Sensitive Bulb. The temperature Bulb must be removed or a wet rag must be wrapped around the suction line between the Bulb and the braze joint to protect the Bulb from failure due to overheating. STEP 8 - Braze refrigerant line connections. Note: The suction line must be insulated prior to brazing the line set to the air handler stubs.
- Page 21 Important: Do not open the service valves until the refrigerant lines and indoor coil leak check and evacu- ation are complete. 0350 Microns STEP 12 - Evacuate until the micron gauge reads no higher than 350 microns, then close off the valve to the vacuum pump.
-
Page 22: Section 12. Condensate Drain Piping
Section 12. Condensate Drain Piping 12.1 Condensate Drain Piping Considerations • Condensate drain plumbing must comply with na- • Do not use reducing fittings in the condensate drain lines. tional, state, and local codes. • Route condensate drain lines away from air handler •... - Page 23 STEP 4 - Install a clean-out tee in the primary drain line for future maintenance. It is recom- mended that you install a cap on the top of the tee. 1.5” minimum 1.5” min. clearance is recommended from cabinet to inside edge of tubing STEP 5 - Insulate the primary drain line to...
-
Page 24: Section 13. Electrical - Low Voltage
Section 13. Electrical - Low Voltage 13.1 Low Voltage Maximum Wire Length Table 13.1 defines the maximum total length of low Table 13.1 voltage wiring from the outdoor unit, to the indoor 24 VOLTS unit, and to the thermostat. WIRE SIZE MAX. - Page 25 STEP 3 - Make connections per hookup diagrams. Tuck the wire nut connections into the recess in the cabinet wall. Air Handler Hook-up Diagram Cooling W1 White Blue Air Handler Air Conditioner Comfort Control White White Blue Yellow Green Green Yellow Yellow Orange...
-
Page 26: Section 14. Electrical - High Voltage
STEP 4 - Replace Coil panel making sure that the wires are located within the wire pass-through pro- vided in the panel. Section 14. Electrical - High Voltage 14.1 High Voltage Power Supply The high voltage power supply must match the WARNING equipment nameplate. - Page 27 14.2 Make Electrical Connections STEP 1 - Route High Voltage wiring to unit. Conduit Entry Point with Guides STEP 2 - The conduit entry point is located on the top of the unit when in the Upflow configuration. Drill a hole for the desired conduit size (up to 3/4”) on units without a plug.
-
Page 28: Section 15. Filters
STEP 5 - Reinstall all panels before starting the air handler. Section 15. Filters 15.1 Filter Considerations • Since a filter option is not included within the air handler, a remote filter must be installed with the system. • For customer ease of fil ter maintenance, it is recommended that a properly sized remote filter grill(s) be installed for units that are difficult to access. -
Page 29: Section 16. Unit Outline Drawing
Section 16. Unit Outline Drawing... -
Page 30: Section 17. Start Up
Section 17. Start Up 17.1 System Charge Adjustments System Matched with: Indoor Unit Model No. Outdoor Unit Model No. Subcooling 4TWR3036C1 13 SEER HP GAF2A0A36S31 4A6H3036C1 6° 4TWB3036C1 All other matches must be charged per the nameplate charging instructions. 17.2 System Start Up STEP 1 - Make sure all panels are securely in place and that all wiring has been properly dressed and secured. -
Page 31: Section 18. Sequence Of Operation
Section 18. Sequence of Operation 18.1 Sequence of Operation GAF2 Sequence of Operation See unit, electric heat, and field wiring diagrams Cooling OD for additional information. 1. R-Y contacts close on the comfort control sending 24VAC to the OD unit. Continuous Fan 2. - Page 32 The manufacturer has a policy of continuous product and product data improvement and it reserves the right to change design and specifications without notice. 6200 Troup Highway Tyler, TX 75707 © Trane U.S. Inc. 2015 www.trane.com...
