Summary of Contents for Elegoo MARS 4

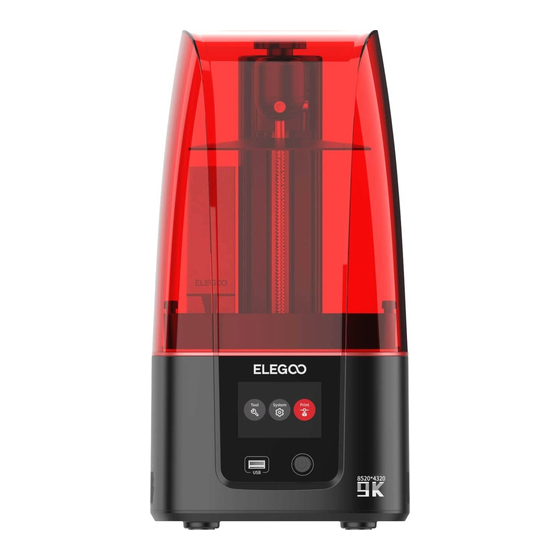

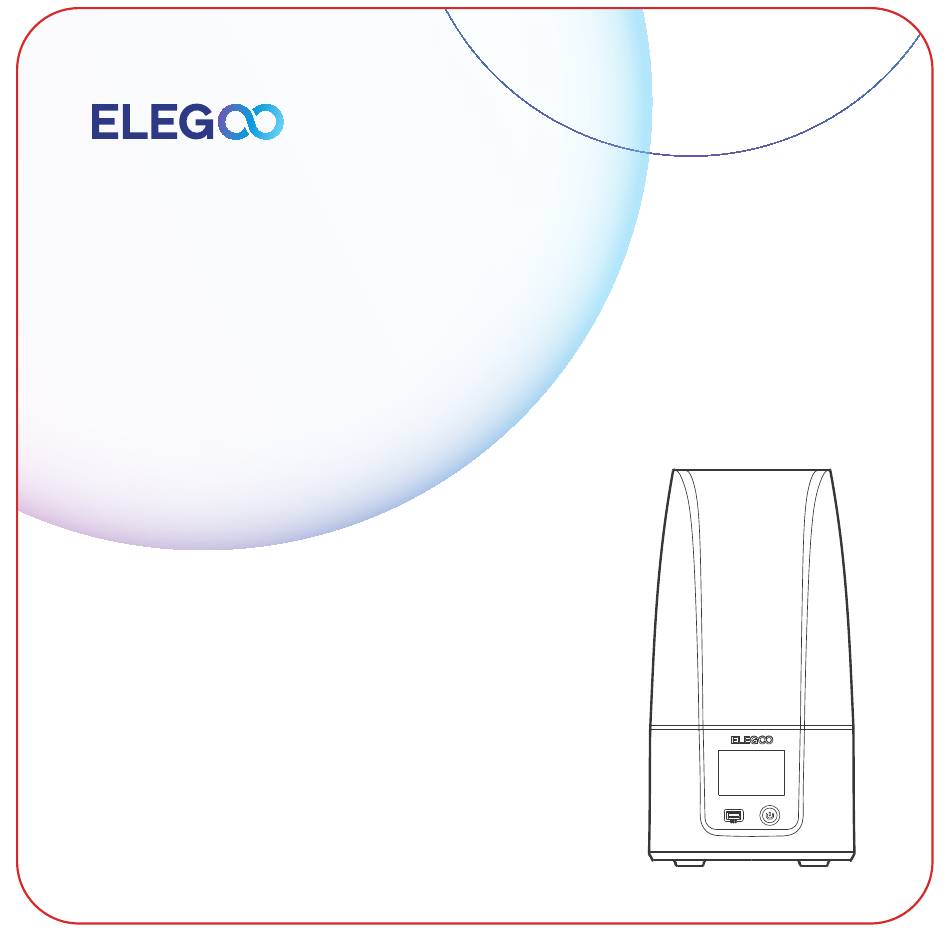

- Page 1 MARS 4 3D Printer User Manual...
- Page 2 After receiving the product, please confirm whether the equipment is intact and the accessories are complete. If there is any damage or missing, please timely contact us at 3dp@elegoo.com. (To ensure the performance of each product, each product will undergo strict printing tests before leaving the factory.
- Page 3 If the release film in the resin tank is whitened, scratched, or has no elasticity, the printing failure rate is high, please replace the release film in time. If you have any problems with the printer, please contact us at 3dp@elegoo.com. Please do not disassemble or modify ELEGOO 3D printers by yourself, otherwise, the warranty will expire.
- Page 4 3D Printer Tech Specs System: EL3D-3.0.1 Operation: 3.5-inch Touch Screen Printing Parameter Slicer Software: Chitu Box & Voxeldance Tango Connectivity: USB Interface Technology: MSLA Stereolithography Light Source: COB (wavelength 405nm) XY Resolution: 18*18um (8520*4320) Printing Specification Z-axis Accuracy: 0.02mm Layer Thickness: 0.01-0.2mm Printing Speed: MAX 70mm/H Power Requirements: 100-240V 50/60 Hz 24V 3A Dimension: 227mm(L)*227mm(W)*438.5mm(H)
-
Page 5: Packing List
Packing List USB Air Purifier Build Platform Resin Tank U Disk Mask Gloves Funnel Backup Screws User Manual MARS 4 3D Printer Adapter Tool Kit Scraper... -
Page 6: Printer Introduction
Printer Introduction Z Axis Screw Knob Build Plate LCD Display Screen Resin Tank USB Interface Switch Touch Screen Screw Knob Air Purifier... - Page 7 Printer Introduction DC Socket Anti-UV Cover...
- Page 8 Leveling 1. Remove the resin tank, lock the screw knob ) of the build plate, and then loosen the 2 fixing screws ( ) of the build plate until the build plate can move freely. (See Picture 1) A4 Paper (Picture 1) A4 Paper (Picture 2)
- Page 9 Leveling Pull the leveling card. If you find there is a slight resistance during this process, you can go directly to step 5. (Note: If there is no resistance when pulling out the leveling card, please click the Z-axis "down" button (in steps of 0.1mm) until there is a slight resistance to pull the leveling card.
- Page 10 6. Take away the leveling card, and click the "Tool" - "Exposure" - "Next" buttons to test the LCD screen and LED light source. If the LCD can display "ELEGOO TECHNOLOGY www.elegoo.com", then the 3D printer works perfectly. At this time, the leveling is completed, install the resin tank and ready for printing.
-
Page 11: Test Printing
After the printing is completed, wait until the resin on the build plate stops dripping, then loosen the screw knob of the build plate to remove it and remove the model with a scraper. You can use ELEGOO's cleaning and curing machine to post-process the model. (See Picture 9) -
Page 12: Software Installation And Setup
Software Installation and Setup The printer can install and use Chitu Box and Voxeldance Tango slicing software in the USB flash drive, here we take Voxeldance Tango as an example. 1. Install Voxeldance Tango Select the right version of slicing software on the USB flash drive and install it on your computer. 2. - Page 13 2) Scroll the mouse wheel to zoom in or zoom out the model. 3) Long press the right mouse button and rotate to see different perspectives of the model. 3. Voxeldance Tango Setting 3.1 Click "Parameter Settings" and choose ELEGOO MARS 4 as your default printer. (See Picture 12) （Picture 12）...
- Page 14 Software Installation and Setup 3.3 Resin Parameter (See Picture 14) Resin Density: 1.1g/ml Resin Cost: You can input the real price of the resin you purchased, and the slicing software can calculate the resin costs for each model you print. 3.4 Parameters (See Picture 14) Layer Height:...
- Page 15 Software Installation and Setup Bottom Wait After Lift: When printing the bottom layer, the time difference between the build platform starting stationary and starting to return to the printing surface after lifting, the default setting is 0 seconds. Bottom Wait Before Cure: When printing the bottom layer, after the build platform moves to the printing surface, the time difference between the build platform starting stationary and the start of exposure, the default setting is 0.5 seconds.
- Page 16 Software Installation and Setup （Picture 14） 4. Save the Model After setting up all parameters, click "Slice", and once it's done, click "export sliced files to U Disk or SD Card"; then insert the U disk or SD card into your printer, and start printing. (See Picture 15) D:/Pre-sliced Test Model.goo （Picture 15）...
-
Page 17: Machine Maintenance
Machine Maintenance Please do not use sharp or pointy tools to scrape the resin tank to avoid damaging the release liner film. Please clean up the resin tank before changing the resin to another color. Before and after printing, clean the build plate with paper towels or alcohol to ensure that there are no bumps or burrs on the build plate. -
Page 18: Warranty Statement
Warranty Statement 1. From the date of purchase, ELEGOO printer is entitled to 1-year free warranty service, except for consumables of the LCD screen and the release film. 2. The LCD screen enjoys a 6-month free warranty service. 3. The free warranty does NOT include problems caused by self-disassembly and improper use,... - Page 19 Email Support Discussion Forums Help Articles...
