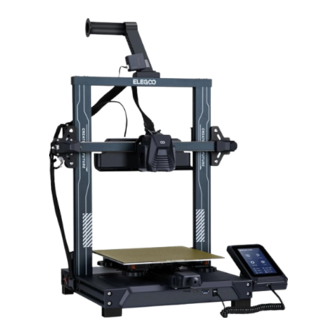

- Page 1 User Manual for NEPTUNE 4 PRO 3D Printer Pictures are only for illustration purpose, please take actual product as standard. V1.2...
- Page 2 For questions or problems not covered in this manual, please contact us at this email address: 3dp@elegoo.com. ELEGOO team is always ready to provide you with quality service. To give you a better experience of our products, you can also gain knowledge of the operation of the equipment in the following ways: 1.The instruction manual:You can find related instructions and videos in the U disk.
- Page 3 Cautions 1. Do not place the printer in vibrating or other unstable environments, as the shaking of the machine will affect the print quality. 2. Do not touch the nozzle and heatbed when the printer is working to prevent high-temperature scald and personal injury.
-
Page 4: Table Of Contents
Contents Machine Parameters --------------------------------------------------- Machine Structure Diagram ------------------------------------------- Packing List --------------------------------------------------------------- Machine Installation ----------------------------------------------------- Operation Screen Introduction ---------------------------------------- Auto Leveling ------------------------------------------------------------- Model Test ----------------------------------------------------------------- Resume Printing Description ------------------------------------------ Software Installation ----------------------------------------------------- LAN Printing --------------------------------------------------------------- Troubleshooting Guide ------------------------------------------------- Circuit wiring --------------------------------------------------------------... -
Page 5: Machine Parameters
Machine Parameters Print Parameters Software Parameters Print Principle: FDM（Fused Deposition Modeling） Slicer Software: Cura Build Size: 225X225X265(mm³) Input Format: STL、OBJ Print Precision: ±0.1mm Output Format: Gcode Nozzle Diameter: 0.4mm Connection Type: U Disk, LAN Print Speed: 30~500mm/s Power Supply Parameters Temperature Parameters Power Input: 100-120V/220-240V... -
Page 6: Machine Structure Diagram

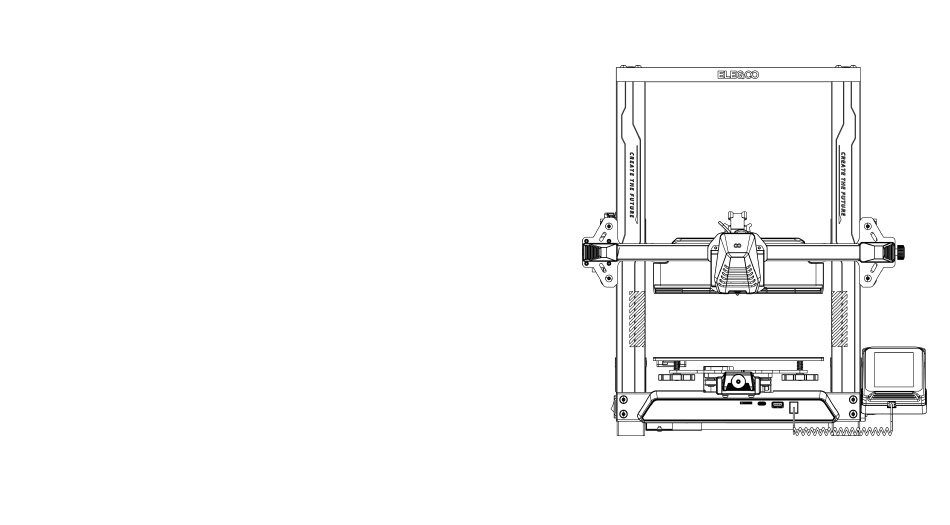

Machine Structure Diagram Filament tube Filament holder Filament detector switch Timing Pulley Lead Screws T8 X-axis limit X-axis belt X-axis switch tensioner Nozzle kit stepper Build ① Rigid Coupling TF card interface platform Y-axis ② Type-C interface stepper ① ③ U disk socket ②... -
Page 7: Packing List
（HM5*45）4pcs （PM4*45）3pcs （PM4*20）3pcs （PM4*18）2pcs （PM3*16）2pcs （PM3*8） 4pcs （PM4*8） 1pcs （HM4*M3*3) 1pcs Tools ELEGOO 3D Printer (1.5 / 2.0 / 2.5 / 3.0 / 4.0) The above accessories shall be subject to actual products, and the pictures are for reference only. -
Page 8: Machine Installation

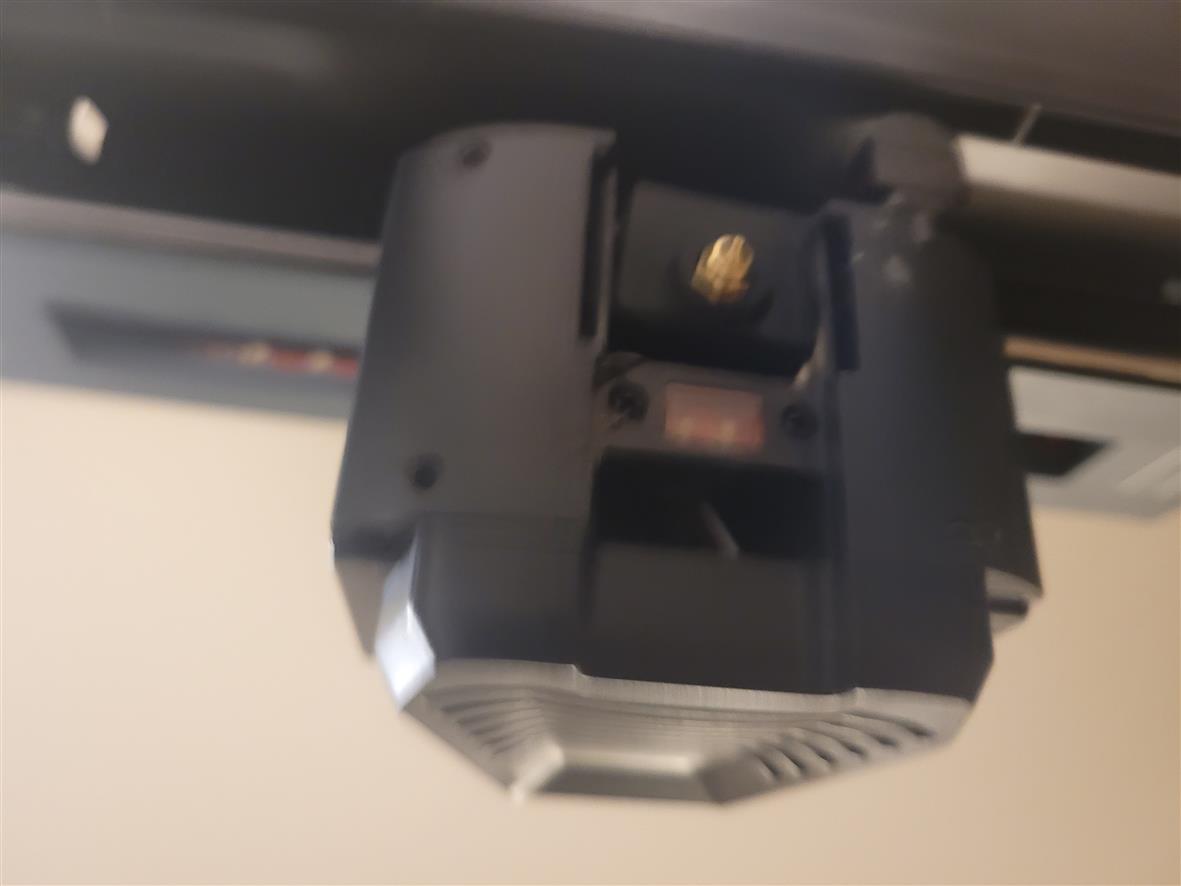

Machine Installation ① ② Attached U disk with an installation instruction video. Print head installation: Use two M3x16 screws to fix the print head through the holes of the cable fastener; two M3x8 screws to fix the underside of the print head. ①... - Page 9 ③ ④ （PM4*20）3pcs （HM5*45）4pcs...
- Page 10 ⑤ ⑥ （HM4*M3*3) 1pcs Filament detector installation: （PM4*18）2pcs Cable clamp installation: （PM4*8） 1pcs When installing, you need to organize the cables and fold them together to install and fix them.
- Page 11 ⑦ ⑧ Filament detector switch X-axis limit switch X-axis stepper Z-axis stepper Please adjust the （PM4*45）3pcs voltage to match the local voltage before use.
-
Page 12: Operation Screen Introduction
Operation Screen Introduction Moving distance Set Y=0 Set X=0 Gcode file display Reset to zero Set Z=0 Main Interface Motor unlock Left and right page keys Three interfaces: movement, temperature, Extruder Print Documents Prepare Interface Language switching Temperature display Preset temperature Lighting control Fan control Compensation settings... - Page 13 Instructions for use of the rear cooling fan: Users can click the fan icon to adjust the air outlet status of the rear cooling fan during the printing process. The fan has three modes: mute / normal / violent, please adjust according to the printing situation, as shown in the picture below.
-
Page 14: Auto Leveling
Auto Leveling When first running the machine, the distance between the platform and the nozzle needs to be calibrated in the leveling mode, which is about the thickness of a piece of A4 paper . When the printer is powered on, select 【Level】. Note that the leveling sensor only detects the metal platform plate, for Each axis of the printer automatically returns to the home position, after entering the leveling page, place a piece of A4 paper between the nozzle... -
Page 15: Model Test
Model Test Print Head Feeding Check First push the filaments to the bottom of the print head. Click 【Prepare】 - 【Extrudert】, click 【Load】, the temperature of the nozzle will be automatically heated to 200°C. After the nozzle is preheated to 200°C, click the feed to extrude the filaments from the nozzle. -
Page 16: Resume Printing Description
As shown in the picture: ① ③ When fine-tuning, please switch the moving distance to 0.01mm or 0.1mm to prevent the nozzle from extruding the platform excessively or filament hanging in the air. ② Resume Printing Description Power Loss Recovery： If you want to continue printing because of a sudden power outage or accidentally turn off the power of the machine, this function does not need to be set manually. -
Page 17: Software Installation
The software installation steps are as follows: Open the attached U disk file and select the path \ Software and Software Drivers folder \ ELEGOO Software folder \ Double- click the ELEGOO-Cura application to install it. - Page 18 Instructions for Use Other operation tips： ① Scroll the middle mouse wheel to zoom the viewpoint, and hold down the middle wheel to move the platform position. ② Press and hold the right mouse button to move the mouse to change the viewpoint. Import model ③...
-
Page 19: Lan Printing
LAN Printing After the device is plugged into the network cable, power on the device and check the IP address through the on-screen information. It is recommended to use Google Chrome to access. l Note that the machine and the computer can only be connected to the LAN of the same network segment, and make sure that the circuit wiring port on the machine has already connected, otherwise the access will fail. - Page 20 Temperature Display: display the machine temperature heating condition, and the preheating printhead temperature and hot bed temperature can be set in advance. Console: G-code commands can be sent to run the machine. Task List: drag the G-code file of the Elegoo Cura slice to the task list here for printing.
-
Page 21: Troubleshooting Guide
Troubleshooting Guide A stepper of the X/Y/Z axis is not moving or making a noise when zeroed ① The stepper cable is loose. Please recheck the wiring connection. ② The corresponding limit switch does not trigger properly, please check whether there is any interference in the movement of the corresponding shaft and whether the limit switch wire is loose. -
Page 22: Circuit Wiring
Circuit wiring X axis Y axis Z axis E axis E1 axis Model light stepper stepper stepper stepper stepper ④ Proximity switch Extrusion motor Hotend thermosensitive ⑤ ⑦ Proximity switch Model fan Throat pipe Lighting cooling fan ① ⑥ Model light Model fan Heating pipe ②... - Page 23 After-sales service registration card 售后服务登记卡 Place of purchase Date of purchase ： ： 购买地点 购买日期 Printer ： ： 机器 序列号 Fault description ： 故障描述 Contact Phone number 联系人： 电话号码： Address 地址：...
- Page 24 ELEGOO official website: www.elegoo.com...
