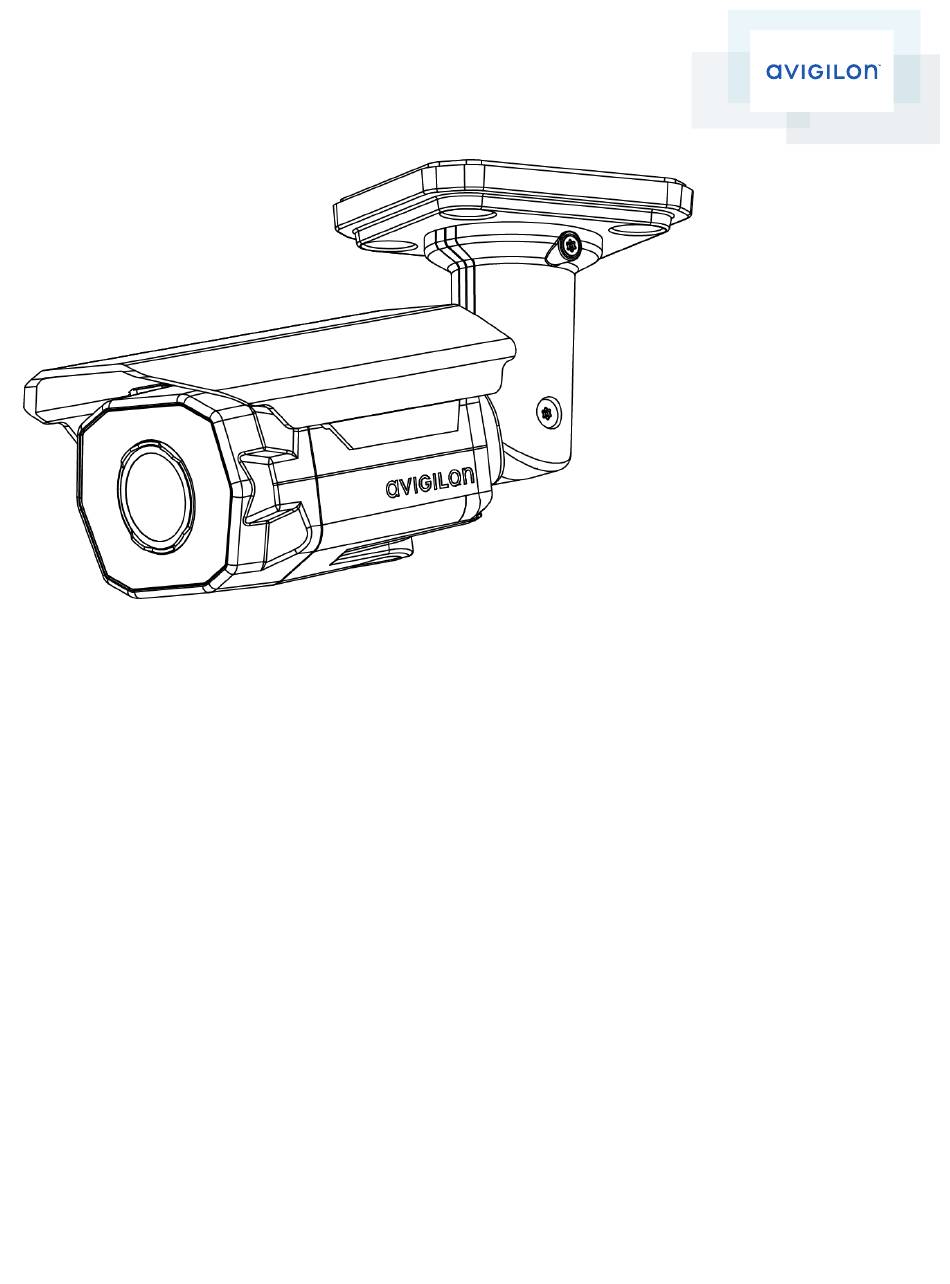

- Page 1 Installation Guide Avigilon™ High Definition IP Bullet Camera Models: H3-BO1-IR, H3A-BO1-IR, H3-BO2-IR, H3A-BO2-IR...
- Page 2 Power Source” with output rated 12 VDC or 24 VAC, 22 W min. or Power over Ethernet (PoE), rated 48 VDC, 22 W min. Any external power supply connected to this product may only be connected to another Avigilon product of the same model series. External power connections must be properly insulated.
- Page 3 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Changes or modifications made to this equipment not expressly approved by Avigilon Corporation or parties authorized by Avigilon Corporation could void the user’s authority to operate this equipment.
- Page 4 The contents of this document and the specifications of the products discussed herein are subject to change without notice. Neither Avigilon Corporation nor any of its affiliated companies guarantees the completeness or accuracy of the information contained in this document and is not responsible for your use of, or reliance on, the information.
-
Page 5: Table Of Contents
Table of Contents Overview Front View Bottom View Side View Installation Camera Package Contents Precautions for Installing Near Salt Water Installation Steps Adding the Mounting Holes Connecting Cables Mounting and Aiming Video Analytics Cameras Mounting the Camera Assigning an IP Address Accessing the Live Video Stream Aiming the Camera Focusing the Camera... -
Page 6: Overview
Overview Front View 1. Sun Shroud An adjustable cover to help protect the lens against glare from the sun. 2. IR Illuminator Provides scene illumination in the IR spectrum. Overview... -
Page 7: Bottom View
Bottom View 1. Connection Status LED Provides information about device operation. For more information, see LED Indicators on page 9 2. Configuration Panel Quick access port for configuring the camera during installation. To access the Configuration Panel, remove the plug with the supplied opening tool. 3. -
Page 8: Side View
Side View 1. Sun Shroud Mount Mounting bracket for the sun shroud. 2. Mount Arm Adjustable mount arm for positioning the camera. 3. Mounting Bracket Allows the camera to be flush mounted or surface mounted. 4. Adjustment Screws Provides a locking mechanism for the mount arm. Side View... -
Page 9: Installation
Follow these precautions to avoid camera issues when installing in a salt heavy environment: Use mounting accessories offered by Avigilon. All Avigilon accessories are tested to work with Avigilon cameras in the rated environments. -
Page 10: Adding The Mounting Holes
Indicators on page 9. Mounting and Aiming Video Analytics Cameras If you are installing an Avigilon™ video analytics camera, follow the listed mounting and aiming recommendations to maximize the camera's analytics capabilities: The camera should be installed above 274 cm (9'). -
Page 11: Assigning An Ip Address
Live video stream can be viewed using one of the following methods: Web browser interface: http://<IP address>/ Network Video Management software application (for example, the Avigilon Control Center software). NOTE: The default camera username is admin and the default camera password is admin. -
Page 12: Focusing The Camera
Display settings to achieve the desired zoom position. Focusing the Camera In the Avigilon Camera Installation Tool or camera web browser interface, use the camera’s Image and Display settings to focus the camera lens. a. In the Image and Display settings page, use the Auto Focus button to focus the lens. -
Page 13: Connecting To External Devices
Connecting to External Devices External devices are connected to the device through the I/O terminal. The pinout for the I/O terminal is shown in the following diagram: NOTE: The camera can be connected to an external microphone and speaker through the I/O connector. 1. -
Page 14: Led Indicators
LED Indicators Once connected to the network, the Connection Status LED will display the progress in connecting to the Network Video Management software. The following table describes what the LEDs indicate: Connection Status Connection State Description One short flash every Obtaining IP Address Attempting to obtain an IP address. -
Page 15: Removing The Sun Shroud
Removing the Sun Shroud The sun shroud is not required when the camera is installed indoors. 1. As you press down on the center of the sun shroud, pull up the corners of the shroud from one side of the camera. -
Page 16: Resetting To Factory Default Settings
Resetting to Factory Default Settings If the camera no longer functions as expected, you can choose to reset the camera to its factory default settings. Use the firmware revert button to reset the camera. Figure 1: The firmware revert button in the Configuration Panel. 1. -
Page 17: Setting The Ip Address Using The Arp/Ping Method
Setting the IP Address Using the ARP/Ping Method Complete the following steps to configure the camera to use a specific IP address: 1. Locate and copy down the MAC Address (MAC) listed on the Serial Number Tag for reference. 2. Open a Command Prompt window and enter the following commands: a. -
Page 18: Specifications
Specifications Camera Audio Input/Output Line level input and output H3-BO1-IR: 3-9mm, F1.2, P-iris Lens H3-BO2-IR: 9-22mm, F1.6, P-Iris Onboard Storage SD/SDHC/SDXC slot – minimum class 4; class 6 or better recommended Network Network 100Base-TX Cabling Type CAT5 Connector RJ-45 ONVIF compliance version 1.02, 2.00, Profile S (www.onvif.org). - Page 19 (models with onboard storage only) Environmental Operating -40°C to +50°C (-40°F to 122°F) Temperature Storage -40 °C to +70 °C (-40 °F to 158 °F) Temperature Humidity 0-95% non-condensing Certifications ROHS Certifications WEEE KC (C-H3A-BO-IR models only) UL 60950-1 CSA 60950-1 Safety IEC/EN 60950-1 IEC 62471...
-
Page 20: Limited Warranty & Technical Support
Limited Warranty & Technical Support Avigilon warrants to the original consumer purchaser, that this product will be free of defects in material and workmanship for a period of 3 years from date of purchase. The manufacturer’s liability hereunder is limited to replacement of the product, repair of the product or replacement of the product with repaired product at the discretion of the manufacturer.
