H6A PTZ Camera Installation Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the H6A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avigilon H6A

Summary of Contents for Avigilon H6A

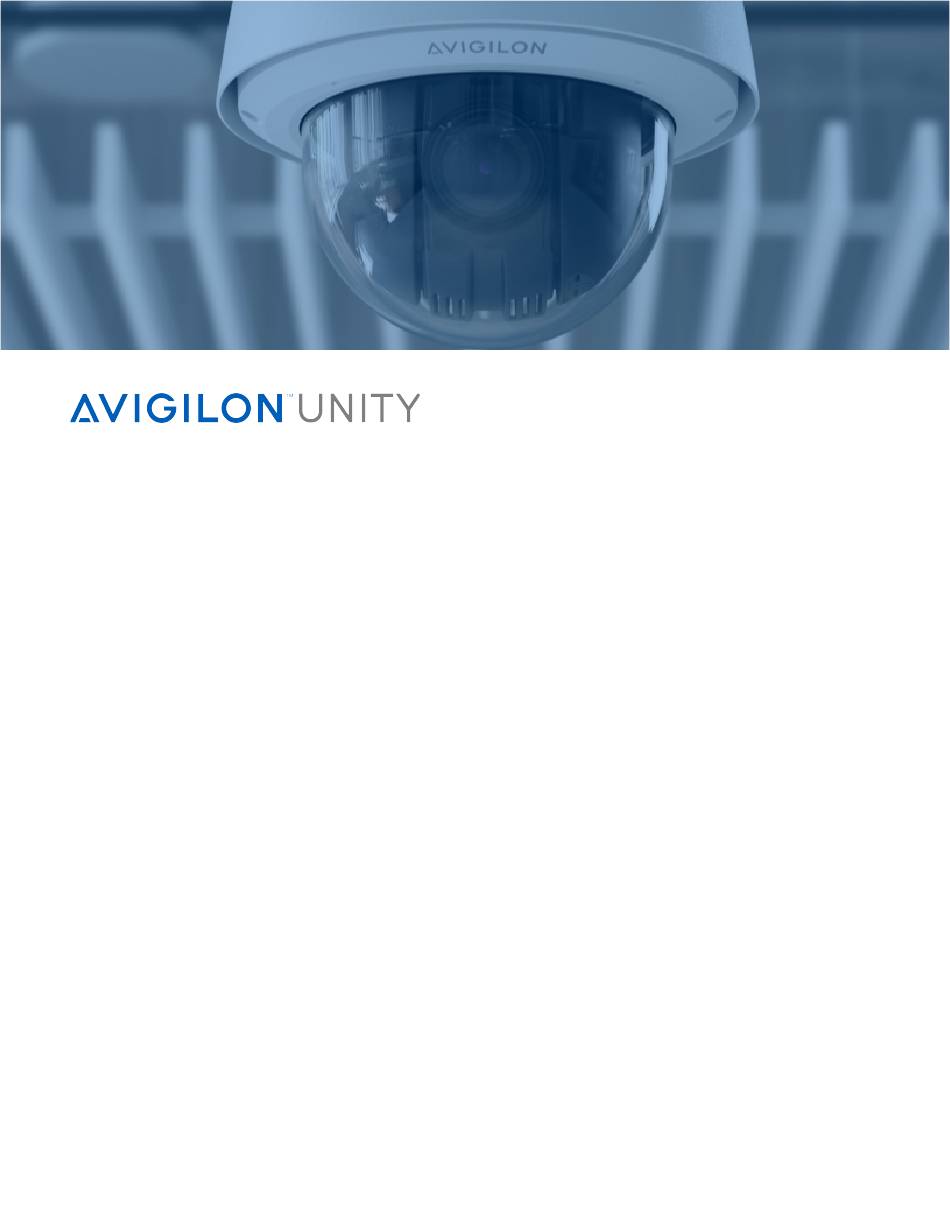

  • Page 1 H6A PTZ Camera Installation Guide...
  • Page 2 Installing the Dome Cover (In-Ceiling) ......... 11 ©2024, Avigilon Corporation. All right reserved.

  • Page 3: Installation Steps

    Installing the In-Ceiling Back Box NOTE All protective packaging must be removed from the outside of the in-ceiling back box prior to beginning installation. NOTE The maximum supported ceiling thickness is 38.1 mm (1.5"). ©2024, Avigilon Corporation. All right reserved.
  • Page 4 1~16 multi-wire cable bundle. 3. Remove a grommet in the back box to feed the cables through. Choose the top or side grommet option. Optional: Grommet(s) can be replaced with 3/4" conduit fittings and ©2024, Avigilon Corporation. All right reserved.
  • Page 5 If the insertion tool is not used, then the Ethernet cable needs to be terminated with an RJ45 connector (not supplied) after being passed through the grommet. 5. Terminate the pair of power cables to the supplied, two-pin, removable header with screw ©2024, Avigilon Corporation. All right reserved.
  • Page 6 8. Push the back box (with grommet and cables attached), into the ceiling hole. Secure the back box in the ceiling using the two spring clips. Tighten the two screws using the supplied power bit and a power driver or drill. ©2024, Avigilon Corporation. All right reserved.
  • Page 7 (PCBA) inside the bottom of the back box. a. Connect the cable for network/PoE or network. The connector on the camera is a RJ45. b. Connect the cable for auxiliary power. c. Connect the cable for the auxiliary Inputs/Outputs/Audio. ©2024, Avigilon Corporation. All right reserved.
  • Page 8 Installation Steps Installing the Dome Drive into the Back Box (In- Ceiling) After you install the back box, mount the dome drive to the back box. ©2024, Avigilon Corporation. All right reserved.
  • Page 9 Installation Steps 1. Insert one or two SD cards in the slots in the dome drive. For more information, see the (Optional) Configuring microSD Card Storage. 2. Lift the dome drive into the back box. ©2024, Avigilon Corporation. All right reserved.
  • Page 10 Installation Steps 3. Snap the dome drive into the back box and secure it by fastening the three screws. ©2024, Avigilon Corporation. All right reserved.
  • Page 11 Be careful not to scratch the dome bubble. Do not remove the protective film until after installation. 1. Attach the lanyard to secure the lower dome. There is a post on the back box that the lanyard is bolted to. ©2024, Avigilon Corporation. All right reserved.
  • Page 12 2. Hold the lower dome in place and fasten the two screws to secure it. The lower dome has captive screws, so they will hang from the trim ring, but they will not fall off. 3. Remove the protective cover on the outside of the dome bubble. ©2024, Avigilon Corporation. All right reserved.
  • Page 13 Installation Steps ©2024, Avigilon Corporation. All right reserved.
