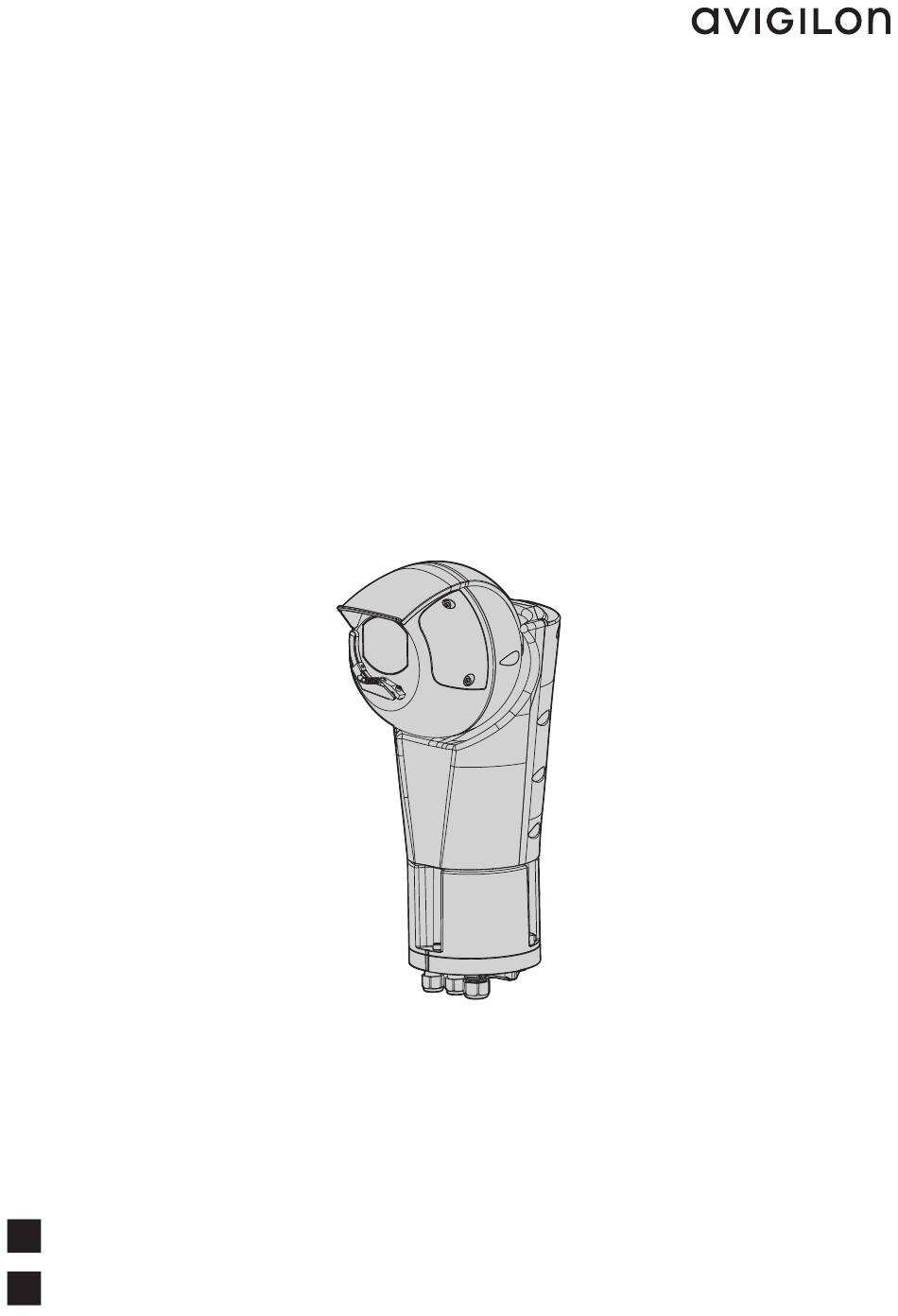

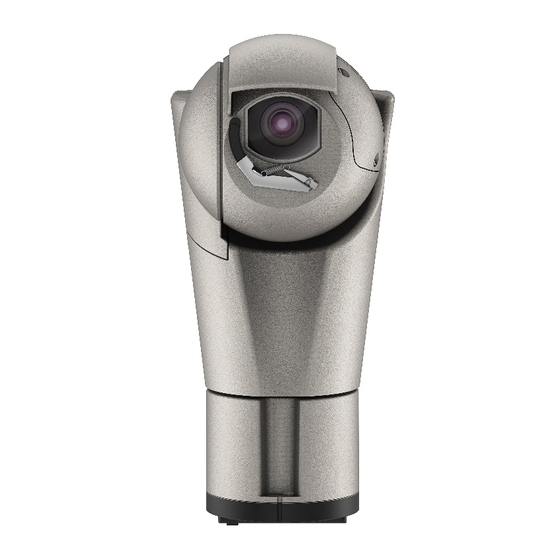

  • Page 1 ENGLISH Quick Start Guide H5A Rugged PTZ Camera PTZ camera with high performance and extreme reliability English - Instruction manual Français - Manuel d’instructions...
  • Page 3: Table Of Contents

    ENGLISH E N G L I S H Contents 1 About this manual ........................2 1.1 Typographical conventions ..............................2 2 Notes on copyright and information on trademarks ............2 3 Safety rules ..........................2 4 Product description and type designation ................4 4.1 Product overview ...................................
  • Page 4: About This Manual

    2 Notes on copyright and information on trademarks The complete installation manual can be downloaded from the Avigilon website: © 2021 Avigilon Corporation. All rights reserved. avigilon.com/products. AVIGILON, and the AVIGILON logo are trademarks of Avigilon Corporation. Unless stated explicitly...
  • Page 5 • Use only original spare parts. Non-original spare CAUTION! The infrared LED illuminator parts could cause fire, electrical discharge or other emits high-intensity invisible light. For hazards. further details on configuration and use, • Before proceeding with installation, check the refer to the illuminator accessory manual.
  • Page 6: Product Description And Type Designation

    4 Product description and • To comply with the main supply voltage dips and short interruption requirements, use a suitable type designation Uninterruptible Power Supply (UPS) to power the unit. 4.1 Product overview • The Cat5e/Cat6 shielded (STP) Ethernet cable is required to fully comply with EMC regulatory The product consists of 3 parts (Fig.
  • Page 7: Preparing The Product For Use

    5.3 Contents Check the contents to make sure they correspond with the list of materials as below: Any change that is not expressly approved • H5A Rugged PTZ camera by the manufacturer will invalidate the • Sunshield warranty. • Accessories package: 5.1 Safety precautions before use...
  • Page 8: Installation

    6 Installation 6.3 Cable management 6.1 Opening the base of the The cables must be adequately fastened to the structure to avoid causing the cables product to be accidentally unplugged. To avoid scratching the product with the hexagonal You must use cables suited to the type of wrench, align the groove on the body of the product installation you are using.
  • Page 9: Fastening Of The Safety Coupling

    6.5 Fastening of the safety 6.6 Connector board description coupling The earth ground cable must always be connected to the relevant terminal (GND_ Take special care when attaching and INT or GND_EXT, Fig. 9, page 12). fastening down the apparatus. If the equipment must be fastened to a concrete Please refer to the figures: Fig.
  • Page 10: Connecting The Power Supply

    To power the unit, use the power supply units indicated in the technical data sheet of the product on the website: avigilon.com, or use a toroidal transformer with nominal power of at least 200VA. Connect the power supply cable to the relative connector (J4, Fig.
  • Page 11: Alarms And Relays Connections

    6.8 Alarms and relays • Shielded twisted cable (STP). • 4 pair. connections • Maximum DC Loop Resistance: 25Ohm. Cables signal section: from 0.14mm² Connect the ethernet cable to the relative connector (26AWG) up to 1mm² (17AWG). (J3, Fig. 11, page 13). If the product is powered by 90W PoE, the ground Maximum relay voltage and current: 30Vac cable must be connected to the relevant terminal...
  • Page 12: Switching On

    For more information on proper disposal of these devices, you can contact the responsible public service. U.S. & Canada +1 888-281-5182 International +1 604-629-5182 (option 1) support@avigilon.com avigilon.com © 2020, Avigilon Corporation. All rights reserved. AVIGILON and the AVIGILON logo are trademarks of Avigilon Corporation MNGQEVO_2129_EN...
  • Page 13 Fig. 4 Fig. 2 Fig. 5 Fig. 3 MNGQEVO_2129_Images...
  • Page 14 Fig. 6 Fig. 8 GND_INT Power supply Ethernet GND_EXT Digital I/O Fig. 7 Fig. 9 MNGQEVO_2129_Images...
  • Page 15 Fig. 12 Fig. 10 GND_INT Fig. 13 GND_EXT Fig. 11 MNGQEVO_2129_Images...
  • Page 16 Fig. 15 Fig. 14 Fig. 16 MNGQEVO_2129_Images...
  • Page 18 U.S. & Canada +1 888-281-5182 International +1 604-629-5182 (option 1) support@avigilon.com avigilon.com © 2020, Avigilon Corporation. All rights reserved. AVIGILON and the AVIGILON logo are trademarks of Avigilon Corporation MNGQEVO_2129 MNGQEVO_2129...
