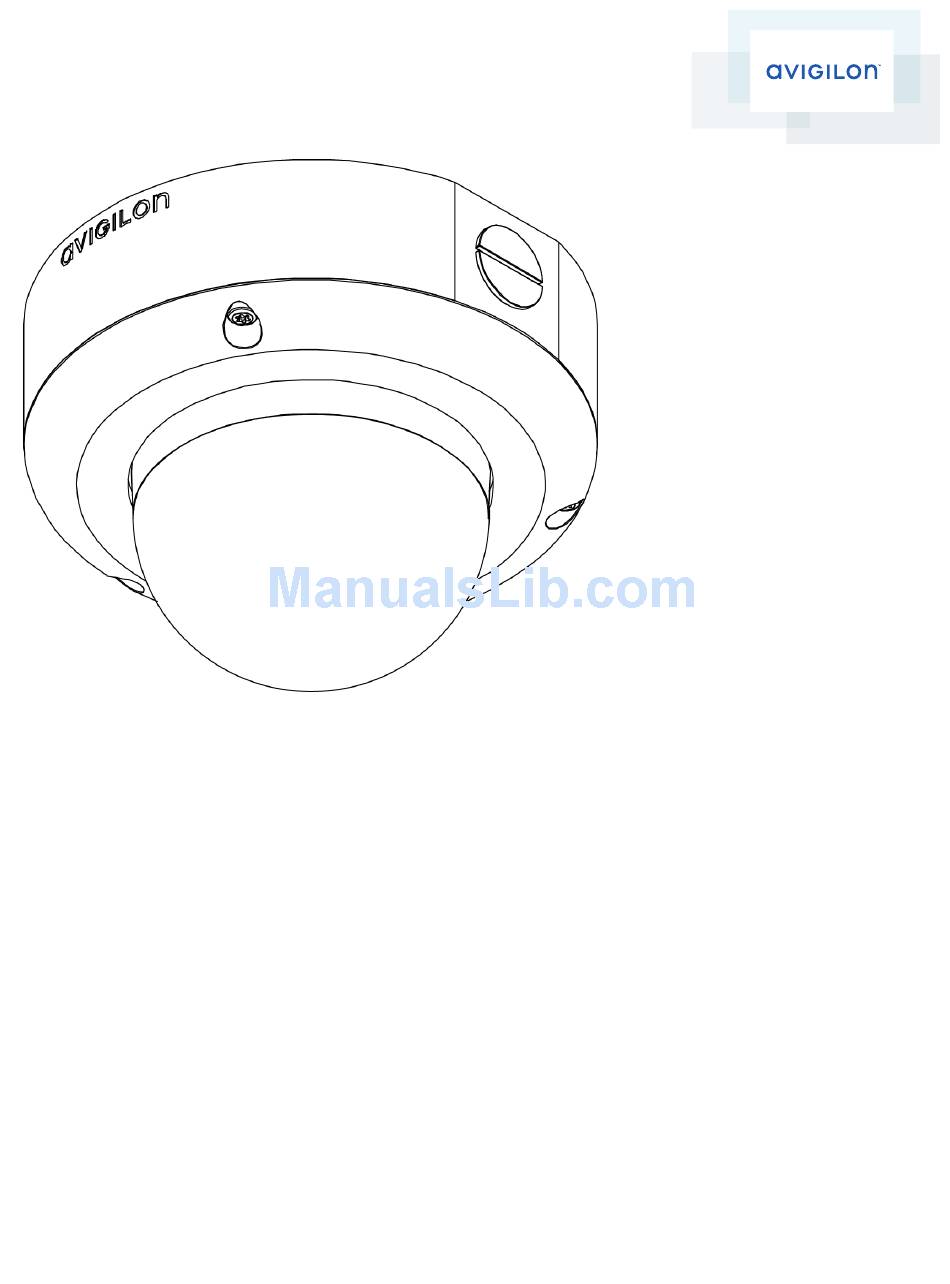

Installation Guide Avigilon™ High Definition H.264 IP Dome Camera Models: H3-DO1, H3-DO1-IR, H3-DO2, H3A-DO1, H3A-DO1-IR and H3A-DO2... - Page 2 Power Source” with output rated 12 VDC or 24 VAC, 10 W min. or Power over Ethernet (PoE), rated 48 VDC, 10 W min. Any external power supply connected to this product may only be connected to another Avigilon product of the same model series. External power connections must be properly insulated. ...
-
Page 3: Fcc Notice
© 2012 - 2016, Avigilon Corporation. All rights reserved. AVIGILON, the AVIGILON logo, AVIGILON CONTROL CENTER, and ACC are trademarks of Avigilon Corporation. Other product names mentioned herein may be the trademarks of their respective owners. The absence of the symbols ™ and ® in proximity to each trademark in this document is not a disclaimer of ownership of the related trademark. - Page 4 Avigilon Corporation reserves the right to make any such changes without notice. Neither Avigilon Corporation nor any of its affiliated companies: (1) guarantees the completeness or accuracy of the information contained in this document; or (2) is responsible for your use of, or reliance on, the information.
-
Page 5: Table Of Contents
Table of Contents Overview Cover View Bottom View Front View Rear View IR View Installation Required Tools and Materials Camera Package Contents Precautions for Installing Near Salt Water Installation Steps Removing the Dome Cover Mounting the Dome Camera Connecting Cables Assigning an IP Address Accessing the Live Video Stream Aiming the Dome Camera... -
Page 6: Overview
Overview Cover View 1. Dome cover Vandal proof dome cover. 2. Cable entry hole An entry hole for the cables required for camera operation. 3. Tamper resistant screws Torx captive screws to fix the dome cover to the base. Overview... -
Page 7: Bottom View
Bottom View 1. Cable entry hole An entry hole for the cables required for camera operation. 2. Mounting holes Mounting points for the camera. Bottom View... -
Page 8: Front View
Front View 1. Azimuth control Provides control of the image angle. 2. Tilt lock thumb screw Provides a locking mechanism for the image tilt adjustment. 3. Pan lock thumb screw Provides a locking mechanism for the image pan adjustment 4. I/O connector block Provides connections to external input/output devices. - Page 9 Accepts an Ethernet connection to a network. Server communication and image data transmission occurs over this connection. Also receives power when it is connected to a network that provides Power over Ethernet. 8. Connection status LED Provides information about camera operation. For more information, see LED Indicators on page 17. 9.
-
Page 10: Rear View
Rear View 1. SD card slot Accepts an SD card for onboard storage. Rear View... - Page 11 IR View IR Illuminator Ring Provides scene illumination in the IR spectrum. The IR illuminator ring is not included with all models. IR View...
-
Page 12: Installation
Follow these precautions to avoid camera issues when installing in a salt heavy environment: Use mounting accessories offered by Avigilon. All Avigilon accessories are tested to work with Avigilon cameras in the rated environments. ... - Page 13 Mounting the Dome Camera Connecting Cables Assigning an IP Address Accessing the Live Video Stream Aiming the Dome Camera (Optional) Configuring SD Card Storage Installing the Dome Cover Focusing the Dome Camera Installation Steps...
-
Page 14: Removing The Dome Cover
Removing the Dome Cover Remove the dome cover by loosening the screws that fix the cover to the base. The Torx key included with the dome camera can be used to loosen the screws. NOTE: Be careful not to scratch or touch the dome bubble. The resulting marks or fingerprints may affect the overall image quality. - Page 15 Figure 1: Dome camera mounted to a vertical surface. 4. Pull the required cable through the cable entry hole and the grommet. Figure 2: Dome camera mounted to a ceiling. 5. Install the grommet in the cable entry hole. Mounting the Dome Camera...
-
Page 16: Connecting Cables
The IP address settings can be changed using one of the following methods: Camera's web browser interface: http://<camera IP address>/ Network video management software application (for example, Avigilon Control Center™). ARP/Ping method. For more information, see Setting the IP Address Using the ARP/Ping Method on page 19. -
Page 17: Accessing The Live Video Stream
Web browser interface: http://<IP address>/ Network video management software application (for example, the Avigilon Control Center software). NOTE: The default camera username is admin and the default camera password is admin. Aiming the Dome Camera 1. Loosen the pan and tilt lock screws on the camera. -
Page 18: Focusing The Dome Camera
Additional information about setting up and using the device is available in the following guides: Avigilon Control Center™ Client User Guide Avigilon™ High Definition H.264 Web Interface User Guide Avigilon™ Camera Configuration Tool User Guide Avigilon™ USB Wifi Adapter System User Guide The manuals are available on the Avigilon website: http://www.avigilon.com/support-and-downloads... -
Page 19: Cable Connections
Cable Connections Connecting External Power NOTE: Do not perform this procedure if Power over Ethernet (POE) is used. If PoE is not available, the camera needs to be powered through the removable power connector block. Refer to the diagrams in this guide for the location of the power connector block. The power consumption information is listed in the product specifications. -
Page 20: Connecting To Microphones, Speakers And Video Monitors
Figure 3: Example application. 1. Ground 2. Input — To activate, connect the Input to the Ground pin. To deactivate, leave disconnected or apply between 3-15 V. 3. Output — When active, Output is internally connected with the Ground pin. Circuit is open when inactive. Maximum load is 25 VDC, 120 mA. - Page 21 Figure 4: Mini-jack audio video connector 1. Audio IN 2. Composite Video OUT 3. GND 4. Audio OUT NOTE: Composite Video OUT is not available for 3.0 MP video analytics camera models. Connecting to Microphones, Speakers and Video Monitors...
-
Page 22: Led Indicators
LED Indicators Once connected to the network, the Connection Status LED will display the progress in connecting to the Network Video Management software. The following table describes what the LEDs indicate: Connection Status Connection State Description One short flash every Obtaining IP Address Attempting to obtain an IP address. -
Page 23: Resetting To Factory Default Settings
Resetting to Factory Default Settings If the camera no longer functions as expected, you can choose to reset the camera to its factory default settings. Use the firmware revert button to reset the camera. The firmware revert button is shown in the following diagram: Figure 5: The firmware revert button on the side of the dome camera. -
Page 24: Setting The Ip Address Using The Arp/Ping Method
Setting the IP Address Using the ARP/Ping Method Complete the following steps to configure the camera to use a specific IP address: 1. Locate and copy down the MAC Address (MAC) listed on the Serial Number Tag for reference. 2. Open a Command Prompt window and enter the following commands: a. -
Page 25: Cleaning
Cleaning Dome Bubble If the video image becomes blurry or smudged in areas, it may be because the dome bubble requires cleaning. To clean the dome bubble: Use hand soap or a non-abrasive detergent to wash off dirt or finger prints ... -
Page 26: Specifications
Specifications Camera Audio Input Line input, A/V mini-jack (3.5 mm) Video Output NTSC/PAL, A/V mini-jack (3.5 mm) H3-DO1: 3-9mm, F1.2, P-iris Lens H3-DO2: 9-22mm, F1.6, P-Iris Onboard Storage SD/SDHC/SDXC slot – minimum class 4; class 6 or better recommended Network Network 100Base-TX Cabling Type... - Page 27 (models with onboard storage only) Environmental Operating -30 °C to +50 °C (-22 °F to 122 °F) Temperature Storage -40 °C to +70 °C (-40 °F to 158 °F) Temperature Humidity 0-95% non-condensing Certifications ROHS Certifications WEEE UL 60950-1 CSA 60950-1 Safety IEC/EN 60950-1 IEC 62471 (for models with IR illuminators only)
-
Page 28: Limited Warranty And Technical Support
Limited Warranty and Technical Support Avigilon warrants to the original consumer purchaser that this product will be free of defects in material and workmanship for a period of 3 years from date of purchase. The manufacturer’s liability hereunder is limited to replacement of the product, repair of the product or replacement of the product with repaired product at the discretion of the manufacturer.
