Summary of Contents for ATEN UCE3250

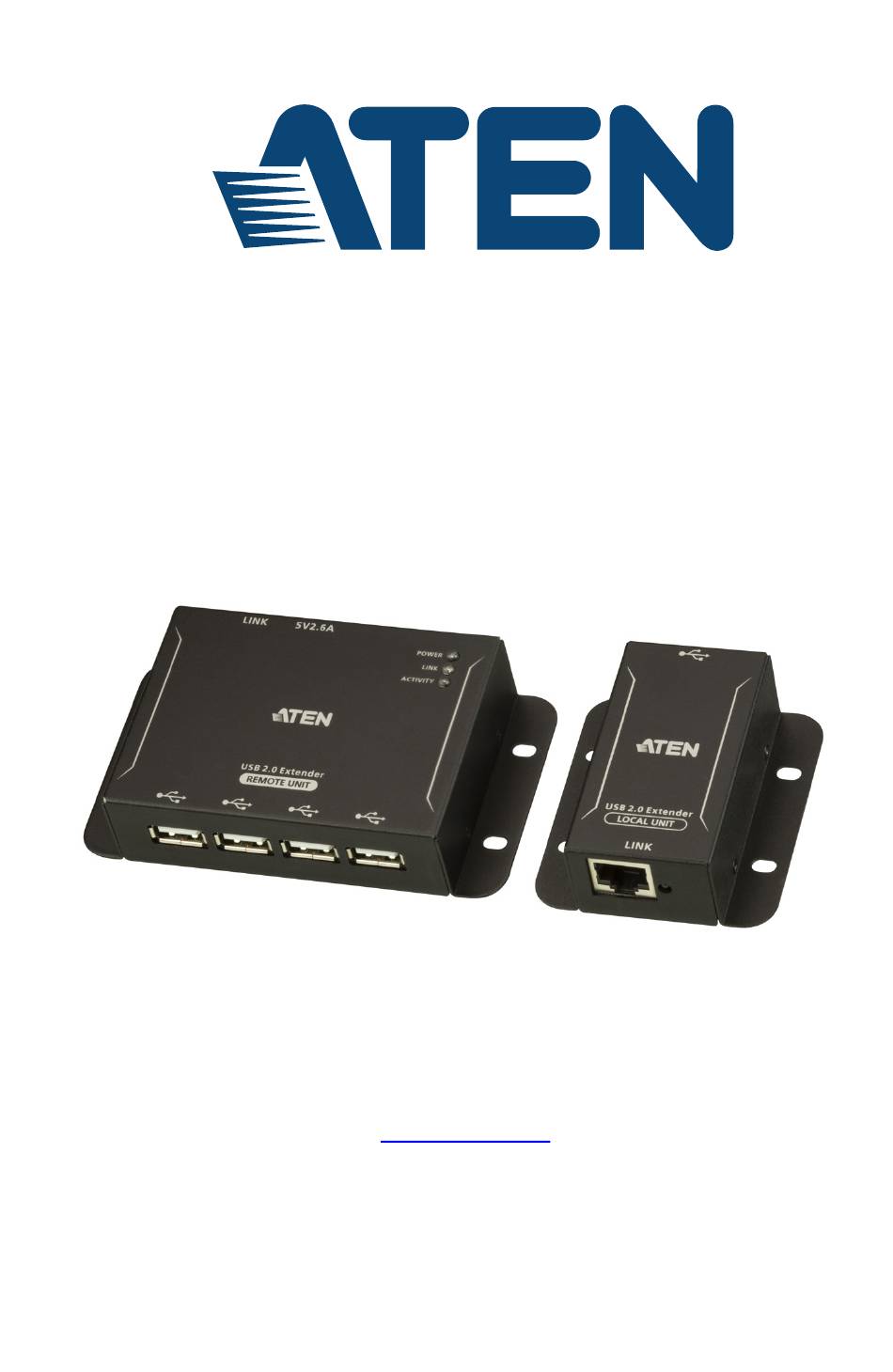

- Page 1 4-port USB 2.0 Cat 5 Extender UCE3250 User Manual www.aten.com...
-
Page 2: Emc Information
UCE3250 User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION STATEMENT: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 3: Rohs
User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988 or 1-949-428-1111... -
Page 4: User Notice
© Copyright 2018 ATEN® International Co., Ltd. Manual Date: 2018-07-12 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners. -
Page 5: Package Contents
UCE3250 User Manual Package Contents 1 UCE3250L 4-port USB 2.0 Cat 5 Extender (local unit) 1 UCE3250R 4-port USB 2.0 Cat 5 Extender (remote unit) 1 USB Type-A Male to Type-B Male Cable 1 Power Adapter 1 User Instructions Make sure that all of the items are present and in good order. If anything... -
Page 6: Table Of Contents
UCE3250 User Manual Contents EMC Information ..........ii RoHS. -
Page 7: Introduction
The UCE3250 4-port USB 2.0 Cat 5 Extender is a two-unit device that serves as a USB hub and a USB extender. The UCE3250 unit can connect as many as 4 USB peripherals from up to 50 meters away from your computer over a Cat 5 / 5e / 6 Ethernet cable. -
Page 8: Hardware Components
UCE3250 User Manual Hardware Components UCE3250L Rear View UCE3250R Rear View LINK 5V2.6A POW ER LINK A CTIVITY USB 2.0 Ex t en d er USB 2.0 Ex t en d er REMOTE UNIT LOCAL UNIT LINK UCE3250L Front View... -
Page 9: Hardware Setup
UCE3250 User Manual Hardware Setup Installation Follow the illustration and the steps below to safely install your UCE3250 unit. 1. Connect the UCE3250L’s USB Type-B Port to a computer using the supplied USB Type-B Male to Type-A Male Cable. 2. Connect the Link Ports of UCE3250L and UCE3250R with a Cat 5/5e/6 cable. -
Page 10: Wall Mount
UCE3250 User Manual Wall Mount UCE3250 can also be mounted on the wall as illustrated below. -
Page 11: Technical Support
UCE3250 User Manual Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com For telephone support, Telephone Support, page iii. North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates Telephone Support... -
Page 12: Specifications
UCE3250 User Manual Specifications Function UCE3250L UCE3250R Connectors USB Port 1 x USB Type-B Female 4 x USB Type-A Female USB Link 1 x RJ-45 Female 1 x RJ-45 Female Power 1 x DC Jack USB Specification 2.0 / 1.1 High / Full / Low Speed... -
Page 13: Limited Warranty
ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
