Summary of Contents for ATEN UEH4002

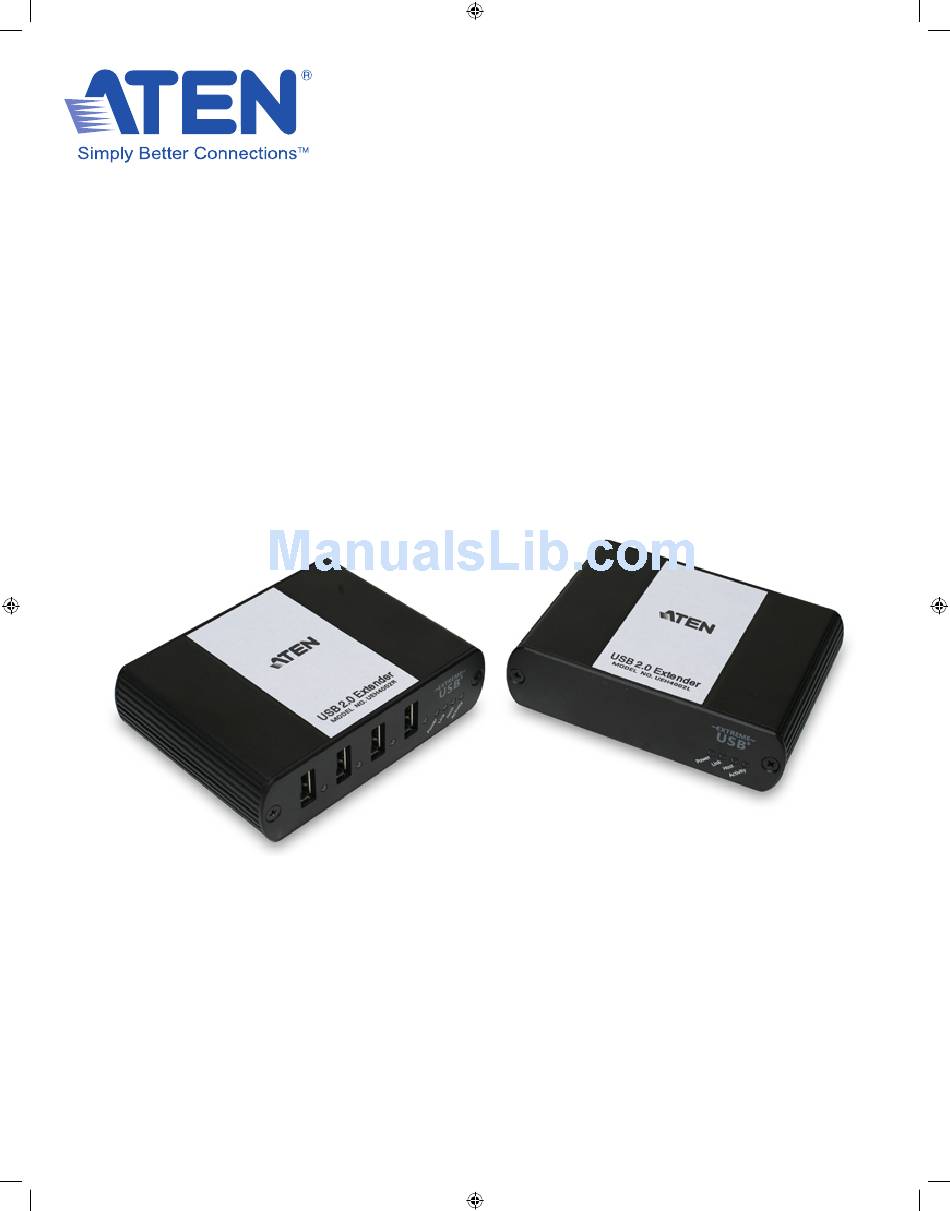

- Page 1 UEH4002 Cat 5 USB 2.0 Extender User Guide...
- Page 2 CE Statement We declare under our sole responsibility that the UEH4002, to which this declaration relates, is in conformity with European Standard EMC EN-55022:2006+A1:2007 Class B, EN 61000-3-2:2006, EN 61000-3-3:2003, and EN 55024:1998+A2:2003.
-
Page 3: Table Of Contents
Contents Introduction ..........................................Ranger Product Contents ..........................Requirements ......................... About the Ranger Installation guide ........................................Installing the Local unit ......................Installing the Remote unit ................. Connecting the Local unit to the Remote unit ......................Checking the Installation ......................Connecting a USB Device Troubleshooting .................... -
Page 4: Introduction

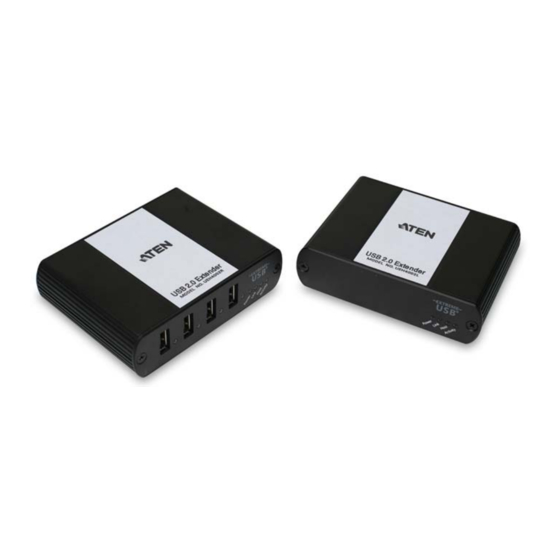

About the UEH4002 The UEH4002 incorporates technology that enables users to extend beyond the standard 5m cable limit for USB peripheral devices. With the UEH4002, USB devices can be located up to 100 meters from the computer. The UEH4002 is composed of two individual units: the Local unit and the Remote unit. - Page 5 Indicates a valid USB link is established between the Local Link LED (Green) and Remote units over the Cat 5 cabling. Indicates that the UEH4002 system is properly enumerated on Host LED (Green) the host PC. Indicates activity when data transmission is active between Local and Remote.
- Page 6 Cat 5 cabling. LED turns on when link between Local and Remote is established. Off when there is no link between Local and Remote. Host LED (Green) Indicates that the UEH4002 system is properly enumerated on the host PC. LED blinks when in suspend state. Activity LED (Amber) Indicates activity when data transmission is active between Local and Remote.
-
Page 7: Installation Guide
Determine where the computer is to be located and set up the computer. Determine where you want to locate the USB device(s). If you are using surface cabling, the UEH4002 supports a maximum distance of 100m. If you are using premise cabling, ensure Cat 5 cabling is installed between the two locations, with Cat 5 information outlets located near both the computer and the USB device(s), and the total length, including patch cords is no more than 100m. -
Page 8: Connecting The Local Unit To The Remote Unit
Expand the entry for Universal Serial Bus controllers by clicking the + sign. If the UEH4002 has been installed correctly, you should find it listed as a “Generic USB Hub” . For Mac OS X users, open the System Profiler to confirm that the UEH4002 has installed correctly. -
Page 9: Connecting A Usb Device
The UEH4002 complies with USB 1.1 and USB 2.0 specifications governing the design of USB devices. However, ATEN does not guarantee that all USB devices are compatible with the UEH4002, as there are a number of different configurations that may impact the operation of USB devices over extended distances. - Page 10 UEH4002 system’s documentation). Local/Remote units in suspend mode when the are suddenly computer is put into a 2. Attach a USB device to the UEH4002. blinking. Suspend/Standby state or when no USB devices are attached. All LEDs on both •...
- Page 11 USB device is • A USB device must have the 1. Install the required USB device driver on the attached to appropriate driver installed on computer operating system prior to attaching Remote USB port the computer operating system. the USB device to the Remote unit. Please see your but Remote USB device manufacturer’s website for details.
-
Page 12: Specifications
Full speed devices (12 Mb/s) (USB 2.0 & 1.1) Low speed devices (1.5 Mb/s) (USB 2.0 & 1.1) USB hub support Any single chain can include up to 3 USB hubs plus one UEH4002. USB host support EHCI (USB 2.0) and OHCI/UHCI (USB 1.1) Maximum USB devices 14 USB devices or 3 USB hubs with 11 USB devices. -
Page 13: Limited Hardware Warranty
ATEN product or service, even if ATEN, its suppliers or licensors have been advised of the possibility of such damages. -
Page 14: Obtaining Warranty Service
The repaired or replaced item will be shipped to you, at ATEN’s expense, not later than sixty days after ATEN receives the defective product. -
Page 15: Technical Glossary
Remote unit. You may use either the T568A scheme (Table 1) or the T568B scheme (Table 2) for cable termination as the UEH4002 uses all four pairs of the cable. RJ45 connectors are sometimes also referred to as 8P8C connectors.
