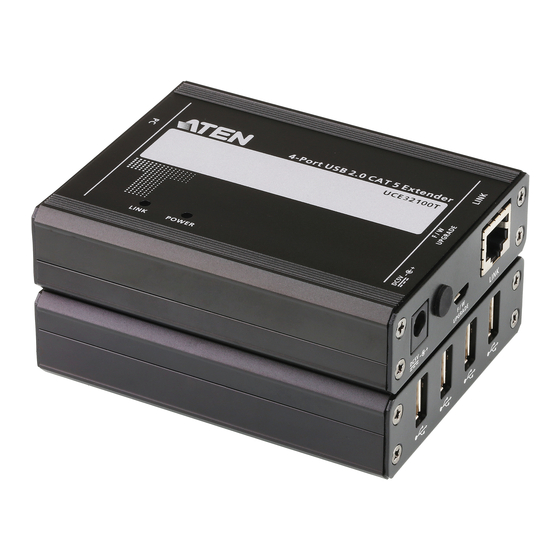

4-Port USB 2.0 CAT 5 Extender (100m)
UCE32100 User Manual
www.aten.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UCE32100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ATEN UCE32100

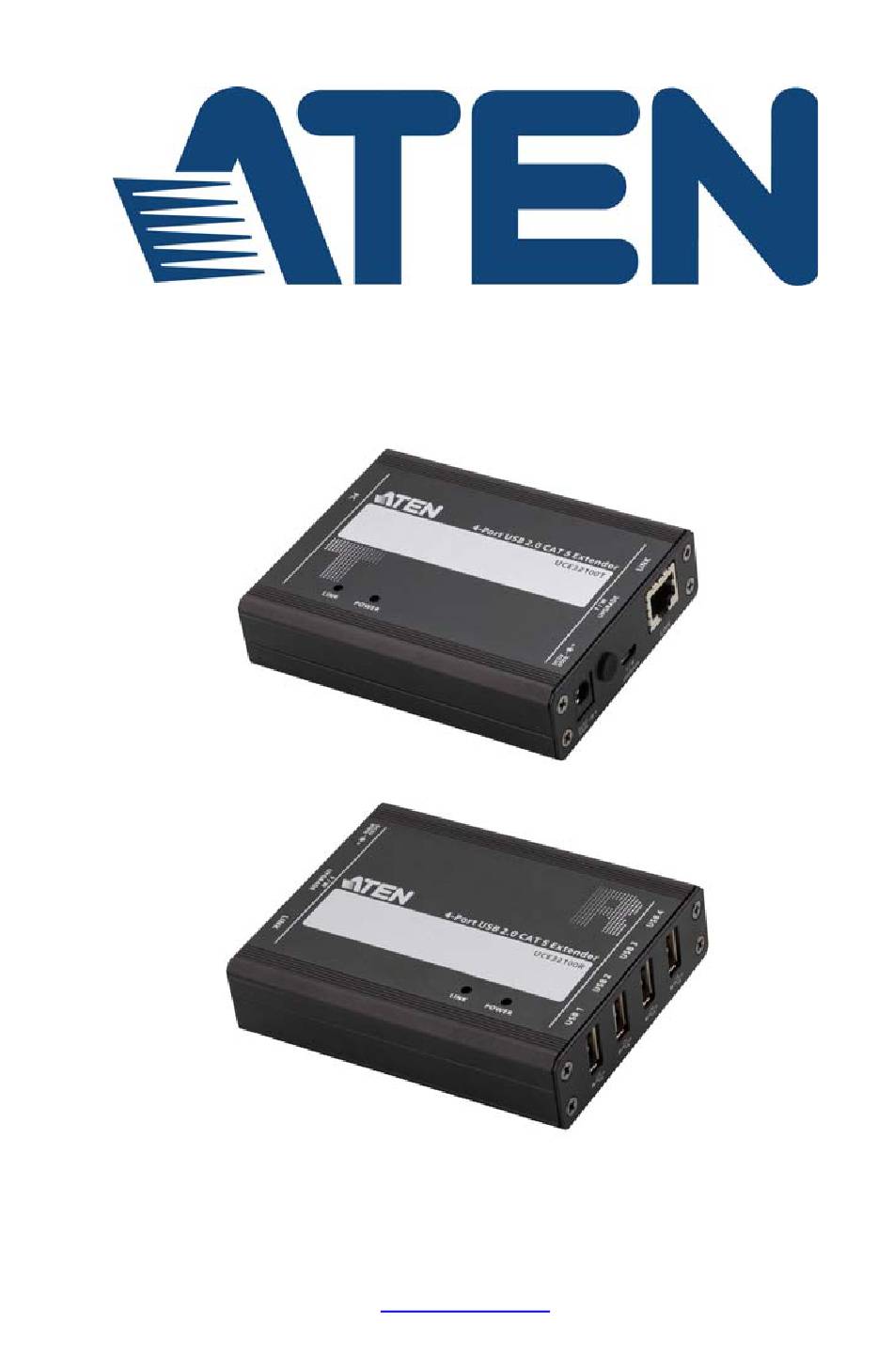

  • Page 1 4-Port USB 2.0 CAT 5 Extender (100m) UCE32100 User Manual www.aten.com...
  • Page 2: Emc Information

    UCE32100 User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3: User Information

    UCE32100 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988...
  • Page 4: Package Contents

    UCE32100 User Manual Package Contents 1 UCE32100T USB 2.0 CAT 5 Transmitter 1 UCE32100R USB 2.0 CAT 5 Receiver 1 USB 2.0 Type-A Male to Type-B Male Cable 1 Power Adapter 1 Power Cord 4 Mounting Kit 2 Din Rail...
  • Page 5: Table Of Contents

    Mount the UCE32100 Units ........
  • Page 6: About This Manual

    UCE32100 User Manual About this Manual This user manual is provided to help you get the most from the UCE32100 unit. It covers all aspects of installation, configuration, and operation. An overview of the information found in the manual is provided below.
  • Page 7: Conventions

    For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com...
  • Page 8 UCE32100 User Manual This Page Intentionally Left Blank viii...
  • Page 9: Introduction

    Introduction Overview The UCE32100 is a two-units 4-port USB 2.0 CAT 5 Extender that serves as a Transmitter and a Receiver. It provides a durable, high quality connection that harnesses the full capability of the USB2.0 standard to ensure reliable data communication.
  • Page 10: Features

    ® ®  Supports Windows , OS X , and Linux  Plug-and-play Supported Operating System The UCE32100 supports computers using the following operating systems. Operating System Version Windows XP, 7, 8, 8.1, 10 Linux RedHat 6.0 or higher SuSE 8.2 or higher...
  • Page 11: Components

    Chapter 1. Introduction Components UCE32100T Component Description Power Jack Receives the power adapter. Note:The power adapter is not required but can be connected to the unit to provide power if the USB port on the host PC is not capable of delivering 500mA to the unit.
  • Page 12: Uce32100R

    UCE32100 User Manual Component Description USB 2.0 Type-B Receives a USB Type-B male to Type-A male cable that Female Port connects the UCE32100T to the computer in your setup. (Host) UCE32100R Component Description Power Jack Receives the power adapter. DC Jack Lock Locks the Power Jack to avoid power cut or power shortage.
  • Page 13: Hardware Setup

    Use the DC Jack Lock Kit provided with the package to secure the power adapter to avoid power cut or power shortage. To secure the DC Jack Lock onto the UCE32100 units, follow the steps below. 1. Remove the rubber mat from the UCE32100 unit.
  • Page 14 UCE32100 User Manual 2. Insert the DC Jack Lock component A into the hole as pictured below. 3. Insert the other end of the DC Jack Lock component A through the component B’s joint.
  • Page 15 4. Connect the power adapter through the DC Jack Lock component B’s joint as pictured below. 5. Now the DC Jack Lock is secured on the UCE32100 unit. 6. Repeat step 1 to step 5 for the second UCE32100 unit.
  • Page 16: Mount The Uce32100 Units

    UCE32100 User Manual Mounting the UCE32100 Units You can mount the UCE32100 units to the wall or on the DIN Rail. Before you begin to mount the units, you will need to mount the brackets into the back of the UCE32100 units.
  • Page 17: Din Rail Mounting The Uce32100 Units

    1. Screw the DIN rail brackets to the mounting brackets using the larger screws supplied with the Mounting Kit. 2. Hang the UCE32100 units on the DIN rail. Connecting the UCE32100 Unit Follow the steps below to connect the UCE32100 units.
  • Page 18 UCE32100 User Manual 1. Connect the UCE32100T’s USB Type-B Port to a USB port on the computer using a USB 2.0 cable. 2. Connect one end of an Ethernet cable (cable length up to 100 meters) to UCE32100T’s Link Port.
  • Page 19: Operation

    Chapter 3 Operation Please review the safety information regarding the placement of this device in Safety Instructions, page 13. LED Behavior UCE32100T LED Behavior Status Power LED No power connected The extender is powered Link LED No link established Link established with the Receiver Flash Data transmission UCE32100R...
  • Page 20 UCE32100 User Manual This Page Intentionally Left Blank...
  • Page 21: Appendix

    Appendix Safety Instructions General  This product is for indoor use only.  Read all of these instructions. Save them for future reference.  Follow all warnings and instructions marked on the device.  Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result.
  • Page 22 UCE32100 User Manual  If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
  • Page 23: Technical Support

    Support Documentation Software Updates Telephone Support 1-888-999-ATEN ext 4988 1-949-428-1111 When you contact us, please have the following information ready beforehand:  Product model number, serial number, and date of purchase  Your computer configuration, including operating system, revision level, expansion cards, and software ...
  • Page 24: Specifications

    10.15 x 7.90 x 2.44 cm (4 x 3.11 x 0.96 in.) Note:For best performance, the maximum number of single devices that the UCE32100 can support are listed below:  HID USB devices is 15 (hub included)  720P USB Camera is 1 ...
  • Page 25: Limited Warranty

    What is covered by the Limited Hardware Warranty ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
