Cat 5 USB 2.0 Extender
UEH4002
User Guide
www.aten.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UEH4002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATEN UEH4002

Summary of Contents for ATEN UEH4002

  • Page 1 Cat 5 USB 2.0 Extender UEH4002 User Guide www.aten.com...

  • Page 2: Federal Communication Commission Interference Statement

    CE Statement We declare under our sole responsibility that the UEH4002, to which this declaration relates, is in conformity with European Standard EMC EN-55022:2006+A1:2007 Class B, EN 61000-3-2:2006, EN 61000-3-3:2003, and EN 55024:1998+A2:2003.

  • Page 3: Table Of Contents

    Introduction ..........1 UEH4002 Product Contents ....... . . 1 Requirements .

  • Page 4: Introduction

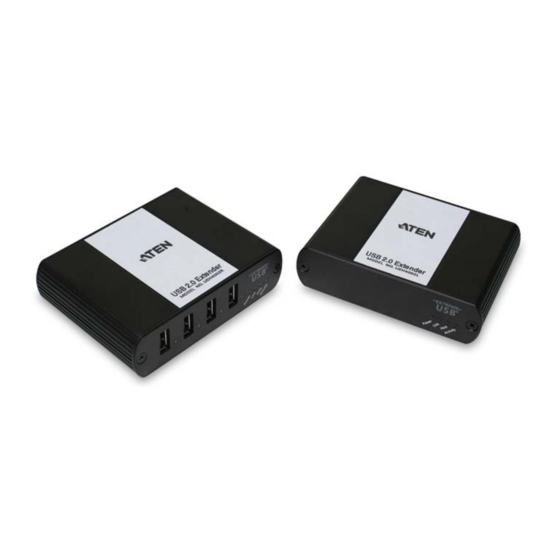

    5m cable limit for USB peripheral devices. With the UEH4002, up to 14 USB devices can be located up to 100 meters from the computer. The UEH4002 provides a durable, high quality connection that harnesses the full capability of the USB 2.0 standard, to ensure reliable data communication.
  • Page 5 Indicates a valid USB link is established between the Local (Green) and Remote units over the Cat 5 cabling. Host LED Indicates that the UEH4002 system is properly enumerated (Green) on the host PC. Activity LED Indicates activity when data transmission is active between (Amber) Local and Remote.
  • Page 6 Remote over Cat 5 cabling. LED turns on when link between Local and Remote is established. Off when there is no link between Local and Remote. Host LED Indicates that the UEH4002 system is properly enumerated (Green) on the host PC. LED blinks when in suspend state. Activity LED...
  • Page 7 UEH4002 User Manual Power Port Connects to the AC power supply. Required at Remote for proper operation. Link Port (RJ45) Accepts RJ45 connector for Cat 5 cabling (or better)

  • Page 8: Installation Guide

    1. Determine where the computer is to be located and set up the computer. 2. Determine where you want to locate the USB device(s). 3. If you are using surface cabling, the UEH4002 supports a maximum distance of 100m. If you are using premise cabling, ensure Cat 5 cabling is installed between the two locations, with Cat 5 information outlets located near both the computer and the USB device(s), and the total length, including patch cords is no more than 100m.

  • Page 9: Connecting The Local Unit To The Remote Unit

    + sign. If the UEH4002 has been installed correctly, you should find it listed as a “Generic USB Hub”. 3. For Mac OS X users, open the System Profiler to confirm that the UEH4002 has installed correctly. In the left hand column under Hardware, select “USB” and inspect the right hand panel.

  • Page 10: Connecting A Usb Device

    The UEH4002 complies with USB 1.1 and USB 2.0 specifications governing the design of USB devices. However, ATEN does not guarantee that all USB devices are compatible with the UEH4002, as there are a number of different configurations that may impact the operation of USB devices over extended distances.
  • Page 11 Suspend/Standby mode (see your operating units were mode. The system’s documentation). working, but operating system the Host LED 2. Attach a USB device to the UEH4002. may put the on Local/ UEH4002 in Remote units suspend mode started when the blinking.
  • Page 12 UEH4002 User Manual USB device • A USB device must 1. Install the required USB device driver on the computer operating system prior to attaching is attached to have the appropriate the USB device to the Remote unit. Please Remote USB driver installed on see your USB device manufacturer’s website...

  • Page 13: Specifications

    UEH4002 User Manual Specifications Function UEH4002L UEH4002R Connectors USB Port 1 x USB Type B Female 1 x USB Type B Female (White) (White) Downstream 1 x RJ-45 Female 1 x RJ-45 Female Power 1 x DC Jack 1 x DC Jack USB Specifications 2.0 / 1.1 High / Full / Low...

  • Page 14: Limited Hardware Warranty

    ATEN product or service, even if ATEN, its suppliers or licensors have been advised of the possibility of such damages.

  • Page 15: Obtaining Warranty Service

    RMA number on the outside of the package. The package must be sent prepaid to ATEN. We recommend that you insure it or send it by a method that provides for tracking of the package. The repaired or replaced item will be shipped to you, at ATEN’s expense, not later than sixty days after...

  • Page 16: Technical Glossary

    Local unit and Remote unit. You may use either the T568A scheme (Table 1) or the T568B scheme (Table 2) for cable termination as the UEH4002 uses all four pairs of the cable. RJ45 connectors are sometimes also referred to as 8P8C connectors.
  • Page 17 UEH4002 User Manual Table 2 - T568B Wiring PAIR WIRE CABLE COLOR WHITE/ORANGE ORANGE WHITE/GREEN BLUE WHITE/BLUE GREEN WHITE/BROWN BROWN...
