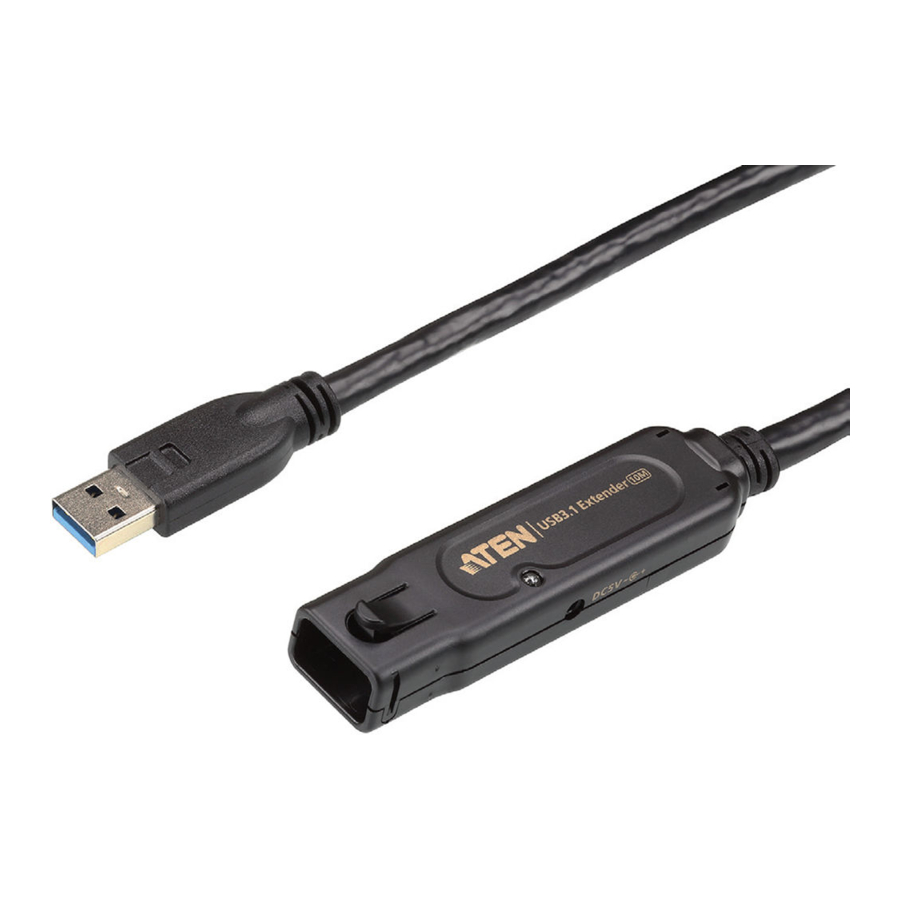

Usb 3.1 gen 1 extender cable
Hide thumbs Also See for UE3310:

Advertisement

Quick Links

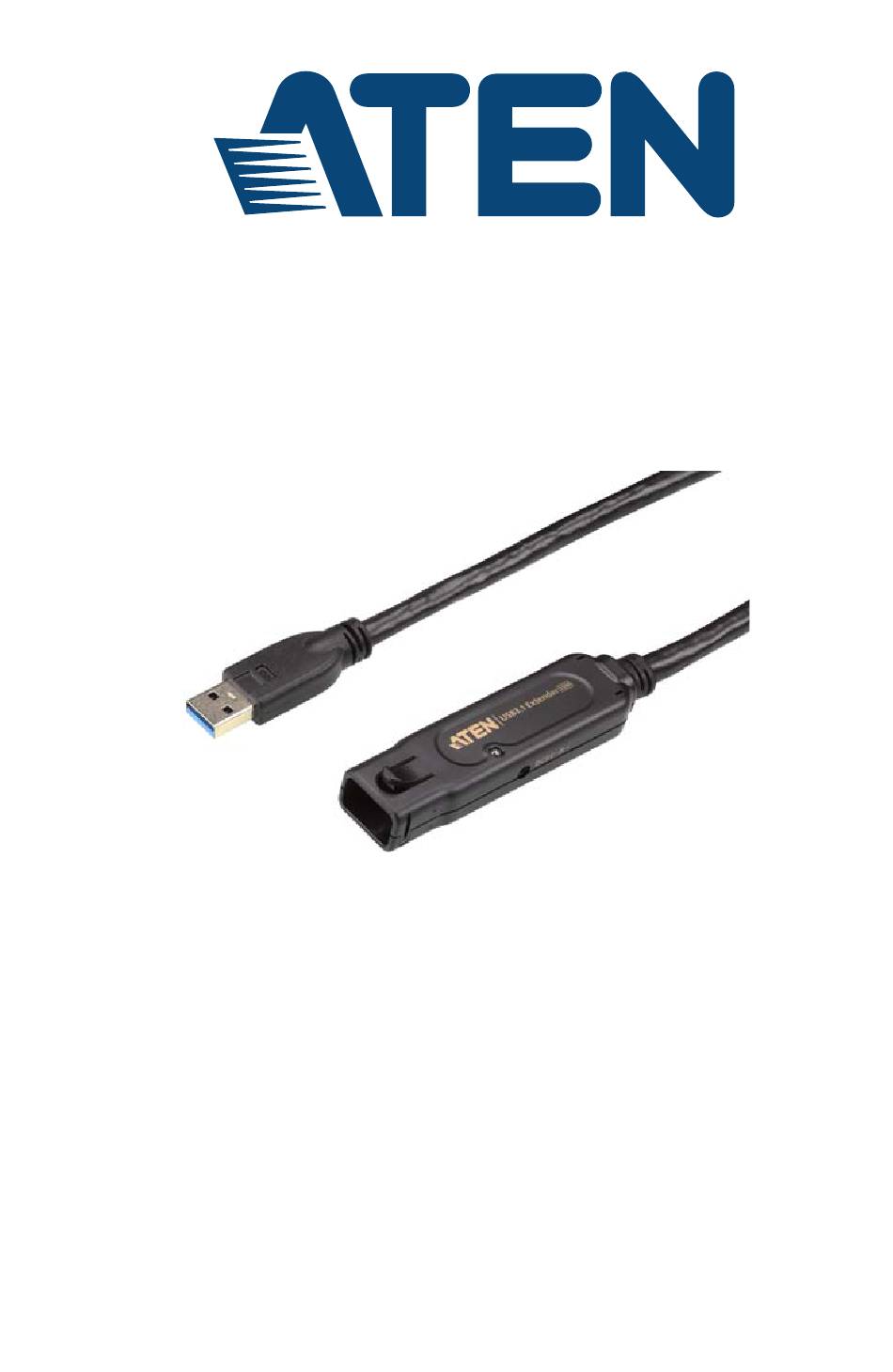

USB 3.1 Gen 1 Extender Cable
UE3310 / UE3315
User Guide
www.aten.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UE3310 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ATEN UE3310

  • Page 1 USB 3.1 Gen 1 Extender Cable UE3310 / UE3315 User Guide www.aten.com...
  • Page 2: Emc Information

    UE3310 / UE3315 User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3: Sj/T 11364-2006

    UE3310 / UE3315 User Manual Safety This product has been classified as Information Technology Equipment. SJ/T 11364-2006 The following contains information that relates to China. User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com...
  • Page 4: Table Of Contents

    Features ..........1 The UE3310 / UE3315 Top View ....... . 2 The UE3310 / UE3315 Side View .
  • Page 5 UE3310 / UE3315 User Manual...
  • Page 6: Introduction

    Introduction The UE3310 / UE3315 USB 3.1 Gen 1 Extender Cable allows you to extend the distance between your computer and your USB peripherals by 10 / 15 meters. Unlike typical cables the UE3310 / UE3315 is an active extension cable. All USB signals transmitted through it are regenerated to maintain optimal signal integrity to meet the USB 3.1 specification.
  • Page 7: The Ue3310 / Ue3315 Top View

    ITEM TYPE DESCRIPTION USB Connector Connect the USB peripherals to the USB Connector. Power LED LED lights green when power is on and the UE3310 / UE3315 is connected. AC Power Use this port to connect a power adapter. Adapter Port USB lock Used to connect to the host device (computer).
  • Page 8: The Ue3310 / Ue3315 Side View

    The UE3310 / UE3315 Side View ITEM TYPE DESCRIPTION USB Connector Connect the USB peripherals to the USB Connector. AC Power Use this port to daisy chain other UE3310 / UE3315 extender Adapter Port cables. USB lock Used to connect to the host device (computer).
  • Page 9: Ue3310 / Ue3315 Installation Guide

    Before you can install the UE3310 / UE3315, you need to: 1. Connect your UE3310 / UE3315 the computer’s USB port. 2. Use the UE3310 / UE3315 extender cable to connect the computer to your USB peripheral device. 3. Turn on your computer, and your USB device.
  • Page 10: Daisy Chaining

    The UE3310 can connect a total of 5 cables and the UE3315 can connect a total of 3 cables. The UE3310 and the UE3315 can be combined together using a daisy chain set up. Two UE3310 and two UE3315 cables will equal 50 meters.
  • Page 11: Technical Support

    UE3310 / UE3315 User Manual Technical Support International  For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com  For telephone support, see Telephone Support, page iii: North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation...
  • Page 12: Specifications

    UE3310 / UE3315 User Manual Specifications Function UE3310 UE3315 Connectors USB upstream 1 x USB Type A male 1 x USB Type A male (Blue) (Blue) USB Downstream 1 x USB Type A Female 1 x USB Type A Female...
  • Page 13: Limited Warranty

    UE3310 / UE3315 User Manual Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK, OR ITS DOCUMENTATION.

This manual is also suitable for:

Ue3315
