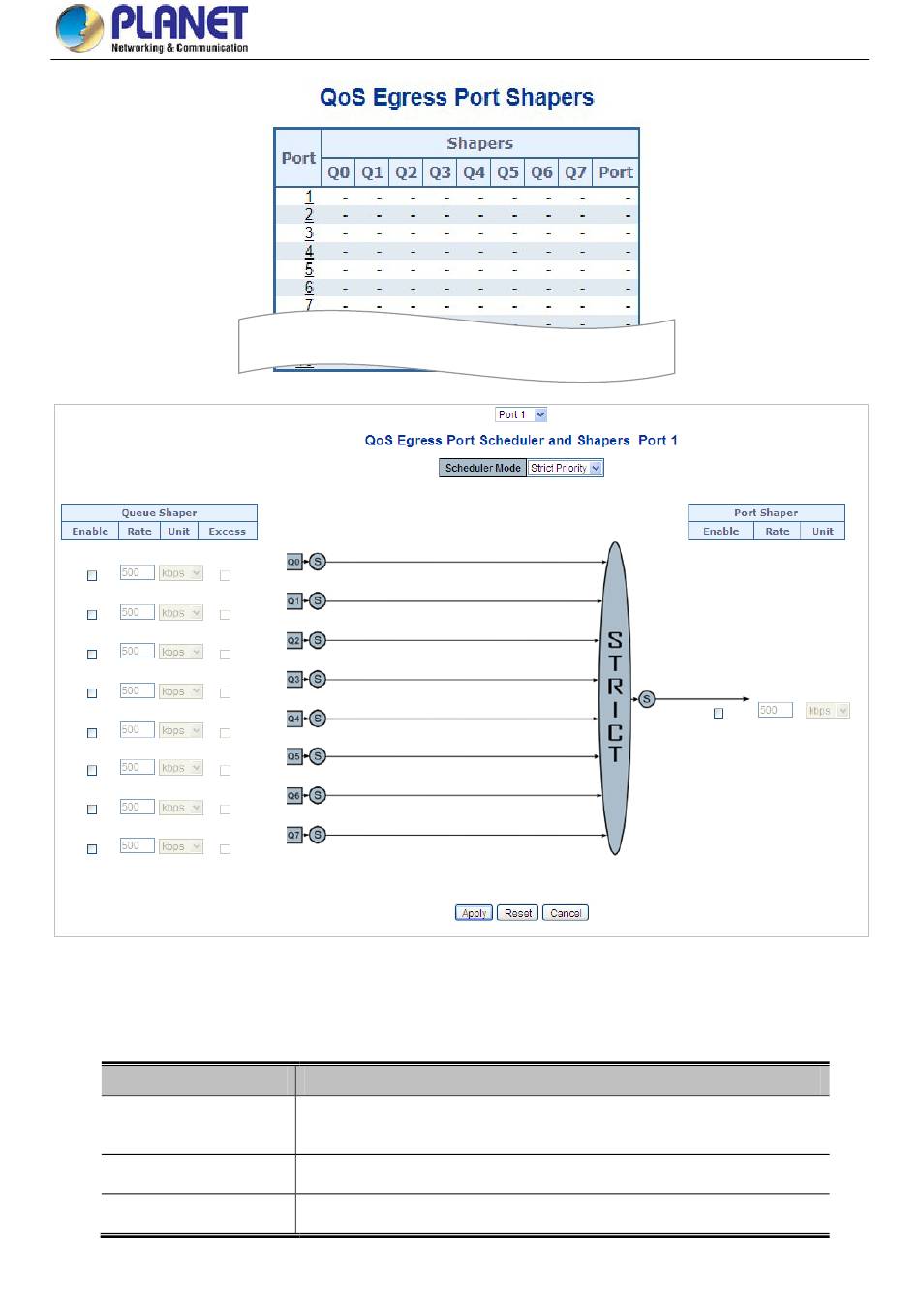

Figure 4-5-2-3: QoS Egress Port Schedule and Shapers Page Screenshot
The page includes the following fields:
Object
• Schedule Mode
• Queue Shaper Enable
• Queue Shaper Rate
User's Manual of GS-5220 LCD Series Managed Switch
Description
Controls whether the scheduler mode is "Strict Priority" or "Weighted" on this
switch port.
Controls whether the queue shaper is enabled for this queue on this switch port.
Controls the rate for the queue shaper.
