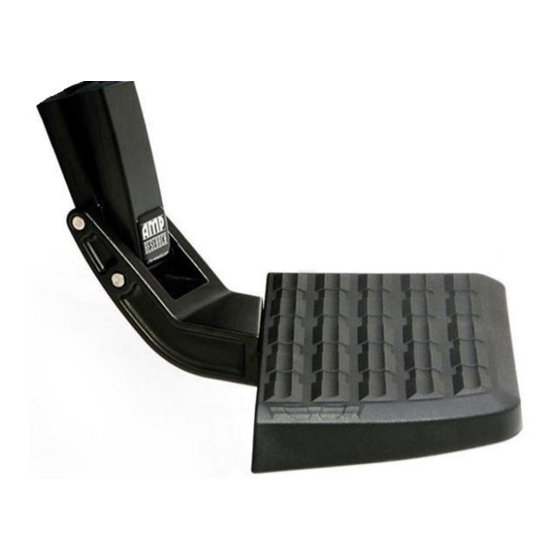

AMP Research BedStep 75329-01A Quick Start Manual

1
5 6
Attach brackets (3) and (4) with one Conical
bolt (9) and one Conical nut (10) as shown on
diagram below. Hand tighten, do not torque.
3
9
10
1
Locate rear receiver hitch attachment points on
driver side of vehicle.
3
AMP RESEARCH TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 7:00 AM - 5:00 PM PST
Invented, engineered and manufactured exclusively by AMP Research in the USA. May be covered by one OR MORE of the following patents: 6,641,158;
6,830,257; 6,834,875; 6,938,909; 7,055,839; 7,380,807; 7,413,204; 7,398,985; 7,584,975; 7,566,064; 7,487,986; 8,157,277; 8,408,571; 9,302,626;
9,561,751; 10,053,017; CA2463717 ©2012 AMP Research. All rights reserved. Printed in USA.
www.amp-research.com
2
3
7 8
4
APPLICATION
Toyota Tundra
4
9 10
Secure linkage (1) in vice and tighten bolts (8).
Torque bolts (7) to 33 ft-lbs (44 Nm). Torque bolt
added in step 1 (9) to 16ft-lbs (22Nm).
7
2
Attach brackets to vehicle points as shown below
using bolt (8). Torque bolts to 29 ft-lbs (39Nm)
4
1/2
AMP PART # 75329-01A
2022
Torque wrench
13, 14, & 15mm
8
8
IM75329 rev 11.11.22
T-25
14 mm
14 mm
