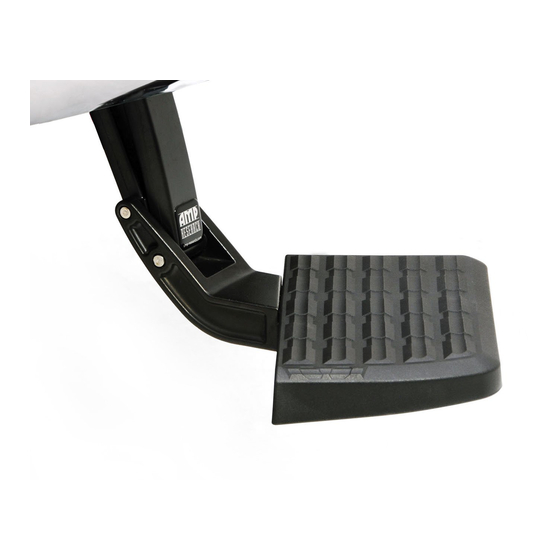

AMP Research BedStep 75324-01A Manual

Driver Side bumper mount

(do not re-use bolts)

AMP RESEARCH TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 7:00 AM - 5:00 PM PST

Designed and manufactured by AMP Research

Three-year limited warranty. Professional installation is recommended.

www.amp-research.com

APPLICATION

Ram 2500 / 3500

. Patent Number 6,830,257; 6,641,158; 6,834,875; 6,938,909; 6,942,233; 7,007,961; 7,055,839; 7,163,221;

Bracket B

Bracket A

33 ft-lbs / 44 Nm

13mm

If plug is present remove from bumper bracket

16mm

1/2

AMP PART # 75324-01A

2019 - 2023

Torque wrench

13, 15, 16, 24 mm

IM75324 rev 03.22.23

T-25

15mm

Table of Contents

Need help?

Do you have a question about the BedStep 75324-01A and is the answer not in the manual?

Page 1 Designed and manufactured by AMP Research . Patent Number 6,830,257; 6,641,158; 6,834,875; 6,938,909; 6,942,233; 7,007,961; 7,055,839; 7,163,221; ® 7,367,574; 7,380,807; 7,398,985; 7,413,204; 7,487,986. Other US and Worldwide patents pending. Made in USA © 2023 AMP Research Three-year limited warranty. Professional installation is recommended. www.amp-research.com...
Page 2 Install Bracket Hex Bolts: 41 ft-lbs / 55 Nm. Remove hitch bolt insert bracket and use supplied (use new supplied bolts #8) hardware to attach to main bracket assembly. If plug is present attach to top of bracket 15mm 13 & 24mm Insert PT Screws into corresponding holes and torque to 6 ft-lbs / 8 N.m.
Page 3 • Registration helps us keep you up to date on product information and offers To view other Amp Research products that may be offered for your vehicle. Please visit: www.amp-research.com Rev 01.05.21...
Page 4 L I MI TE D WARRAN T Y AMP RESEARCH warrants product to be free from defects in material and workmanship, for terms specified below, provided there has been normal use and proper maintenance. All remedies under this warranty are limited to the repair or replacement of any item found by the factory to be defective within the time period specified.
