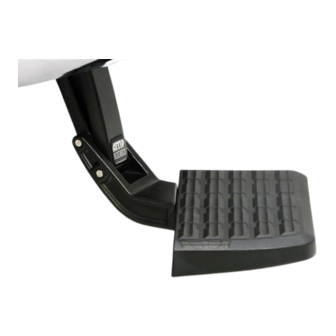

AMP Research BedStep 75327-01A Manual

1
5
6
Assemble brackets as shown.
33 ft-lbs / 44 Nm
1
Remove 2 nuts and set assembly into position.
Reuse factory nuts and Torque to 41ft-lbs/ 55Nm.
3
AMP RESEARCH TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 7:00 AM - 5:00 PM PST
Invented, engineered and manufactured exclusively by AMP Research in the USA. May be covered by one OR MORE of the following patents:
6,641,158; 6,830,257; 6,834,875; 6,938,909; 7,055,839; 7,380,807; 7,413,204; 7,398,985; 7,584,975; 7,566,064; 7,487,986; 8,157,277;
8,408,571; 9,302,626; 9,561,751; 10,053,017; CA2463717 ©2012 AMP Research. All rights reserved. Printed in USA.
www.amp-research.com
APPLICATION
Chevy Silverado / GMC Sierra 2500/3500
Bracket A
3
2
7
Bracket B
4
8
9
Remove support bar with a 21mm deep socket
and a 13mm socket or wrench.
Support bar to be reinstalled on
2
step 4.
Replace support bar and slide support strap
over stud. Use supplied hardware to bolt strap to
assembly. Torque to 41ft-lbs/ 55Nm.
4
18mm
1/2
AMP PART # 75327-01A
2020-2023
Torque wrench
21mm
18mm 13mm
T-25
13mm 21mm
13mm 21mm
IM75327 rev 11.11.22
