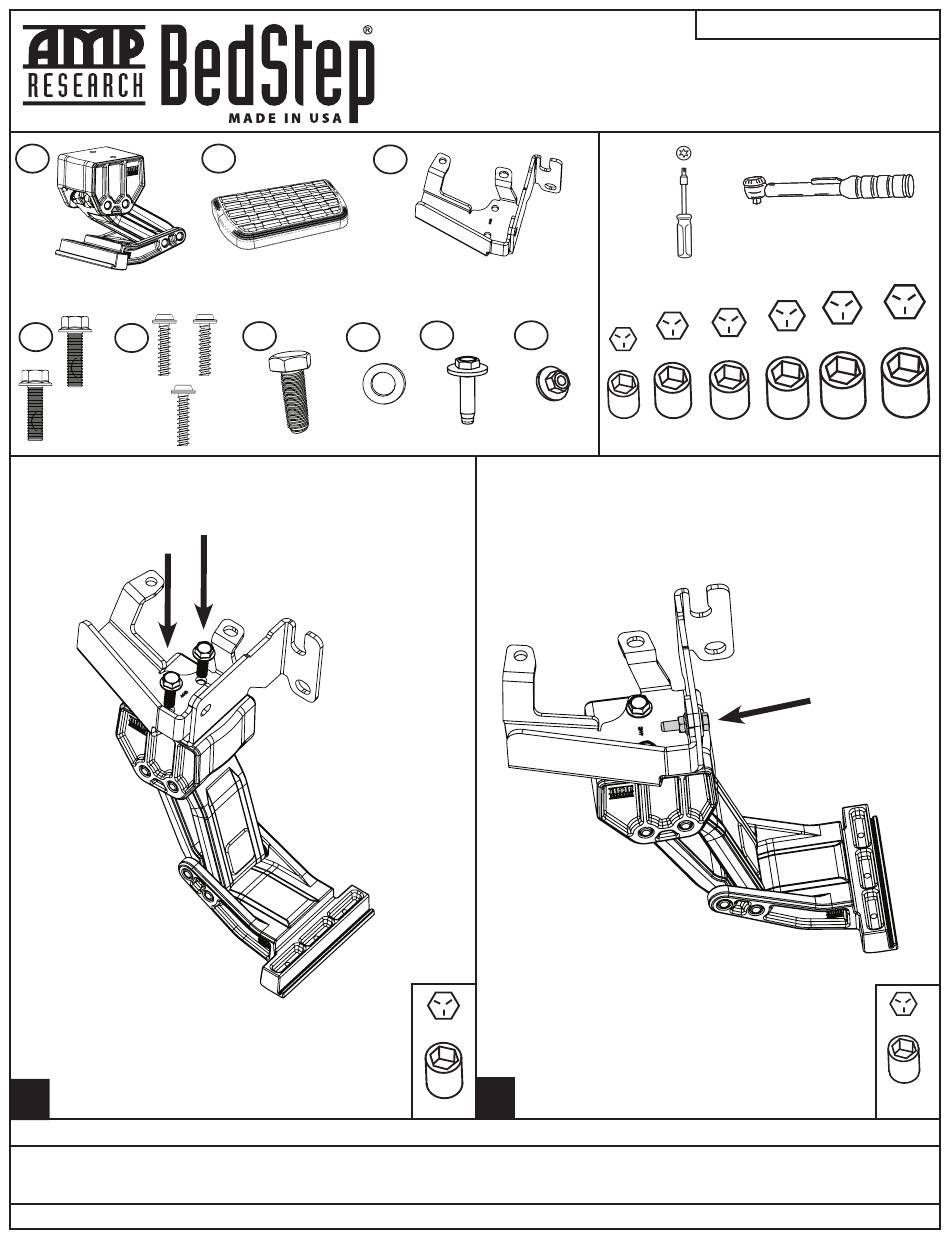

Using a 15mm wrench assemble steel bracket
to Linkage assembly. Torque bolts to 20 ft-lbs.
1
AMP RESEARCH TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 7:00 AM - 5:00 PM PST
Designed and manufactured by AMP Research
7,367,574; 7,380,807; 7,398,985; 7,413,204; 7,487,986. Other US and Worldwide patents pending. Made in USA © 2009 AMP Research
Three-year limited warranty. Professional installation is recommended.
www.amp-research.com
2
3
6
7
. Patent Number 6,830,257; 6,641,158; 6,834,875; 6,938,909; 6,942,233; 7,007,961; 7,055,839; 7,163,221;
®

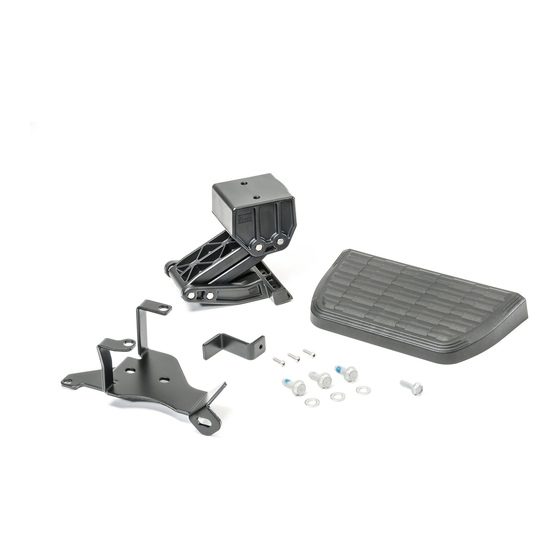

APPLICATION
Jeep Wrangler JL
(2 & 4 Door)
9
8
13mm
Assemble bolt and nut into tab and use a 13mm
wrench and torque bolt to 16 ft-lbs.
2
15mm
1/3
AMP PART # 75321-01A
2018 - 2019
Torque wrench
T25
15mm
16mm
18mm 21mm
IM75321 rev 12.17.19
22mm
13mm
