Description

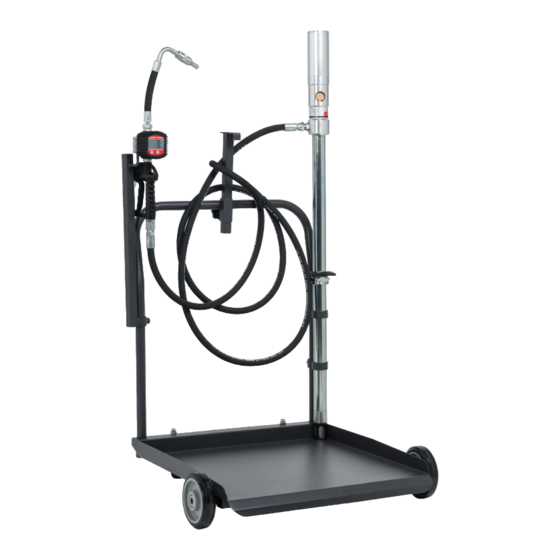

The EL Series O30060 is the ideal oil transfer kit for
dispensing oil with a maximum viscosity of SAE130.
Representing excellent value for money, the Alemlube
EL Series O30060 gives you the opportunity
to upgrade from standard hand operated oil drum
pumps to a pneumatic solution.
Delivering up to 10L/min with a 3:1 ratio pump,
the O30060 is suitable for use with 205L oil drums
to perform intermittent or seasonal work.
The oil control valve with ergonomic grip is easy
to operate and features a lock on device
for your convenience.
Smart design with fewer working parts effectively
facilitates a lower cost of ownership.
Manufactured with efficiency and reliability in mind,
the O30060 Oil Transfer Kit with On/Off Gun & Trolley
is well designed, affordable and is supported
by readily available spare parts.
Technical Details
Item No.
Ratio
Air Inlet Pressure
Max Fluid Pressure
Air Consumption
Kit Max Free Flow Rate
Tube Diameter
Suction Tube Length
Air Inlet Connection
Oil Delivery Connection
Maximum Viscosity Oil Delivered
Temperature Oil Delivered
Noise Level
NSW/ACT
QLD/PNG
TEL: (02) 9939 0711
TEL: (07) 3889 8480
FAX: (02) 9939 0411
FAX: (07) 3889 8490

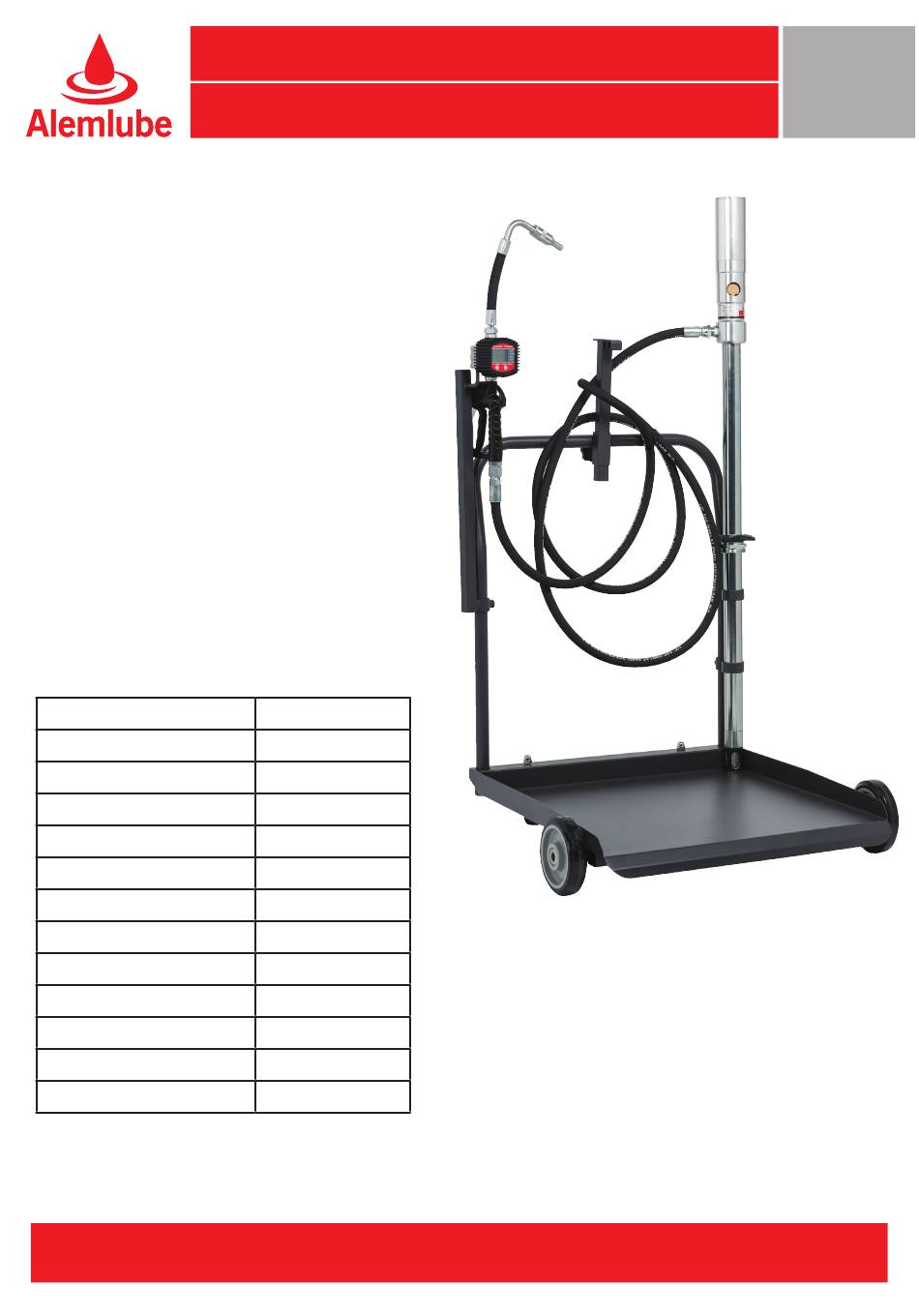

OWNER'S TECHNICAL MANUAL
Oil Transfer Kit with Meter & Trolley
O30030 Oil Pump
3:1
30-150psi (2-10bar)
450psi (30bar)
3.6cfm @ 150psi
10L/min
42mm
940mm
1/4" quick plug
Male 1/2"
SAE 130
-10~50°C
82 dB
VIC/TAS
TEL: (03) 8787 8288
FAX: (03) 8787 8266
Visit our website at
www.alemlube.com.au
WA
SA/NT
TEL: (08) 9209 3066
TEL: (08) 8241 7111
FAX: (08) 9209 3933
FAX: (08) 8241 7011
or
www.alemlube.co.nz
O30060
March 2019
NZ
TEL: (09) 447 1007
FAX: (09) 447 1008
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alemlube O30060
Summary of Contents for Alemlube O30060
- Page 1 Oil Transfer Kit with Meter & Trolley March 2019 Description The EL Series O30060 is the ideal oil transfer kit for dispensing oil with a maximum viscosity of SAE130. Representing excellent value for money, the Alemlube EL Series O30060 gives you the opportunity to upgrade from standard hand operated oil drum pumps to a pneumatic solution.
-
Page 2: Safety Warning And Precautions
OWNER’S TECHNICAL MANUAL O30060 Oil Transfer Kit with Meter & Trolley Safety Warning and Precautions WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur. It must be understood by the operator that common sense and caution are factors that cannot be built into this product, but must be supplied by the operator. -
Page 3: Troubleshooting
SAE 20, SAE 30 or antifreeze oil for extreme conditions when necessary. NOTE: The user should perform only routine maintenance operations (such as filters, silencers, cleaning…) with the pump in order not to damage it or compromise its safety. Contact Alemlube when the pump needs further maintenance. -
Page 4: How To Use
OWNER’S TECHNICAL MANUAL O30060 Oil Transfer Kit with Meter & Trolley How to Use Directly fit Pump into the Drum. 1. Insert the suction tube of pump into the drum and secure with bung adaptor, suitable for commercial drums with 57 diameter hole and threading 2” BSP. -
Page 5: Ordering Spare Parts
TEL: (08) 9209 3066 TEL: (08) 8241 7111 TEL: (09) 447 1007 FAX: (02) 9939 0411 FAX: (07) 3889 8490 FAX: (03) 8787 8266 FAX: (08) 9209 3933 FAX: (08) 8241 7011 FAX: (09) 447 1008 Visit our website at www.alemlube.com.au www.alemlube.co.nz... -
Page 6: Technical Details
OWNER’S TECHNICAL MANUAL O30060 Oil Transfer Kit with Meter & Trolley Technical Details Item No. O30080 Oil Meter Inlet connection 1/2" BSP Fluid Range 1-35L/min Pressure Range 70-725psi (5-50Bar) Temperature Min. -10°C Max. 60°C Precision Viscosity 8-5000mps Power source Rigid tube –... -
Page 7: Details Of Operation
OWNER’S TECHNICAL MANUAL O30060 Oil Transfer Kit with Meter & Trolley Details of Operation 1. Before putting into operation • Check the technical data of the installation match with those of the lube meter. For example connections, pressure, flow range and medium. Use the formula: Proper correction factor = (actual value / displayed value) x current correction factor to decide the right connection factor, then set the proper correction factor (refer to 3. - Page 8 OWNER’S TECHNICAL MANUAL O30060 Oil Transfer Kit with Meter & Trolley Daily Use FIG. 1 Button usage, calibration & measurement unit change Reset the present total (See Fig. 1) 1) When the meter is on standby, press the RESET key.
- Page 9 OWNER’S TECHNICAL MANUAL O30060 Oil Transfer Kit with Meter & Trolley Reset the resettable total (See Fig. 4) When the meter is on standby, press the RESET key for more than 3 seconds to reset the present total first. FIG. 4...
- Page 10 OWNER’S TECHNICAL MANUAL O30060 Oil Transfer Kit with Meter & Trolley Procedure for entering the correction factor directly Carefully follow the procedure indicated below. Formula: Proper correction factor = current correction factor × (actual value / display value) Example: Actual value 20.75...
- Page 11 OWNER’S TECHNICAL MANUAL O30060 Oil Transfer Kit with Meter & Trolley To modify the correction factor in field follow this procedure Wait for the meter to go standby. Reset the resettable total. Start dispensing into a measuring glass. Stop dispensing when over 5 Litres of volume is reached, read out the actual value.
-
Page 12: Maintenance
Meter O30080-38 Adapter O30080-39 Handle Body O30080-40 Swivel Fitting Maintenance If any problem, please contact your local Alemlube Service Centre. NSW/ACT QLD/PNG VIC/TAS SA/NT TEL: (02) 9939 0711 TEL: (07) 3889 8480 TEL: (03) 8787 8288 TEL: (08) 9209 3066... -
Page 13: Troubleshooting Guide
OWNER’S TECHNICAL MANUAL O30060 Oil Transfer Kit with Meter & Trolley Trouble Shooting Guide Relieve the pressure before you check or repair the dispensing valve. Be sure all other valves and controls and the pump are operating properly. To reduce the risk of serious injury whenever you are instructed to relieve pressure, always follow the pressure relief procedure on page 3. - Page 14 TEL: (08) 9209 3066 TEL: (08) 8241 7111 TEL: (09) 447 1007 FAX: (02) 9939 0411 FAX: (07) 3889 8490 FAX: (03) 8787 8266 FAX: (08) 9209 3933 FAX: (08) 8241 7011 FAX: (09) 447 1008 Visit our website at www.alemlube.com.au www.alemlube.co.nz...
- Page 15 TEL: (08) 9209 3066 TEL: (08) 8241 7111 TEL: (09) 447 1007 FAX: (02) 9939 0411 FAX: (07) 3889 8490 FAX: (03) 8787 8266 FAX: (08) 9209 3933 FAX: (08) 8241 7011 FAX: (09) 447 1008 Visit our website at www.alemlube.com.au www.alemlube.co.nz...
- Page 16 TEL: (08) 9209 3066 TEL: (08) 8241 7111 TEL: (09) 447 1007 FAX: (02) 9939 0411 FAX: (07) 3889 8490 FAX: (03) 8787 8266 FAX: (08) 9209 3933 FAX: (08) 8241 7011 FAX: (09) 447 1008 Visit our website at www.alemlube.com.au www.alemlube.co.nz...
