Alemlube HR40000 Series Owner Technical Manual

Description

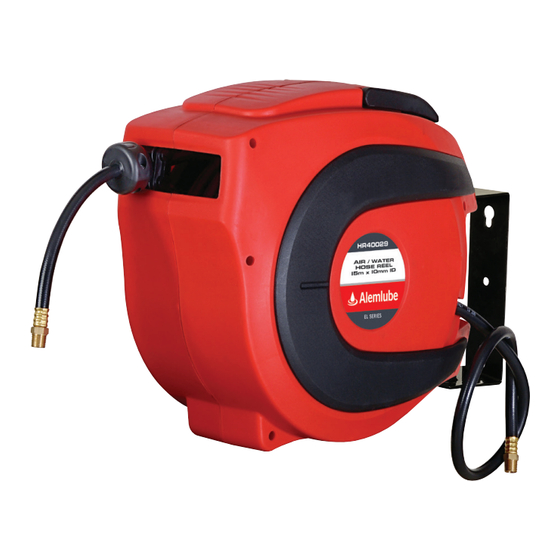

The Alemlube EL 40000 series air and water hose reels are quality hose handling, retrieval and storage systems with crimped hose
ends, integral carry handles and detachable mounting brackets enabling 180º hose reel rotation. Manufactured with high density
impact resistant and UV stabilised polypropylene cover, the EL 40000 series (with PVC hose) features a positive latching system that
automatically locks the hose at the desired length and the heavy duty internal spring assembly easily retrieves the hose when partially
or fully extended.
Suitable for use in the agricultural, automotive, manufacturing, contractor and transport sectors, the EL 40000 series hose reels
are ideal to use in automotive workshops, garages and homes.
Mountable on the wall or ceiling, the EL 40000 Series features a constant speed control device ensuring safe and accurate rewinding.
Specifications
Uses
Working Pressures
Materials
HR40029, HR40041, HR40089, HR40090
HR90000 SERIES HOSE REELS
PART No. PRODUCT DESCRIPTION
HR40029 EL 40000 Series air and water complete with 15m x 10mm ID PVC hose and 0.9m lead in hose
HR40041 EL Series air and water hose reel complete with 16m x 12mm ID PVC hose and 0.9m lead in hose
HR40089 EL Series air and water hose reel complete with 15m x 8mm ID PVC hose and 0.9m lead in hose
HR40090 EL Series air and water hose reel complete with 20m x 8mm ID PVC hose and 0.9m lead in hose
NSW QLD/PNG
TEL: (02) 9677 1555 TEL: (07) 3204 9166
FAX: (02) 9675 1155 FAX: (07) 3204 1224
OWNER'S TECHNICAL MANUAL
EL SERIES
HR40000 SERIES Spring Rewind Hose Reels
Air and Water
300psi (20bar)
Polypropylene covers - PVC hose
VIC/TAS
TEL: (03) 8787 8288
FAX: (03) 8787 8266
Visit our website at www.alemlube.com.au
WA SA/NT
TEL: (08) 9302 4199 TEL: (08) 8241 7111
FAX: (08) 9303 2095 FAX: (08) 8241 7011
or www.alemlube.co.nz
PSI/BAR
300psi/20bar
300psi/20bar
300psi/20bar
300psi/20bar
NZ
TEL: (64) 9 447 1007
FAX: (64) 9 447 1008
1
