Description

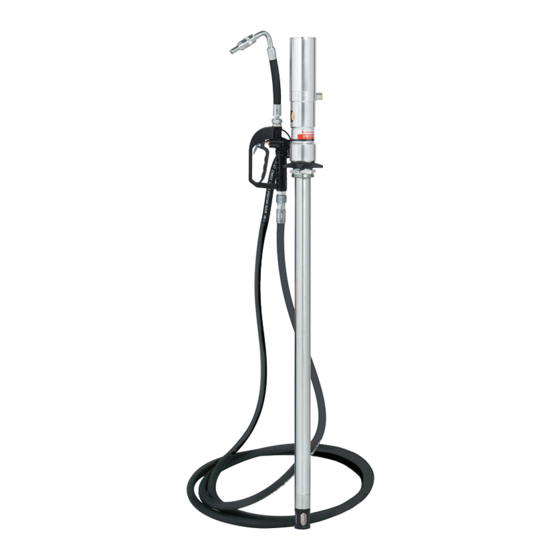

The EL Series O30040 is the ideal oil transfer kit for dispensing
oil with a maximum viscosity of SAE130.
Representing excellent value for money, the Alemlube EL Series
O30040 gives you the opportunity to upgrade from standard
hand operated oil drum pumps to a pneumatic solution.
Delivering up to 12L/min with a 3:1 ratio pump, the O30040
is suitable for use with 205L oil drums to perform intermittent
or seasonal work.
The oil control valve with ergonomic grip is easy to operate
and features a lock on device for your convenience.
Smart design with fewer working parts effectively facilitates
a lower cost of ownership.
Manufactured with efficiency and reliability in mind,
the O30040 oil transfer kit is well designed, affordable
and is supported by readily available spare parts.
Technical Details
Item No.
Ratio
Air Inlet Pressure
Max Fluid Pressure
Air Consumption
Kit Max Free Flow Rate
Tube Diameter
Suction Tube Length
Air Inlet Connection
Oil Delivery Connection
Maximum Viscosity Oil Delivered
Temperature Oil Delivered
Noise Level
NSW/ACT
QLD/PNG
TEL: (02) 9939 0711
TEL: (07) 3889 8480
FAX: (02) 9939 0411
FAX: (07) 3889 8490
OWNER'S TECHNICAL MANUAL
Oil Transfer Kit with On/Off Gun
O30030 Oil Pump
3:1
30-150psi (2-10bar)
450psi (30bar)
3.6cfm @ 150psi
12L/min
42mm
940mm
1/4" quick plug
Male 1/2"
SAE 130
-10~50°C
82 dB
VIC/TAS
TEL: (03) 8787 8288
FAX: (03) 8787 8266
Visit our website at
www.alemlube.com.au
WA
SA/NT
TEL: (08) 9209 3066
TEL: (08) 8241 7111
FAX: (08) 9209 3933
FAX: (08) 8241 7011
or
www.alemlube.co.nz
O30040
March 2019
NZ
TEL: (09) 447 1007
FAX: (09) 447 1008
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alemlube O30040
Summary of Contents for Alemlube O30040
- Page 1 Oil Transfer Kit with On/Off Gun March 2019 Description The EL Series O30040 is the ideal oil transfer kit for dispensing oil with a maximum viscosity of SAE130. Representing excellent value for money, the Alemlube EL Series O30040 gives you the opportunity to upgrade from standard hand operated oil drum pumps to a pneumatic solution.
-
Page 2: Safety Warning And Precautions
OWNER’S TECHNICAL MANUAL O30040 Oil Transfer Kit with On/Off Gun Safety Warning and Precautions WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur. It must be understood by the operator that common sense and caution are factors that cannot be built into this product, but must be supplied by the operator. -
Page 3: Troubleshooting
SAE 20, SAE 30 or antifreeze oil for extreme conditions when necessary. NOTE: The user should perform only routine maintenance operations (such as filters, silencers, cleaning…) with the pump in order not to damage it or compromise its safety. Contact Alemlube when the pump needs further maintenance. -
Page 4: How To Use
OWNER’S TECHNICAL MANUAL O30040 Oil Transfer Kit with On/Off Gun How to Use Directly fit Pump into the Drum. 1. Insert the suction tube of pump into the drum and secure with bung adaptor, suitable for commercial drums with 57 diameter hole and threading 2” BSP. -
Page 5: Ordering Spare Parts
TEL: (08) 9209 3066 TEL: (08) 8241 7111 TEL: (09) 447 1007 FAX: (02) 9939 0411 FAX: (07) 3889 8490 FAX: (03) 8787 8266 FAX: (08) 9209 3933 FAX: (08) 8241 7011 FAX: (09) 447 1008 Visit our website at www.alemlube.com.au www.alemlube.co.nz... -
Page 6: Technical Details
OWNER’S TECHNICAL MANUAL O30040 Oil Transfer Kit with On/Off Gun Technical Details Item No. O300100 Inlet connection 1/2" BSP Fluid Range 1-35L/min Pressure Range 70-1450psi (5-100Bar) Temperature Min. -10°C Max. 60°C Precision Viscosity 8-5000mps Power source Rigid tube – •... -
Page 7: Maintenance
Quantity O30080-36 Spout O30080-39 Handle Body O30080-40 Swivel Fitting Maintenance If any problem, please contact your local Alemlube Service Centre. NSW/ACT QLD/PNG VIC/TAS SA/NT TEL: (02) 9939 0711 TEL: (07) 3889 8480 TEL: (03) 8787 8288 TEL: (08) 9209 3066... -
Page 8: Troubleshooting Guide
OWNER’S TECHNICAL MANUAL O30040 Oil Transfer Kit with On/Off Gun Trouble Shooting Guide Relieve the pressure before you check or repair the dispensing valve. Be sure all other valves and controls and the pump are operating properly. To reduce the risk of serious injury whenever you are instructed to relieve pressure, always follow the pressure relief procedure on page 3. - Page 9 TEL: (08) 9209 3066 TEL: (08) 8241 7111 TEL: (09) 447 1007 FAX: (02) 9939 0411 FAX: (07) 3889 8490 FAX: (03) 8787 8266 FAX: (08) 9209 3933 FAX: (08) 8241 7011 FAX: (09) 447 1008 Visit our website at www.alemlube.com.au www.alemlube.co.nz...
