DESCRIPTION

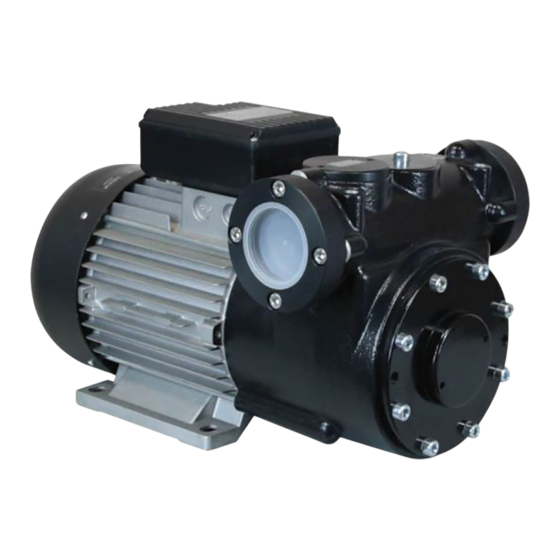

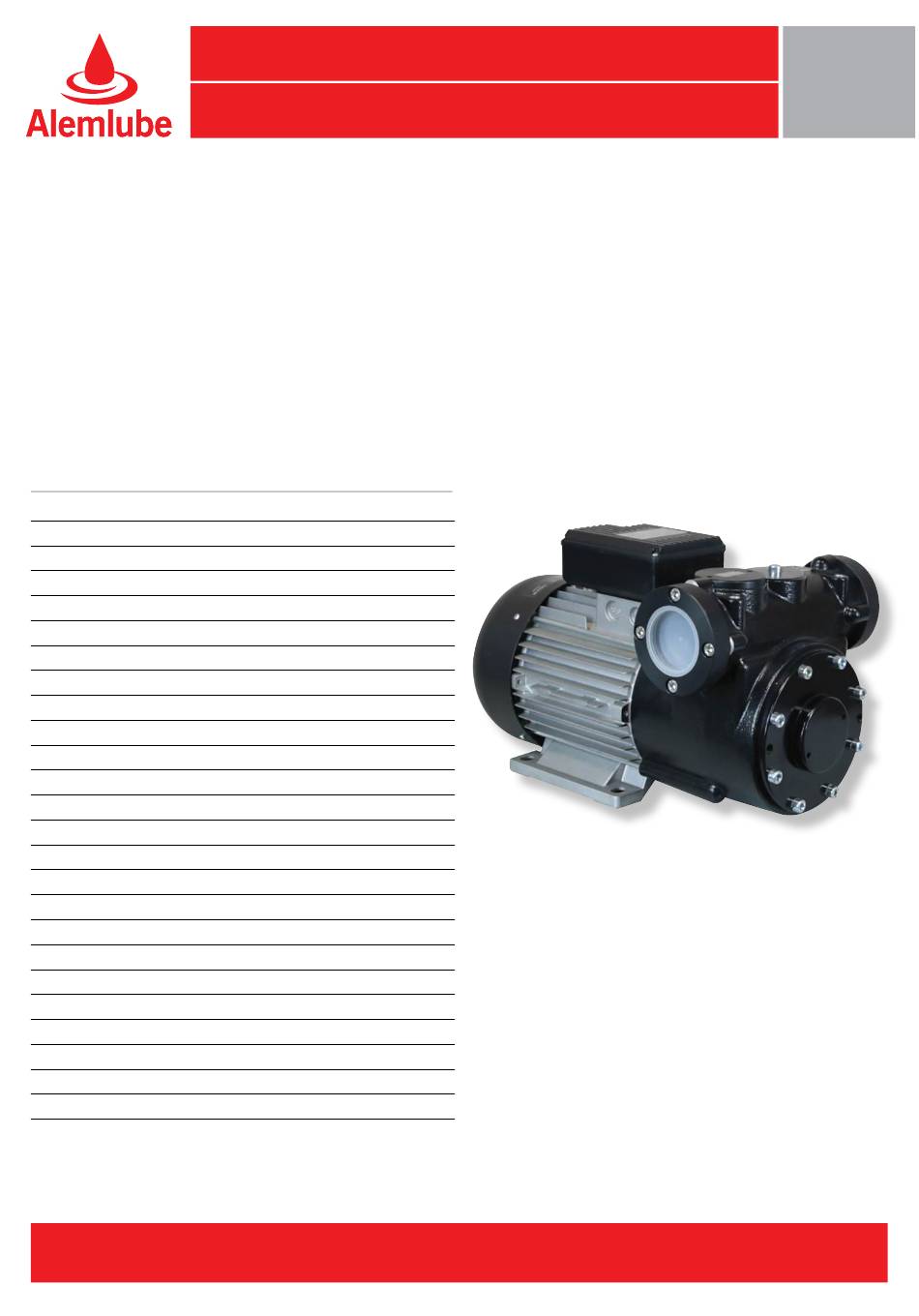

The 339000 240V Diesel Transfer Pump is a self-priming rotary type pump equipped with a by-pass, suction filter
and self-ventilated motor which is flanged to the pump body.
The high self-priming operation ensures reliability and continuous use even when subjected to high pressure.
The 339000 240V Diesel Transfer Pump provides the user with dependable longevity of service when installed
correctly, regularly maintained and used in accordance with the specifications contained in this manual.
Prior to installation, carefully check the contents of the packaging and thoroughly read this documentation.
Installation and pump operation must be in accordance with the safety and workplace laws of your country.
The pump must be correctly installed with regard to all personal safety rules and to avoid damages which
may void your right to the Alemlube two-year warranty.
PRODUCT SPECIFICATIONS
Flow Rate (1 Bar)
Voltage
Maximum Pressure
In
Out
Flange In-Out
Suction
Self Priming
Integrated filter
Bleeder Valve
Motion Transmission
Type Rotor
Pump Body
Rotor Insert
By-Pass
Seal
Anti-Flood Motor Protect
Engine Rotation
Power
Motor Frame
Ampere
Noise
Operating Temperature
Compatible Liquids
Weight
NSW/ACT
TEL: (02) 9677 1555
FAX: (02) 9675 1155
OWNER'S TECHNICAL MANUAL
240V Diesel Transfer Pump
191 L/min
240V 50Hz
58psi (4 Bar)
2" BSP (f)
2" BSP (f)
Yes
3 m
Automatic
130um
Included
Supported Crankshaft
6 Vanes
Aluminium
Cast Iron
Included
6 Bar Mechanical NBR Seal
Included
1400 rpm
2237 watt (3hp)
100L MEC
10.2 Amp
80 dB
-10 – +40
Diesel
38 Kg
QLD/PNG
VIC/TAS
TEL: (07) 3204 9166
TEL: (03) 8787 8288
FAX: (07) 3204 1224
FAX: (03) 8787 8266
Visit our website at
www.alemlube.com.au
WA
SA/NT
TEL: (08) 9302 4199
TEL: (08) 8241 7111
FAX: (08) 9303 2095
FAX: (08) 8241 7011
or
www.alemlube.co.nz
339000
May 2019
NZ
TEL: (09) 447 1007
FAX: (09) 447 1008
1
Advertisement
Table of Contents
Related Manuals for Alemlube 339000
Summary of Contents for Alemlube 339000
- Page 1 May 2019 DESCRIPTION The 339000 240V Diesel Transfer Pump is a self-priming rotary type pump equipped with a by-pass, suction filter and self-ventilated motor which is flanged to the pump body. The high self-priming operation ensures reliability and continuous use even when subjected to high pressure.
-
Page 2: Safety Warning And Precautions
OWNER’S TECHNICAL MANUAL 339000 240V Diesel Transfer Pump Safety Warning and Precautions WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur. It must be understood by the operator that common sense and caution are factors that cannot be built into this product, but must be supplied by the operator. -
Page 3: Usage Restrictions
The feeder integrity must be always checked before every usage of the pump. If there are abrasions or damages, please ask for authorised staff intervention. WARNING: The feeder can only be changed by Alemlube or by authorised staff. NSW/ACT QLD/PNG... -
Page 4: Electric Connection
If the pump is modified without permission, Alemlube is then not liable anymore for damages caused by the pump. These pumps are designed to require the lowest maintenance, but a regular check for weak tube connections in order to avoid diesel losses and a monthly filter and pump body check are required to preserve quality and efficiency. -
Page 5: Troubleshooting
OWNER’S TECHNICAL MANUAL 339000 240V Diesel Transfer Pump TROUBLE SHOOTING Condition Possible Cause Corrective Action The engine does not work There is no voltage Check cut-outs and net voltage or runs very slowly The rotor is locked Remove the cover and check and/or... - Page 6 Ordering Spare Parts Parts List – Part No. 339000 339000-34 339000-33 339000-35 339000-37 339000-36 339000-31 339000-21 339000-20 339000-19 339000-18 339000-27 339000-17 339000-28 339000-29 339000-39 339000-30 339000-40 339000-4 339000-26 339000-12 339000-22 339000-25 339000-38 339000-34 339000-13 339000-23 339000-14 339000-24 339000-15 339000-13 339000-16...
-
Page 7: Ordering Spare Parts
Ordering Spare Parts Parts List – Part No. 339000 Part Number Description Part Number Description 339000-1 Bearing Seat Cover 339000-21 White Filter Adhesive 339000-2 O-Ring 339000-22 By-Pass Spring 339000-3 Bearing 339000-23 Washer 339000-4 Screw 339000-24 Self-Locking Nut 339000-5 Pump Cover...
