Description

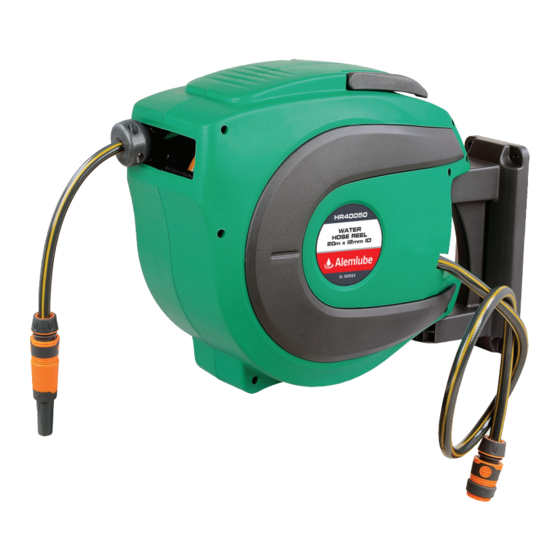

The Alemlube EL Series HR40050 water hose reel is a quality hose handling, retrieval and storage system suitable for general garden
and washdown use around the home and in business.
Supplied complete with PVC garden hose, hose quick connector, water nozzle, integral carry handle and mounting bracket allowing
the reel to rotate up to 180º.
Manufactured from high density impact resistant and UV stabilised polypropylene, the HR40050 features a positive latching system
that automatically locks the hose at the desired length and the heavy duty internal spring assembly easily retrieves the hose when
partially or fully extended.
The Alemlube EL Series HR40050 is quick and easy to install and is a truly economical, robust and reliable hose reel for many day
to day watering duties and cleaning operations.
Specifications
Uses
Working Pressure
Materials
HR40050 SERIES HOSE REEL
PART No.
PRODUCT DESCRIPTION
HR40050
EL Series Water complete with 20m x 12mm ID PVC hose and 1.2m lead in hose
Technical Details
Item
HR40050
NSW
TEL: (02) 9677 1555
FAX: (02) 9675 1155
Visit our website at
OWNER'S TECHNICAL MANUAL
EL SERIES
HR40050 Water Hose Reel
Water
140psi (10bar)
Plastic and PVC hose
Max
Hose Working
Pressure
Temperature
(psi/bar)
140/10
-0~+60
QLD/PNG
VIC/TAS
TEL: (07) 3204 9166
TEL: (03) 8787 8288
FAX: (07) 3204 1224
FAX: (03) 8787 8266
www.alemlube.com.au www.alemlube.co.nz
(C)
Material
PVC
PAGE 1 OF 4
WA
TEL: (08) 9302 4199
FAX: (08) 9303 2095
PSI/BAR
140psi/10bar
Hose Capacity
I.D.
Length
(inch/mm)
(m/ft)
3/4"BSP(F) / 19
20 / 65
SA/NT
TEL: (08) 8241 7111
FAX: (08) 8241 7011
Email - info@alemlube.com.au
NZ
TEL: (09) 447 1007
FAX: (09) 447 1008
Advertisement
Related Manuals for Alemlube HR40050
Summary of Contents for Alemlube HR40050
-
Page 1: Specifications
The Alemlube EL Series HR40050 is quick and easy to install and is a truly economical, robust and reliable hose reel for many day to day watering duties and cleaning operations. - Page 2 6) If hose stopper adjustment is required, pull hose from reel and allow to latch at desired 1 OF 4 length. Loosen stopper bolts, and slide stopper to a position close to the hose guide. Tighten stopper bolts, and unlatch the reel. HR40050 for water - wall mount 2 OF 4 PAGE 2 OF 4 QLD/PNG...
- Page 3 HR40050 Hose Reel Instruction Plastic Spring Driven Reel 2766 Series Instruction Operation 1. Check reel for correct operation by slowly pulling out the hose. 2. To latch the reel, pull out the hose about 3 feet/1m and allow it to retract until the hose stops retracting.
- Page 4 HR40050 Hose Reel Parts and drawing breakdown Item No Part No Description Q’ty Item No Part No Description Q’ty 标记 MARK HR40050-1 Hose Compositor HR40050-21 Swivel Spool HR40050-2 Right Casing HR40050-22 HR40050-3 Left Casing HR40050-23 HR40050-4 End Cover HR40050-24 Synchronous Wheel...
