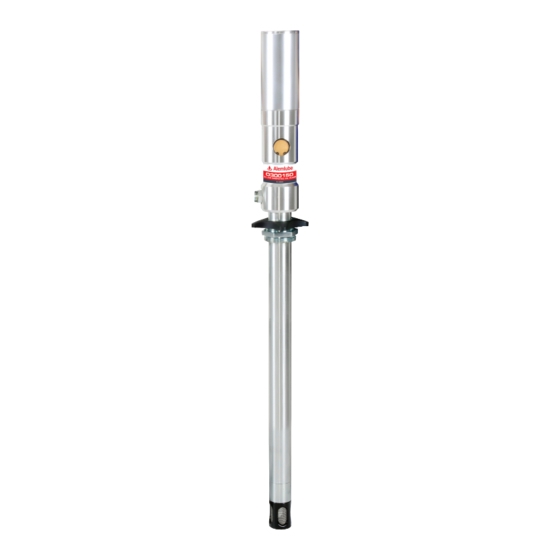

Description
The EL Series O300150 is the ideal oil transfer kit for dispensing
oil with a maximum viscosity of SAE130.
Representing excellent value for money, the Alemlube EL Series
O300150 gives you the opportunity to upgrade from standard
hand operated oil drum pumps to a pneumatic solution.
Delivering up to 20L/min with a 3:1 ratio pump, the O300150
is suitable for use with 60L oil drums to perform intermittent
or seasonal work.
The oil control valve with ergonomic grip is easy to operate
and features a lock on device for your convenience.
Smart design with fewer working parts effectively facilitates
a lower cost of ownership.
Manufactured with efficiency and reliability in mind,
the O300150 3:1 Air-operated Oil Pump is well designed,
affordable and is supported by readily available spare parts.
Technical Details
Item No.
Ratio
Air Inlet Pressure
Max Fluid Pressure
Air Consumption
Max Free Flow Rate
Tube Diameter
Suction Tube Length
Air Inlet Connection
Oil Delivery Connection
Maximum Viscosity Oil Delivered
Temperature Oil Delivered
Noise Level
NSW/ACT
QLD/PNG
TEL: (02) 9677 1555
TEL: (07) 3204 9166
FAX: (02) 9675 1155
FAX: (07) 3204 1224

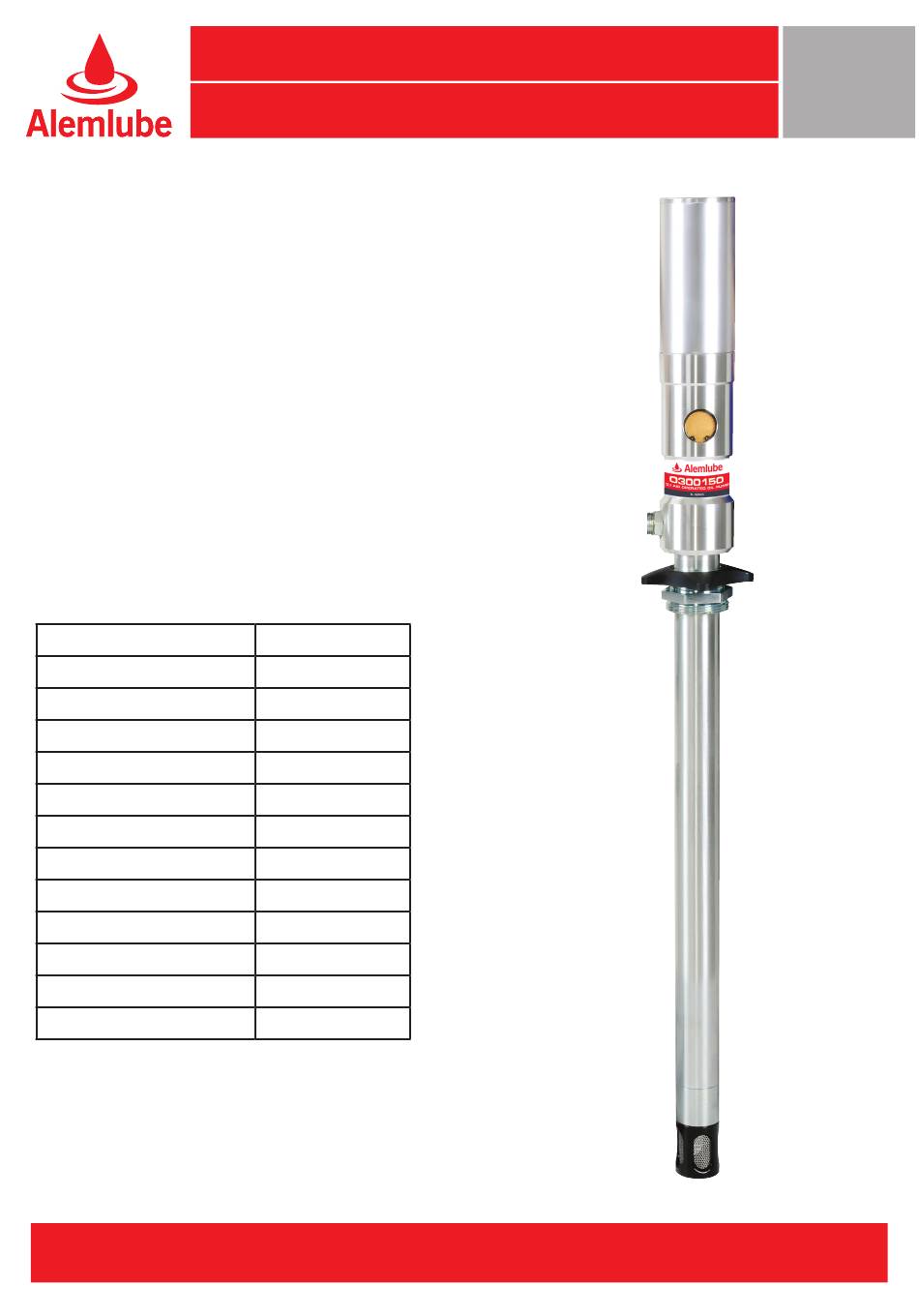

OWNER'S TECHNICAL MANUAL
3:1 Air-operated Oil Pump
O300150
3:1
30-150psi (2-10bar)
450psi (30bar)
3.6cfm @ 150psi
20L/min
42mm
730mm
1/4" quick plug
Male 1/2"
SAE 130
-10~50°C
82 dB
VIC/TAS
TEL: (03) 8787 8288
FAX: (03) 8787 8266
Visit our website at
www.alemlube.com.au
WA
SA/NT
TEL: (08) 9302 4199
TEL: (08) 8241 7111
FAX: (08) 9303 2095
FAX: (08) 8241 7011
or
www.alemlube.co.nz
O300150
June 2019
NZ
TEL: (09) 447 1007
FAX: (09) 447 1008
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the O300150 and is the answer not in the manual?

Questions and answers

Summary of Contents for Alemlube O300150

  • Page 1 3:1 Air-operated Oil Pump June 2019 Description The EL Series O300150 is the ideal oil transfer kit for dispensing oil with a maximum viscosity of SAE130. Representing excellent value for money, the Alemlube EL Series O300150 gives you the opportunity to upgrade from standard hand operated oil drum pumps to a pneumatic solution.
  • Page 2: Safety Warning And Precautions

    OWNER’S TECHNICAL MANUAL O300150 3:1 Air-operated Oil Pump Safety Warning and Precautions WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur. It must be understood by the operator that common sense and caution are factors that cannot be built into this product, but must be supplied by the operator.
  • Page 3: Troubleshooting

    SAE 20, SAE 30 or antifreeze oil for extreme conditions when necessary. NOTE: The user should perform only routine maintenance operations (such as filters, silencers, cleaning…) with the pump in order not to damage it or compromise its safety. Contact Alemlube when the pump needs further maintenance.
  • Page 4: How To Use

    OWNER’S TECHNICAL MANUAL O300150 3:1 Air-operated Oil Pump How to Use Directly fit Pump into the Drum. 1. Insert the suction tube of pump into the drum and secure with bung adaptor, suitable for commercial drums with 57 diameter hole and threading 2” BSP.
  • Page 5: Ordering Spare Parts

    Seal O300150-29 O-Ring O300150-30 Spring Circlip O300150-31 Screw O300150-32 Washer O300150-33* Piston O300150-34 Seal Note: The Part Numbers with “*” are included in repair kit O300150-RK O300150-35 O300150-36 Tube O300150-37 O-Ring O300150-38 Spring Circlip O300150-39 Ball O300150-40 Valve Seat O300150-41...
