Alemlube EL Series Owner Technical Manual

Description

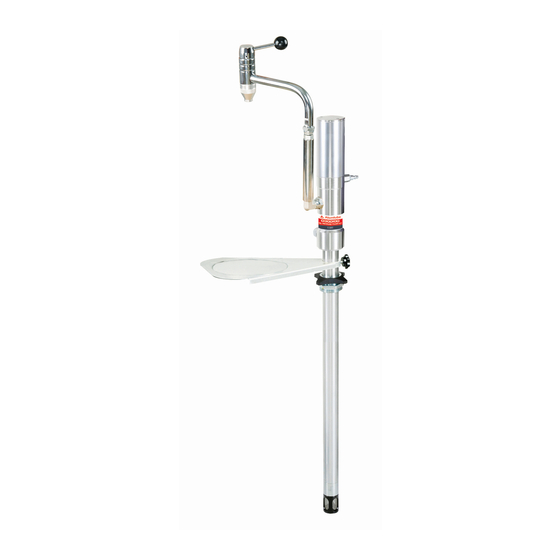

The EL Series O300100 is the ideal oil measure filler kit
for dispensing oil with a maximum viscosity of SAE80 from
205L drums and consists of a 1:1 ratio air operated drum pump,
oil tap and drip tray.
Representing excellent value for money, the Alemlube EL Series
O300100 gives you the opportunity to upgrade from standard
hand operated oil drum pumps to a pneumatic solution.
Delivering up to 35L/min, the O300100 is suitable to perform
intermittent or seasonal work.
Smart design with fewer working parts effectively facilitates
a lower cost of ownership.
Manufactured with efficiency and reliability in mind, the
O300100 1:1 Air-operated Oil Measure Filler Kit is well designed,
affordable and is supported by readily available spare parts.
Technical Details
Item No.
Compression Ratio
Recommended Operating
Pressure (psi/bar)
Operating Pressure (psi/bar)
Air Consumption
Maximum Flow Rate (L/min)
Tube Diameter (mm)
Suction Tube Length (mm)
Air Inlet Connection
Oil Delivery Connection
Maximum Viscosity Oil Delivered
Temperature Oil Delivered
Noise Level (dB)
NSW/ACT QLD/PNG
TEL: (02) 9939 0711 TEL: (07) 3889 8480
FAX: (02) 9939 0411 FAX: (07) 3889 8490
OWNER'S TECHNICAL MANUAL
Oil Measure Filler Kit
O300100
1:1
60psi (4bar)
30-150psi (2-10bar)
5cfm @ 140psi
10L/min
52mm
940mm
1/4" quick plug
Male 1/2"
SAE 80
-10~50°C
82
VIC/TAS
TEL: (03) 8787 8288
FAX: (03) 8787 8266
Visit our website at www.alemlube.com.au
WA SA/NT
TEL: (08) 9209 3066 TEL: (08) 8241 7111
FAX: (08) 9209 3933 FAX: (08) 8241 7011
or www.alemlube.co.nz
O300100
March 2019
NZ
TEL: (09) 447 1007
FAX: (09) 447 1008
1
