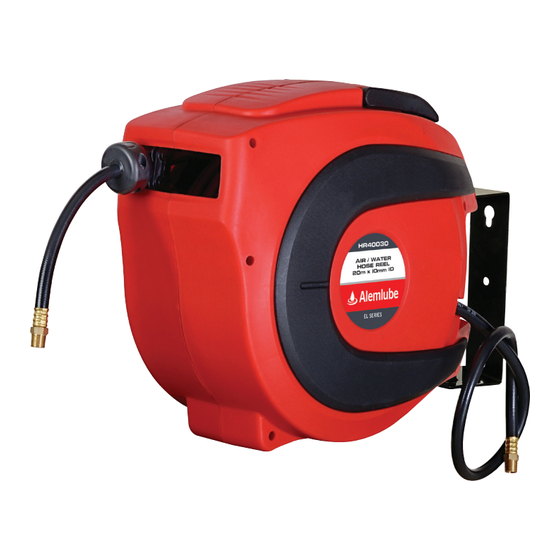

The Alemlube EL Series HR40030 Air / Water hose reels are quality hose handling, retrieval and storage systems each with crimped hose
ends, integral carry handle and detachable mounting bracket enabling 180º hose reel rotation. Manufactured with high density impact
resistant and UV stabilised polypropylene covers, the HR40030 PVC hose features a positive latching system that automatically locks the
hose at the desired length and the heavy duty internal spring assembly easily retrieves the hose when partially or fully extended.
Suitable for use in the agricultural, automotive, manufacturing, contractor and transport sectors, the HR40030 Air / Water hose reel
is ideal to use in automotive workshops, garages and homes.
Mountable on the wall or ceiling, the EL Series HR40030 features a constant speed control device ensuring safe and accurate rewinding.
Specifications
Uses
Working Pressure
Materials
HR40029 AIR / WATER HOSE REEL
PART No.
PRODUCT DESCRIPTION
HR40030
EL Series Air / Water Hose Reel complete with 20m x 10mm ID PVC hose and 0.9m lead in hose
Technical Details
Item
HR40030
NSW
QLD/PNG
TEL: (02) 9677 1555
TEL: (07) 3204 9166
FAX: (02) 9675 1155
FAX: (07) 3204 1224
OWNER'S TECHNICAL MANUAL
EL Series Air / Water Hose Reel
Air / Water
300psi (20bar)
Plastic and PVC hose
Max
Hose Working
Pressure
Temperature
(psi/bar)
(C)
300/20
-40° to +60°
VIC/TAS
TEL: (03) 8787 8288
FAX: (03) 8787 8266
Visit our website at
www.alemlube.com.au
Hose Capacity
I.D.
Material
(inch/mm)
PVC
3/8"BSP(M) / 9
WA
SA/NT
TEL: (08) 9302 4199
TEL: (08) 8241 7111
FAX: (08) 9303 2095
FAX: (08) 8241 7011
or
www.alemlube.co.nz
HR40030
PSI/BAR
300psi/20bar
Length
(m/ft)
20 / 65
NZ
TEL: (64) 9 447 1007
FAX: (64) 9 447 1008
1
