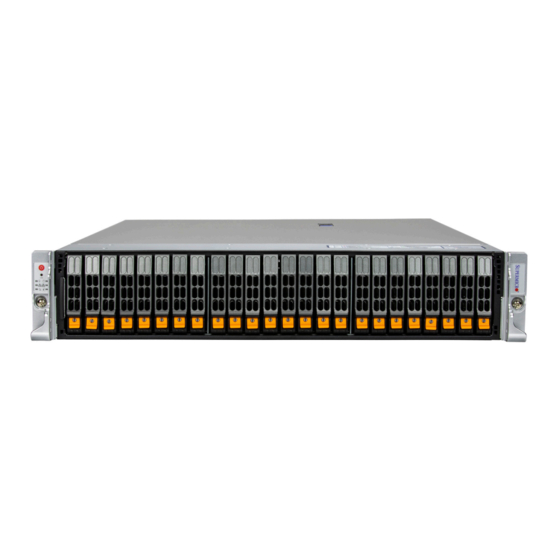

Supermicro A+ Server AS-2115HS-TNR User Manual
  1. Manuals
  2. Brands
  3. Supermicro Manuals
  4. Server
  5. A+ Server AS-2115HS-TNR
  6. User manual

Supermicro A+ Server AS-2115HS-TNR User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
A+ Server
®
AS -2115HS-TNR
USER'S MANUAL
Revision 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A+ Server AS-2115HS-TNR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supermicro A+ Server AS-2115HS-TNR

Summary of Contents for Supermicro A+ Server AS-2115HS-TNR

  • Page 1 A+ Server ® AS -2115HS-TNR USER’S MANUAL Revision 1.0...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3 If you have any questions, please contact our support team at: support@supermicro.com This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level. Secure Data Deletion A secure data deletion tool designed to fully erase all data from storage devices can be found on our website: https://www.supermicro.com/about/policies/disclaimer.cfm?url=/wdl/utility/...

  • Page 4: Table Of Contents

    Preface Contents Chapter 1 Introduction 1.1 Overview ..........................9 1.2 System Features ........................10 Front View .........................10 Control Panel .........................11 Rear View ..........................12 1.3 System Architecture ......................14 Main Components ......................14 System Block Diagram ......................16 1.4 Motherboard Layout ......................17 Quick Reference Table ......................18 Chapter 2 Server Installation 2.1 Overview ..........................19 2.2 Unpacking the System .......................19...
  • Page 5 Preface Chapter 3 Maintenance and Component Installation 3.1 Removing Power .......................28 3.2 Accessing the System ......................29 Removing the Top Cover ....................29 3.3 Processor and Heatsink Installation ...................30 3.4 Memory Support and Installation ..................38 Memory Support ........................38 DIMM Module Population Sequence ................40 DIMM Installation ......................41 DIMM Removal .........................41 3.5 Motherboard Battery ......................42...
  • Page 6 Preface Chapter 4 Motherboard Connections 4.1 Power Connections ......................64 4.2 Headers and Connectors ....................65 4.3 Input/Output Ports ......................66 4.4 LED Indicators ........................67 Chapter 5 Software 5.1 Microsoft Windows OS Installation ..................68 5.2 Driver Installation ........................70 5.3 SuperDoctor 5 ........................71 ® 5.4 IPMI ............................72 BMC ADMIN User Password ....................72 Chapter 6 Optional Components...
  • Page 7 Preface 7.5 UEFI BIOS Recovery ......................89 Overview ...........................89 Recovering the UEFI BIOS Image ..................89 Recovering the Main BIOS Block with a USB Device ............89 7.6 CMOS Clear ........................94 7.7 Where to Get Replacement Components ................95 7.8 BMC ............................95 7.9 Reporting an Issue ......................96 Technical Support Procedures ..................96 Returning Merchandise for Service ...................96 7.10 Feedback ...........................97...
  • Page 8 San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) Sales-USA@supermicro.com (Sales Inquiries) Government_Sales-USA@supermicro.com (Gov. Sales Inquiries) support@supermicro.com (Technical Support) RMA@supermicro.com (RMA Support) Webmaster@supermicro.com (Webmaster) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 9: Chapter 1 Introduction

    2U: 3.5 x 17.2 x 29.9 in. / 88.9 x 437 x 760 mm (HxWxD) Note: A Quick Reference Guide can be found on the product page of the Supermicro website. The following safety models associated with the AS -2115HS-TNR have been certified as compliant with UL or CSA: HS219-R12H13, HS219-R9H13, HS219-R16H13, HS219-R20H13, HS219-R26H13, HS219-R13DH13, HS219-R16DH13, and H219-R20DH13.

  • Page 10: System Features

    Chapter 1: Introduction 1.2 System Features The following views of the system display the main features. Refer to Appendix B for additional specifications. Front View Control Panel Service Tag Figure 1-1. Front View System Features: Front Feature Description Control Panel Front control panel with LEDs and buttons (see Control Panel for details)

  • Page 11: Control Panel

    Chapter 1: Introduction Control Panel Power Button UID Button HDD LED Power LED NIC2 LED NIC1 LED Power Fail LED Information LED Figure 1-2. Control Panel Control Panel Features Feature Description The main power button is used to apply or remove power from the power supply to the server.

  • Page 12: Rear View

    Chapter 1: Introduction Rear View BMC LAN Port PSU1 PSU2 USB Ports VGA Port Figure 1-3. Rear View System Features: Rear Feature Description Power Supplies Two 1600 W Titanium Level redundant power supply modules (PSU1 and PSU2) BMC LAN One RJ45 dedicated BMC LAN port Two USB 3.0 ports One video port Expansion Slot Locations...
  • Page 13 Chapter 1: Introduction Power Supply Indicators Power Supply Condition Green LED Amber LED No AC Power to Power Supply Power Supply critical events causing a shutdown/ failure/ Amber LED OCP/ OVP/ Fan Fail/ OTP/ UVP Power Supply Warning Events Where the power supply continues to operate;...

  • Page 14: System Architecture

    Chapter 1: Introduction 1.3 System Architecture This section shows the locations of the system's main components and a system block diagram. Main Components Power supplies NVMe M.2 slots DDR5 DIMM slots Processor System fans Backplane Figure 1-4. Main Component Locations...
  • Page 15 Chapter 1: Introduction System Features: Top Feature Description Power supplies Two redundant power supplies, PWS-1K63A-1R, 1600 W (Titanium Level) NVMe slots Two M.2 NVMe Gen4 slots DIMM slots 24 DDR5 DIMM slots Processor Single AMD EPYC™ 9004 Series processor in SP5 socket System fans Four 8 cm dual counter-rotating PWM fans, FAN-0223L4 or FAN-0209L4-1 Backplane...

  • Page 16: System Block Diagram

    Chapter 1: Introduction System Block Diagram The block diagram below shows the connections and relationships between the subsystems and major components of the overall system. AMD EPYC (CPU) Figure 1-5. System Block Diagram...

  • Page 17: Motherboard Layout

    Chapter 1: Introduction 1.4 Motherboard Layout Below is a layout of the H13SSH motherboard with the jumper, connector and LED locations shown. See the table on the following page for descriptions. For detailed descriptions, pinout information and jumper settings, refer to Chapter 4 or the Motherboard...

  • Page 18: Quick Reference Table

    Hot-swappable system fan FAN8 4-pin system fan header FAN9 Active CPU heatsink fan header JAIOM1 Supermicro® Advanced I/O Module (AIOM PCIe 5.0x16) slot JFP1, JFP2 Front control panel headers 1 and 2 JUSB2 USB 3.0 header NVMe 0/1 PCIe1A / SATA0-7...

  • Page 19: Chapter 2 Server Installation

    Chapter 2: Server Installation Chapter 2 Server Installation 2.1 Overview This chapter provides advice and instructions for mounting your system in a server rack. If your system is not already fully integrated with processors, system memory, etc., refer to Chapter 3 for details on installing those specific components.

  • Page 20: Rack Precautions

    Chapter 2: Server Installation • This product is not suitable for use with visual display workplace devices according to §2 of the German Ordinance for Work with Visual Display Units. Rack Precautions • Ensure that the leveling jacks on the bottom of the rack are extended to the floor so that the full weight of the rack rests on them.

  • Page 21: Airflow

    Chapter 2: Server Installation Airflow Equipment should be mounted into a rack so that the amount of airflow required for safe operation is not compromised. Mechanical Loading Equipment should be mounted into a rack so that a hazardous condition does not arise due to uneven mechanical loading.

  • Page 22: Installing The Rails

    Chapter 2: Server Installation 2.4 Installing the Rails This section provides information on installing the chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean that the assembly procedure will differ slightly from the instructions provided.

  • Page 23: Releasing The Inner Rail

    Chapter 2: Server Installation Releasing the Inner Rail Each inner rail has a locking latch. This latch prevents the chassis from coming completely out of the rack when the chassis is pulled out for servicing. To mount the rail onto the chassis, first release the inner rail from the outer rails. 1.

  • Page 24: Installing The Inner Rails

    Chapter 2: Server Installation Installing the Inner Rails Begin the rack mounting procedure by installing the inner rails to the chassis. 1. Identify the left and right inner rails. They are labeled. 2. Place the inner rail firmly against the side of the chassis, aligning the hooks on the side of the chassis with the holes in the inner rail.

  • Page 25: Installing The Outer Rails Onto The Rack

    Chapter 2: Server Installation Installing the Outer Rails onto the Rack Installing the Outer Rails 1. Press upward on the locking tab at the rear end of the middle rail. 2. Push the middle rail back into the outer rail. 3.

  • Page 26: Installing The Server Into A Rack

    Chapter 2: Server Installation 2.5 Installing the Server into a Rack Once rails are attached to the chassis and the rack, you can install the server. Warning: Mounting the system into the rack requires at least two people to support the chassis during installation.

  • Page 27: Removing The Server From The Rack

    Chapter 2: Server Installation Removing the Server from the Rack Caution! It is dangerous for a single person to off-load the heavy chassis from the rack without assistance. Be sure to have sufficient assistance supporting the chassis when removing it from the rack.

  • Page 28: Chapter 3 Maintenance And Component Installation

    Chapter 3: Maintenance and Component Installation Chapter 3 Maintenance and Component Installation This chapter provides instructions on installing and replacing main system components. To prevent compatibility issues, only use components that match the specifications and/or part numbers given. Installation or replacement of most components requires that power first be removed from the system.

  • Page 29: Accessing The System

    Chapter 3: Maintenance and Component Installation 3.2 Accessing the System The AS -2115HS-TNR system features a removable top cover, which allows easy access to the inside of the chassis. Removing the Top Cover 1. Press the release button and slide the cover toward the rear. 2.

  • Page 30: Processor And Heatsink Installation

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro website for updates on CPU support. Installing the Processor and Heatsink 1. Unscrew the screw #1 holding down the force frame.
  • Page 31 Chapter 3: Maintenance and Component Installation 2. The spring-loaded force frame will raise up after the screw securing it (#1) is removed. Gently allow it to lift up to its stopping position. Force Frame 3. Lift the rail frame up by gripping the lift tabs near the front end of the rail frame. While keeping a secure grip of the rail frame, lift it to a position so you can do the next step of removing the external cap.
  • Page 32 Chapter 3: Maintenance and Component Installation 4. Remove the external cap from the rail frame by pulling it upwards through the rail guides on the rail frame. External Cap 5. The CPU package is shipped from the factory with the carrier frame pre-assembled. Grip the handle of the carrier frame/CPU package assembly from its shipping tray, and while gripping the handle, align the flanges of the carrier frame onto the rails of the rail frame so its pins will be at the bottom when the rail frame is lowered later.
  • Page 33 Chapter 3: Maintenance and Component Installation Note: You can only install the CPU inside the socket in one direction with the handle at the top. Make sure that it is properly inserted into the CPU socket before closing the rail frame plate.
  • Page 34 Chapter 3: Maintenance and Component Installation 8. Gently lower the rail frame down onto the socket until the latches on the rail frame engage with the socket housing and it rests in place. DO NOT force it into place! 9. Note that the force frame is spring loaded and has to be held in place before it is secured.
  • Page 35 Chapter 3: Maintenance and Component Installation 10. Replace and tighten the screws in the same order they were removed. When finished, the force frame will be secure over both the rail frame and CPU package. 11. After the force frame is secured and the CPU package is in place, now you must install the heatsink to the frame.
  • Page 36 Chapter 3: Maintenance and Component Installation 12. Using a diagonal pattern, tighten the six screws down on the heatsink in a clockwise fashion till it is secure. Use a torque screwdriver, set it at 12.5~15.0 kgfcm (10.85~13.01 lbf-in) with a Torx T20 screw head bit, to prevent damage to CPU socket/heatsink. The heatsink will now be secured and you have finished installing the processor and heatsink onto the motherboard.
  • Page 37 Chapter 3: Maintenance and Component Installation Un-installing the Processor and Heatsink 1. Remove the heatsink attached to the top of the CPU package by reversing the installation procedure. 2. Clean the thermal grease left by the heatsink on the CPU package lid to limit the risk of it contaminating the CPU package land pads or contacts in the socket housing.

  • Page 38: Memory Support And Installation

    4000 MT/s (1R)/3600 MT/s (2R)) or 12 DIMM slots with one DIMM per channel (supports up to 3 TB DDR5-4800 MT/s). Refer to the table below for additional memory information. Note: Check the Supermicro website for possible updates to memory support. DIMM Population Guide (1DPC)
  • Page 39 Chapter 3: Maintenance and Component Installation Populating RDIMM/RDIMM 3DS DDR5 Memory Modules with AMD EPYC 9004 series Processor DIMM Population Maximum DIMM Capacity (GB) DIMM Type Maximum Frequency (MT/s) DIMM1 DIMM2 1 Channel 12 Channels 32 GB 384 GB 4800 64 GB 768 GB 4000...

  • Page 40: Dimm Module Population Sequence

    Chapter 3: Maintenance and Component Installation DIMM Module Population Sequence There is no specific order or sequence required when installing memory modules. However, do keep the following in mind: • The blue slots must be populated first, follow the DIMM Population Guide. •...

  • Page 41: Dimm Installation

    Chapter 3: Maintenance and Component Installation DIMM Installation 1. Insert the desired number of DIMMs into the memory slots. See Memory Support for details on memory population guidelines. 2. Push the release tabs outwards on both ends of the DIMM slot to unlock it. Receptive Point 3.

  • Page 42: Motherboard Battery

    Chapter 3: Maintenance and Component Installation 3.5 Motherboard Battery The motherboard uses non-volatile memory to retain system information when system power is removed. This memory is powered by a lithium battery residing on the motherboard. Replacing the Battery Begin by removing power from the system.

  • Page 43: Storage Drives

    Chapter 3: Maintenance and Component Installation 3.6 Storage Drives The storage drives are mounted in tool-less drive carriers that simplify their removal from the chassis. These carriers also help promote proper airflow. For compatible storage drives, see AS -2115HS-TNR product page. Figure 3-4.
  • Page 44 Chapter 3: Maintenance and Component Installation Installing a Drive 1. Position the drive above the carrier with the PCB side facing down and the connector end toward the rear of the carrier. 2. Tilt the drive to insert it onto the two posts on the right inside of the carrier. Locking Clasps Post Figure 3-6.

  • Page 45: Solid State Drives

    Chapter 3: Maintenance and Component Installation M.2 Solid State Drives The H13SSH motherboard supports dual PCIe Gen 4 NVMe M.2 devices (M.2-C1, M.2-C2). M.2-C1 supports PCIe Gen 4 x4 and M.2-C2 supports PCIe Gen 4 x2. A blue latch helps to hold the M.2 SSDs in place.
  • Page 46 Chapter 3: Maintenance and Component Installation RELEASE LAYER COVER rnn n n n' �rn (SELF-REBOUND) ® PRESS LOWER M.2 CD • ��� CARD TO POSITION PULL LAYER COVER &HOLD RELEASE COVER (SELF-REBOUND) PULL COVER & HOLD PRESS UPPER M.2 @ & FINISHED ®...

  • Page 47: Hot-Swap For Nvme Drives

    Chapter 3: Maintenance and Component Installation Hot-Swap for NVMe Drives Supermicro servers support NVMe surprise hot-swap. For even better data security, NVMe orderly hot-swap is recommended. NVMe drives can be ejected and replaced remotely using BMC. Ejecting a Drive 1. BMC > Server Health > NVMe SSD 2.

  • Page 48: System Cooling

    Chapter 3: Maintenance and Component Installation 3.7 System Cooling Fans Four 8 cm heavy-duty fans provide cooling for the system. Fans are hot-swapped and can be replaced without powering down the system. The electrical connections are automatically made when a fan is inserted into its slot. Make sure the chassis cover is only off for a short time and makes a good seal when replaced for the cooling air to circulate properly through the system.

  • Page 49: Air Shrouds

    Chapter 3: Maintenance and Component Installation Air Shrouds Air shrouds concentrate airflow to maximize fan efficiency. The AS -2115HS-TNR includes one air shroud for the CPU and the DIMMs. Air Shroud for Memory One air shroud cools the DIMM slots (see figure below). 1.

  • Page 50: Expansion Cards

    Chapter 3: Maintenance and Component Installation 3.8 Expansion Cards The system accepts up to eight PCIe 5.0 x8 or up to four PCIe 5.0 x16 full-height 10.5"L expansion cards, mounted on riser cards and brackets. Figure 3-13. Expansion Card Slots Expansion Card Slot Configurations Enabling any of the eight expansion card slots in this system requires optional parts that are sold separately.

  • Page 51: Installing A Riser Card

    Chapter 3: Maintenance and Component Installation Installing a Riser Card Before following the procedure below to install expansion cards, first turn off and remove power from the system as described in Section 3.1 then remove the top cover. Installing Expansion Cards 1.

  • Page 52: Aiom Network Cards

    Chapter 3: Maintenance and Component Installation 3.9 AIOM Network Cards The system supports up to one Supermicro AIOM networking slot (OCP 3.0 compatible). Figure 3-15. AIOM Chassis Slot AIOM Configuration Item Mechanical Electrical Thermal Small Form Factor, OCP 3.0 Up to 15 W* *AIOM cards exceeding the 15 W Slot Power Envelope may require restricted conditions to meet thermal specifications of the AIOM card.

  • Page 53: Power Supply

    Failed power supply modules can be replaced without powering down the system. Replacement modules can be ordered directly from Supermicro. An amber light on the power supply is illuminated when the power is switched off. A green light indicates that the power supply is operating.

  • Page 54: Cable Routing Diagrams

    Chapter 3: Maintenance and Component Installation 3.11 Cable Routing Diagrams The below diagrams indicate the cable routing for the storage, PCIe, IO, and power cables. When disconnecting cables to add or replace components, refer to the diagrams so you can reroute them in the same manner.
  • Page 55 Chapter 3: Maintenance and Component Installation Configura�on # Front Rear** #5 (N/A) + up to 4 PCIe x16 or 8 PICe x8 1 PCIex16 (Slot 1) 1 PCIex16 (Slot 3) 2 PCIE x16 (Slot 5, 7) + 1 AIOM 2 PCIex8 (Slot 1-2) 2 PCIex8(Slot 3-4) 1 PCIE x16 (Slot 5) + 2 PCIEx8 (Slot 7, 8)

  • Page 56: Nvme + 1 Pcie X16 Or 2 Pcie X8

    Chapter 3: Maintenance and Component Installation 24 NVME + 1 PCIe x16 or 2 PCIe x8 Front Storage Cables Cable Descrip�on MB Port Backplane/Riser Port CBL-MCIO-1250M5-Z NVMe 0-1 JMCIO_P0A NVMe0/1 CBL-MCIO-1255M5 NVMe 2-3 JMCIO_P0B NVMe2/3 CBL-GNZ4-1265M5Y-X NVMe 4-7 Slot2 PCIe 5.0 x16 NVMe4/5 –...

  • Page 57: Sata + 4 Pcie X16 Or 8 Pcie X8

    Chapter 3: Maintenance and Component Installation 24 SATA + 4 PCIe x16 or 8 PCIe x8 Front Storage Cables Cable Descrip�on MB Port Backplane/Riser Port CBL-MCIO-1255S4Y SATA 0-7 JMCIO_P0A SAS 0-3/ 4-7 CBL-MCIO-1275S4Y SATA 8-15 JMCIO_P0B SAS 8-11/ 12-15 CBL-MCIO-1223S4Y SATA 16-23 JMCIO_G3A SAS 16-19/ 20-23...

  • Page 58: Nvme + 4 Sas + 2 Pcie X16 Or 4 Pcie X8

    Chapter 3: Maintenance and Component Installation 20 NVMe + 4 SAS + 2 PCIe x16 or 4 PCIe x8 Front Storage Cables Cable Descrip�on MB Port Backplane/Riser Port CBL-MCIO-1250M5-Z NVMe 0-1 JMCIO_P0A NVMe0/1 CBL-MCIO-1255M5 NVMe 2-3 JMCIO_P0B NVMe2/3 CBL-GNZ4-1265M5Y-X NVMe 4-7 Slot2 PCIe 5.0 x16 NVMe4/5 –...

  • Page 59: Sas + 4 Pcie X16 Or 8 Pcie X8

    Chapter 3: Maintenance and Component Installation 24 SAS + 4 PCIe x16 or 8 PCIe x8 Front Storage Cables Cable Descrip�on MB Port Backplane/Riser Port CBL-CDAT-1062 i2C Cable JRSI2C1 BMC I2C 20 21 CBL-PWEX-1142B-20 BP1 Power JPWR5 JPWR1 CBL-PWEX-1142-40 BP2 Power JPWR6 JPWR2 CBL-SAST-1264F-100...

  • Page 60: Pcie X16 Or 8 Pcie X8

    Chapter 3: Maintenance and Component Installation 4 PCIe x16 or 8 PCIe x8 Front Storage Cables Cable/Part Descrip�on MB Port Backplane/Riser Port CBL-CDAT-1062 i2C Cable JRSI2C1 BMC I2C CBL-PWEX-1142B-20 BP1 Power JPWR5 JPWR1 CBL-PWEX-1142-40 BP2 Power JPWR6 JPWR2 Rear PCIe Slot Cables Riser (slot 3 or 3+4) Riser (slot 5+7 or 5+7+8 or 5 ~ 8) Riser (slot 1 or 1+2)

  • Page 61: Sas + 4 Pcie X16 Or 8 Pcie X8

    Chapter 3: Maintenance and Component Installation 16 SAS + 4 PCIe x16 or 8 PCIe x8 Front Storage Cables Cable Descrip�on MB Port Backplane/Riser Port CBL-CDAT-1062 i2C Cable JRSI2C1 BMC I2C 20 21 CBL-PWEX-1142B-20 BP1 Power JPWR5 JPWR1 CBL-PWEX-1142-40 BP2 Power JPWR6 JPWR2 CBL-SAST-1264F-100...

  • Page 62: Nvme + 2Pcie X16 Or 4 Pcie X8

    Chapter 3: Maintenance and Component Installation 20 NVMe + 2PCIe x16 or 4 PCIe x8 Front Storage Cables Cable Descrip�on MB Port Backplane/Riser Port CBL-MCIO-1250M5-Z NVMe 0-1 JMCIO_P0A NVMe0/1 CBL-MCIO-1255M5 NVMe 2-3 JMCIO_P0B NVMe2/3 CBL-GNZ4-1265M5Y-X NVMe 4-7 Slot2 PCIe 5.0 x16 NVMe4/5 –...

  • Page 63: Sata + 4 Pcie X16 Or 8 Pcie X8

    Chapter 3: Maintenance and Component Installation 16 SATA + 4 PCIe x16 or 8 PCIe x8 Front Storage Cables Cable Descrip�on MB Port Backplane/Riser Port CBL-MCIO-1255S4Y SATA 0-7 JMCIO_P0A SAS 0-3/ 4-7 CBL-MCIO-1275S4Y SATA 8-15 JMCIO_P0B SAS 8-11/ 12-15 CBL-CDAT-1062 i2C Cable JRSI2C1 BMC I2C...

  • Page 64: Chapter 4 Motherboard Connections

    Chapter 4: Motherboard Connections Chapter 4 Motherboard Connections This section describes the connections on the motherboard and provides pinout definitions. Note that depending on how the system is configured, not all connections are required. The LEDs on the motherboard are also described here. A motherboard layout indicating component locations may be found in Chapter 1.

  • Page 65: Headers And Connectors

    Port 80 connection. Use this header to enhance system performance and data security. Refer to the table below for pin definitions. Please go to the following link for more information on the TPM: http://www.supermicro.com/manuals/other/TPM.pdf. Trusted Platform Module Header Pin Definitions...

  • Page 66: Input/Output Ports

    Chapter 4: Motherboard Connections 4.3 Input/Output Ports I/O Ports The low-profile slimSAS I/O connector, located at JIO1, is used to connect the motherboard to an I/O mezzanine board, AOM-HS119-IO, to provide VGA/COM/BMC/USB connections. I/O Ports from AOM-HS119-IO Description BMC_LAN Port USB 0 (3.0) USB 1 (3.0) VGA Port...

  • Page 67: Led Indicators

    Chapter 4: Motherboard Connections 4.4 LED Indicators BMC LAN Port LEDs A dedicated BMC LAN is located on the rear I/O panel and has two LED indicators. The LED on the right indicates connection and activity, while the LED on the left indicates the speed of connection.

  • Page 68: Chapter 5 Software

    Media drive, perheps using an external USB/SATA media drive, a USB flash drive, or the BMC KVM console. 2. Retrieve the proper drivers. Go to the Supermicro web page for your motherboard and click on "Download the Latest Drivers and Utilities", select the proper driver, and copy it to a USB flash drive.
  • Page 69 Chapter 5: Software 4. During Windows Setup, continue to the dialog box where you select the drives on which to install Windows. If the drive you want to use is not listed, click on “Load driver” link at the bottom left corner. Figure 5-2.

  • Page 70: Driver Installation

    The Supermicro website contains drivers and utilities for your system at https://www. supermicro.com/wdl/driver. Some of these must be installed, such as the chipset driver. After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard. Download this file to a USB flash or a media drive.

  • Page 71: Superdoctor ® 5

    5.3 SuperDoctor ® The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 72: Ipmi

    There are several BIOS settings that are related to IPMI. Supermicro ships standard products with a unique password for the BMC ADMIN user. This password can be found on a label on the motherboard.

  • Page 73: Chapter 6 Optional Components

    Chapter 6: Optional Components Chapter 6 Optional Components This chapter describes alternate configurations and optional system components. Optional Parts Description Storage drive Storage control cards Drive bay and PCIe slots configuration Power supply Cable management arm TPM security module 6.1 Storage Protocols Supported The storage drive bays can be configured to support either SATA, SAS, or NVMe drives by adding optional parts to the system.

  • Page 74: Storage Control Cards

    Chapter 6: Optional Components 6.2 Storage Control Cards Storage Control Card Options AOC SKU Description SAS RAID Adapter (RAID 0, 1, 5, 6, 10, 50, 60), eight internal SAS3 ports, AOC-S3908L-H8iR-16DD Supports up to 16 physical devices with expander, One SlimSAS and eight black (100-Ohm) connector SAS RAID Adapter (RAID 0, 1, 5, 6, 10, 50, 60), 16 internal SAS3 ports, AOC-S3916L-H16iR-32DD Supports up to 32 physical devices with expander,...

  • Page 75: Drive Bay Optional Parts

    Chapter 6: Optional Components 6.3 Drive Bay Optional Parts AS -2115HS-TNR Drive Bay Configuration Options Option 1: 24 NVMe Drive Bay # Drive Type Part Number CBL-MCIO-1250M5-Z (x2) CBL-MCIO-1255M5 CBL-GNZ4-1265M5Y-X CBL-MCIO-1340M5R CBL-MCIO-1245M5-Z Drive Bays 0-23 NVMe CBL-MCIO-1260M5 CBL-MCIO-1330M5 CBL-MCIO-1326M5 CBL-MCIO-1221M5 CBL-MCIO-1218M5-1 Option 2: 24 SATA Drive Bay #...
  • Page 76 Chapter 6: Optional Components Option 4: 24 SAS Drive Bay # Drive Type Part Number CBL-SAST-1264F-100 CBL-SAST-1276F-100 Drive Bays 0-23 CBL-SAST-1296F-100 CBL-CDAT-1062 SAS AOC (3916/3816, etc) Option 5: No Drive Tray Available Drive Bay # Drive Type Part Number CBL-CDAT-1062 Drive Bays 0-23 Not Available MCP-220-21602-0B (x3)

  • Page 77: As -2115Hs-Tnr Pcie Slot Configuration Options

    Chapter 6: Optional Components AS -2115HS-TNR PCIe Slot Configuration Options Slots 1-2 Configuration Options Default: No PCIe Slots Slot # Slot Configuration Part Number Slot 1 Not Available MCP-120-21101-0N (Included with system) Slot 2 Not Available Option 1: 1 PCIe x16 Slot Slot # Slot Configuration Part Number MCP-240-21108-0N...
  • Page 78 Chapter 6: Optional Components Slots 3-4 Configuration Options Default: No PCIe Slots Slot # Slot Configuration Part Number Slot 3 Not Available MCP-120-21101-0N (Included with system) Slot 4 Not Available Option 1: 1 PCIe x16 Slot Slot # Slot Configuration Part Number MCP-240-21108-0N Slot 3 PCIe 5.0 x16...
  • Page 79 Chapter 6: Optional Components Slots 5-8 Configuration Options Default: No PCIe Slots Slot # Slot Configuration Part Number Slot 5 Not Available Slot 6 Not Available MCP-120-21902-0N (Included with system) Slot 7 Not Available Slot 8 Not Available Option 1: 2 PCIe x16 Slots Slot # Slot Configuration Part Number Slot 5...

  • Page 80: Power Supply Options

    Chapter 6: Optional Components 6.4 Power Supply Options Power Supply Module Options Watts Part Number 80Plus Level 1200 PWS-1K24A-1R Titanium 1600 PWS-1K63A-1R (default) Titanium 2000 PWS-2K07A-1R Titanium 2600 PWS-2K63A-1R Titanium 6.5 Cable Management Arm The system supports a cable management arm (CMA), which keeps the rear cables organized and clear of the rail mechanisms when the system is extended out the front of the rack for maintenance.
  • Page 81 Chapter 6: Optional Components Figure 6-2. Installing the Connectors 3. Slide CMA connector #3 forward onto the two posts on the rear of the left middle rail. It snaps into place. 4. For CMA connector #4, align the metal tabs with the slots on the rear of the left outer rail and push it forward.

  • Page 82: Tpm Security Module

    The JTPM1 header is used to connect a Trusted Platform Module (TPM). A TPM is a security device that supports encryption and authentication in drives. It enables the motherboard to deny access if the TPM associated with the drive is not installed in the system. Details and installation procedures are at: http://www.supermicro.com/manuals/other/TPM.pdf. • AOM-TPM-9670V...

  • Page 83: Chapter 7 Troubleshooting And Support

    Chapter 7: Troubleshooting and Support Chapter 7 Troubleshooting and Support 7.1 Information Resources Website A great deal of information is available on the Supermicro website. Figure 7-1. Supermicro Website • Specifications for servers and other hardware are available by clicking Products. •...

  • Page 84: Baseboard Management Controller (Bmc)

    Security Center for recent security notices Supermicro Phone and Addresses 7.2 Baseboard Management Controller (BMC) The system supports the Baseboard Management Controller (BMC). BMC is used to provide remote access, monitoring, and management. There are several BIOS settings that are related to BMC.

  • Page 85: Troubleshooting Procedures

    Chapter 7: Troubleshooting and Support 7.3 Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/ or ‘Returning Merchandise for Service’ section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any non hot-swap hardware components.

  • Page 86: System Boot Failure

    Chapter 7: Troubleshooting and Support 3. Reseat the memory DIMM modules. Note: If you are a system integrator, VAR or OEM, a POST diagnostics card is recommended. System Boot Failure If the system does not display POST (Power-On-Self-Test) or does not respond after the power is turned on, check the following: 1.

  • Page 87: When The System Becomes Unstable

    2. Memory support: Make sure that the memory modules are supported by testing the modules using memtest86 or a similar utility. Note: Refer to the product page on our website at http://www.supermicro.com for memory and CPU support and updates. 3. Storage drive support: Make sure that all storage drives work properly. Replace the bad drives with good ones.

  • Page 88: Crash Dump Using Bmc

    In the event of a processor internal error (IERR) that crashes your system, you may want to provide information to support staff. You can download a crash dump of status information using BMC. The BMC manual is available at https://www.supermicro.com/manuals/other/ BMC_IPMI_X13_H13.pdf. Check BMC Error Log 1.

  • Page 89: Uefi Bios Recovery

    Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update.
  • Page 90 USB flash or media drive. Note 1: If you cannot locate the "Super.ROM" file in your drive disk, visit our website at www.supermicro.com to download the BIOS package. Extract the BIOS binary image into a USB flash device and rename it "Super.ROM" for the BIOS recovery use.
  • Page 91 Chapter 7: Troubleshooting and Support Note: At this point, you may decide if you want to start the BIOS recovery. If you decide to proceed with BIOS recovery, follow the procedures below. 1. When the screen as shown above displays, use the arrow keys to select the item "Proceed with flash update"...
  • Page 92 Chapter 7: Troubleshooting and Support 1. Press <Del> continuously during system boot to enter the BIOS Setup utility. From the top of the tool bar, select Boot to enter the submenu. From the submenu list, select Boot Option #1 as shown below. Then, set Boot Option #1 to [UEFI AP:UEFI: Built-in EFI Shell]. Press <F4>...
  • Page 93 Chapter 7: Troubleshooting and Support Note: Do not interrupt this process until the BIOS flashing is complete. 3. The screen above indicates that the BIOS update process is complete. When you see the screen above, unplug the AC power cable from the power supply, clear CMOS, and plug the AC power cable in the power supply again to power on the system.

  • Page 94: Cmos Clear

    Chapter 7: Troubleshooting and Support 7.6 CMOS Clear JBT1 is used to clear CMOS, which will also clear any passwords. Instead of pins, this jumper consists of contact pads to prevent accidentally clearing the contents of CMOS. To Clear CMOS 1.

  • Page 95: Where To Get Replacement Components

    7.7 Where to Get Replacement Components If you need replacement parts for your system, to ensure the highest level of professional service and technical support, purchase exclusively from our Supermicro Authorized Distributors/System Integrators/Resellers. A list can be found at: http://www.supermicro.com.

  • Page 96: Reporting An Issue

    (http://www.supermicro.com/ support/rma/). Whenever possible, repack the chassis in the original Supermicro carton, using the original packaging material. If these are no longer available, be sure to pack the chassis securely, using packaging material to surround the chassis so that it does not shift within the carton and become damaged during shipping.

  • Page 97: Feedback

    Chapter 7: Troubleshooting and Support During the warranty period, contact your distributor first for any product problems. 7.10 Feedback Supermicro values your feedback as we strive to improve our customer experience in all facets of our business. Please email us at techwriterteam@supermicro.com to provide feedback on our manuals.
