Summary of Contents for Supermicro SuperServer AS-4125GS-TNHR2-LCC

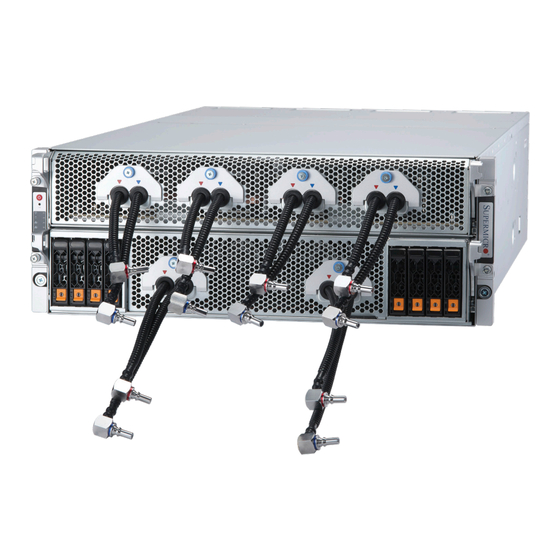

  • Page 1 SuperServer ® AS -4125GS-TNHR2-LCC USER’S MANUAL Revision 1.0...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3 If you have any questions, please contact our support team at: support@supermicro.com This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level. Secure Data Deletion A secure data deletion tool designed to fully erase all data from storage devices can be found on our website: https://www.supermicro.com/about/policies/disclaimer.cfm?url=/wdl/utility/...
  • Page 4: Table Of Contents

    Preface Contents Chapter 1 Introduction 1.1 Overview ..........................8 1.2 System Features ........................9 Front View ...........................9 Control Panel .........................10 NVMe SSD Drive Indicators ..................11 Rear View ..........................12 Power Supply Indicator ....................12 Input/Output Panel ......................13 Top View, Motherboard Tray and Switch Modules ............14 Top View: GPU Tray ......................15 1.3 System Block Diagram .......................16 1.4 Motherboard Layout ......................18...
  • Page 5 Preface Chapter 3 Maintenance and Component Installation 3.1 Removing Power ........................29 3.2 Accessing the System ......................29 Removing the Top Cover ....................29 Mid-chassis Cover ......................29 3.3 Memory Support and Installation ..................31 Memory Support ........................31 Memory Support ........................31 DIMM Module Population Guide ..................33 DIMM Installation ......................34 DIMM Removal .........................34 Motherboard Battery ......................35...
  • Page 6 Proper Battery Disposal ....................63 Battery Installation ......................63 7.8 Where to Get Replacement Components ................64 7.9 Reporting an Issue ......................64 Returning Merchandise for Service ...................64 7.10 Feedback ...........................64 7.11 Contacting Supermicro .......................65 Appendix A Standardized Warning Statements for AC Systems Appendix B System Specifications...
  • Page 7 San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) Sales-USA@supermicro.com (Sales Inquiries) Government_Sales-USA@supermicro.com (Gov. Sales Inquiries) support@supermicro.com (Technical Support) RMA@supermicro.com (RMA Support) Webmaster@supermicro.com (Webmaster) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.
  • Page 8: Chapter 1 Introduction

    4U rackmount; 17.7 x 6.85 x 33.2 in. / 449 x 174 x 842 mm (W x H x D) Notes: A Quick Reference Guide can be found on the product page of the Supermicro website. The following safety models associated with the AS -4125GS-TNHR2-LCC have been certified as compliant with UL and CSA: GP401LC-Q52H13, GP401LC-52, GP401LC-GPU.
  • Page 9: System Features

    Chapter 1: Introduction 1.2 System Features The following views of the system display the main features. Please refer to Appendix B additional specifications. Front View Liquid Cooling Ports Control Panel Eight 2.5" Hot-swap NVMe/SATA3 Drive Bays Service Tag Figure 1-1. Front View Front Features Feature Description...
  • Page 10: Control Panel

    Chapter 1: Introduction Control Panel The switches and LEDs located on the control panel are described below. Power Button Universal Information LED Power LED Drive Activity LED NIC1 LED NIC2 LED Information LED Power Fail LED Figure 1-2. Control Panel Control Panel Features Features Description...
  • Page 11: Nvme Ssd Drive Indicators

    Chapter 1: Introduction Information LED Color, Status Description An overheat condition has occurred. Continuously on and red (This may be caused by cable congestion.) Blinking red (1 Hz) Fan failure, check for an inoperative fan. Solid blue UID has been activated locally to locate the server in a rack environment. UID has been activated remotely using IPMI to locate the server in a rack Blinking blue (300 msec) environment.
  • Page 12: Rear View

    Chapter 1: Introduction Rear View Power Supply Modules PCIe Slots (FHHL) PCIe Slots (LP) I/O Panel PCIe Slots (FHHL, optional) CPU1 CPU2 Figure 1-3. System: Rear View System Features: Rear Feature Description Power Supply Modules Four 5250 W (2+2) power supplies PCIe Slots (FHHL) Two FHHL (full-height, half-length) PCIe 5.0 x16 slots PCIe Slots (HHLP)
  • Page 13: Input/Output Panel

    Chapter 1: Introduction PCIe Slots Logical Numbers Slot Description PCIe 5.0 x16 (LP) from PLX switch linked to GPUs PCIe 5.0 x16 (LP) from PLX switch linked to GPUs PCIe 5.0 x16 (LP) from PLX switch linked to GPUs PCIe 5.0 x16 (LP) from PLX switch linked to GPUs PCIe 5.0 x16 (LP) from PLX switch linked to GPUs PCIe 5.0 x16 (LP) from PLX switch linked to GPUs PCIe 5.0 x16 (LP) from PLX switch linked to GPUs...
  • Page 14: Top View, Motherboard Tray And Switch Modules

    Chapter 1: Introduction Top View, Motherboard Tray and Switch Modules PCIe Switches M.2 Slot DIMM Slots Processor Processor System Fans Figure 1-5. Motherboard Tray: Top View System Features: Top Feature Description PCIe Switches Four PCIe switches M.2 Slots Two M.2 NVMe slots (M-key) DIMM Slots Up to 6 TB 4800 MT/s ECC DDR5 RDIMM/LRDIMM in 24 DIMM slots Dual AMD EPYC™...
  • Page 15: Top View: Gpu Tray

    Chapter 1: Introduction Top View: GPU Tray GPUs NVIDIA NVSwitches Figure 1-6. Motherboard Tray: Top View System Features: Top Feature Description NVIDIA NVSwitches Four NVIDIA NVSwitches GPUs Eight NVIDIA HGX H100 GPUs...
  • Page 16: System Block Diagram

    Chapter 1: Introduction 1.3 System Block Diagram Figure 1-7. System Block Diagram...
  • Page 17 Chapter 1: Introduction Note: The GPU numbering is based on BMC interface numbering. See the below GPU mapping table for more information. GPU Mapping Table GPU Socket BMC Interface Linux OS Numbering Linux OS Address Numbering Numbering GPU1 GPU1 83:00.0 GPU2 GPU2 E3:00.0...
  • Page 18: Motherboard Layout

    Chapter 1: Introduction 1.4 Motherboard Layout Below is a layout of the H13DSG-OM motherboard with jumper, connector and LED locations shown. See the table on the following page for descriptions. For detailed descriptions, pinout information and jumper settings, refer to Chapter 4 or the Motherboard Manual.
  • Page 19: Quick Reference Table

    Chapter 1: Introduction Quick Reference Table Jumper Description Default Setting JPFR1 PFR Function Open (Normal) JPFR2 PFR Function Open (Normal) JPFR3 PFR Function Open (Normal) JPG1 VGA Enable/Disable Pins 1-2 (Enable) JUID1 Switch function UID/Reset Pins 1-2 (UID) Description Status LED1 Power LED Solid Green: Power On...
  • Page 20 Chapter 1: Introduction Note: Jumpers, connectors, switches, and LED indicators that are not described in the preceding tables are for manufacturing testing purposes only, and are not covered in this manual.
  • Page 21: Motherboard Block Diagram

    Chapter 1: Introduction Motherboard Block Diagram Backplane 8 x PCIe 5.0 x16 RETIMER PCIE Riser 32.0 GT/s 8 x PCIe 5.0 x16 32.0 GT/s Mellanox NIC 8 x GPU USB2.0 480Mbit/s PEG P5C PCIe 3.0 x2 PCIe 3.0 x1 PEG P5D PEG P5D 8.0 GT/s 8.0 GT/s...
  • Page 22: Chapter 2 Server Installation

    Chapter 2: Server Installation Chapter 2 Server Installation 2.1 Overview This chapter provides advice and instructions for mounting your system in a server rack. If your system is not already fully integrated with processors, system memory etc., refer to Chapter 4 for details on installing those specific components.
  • Page 23: Rack Precautions

    Chapter 2: Server Installation Rack Precautions • Ensure that the leveling jacks on the bottom of the rack are extended to the floor so that the full weight of the rack rests on them. • In single rack installations, stabilizers should be attached to the rack. In multiple rack installations, the racks should be coupled together.
  • Page 24: Mechanical Loading

    Chapter 2: Server Installation Mechanical Loading Equipment should be mounted into a rack so that a hazardous condition does not arise due to uneven mechanical loading. Circuit Overloading Consideration should be given to the connection of the equipment to the power supply circuitry and the effect that any possible overloading of circuits might have on overcurrent protection and power supply wiring.
  • Page 25: Installing The Mounting Rails On The Rack

    Chapter 2: Server Installation Installing the Mounting Rails on the Rack Installing the Mounting Rails 1. Confirm that the left and right outer rails have been correctly identified. 2. Install the rails using the screws that come with kit as shown in the illustration below. 3.
  • Page 26: Rack-Mounting The Chassis

    Chapter 2: Server Installation Rack-Mounting the Chassis After the rails are installed on the rack, the chassis can now be mounted. Note that it is heavy and requires two to three people to lift. Installing the Chassis into a Rack 1.
  • Page 27: Unmounting The Chassis From The Rack

    Chapter 2: Server Installation Unmounting the Chassis from the Rack Caution: The chassis is heavy and requires two to three people to lift it out. Removing the Chassis 1. Remove all screws that are securing the chassis from its sides. 2.
  • Page 28: Connecting To A Coolant Distribution Unit (Cdu)

    Chapter 2: Server Installation Connecting to a Coolant Distribution Unit (CDU) Caution: The chassis is heavy and requires two to three people to lift it out. The CSE-GP401 chassis uses a liquid-cooling solution to maintain operational temperature. The coolant from the chassis is circulated out to an external Coolant Distribution Unit (CDU) using specialized pipes and tubes, where it is cooled through a cooling tower or cooling unit, and circulated back to the CDU and back to the chassis.
  • Page 29: Chapter 3 Maintenance And Component Installation

    Chapter 3: Maintenance and Component Installation Chapter 3 Maintenance and Component Installation This chapter provides instructions on installing and replacing main system components. To prevent compatibility issues, only use components that match the specifications and/or part numbers given. Installation or replacement of most components require that power first be removed from the system.
  • Page 30 Chapter 3: Maintenance and Component Installation Lift the cover Remove Screws Figure 3-1. Removing the Chassis Cover Caution: Except for short periods of time, do not operate the server without the cover in place. The chassis cover must be in place to allow proper airflow and prevent overheating.
  • Page 31: Memory Support And Installation

    Chapter 3: Maintenance and Component Installation 3.3 Memory Support and Installation Note: Check the Supermicro website for recommended memory modules and updates on possible memory support. Important: Exercise extreme care when installing or removing DIMM modules to prevent any possible damage.
  • Page 32 Chapter 3: Maintenance and Component Installation Populating RDIMM / 3DS DDR5 Memory Modules with AMD EPYC 9004 series Processor DIMM Population Maximum DIMM Capacity Type Maximum Frequency (MT/s) DIMM1 1 Channel 12 Channels 1R (1 rank) 32 GB 384 GB 4800 RDIMM 2R (2 ranks)
  • Page 33: Dimm Module Population Guide

    Chapter 3: Maintenance and Component Installation DIMM Module Population Guide There is no specific order or sequence required when installing memory modules. However do keep the following in mind: • Always use DDR5 DIMM modules of the same type, size, and speed. •...
  • Page 34: Dimm Installation

    Chapter 3: Maintenance and Component Installation DIMM Installation 1. Insert the desired number of DIMMs into the memory slots, see DIMM Module Population Guide for details. 2. Push the release tabs outwards on both ends of the DIMM slot to unlock it. Receptive Point 3.
  • Page 35: Motherboard Battery

    Chapter 3: Maintenance and Component Installation Motherboard Battery The motherboard uses non-volatile memory to retain system information when system power is removed. This memory is powered by a lithium battery residing on the motherboard. Replacing the Battery Begin by removing power from the system as described in Section 3.1.
  • Page 36: Cpu Tray Components

    SSD Storage Modules The CSE-GP401TS-R000NP chassis supports up to eight 2.5" SSD drives using mounting trays or carriers. Note: Enterprise-level storage modules are recommended for use in Supermicro servers. For information on recommended drives, visit the Supermicro website. Tray/Carrier The storage modules are mounted in trays/carriers to simplify their installation and removal from the chassis.
  • Page 37: Modular Components

    Chapter 3: Maintenance and Component Installation Modular Components The CSE-GP401TS-R000NP chassis has three system trays that can be removed for service or maintenance. These are the CPU tray, GPU tray, and the I/O tray. These are subsystems that are designed to be pulled out from the chassis easily. All of the components in these trays have been pre-installed at the factory and there is no need to perform hardware setup on any the components.
  • Page 38: I/O Tray

    Chapter 3: Maintenance and Component Installation I/O Tray The I/O tray is located at the bottom back of the chassis. It houses the system's I/O ports, PCIe expansion slots, and other supporting devices. The I/O tray is accessible from the back of the unit by sliding the bottom I/O tray out after disengaging a lever on the left and right side of the chassis.
  • Page 39: Installing Gpu/Pcie Cards

    Chapter 3: Maintenance and Component Installation Installing GPU/PCIe Cards The CSE-GP401TS-R000NP chassis provides two removable GPU/PCIe expansion bays located in the I/O tray. Each bay has a pull-out module where up to three full-height, half- length (FHHL) GPU/PCIe cards may be installed. Removal of the pull-out module is shown below.
  • Page 40: Installing Cpu Tray System Fans

    Chapter 3: Maintenance and Component Installation Installing CPU Tray System Fans Up to four heavy-duty fans provide cooling for the system. They can be replaced by first powering down the system and following the instructions below. Replacing a System Fan 1.
  • Page 41 Chapter 3: Maintenance and Component Installation Removing/Replacing the Air Shroud 1. Attach the air shroud onto the fan bracket by grasping both of the shroud's air tunnels, setting it downward while letting the front hooks latch onto the fan bracket. Lock 2.
  • Page 42: Power Supply

    The standard CSE-GP401TS-R000NP chassis configuration features four redundant 5250 W CRPS power supplies. Each power supply can be changed without powering down the system. New units can be ordered directly from Supermicro or authorized distributors. These power supplies are auto-switching capable. This feature enables them to automatically sense the input voltage and operate at a 100-120 V or 180-240 V.
  • Page 43: Chapter 4 Motherboard Connections

    Chapter 4: Motherboard Connections Chapter 4 Motherboard Connections This section describes the connections on the motherboard and provides pinout definitions. Note that depending on how the system is configured, not all connections are required. The LEDs on the motherboard are also described here. A motherboard layout indicating component locations may be found in Chapter Please review the Safety Precautions in...
  • Page 44: Headers

    Port 80 connection. Use this header to enhance system performance and data security. Refer to the table below for pin definitions. For more information on the TPM, go to the following link: http://www.supermicro.com/manuals/other/TPM.pdf. Trusted Platform Module Header Pin Definitions...
  • Page 45: Jumper Settings

    Chapter 4: Motherboard Connections 4.2 Jumper Settings How Jumpers Work To modify the operation of the motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin #1 is identified with a square solder pad on the printed circuit board. See the diagram below for an example of jumping pins 1 and 2.
  • Page 46 Chapter 4: Motherboard Connections JPG1 JPG1 enables or disables the VGA connector. The default setting is enabled. JPG1 Jumper Position Definition Pins 1-2 Enabled Disabled Pins 2-3 JUID1 JUID1 is used for a chassis that supports a front UID button. Setting JUID1 to pin 2-3 configures the front UID button as a reset button.
  • Page 47: Led Indicators

    Chapter 4: Motherboard Connections 4.3 LED Indicators BMC Heartbeat LED (LED3) A BMC Heartbeat LED is located at LED3 on the motherboard. When this LED is lit green, it indicates the state of BMC. See the table below for more information. BMC Heartbeat LED State State Definition...
  • Page 48: Solid State Drive Installation

    Chapter 4: Motherboard Connections 4.4 M.2 Solid State Drive Installation Installing Dual M.2 SSDs 1. Disconnect power from the motherboard or system. 2. Refer to the motherboard layout and locate the M.2 dual slot (J18). 3. Insert lower M.2 sideways into the connector so that it lays flat, then follow the instructions below from 4.
  • Page 49: Chapter 5 Software

    1. Create a method to access the Microsoft Windows installation ISO file. That can be a USB flash or media drive. 2. Retrieve the proper RST/RSTe driver. Go to the Supermicro web page for your motherboard and click on "Download the Latest Drivers and Utilities", select the proper driver, and copy it to a USB flash drive.
  • Page 50 Chapter 5: Software 4. During Windows Setup, continue to the dialog where you select the drives on which to install Windows. If the disk you want to use is not listed, click on “Load driver” link at the bottom left corner. Figure 5-2.
  • Page 51: Driver Installation

    The Supermicro website contains drivers and utilities for your system at https://www. supermicro.com/wdl/. Some of these must be installed, such as the chipset driver. After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard. Download this file to a USB flash or media drive.
  • Page 52: Bmc

    When logging in to the BMC for the first time, please use the unique password provided by Supermicro to log in. After logging in, you can change the administrator password to protect your security. When logging in as an administrator, you can also create a user account and set the password of your choice for subsequent logins.
  • Page 53: Chapter 6 Optional Components

    Chapter 6: Optional Components Chapter 6 Optional Components This chapter describes alternate configurations and optional system components. Optional Parts Storage Protocols PCIe Options Power Options TPM security module 6.1 Storage Protocols Supported The storage drive bays can be configured to support either SATA, SAS, or NVMe drives by adding optional parts to the system.
  • Page 54: Power Supply Configurations

    The JTPM1 header is used to connect a Trusted Platform Module (TPM). A TPM is a security device that supports encryption and authentication in hard drives. It enables the motherboard to deny access if the TPM associated with the hard drive is not installed in the system. Details and installation procedures are at: http://www.supermicro.com/manuals/other/TPM.pdf. • AOM-TPM-9670V...
  • Page 55: Chapter 7 Troubleshooting And Support

    Chapter 7 Troubleshooting and Support 7.1 Information Resources Website A great deal of information is available on the Supermicro website, supermicro.com. Figure 7-1. Supermicro Website • Specifications for servers and other hardware are available by clicking the Products option. •...
  • Page 56: Bmc Interface

    Security Center for recent security notices Supermicro Phone and Addresses 7.2 BMC Interface The system supports a Baseboard Management Controller (BMC) interface. It provides remote access, monitoring and management. There are several BIOS settings related to the BMC.
  • Page 57: Troubleshooting Procedures

    Chapter 7: Troubleshooting and Support 7.3 Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the Technical Support Procedures Returning Merchandise for Service sections in this chapter. Always disconnect the AC power cord before adding, changing, or installing any non hot-swap hardware components.
  • Page 58: System Boot Failure

    Chapter 7: Troubleshooting and Support System Boot Failure If the system does not display Power-On-Self-Test (POST) or does not respond after the power is turned on, try the following: 1. Remove all components from the motherboard, especially the DIMM modules. Power on the system and check if the power-on LED (LEDPWR) and the BMC Heartbeat LED (LEDBMC) are on, and system fans are spinning.
  • Page 59: When The System Becomes Unstable

    5. Adequate power supply: Make sure that the power supply provides adequate power to the system. Make sure that all power connectors are connected. Refer to the Supermicro website for the minimum power requirements. 6. Proper software support: Make sure that the correct drivers are used.
  • Page 60: Issues With Nvme Storage Devices

    Chapter 7: Troubleshooting and Support 5. Check and change one component at a time of changing several items at the same time. This will help isolate and identify the problem. 6. To find out if a component is good, swap this component with a new one to see if the system will work properly.
  • Page 61: Bios Post Codes

    Before contacting Technical Support, please take the following steps. Also, please note that as a motherboard manufacturer, Supermicro also sells motherboards through its channels, so it is best to first check with your distributor or reseller for troubleshooting services. They should know of any possible problems with the specific system configuration that was sold to you.
  • Page 62: Frequently Asked Questions

    Note 1: The SPI BIOS chip used on this motherboard cannot be removed. Send your motherboard back to our RMA Department at Supermicro for repair. Note 2: For BIOS Update and Recovery instructions, please refer to the Firmware Update and Recovery Instructions for Supermicro's H13 Motherboards User's Manual posted at https://www.supermicro.com/support/manuals/.
  • Page 63: Battery Removal And Installation

    Chapter 7: Troubleshooting and Support 7.7 Battery Removal and Installation Battery Removal To remove the onboard battery, follow the steps below: 1. Power off your system and unplug your power cable. 2. Locate the onboard battery as shown below. 3. Using a tool such as a pen or a small screwdriver, push the battery lock outwards to unlock it.
  • Page 64: Where To Get Replacement Components

    During the warranty period, contact your distributor first for any product problems. 7.10 Feedback Supermicro values your feedback as we strive to improve our customer experience in all facets of our business. To provide feedback on our manuals, please email us at techwriterteam@ supermicro.com.
  • Page 65: Contacting Supermicro

    San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) Sales-USA@supermicro.com (Sales Inquiries) Government_Sales-USA@supermicro.com (Gov. Sales Inquiries) support@supermicro.com (Technical Support) RMA@supermicro.com (RMA Support) Webmaster@supermicro.com (Webmaster) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.
  • Page 66: Appendix A Standardized Warning Statements For Ac Systems

    Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our website at http://www.supermicro.com/about/...
  • Page 67 Appendix A: Warning Statements Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.
  • Page 68 Appendix A: Warning Statements . ٌ ‫ا ك ً ف حالة و ٌ يك أى تتسبب ف اصابة جسذ ة ٌ هذا الزهز ع ٌ خطز !تحذ ز‬ ‫قبل أى تعول عىل أي هعذات،يك عىل علن بالوخاطز ال ا ٌجوة عي الذوائز‬ ٍ...
  • Page 69 Appendix A: Warning Statements Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación. Attention Avant de brancher le système sur la source d'alimentation, consulter les directives d'installation. .‫יש...
  • Page 70 Appendix A: Warning Statements Warnung Dieses Produkt ist darauf angewiesen, dass im Gebäude ein Kurzschluss- bzw. Überstromschutz installiert ist. Stellen Sie sicher, dass der Nennwert der Schutzvorrichtung nicht mehr als: 250 V, 20 A beträgt. ¡Advertencia! Este equipo utiliza el sistema de protección contra cortocircuitos (o sobrecorrientes) del edificio.
  • Page 71 Appendix A: Warning Statements Power Disconnection Warning Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components (except for hot-swap components). 電源切断の警告...
  • Page 72 Appendix A: Warning Statements ‫אזהרה מפני ניתוק חשמלי‬ ‫!אזהרה‬ ‫יש לנתק את המערכת מכל מקורות החשמל ויש להסיר את כבל החשמלי מהספק‬ ‫.לפני גישה לחלק הפנימי של המארז לצורך התקנת או הסרת רכיבים‬ ‫يجب فصم اننظاو من جميع مصادر انطاقت وإ ز انت سهك انكهرباء من وحدة امداد‬ ‫انطاقت...
  • Page 73 Appendix A: Warning Statements Attention Seul le personnel autorisé et le personnel de maintenance qualifié doivent être autorisés à installer, remplacer ou entretenir cet équipement.. !‫אזהרה‬ ‫.יש לאפשר רק צוות מורשה ואנשי שירות מוסמכים להתקין, להחליף או לטפל בציוד זה‬ ‫.ينبغي...
  • Page 74 Appendix A: Warning Statements Warnung Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen. Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich. ¡Advertencia! Esta unidad ha sido diseñada para instalación en áreas de acceso restringido. Sólo puede obtenerse acceso a una de estas áreas mediante la utilización de una herramienta especial, cerradura con llave u otro medio de seguridad.
  • Page 75 Appendix A: Warning Statements Battery Handling CAUTION: There is risk of explosion if the battery is replaced by an incorrect type. Replace the battery only with the same or equivalent type recommended by the manu- facturer. Dispose of used batteries according to the manufacturer's instructions 電池の取り扱い...
  • Page 76 Appendix A: Warning Statements ‫.هناك خطر االنفجار إذا تم استبدال البطارية بنوع غري صحيح‬ ‫اسحبذال البطارية‬ ‫فقط بنفس النىع أو ما يعادلها مام أوصث به الرشمة املصنعة‬ ‫جخلص من البطاريات املسحعملة وفقا لحعليامت الرشمة الصانعة‬ 경고! 배터리를 잘못된 종류로 교체하면 폭발의 위험이 있습니다. 기존 배터리와 동일하거나 제조 사에서...
  • Page 77 Appendix A: Warning Statements ¡Advertencia! Puede que esta unidad tenga más de una conexión para fuentes de alimentación. Para cortar por completo el suministro de energía, deben desconectarse todas las conexiones. Attention Cette unité peut avoir plus d'une connexion d'alimentation. Pour supprimer toute tension et tout courant électrique de l'unité, toutes les connexions d'alimentation doivent être débranchées.
  • Page 78 Appendix A: Warning Statements Backplane Voltage Warning! Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. バックプレーンの電圧 システムの稼働中は危険な電圧または電力が、 バックプレーン上にかかっています。 修理する際には注意く ださい。 警告 当系统正在进行时,背板上有很危险的电压或能量,进行维修时务必小心。 警告 當系統正在進行時,背板上有危險的電壓或能量,進行維修時務必小心。 Warnung Wenn das System in Betrieb ist, treten auf der Rückwandplatine gefährliche Spannungen oder Energien auf.
  • Page 79 Appendix A: Warning Statements ‫هناك خطز مه التيار الكهزبايئ أوالطاقة املىجىدة عىل اللىحة‬ ‫عندما يكىن النظام يعمل كه حذ ر ا عند خدمة هذا الجهاس‬ 경고! 시스템이 동작 중일 때 후면판 (Backplane)에는 위험한 전압이나 에너지가 발생 합니다. 서비스 작업 시 주의하십시오. Waarschuwing Een gevaarlijke spanning of energie is aanwezig op de backplane wanneer het systeem in gebruik is.
  • Page 80 Appendix A: Warning Statements ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ .‫התקנת הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫تركيب املعدات الكهربائية يجب أن ميتثل للقىاويه املحلية والىطىية املتعلقة‬ ‫بالكهرباء‬ 경고! 현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다. Waarschuwing Bij installatie van de apparatuur moet worden voldaan aan de lokale en nationale elektriciteitsvoorschriften.
  • Page 81 Appendix A: Warning Statements Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent. ‫סילוק המוצר‬ !‫אזהרה‬ .‫סילוק סופי של מוצר זה חייב להיות בהתאם להנחיות וחוקי המדינה‬ ‫التخلص...
  • Page 82 Appendix A: Warning Statements Warnung Gefährlich Bewegende Teile. Von den bewegenden Lüfterblätter fern halten. Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt.
  • Page 83 Verbindungskabeln, Stromkabeln und/oder Adapater, die Ihre örtlichen Sicherheitsstandards einhalten. Der Gebrauch von anderen Kabeln und Adapter können Fehlfunktionen oder Feuer verursachen. Die Richtlinien untersagen das Nutzen von UL oder CAS zertifizierten Kabeln (mit UL/CSA gekennzeichnet), an Geräten oder Produkten die nicht mit Supermicro gekennzeichnet sind.
  • Page 84 ‫.قيرح وأ لطع يف ببستي دق ىرخأ تالوحمو تالباك يأ مادختسا .ميلسلا سباقلاو لصوملا مجح‬ ‫ لبق نم ةدمتعملا تالباكلا مادختسا تادعملاو ةيئابرهكلا ةزهجألل ةمالسلا نوناق رظحي‬UL ‫ وأ‬CSA ‫( ةمالع لمحت يتلاو‬UL/CSA) ‫ لبق نم ةددحملاو ةينعملا تاجتنملا ريغ ىرخأ تادعم يأ عم‬Supermicro.
  • Page 85 사항을 준수하여 제공되거나 지정된 연결 혹은 구매 케이블, 전원 케이블 및 AC 어댑터를 사용하십시오. 다른 케이블이나 어댑터를 사용하면 오작동이나 화재가 발생할 수 있습니다. 전기 용품 안전법은 UL 또는 CSA 인증 케이블 (코드에 UL / CSA가 표시된 케이블)을 Supermicro 가 지정한 제품 이외의 전기 장치에 사용하는 것을 금지합니다. Stroomkabel en AC-Adapter...
  • Page 86: Appendix B System Specifications

    Appendix B: System Specifications Appendix B System Specifications Processor Dual AMD EPYC™ 9004 Series Processors in Socket SP5, supporting up to 128 cores and 256 threads Chipset System on Chip (SoC) BIOS AMI 32MB SPI Flash EEPROM Memory Supports up to 6 TB 4800 MT/s ECC DDR5 RDIMM/LRDIMM in 24 DIMM slots Supports up to eight onboard GPUs Supported GPU: NVIDIA SXM: HGX H100 8-GPU (80 GB) CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect...
  • Page 87 Appendix B: System Specifications Applied Directives, Standards EMC/EMI: 2014/30/EU (EMC Directive) Electromagnetic Compatibility Regulations 2016 FCC Part 15 Subpart B ICES-003 VCCI CISPR 32 AS/NZS CISPR 32 BS/EN55032 BS/EN55035 CISPR 32 CISPR 35 BS/EN 61000-3-11 BS/EN 61000-3-12 BS/EN 61000-4-2 BS/EN 61000-4-3 BS/EN 61000-4-4 BS/EN 61000-4-5 BS/EN 61000-4-6...
