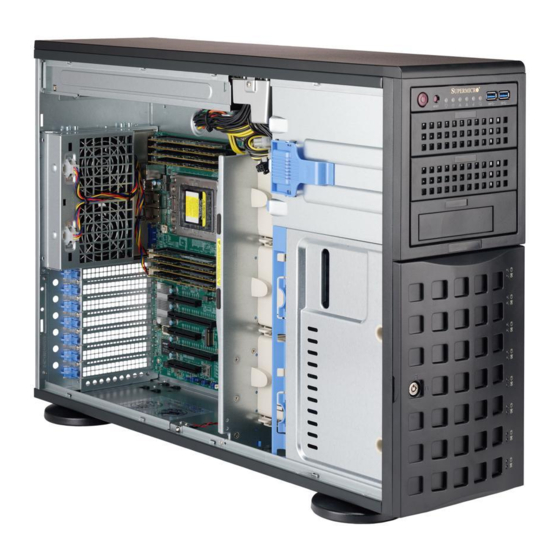

Supermicro A+ AS-4023S-TRT User Manual
  1. Manuals
  2. Brands
  3. Supermicro Manuals
  4. Server
  5. A+ AS-4023S-TRT
  6. User manual

Supermicro A+ AS-4023S-TRT User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
A+ Server
AS -4023S-TRT
USER'S MANUAL
Revision 1.0c

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A+ AS-4023S-TRT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supermicro A+ AS-4023S-TRT

Summary of Contents for Supermicro A+ AS-4023S-TRT

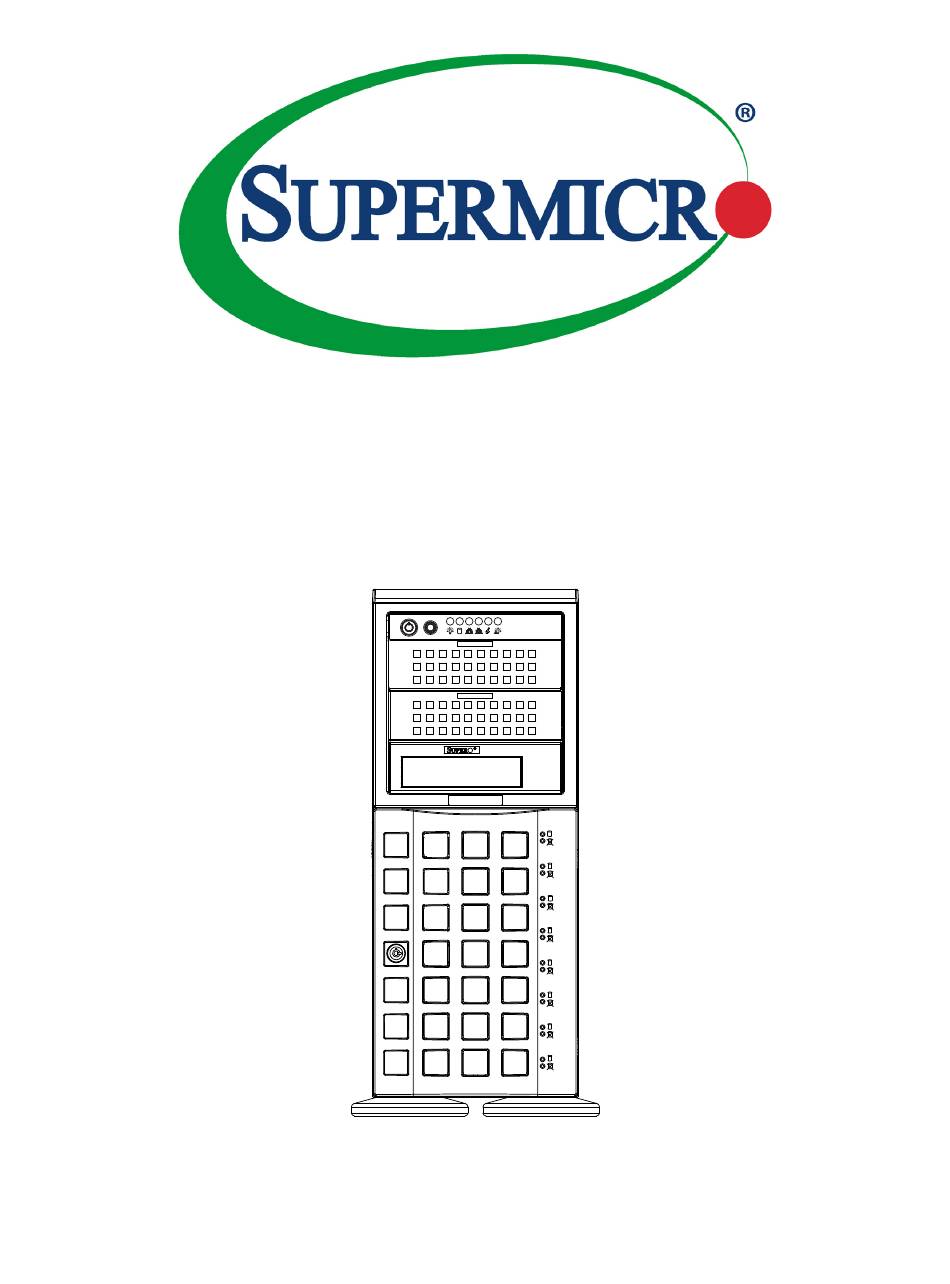

  • Page 1 A+ Server AS -4023S-TRT USER’S MANUAL Revision 1.0c...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3 If you have any questions, please contact our support team at: support@supermicro.com This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level. Secure Data Deletion A secure data deletion tool designed to fully erase all data from storage devices can be found at our website: https://www.supermicro.com/about/policies/disclaimer.cfm?url=/wftp/utility/...

  • Page 4: Table Of Contents

    Preface Contents Chapter 1 Introduction 1.1 Overview ..........................8 1.2 Unpacking the System ......................8 1.3 System Features ........................9 1.4 Server Chassis Features ....................10 Control Panel ........................10 Front Features ........................11 Rear Features ........................12 1.5 Motherboard Layout ......................13 Quick Reference Table ......................14 Chapter 2 Server Installation 2.1 Overview ..........................17 2.2 Preparing for Setup ......................17 Choosing a Setup Location ....................17...
  • Page 5 A+ Server AS -4023S-TRT User's Manual Memory Support and Installation ..................34 Memory Support ......................34 DIMM Module Population ....................35 DIMM Installation ......................36 DIMM Removal .........................36 PCI Expansion Card Installation ..................37 Motherboard Battery ......................38 3.4 Chassis Components ......................39 Hard Drives ........................39 Installing Components in the 5.25" Drive Bay ..............40 Adding a DVD-ROM Drive ....................40 Mobile Rack (Optional Storage Module) ................40 System Cooling .........................43...
  • Page 6 Preface Chapter 6 BIOS (EPYC 7001 Series) 6.1 Introduction .........................62 Starting the Setup Utility ....................62 6.2 Main Setup .........................63 6.3 Advanced ..........................65 6.4 IPMI ............................80 6.5 Event Logs .........................83 6.6 Security ..........................85 6.7 Boot ............................88 6.8 Save & Exit .........................90 6.9 Updating BIOS with IPMI ....................91 Chapter 7 BIOS (EPYC 7002 Series) 7.1 Introduction .........................93...
  • Page 7 Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...

  • Page 8: Overview

    A+ Server AS -4023S-TRT User's Manual Chapter 1 Introduction 1.1 Overview This chapter provides a brief outline of the functions and features of the AS -4023S-TRT. The AS -4023S-TRT is based on the H11DSi-NT motherboard and the SC745BTS-R1K28BP2 chassis. In addition to the motherboard and chassis, several important parts that are included with the system are listed below.

  • Page 9: System Features

    Chapter 1: Introduction 1.3 System Features The following table provides you with an overview of the main features of the AS -4023S-TRT. Please refer to Appendix B for additional specifications. System Features Motherboard H11DSi-NT Chassis SC745BTS-R1K28BP2 Dual EPYC 7001/7002 series processors (AMD EPYC 7002 series drop-in support requires board revision 2.x) Socket Type Socket SP3...

  • Page 10: Server Chassis Features

    A+ Server AS -4023S-TRT User's Manual 1.4 Server Chassis Features Control Panel The switches and LEDs located on the control panel are described below. See Chapter 4 for details on the control panel connections. Figure 1-1. Control Panel View Control Panel Features Item Feature Description...

  • Page 11: Front Features

    Chapter 1: Introduction Front Features The SC745BTS-R1K28BP2 is a tower chassis that may also be configured as a 4U rackmount. See the illustration below for the features included on the front of the chassis. Figure 1-2. Chassis Front View Front Chassis Features Item Feature Description...

  • Page 12: Rear Features

    A+ Server AS -4023S-TRT User's Manual Rear Features The illustration below shows the features included on the rear of the chassis. Figure 1-3. Chassis Rear View Rear Chassis Features Item Feature Description Power Supply Module 1200W power supply module (2x for redundancy) I/O Backpanel Rear I/O ports (see Section 4.3) 8-cm exhaust fan...

  • Page 13: Motherboard Layout

    Chapter 1: Introduction 1.5 Motherboard Layout Below is a layout of the H11DSi-NT with jumper, connector and LED locations shown. See the table on the following page for descriptions. For detailed descriptions, pinout information and jumper settings, refer to Chapter 4. USB0/1 LEDM1 UID SW...

  • Page 14: Quick Reference Table

    A+ Server AS -4023S-TRT User's Manual Quick Reference Table Jumper Description Default Setting UID SW Unit ID Switch JI2C1 / JI2C2 PCI-E Slot SMB Enable/Disable Pins 2-3 (Disabled) JBT1 CMOS Clear Open (Normal) JPG1 VGA Enable/Disable Pins 1-2 (Enabled) JPL1 LAN Enable/Disable Pins 1-2 (Enabled) JWD1...
  • Page 15 Chapter 1: Introduction Connector Description P1-DIMMA1~P1-DIMMH1 DIMM slots for CPU1 P2-DIMMA1~P2-DIMMH1 DIMM slots for CPU2 CPU2 SLOT 1 x8 PCI-E 3.0 Slot via CPU2 CPU1 SLOT 2, SLOT 4 x16 PCI-E 3.0 Slot via CPU1 CPU1 SLOT 3, SLOT 5 x8 PCI-E 3.0 Slot via CPU1...
  • Page 16 A+ Server AS -4023S-TRT User's Manual H11DSi-(NT) SYSTEM BLOCK DIAGRAM P0_DIMMA P0_DIMME P1_DIMMA P1_DIMME P0_DIMMB P0_DIMMF P1_DIMMB P1_DIMMF P0_DIMMC P0_DIMMG P1_DIMMC P1_DIMMG P0_DIMMD P0_DIMMH P1_DIMMD P1_DIMMH 2667MHz 2667MHz 2667MHz 2667MHz SVID CPU1 SVID CPU2 5 Phase VR 5 Phase VR SVI2 SVI2 PCIe3.0_x8...

  • Page 17: Chapter 2 Server Installation

    A+ Server AS -4023S-TRT User's Manual Chapter 2 Server Installation 2.1 Overview The AS -4023S-TRT is designed to be used as a tower but may be installed into a server rack as a 4U server unit. This chapter provides advice and instructions for mounting to a server rack.

  • Page 18: Server Precautions

    Chapter 2: Server Installation • In single rack installations, stabilizers should be attached to the rack. In multiple rack in- stallations, the racks should be coupled together. • Always make sure the rack is stable before extending a server or other component from the rack.

  • Page 19: Circuit Overloading

    A+ Server AS -4023S-TRT User's Manual Circuit Overloading Consideration should be given to the connection of the equipment to the power supply circuitry and the effect that any possible overloading of circuits might have on overcurrent protection and power supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

  • Page 20: Installing The System Into A Rack

    Chapter 2: Server Installation 2.3 Installing the System into a Rack This section provides information on installing the system into a rack unit. Rack installation requires the use of the optional rackmount kit. If the system has already been mounted into a rack or if you are using it as a tower, you can skip ahead to Sections 2-5 and 2-6.

  • Page 21: Installing The Chassis Rails

    A+ Server AS -4023S-TRT User's Manual Installing the Chassis Rails You will need to remove the top cover and the feet to add rack rails to the chassis. First, remove the top and right covers (top and left covers when standing as a tower chassis) by first removing the screws that secure them to the chassis.

  • Page 22: Installing The Rack Rails

    Chapter 2: Server Installation Installing the Rack Rails Determine where you want to place the AS -4023S-TRT in the rack. (See Rack and Server Precautions in Section 2-3.) Position the fixed rack rail/sliding rail guide assemblies at the desired location in the rack, keeping the sliding rail guide facing the inside of the rack. Screw the assembly securely to the rack using the brackets provided.

  • Page 23: Installing The Server Into The Rack

    A+ Server AS -4023S-TRT User's Manual Installing the Server into the Rack You should now have rails attached to both the chassis and the rack unit. The next step is to install the server into the rack. You should have two brackets in the rack mount kit. Install these first keeping in mind that they are left/right specific (marked with "L"...

  • Page 24: Control Panel Orientation

    Chapter 2: Server Installation 2.4 Control Panel Orientation The server can be configured for either tower or server rack orientation. It is shipped in tower mode and can be immediately used as desktop server. To use it in a rack, rotate the module that contains the control panel and the three drive trays ( in Figure 2-5) 90 degrees.
  • Page 25 A+ Server AS -4023S-TRT User's Manual Rotating the Control Panel/Drive Module for Rack Mounting 1. Power down the system as described in section 3.1 and open the chassis cover. 2. Disconnect any cables from the back of the Control Panel/Drive Module. 3.

  • Page 26: Chapter 3 Maintenance And Component Installation

    A+ Server AS -4023S-TRT User's Manual Chapter 3 Maintenance and Component Installation This chapter provides instructions on installing and replacing main system components. To prevent compatibility issues, only use components that match the specifications and/or part numbers given. Installation or replacement of most components require that power first be removed from the system.

  • Page 27: Motherboard Components

    When receiving a motherboard without a processor pre-installed, make sure that the plastic CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro website for updates on CPU support.
  • Page 28 A+ Server AS -4023S-TRT User's Manual Installing the Processor and Heatsink 1. Using a Torx T20 screwdriver, unscrew the screws holding down the force frame in the sequence of 3-2-1. The screws are numbered on the force frame next to each screw hole.
  • Page 29 Chapter 3: Maintenance and Component Installation 3. Lift the rail frame by gripping the lift tabs near its front end. Keeping a secure grip on the frame, lift it to a position so you can do the next step of removing the external cap. Note: The rail frame is spring loaded, so keep a secure grip on it as you lift it so it does not snap up.
  • Page 30 A+ Server AS -4023S-TRT User's Manual 5. The CPU package is shipped from the factory with the blue carrier frame pre-assembled. While gripping the handle of the carrier frame/CPU package assembly from its shipping tray, align the flanges of the carrier frame onto the rails of the rail frame so its pins will be at the bottom when the rail frame is lowered later.
  • Page 31 Chapter 3: Maintenance and Component Installation 9. Gently lower the force frame down onto the rail frame and hold it in place until it is seated in the socket housing. Note that the force frame is spring loaded and has to be held in place before it is secured.
  • Page 32 A+ Server AS -4023S-TRT User's Manual 10. Place and re-screw the screws in the reverse order to the way you removed them (holes 1-2-3 in order). When finished, the force frame will be secure over both the rail frame and the CPU package. Caution: The screw tightening sequence of 1-2-3 must be executed in proper sequence to avoid causing catastrophic damage to the socket and/or CPU package.
  • Page 33 Chapter 3: Maintenance and Component Installation 12. Using a diagonal pattern, tighten the four screws down on the heatsink in a clockwise fashion until secure. Use the same the torque screw driver setting at 16.1 kgf-cm (14.0 lbf-in) and a Torx T20 screwdriver to install the heatsink onto the Socket Actuation Mechanism.

  • Page 34: Memory Support And Installation

    1 in place. Note that without a CPU package in place, it is not necessary to tighten down screws 2 and 3 at this time. Memory Support and Installation Note: Check the Supermicro website for recommended memory modules. Important: Exercise extreme care when installing or removing DIMM modules to prevent any possible damage.

  • Page 35: Dimm Module Population

    Chapter 3: Maintenance and Component Installation Populating RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS DDR4 Memory Modules with 7002 Processor Maximum DIMM DIMM Population Maximum Frequency Capacity (GB) Type (MHz) DIMM1 1 Channel 8 Channel 32GB 256GB 3200 RDIMM 2R or 2DR 64GB 512GB 3200 2S2R 128GB...

  • Page 36: Dimm Installation

    A+ Server AS -4023S-TRT User's Manual DIMM Installation 1. Insert the desired number of DIMMs into the memory slots, there is no specific sequence or order required Receptive 2. Push the release tab outwards on one Point end of the DIMM slot to unlock it. 3.

  • Page 37: Pci Expansion Card Installation

    Chapter 3: Maintenance and Component Installation PCI Expansion Card Installation After the motherboard has been installed, expansion cards may be installed. Installing Expansion Cards 1. Begin by removing power from the system as described in Section 3.1 and remove the side cover as described in section 3.2.

  • Page 38: Motherboard Battery

    A+ Server AS -4023S-TRT User's Manual Motherboard Battery The motherboard uses non-volatile memory to retain system information when system power is removed. This memory is powered by a lithium battery residing on the motherboard. Replacing the Battery Begin by removing power from the system as described in Section 3.1 and remove the side cover as described in section 3.2.

  • Page 39: Chassis Components

    Chapter 3: Maintenance and Component Installation 3.4 Chassis Components Hard Drives A total of 16 hard drives may be housed in the SC745BTS-R1K28BP2 chassis (eight 3.5" drives in the chassis and eight 2.5" drives in the optional mobile rack unit, which replaces two of the 5.25"...

  • Page 40: Installing Components In The 5.25" Drive Bay

    A+ Server AS -4023S-TRT User's Manual Figure 3-6. Mounting a Drive into a Carrier Note: Enterprise level hard disk drives are recommended for use in Supermicro chassis and servers. For information on recommended HDDs, visit the Supermicro website at http://www.
  • Page 41 Chapter 3: Maintenance and Component Installation Mobile Rack Figure 3-7. Chassis with a Mobile Rack Installed Installing the Mobile Rack 1. Remove two adjacent trays from the drive bays. 2. Remove the drive tray rails. 3. Install a drive tray rail onto each side of the mobile rack. Make sure the arrow on the rail points toward the front of the chassis.
  • Page 42 A+ Server AS -4023S-TRT User's Manual Rotating the Mobile Rack If the system is to be used in a rack configuration, you must rotate the mobile rack enclosure module 90 degrees. This can be done before, during, or after setup. Although the drives in the mobile rack may be hot-swapped, the system must be shut down to rotate the mobile rack.

  • Page 43: System Cooling

    Chapter 3: Maintenance and Component Installation System Cooling Three 8-cm chassis cooling fans (located in the center of the chassis) provide cooling airflow while two 8-cm exhaust fans expel hot air from the chassis. The chassis is also fitted with an air shroud to concentrate the flow of cooling air over the areas of highest generated heat.

  • Page 44: Air Shroud

    A+ Server AS -4023S-TRT User's Manual Air Shroud Under most circumstances you will not need to remove the air shroud to perform any service on the system. However, if you wish to temporarily remove it (the air shroud should always be in place when the system is operating), please follow this procedure.

  • Page 45: Power Supply

    The Power Fail LED will illuminate and remain on until the failed unit has been replaced. Replacement units can be ordered directly from Supermicro. The hot-swap capability of the power supply modules allows you to replace the failed module without powering down the system.

  • Page 46: Chapter 4 Motherboard Connections

    A+ Server AS -4023S-TRT User's Manual Chapter 4 Motherboard Connections This section describes the connections on the motherboard and provides pinout definitions. Note that depending on how the system is configured, not all connections are required. The LEDs on the motherboard are also described here. A serverboard layout indicating component locations may be found in Chapter 1.

  • Page 47: Headers And Connectors

    Chapter 4: Motherboard Connections 12V 8-pin CPU Power Connectors JPWR2 and JPWR3 are the 8-pin 12V DC power input for the CPU or alternative single power source for a special enclosure when the 24-pin ATX power is not in use. Refer to the table below for pin definitions.
  • Page 48 It enables the motherboard to deny access if the TPM associated with the hard drive is not installed in the system. Please go to the following link for more information on TPM: http://www.supermicro.com/ manuals/other/TPM.pdf. Trusted Platform Module Header...
  • Page 49 Chapter 4: Motherboard Connections TPM Header The JTPM1 header is used to connect a Trusted Platform Module (TPM)/Port 80, which is available from a third-party vendor. A TPM/Port 80 connector is a security device that supports encryption and authentication in hard drives. It allows the motherboard to deny access if the TPM associated with the hard drive is not installed in the system.

  • Page 50: Control Panel

    A+ Server AS -4023S-TRT User's Manual Control Panel JF1 contains header pins for various control panel connections. See the figure below for the pin locations and definitions of the control panel buttons and LED indicators. All JF1 wires have been bundled into a single cable to simplify this connection. Make sure the red wire plugs into pin 1 as marked on the motherboard.
  • Page 51 (e.g., a system rack with multiple units installed). Note: UID can also be triggered via IPMI on the serverboard. For more information on IPMI, please refer to the IPMI User's Guide posted on our website at http://www.supermicro.com. OH/Fan Fail/UID UID LED...
  • Page 52 A+ Server AS -4023S-TRT User's Manual Power LED The Power LED connection is located on pins 15 and 16 of JF1. Power LED Pin Definitions (JF1) Pin# Definition 3.3V Power LED NMI Button The non-maskable interrupt button header is located on pins 19 and 20 of JF1. NMI Button Pin Definitions (JF1) Pin#...

  • Page 53: Ports

    Chapter 4: Motherboard Connections 4.3 Ports Rear I/O Ports See the figure below for the locations and descriptions of the various I/O ports on the rear of the motherboard. Rear I/O Ports Description Description Description COM Port #1 USB 0/1 VGA Port IPMI LAN Port LAN Port#1...
  • Page 54 (e.g., a system rack with multiple units installed). Note: UID can also be triggered via IPMI on the serverboard. For more information on IPMI, please refer to the IPMI User's Guide posted on our website at http://www.supermicro.com UID Switch UID LED Pin Definitions...

  • Page 55: Jumpers

    Chapter 4: Motherboard Connections 4.4 Jumpers Explanation of Jumpers To modify the operation of the motherboard, jumpers are used to choose between optional settings. Jumpers create shorts between two pins to change the function associated with it. Pin 1 is identified with a square solder pad on the printed circuit board. See the motherboard layout page for jumper locations.
  • Page 56 A+ Server AS -4023S-TRT User's Manual VGA Enable/Disable JPG1 allows you to enable or disable the VGA port using the onboard graphics controller. The default setting is Enabled. VGA Enable/Disable Jumper Settings Jumper Setting Definition Pins 1-2 Enabled Pins 2-3 Disabled Watch Dog JWD controls the Watch Dog function.

  • Page 57: Led Indicators

    Chapter 4: Motherboard Connections 4.5 LED Indicators LAN LEDs Each LAN port has two LED indicators. The yellow LED indicates activity, while the link LED may be green, amber, or off to indicate the speed of the connection. See the table below for more information.

  • Page 58: Chapter 5 Software

    USB/SATA DVD drive, or a USB flash drive, or the IPMI KVM console. 2. Go to the Supermicro web page for your motherboard and click on "Download the Latest Drivers and Utilities", select the proper driver, and copy it to a USB flash drive.
  • Page 59 Chapter 5: Software 4. During Windows Setup, continue to the dialog where you select the drives on which to install Windows. If the disk you want to use is not listed, click on “Load driver” link at the bottom left corner. Figure 5-2.

  • Page 60: Driver Installation

    A+ Server AS -4023S-TRT User's Manual 5.2 Driver Installation The Supermicro website contains drivers and utilities for your system at www.supermicro.com/ wftp/driver/AMD/SP3. Some of these must be installed, such as the chipset driver. After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard.

  • Page 61: Superdoctor ® 5

    5.3 SuperDoctor ® The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 62: Introduction

    AS -4023S-TRT User's Manual Chapter 6 BIOS (EPYC 7001 Series) 6.1 Introduction This chapter describes the AMIBIOS™ Setup utility for the H11DSi-NT motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 63: Main Setup

    Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The date's default value is 01/01/2015 after RTC reset. Supermicro H11DSi-NT BIOS Version This item displays the version of the BIOS firmware used in the system.
  • Page 64 AS -4023S-TRT User's Manual CPLD Version This item displays the version of the CPLD firmware used in the system. Memory Information Total Memory This item displays the total size of memory available in the system.

  • Page 65: Advanced

    Chapter 6: BIOS (EPYC 7001 Series) 6.3 Advanced Use the arrow keys to select Boot Setup and press <Enter> to access the submenu items. Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable.
  • Page 66 AS -4023S-TRT User's Manual Bootup NumLock State Use this feature to set the Power on state for the <Numlock> key. The options are Off and On. Wait For "F1" If Error Use this feature to force the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled.
  • Page 67 Chapter 6: BIOS (EPYC 7001 Series) PSP Firmware Versions  This section displays the Platform Security Processor (PSP) firmware versions. PSP Directory Level 1 (Fixed) • PSP Recovery BL Ver • SMU FW Version • ABL Version • APCB Version •...
  • Page 68 AS -4023S-TRT User's Manual CPU Configuration  SMT Mode Use this setting to specify Simultaneous Multithreading. Options include Off for 1T single thread and Auto for 2T two-thread if your system is capable of it. Core Performance Boost This setting is used to configure for Core Performance Boost. Options include Auto and Disabled.
  • Page 69 Chapter 6: BIOS (EPYC 7001 Series) • L1 Data Cache (Size/Method) • L2 Data Cache (Size/Method) • L3 Cache per Scoket (Size/Method) NB Configuration  Determinism Slider Use this setting to configure the Determinism Slider. Options include Auto, Power and Performance.
  • Page 70 AS -4023S-TRT User's Manual CPU1/CPU2 Memory Information  These sections are for informational purposes. They will display some details about the detected memory according to each CPU on the motherboard, such as: • Detected Size (per slot, in MB) • Current Speed (MT/s) ACPI Settings ...
  • Page 71 Chapter 6: BIOS (EPYC 7001 Series) Change Settings This feature specifies the base I/O port address and the Interrupt Request address of a serial port specified by the user. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address. The options are Auto, (IO=2F8h; IRQ=3;); (IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;);...
  • Page 72 AS -4023S-TRT User's Manual as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark, and Space. Stop Bits A stop bit indicates the end of a serial data packet.
  • Page 73 Chapter 6: BIOS (EPYC 7001 Series) and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI. Bits per second Use this feature to set the transmission speed for a serial port used in Console Redirection.
  • Page 74 AS -4023S-TRT User's Manual Putty KeyPad This feature selects the settings for Function Keys and KeyPad used for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SC0, ESCN, and VT400. Legacy Console Redirection Legacy Console Redirection Settings Redirection COM Port For this setting, select a COM port to display redirection of Legacy OS and Legacy OPROM...
  • Page 75 Chapter 6: BIOS (EPYC 7001 Series) UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI. Bits per Second This item sets the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer.
  • Page 76 AS -4023S-TRT User's Manual advertised by the UPstream component in its training sequences. When Auto is selected, the HW initialized data will be used. VGA Priority Use this setting to select between onboard or offboard VGA support The options are Onboard and Offboard NVMe Firmware Source Use this setting to select between the AMI Native firmware support or the device vendor-...
  • Page 77 Chapter 6: BIOS (EPYC 7001 Series) Use this setting to select which firmware function is to be loaded for onboard LAN1 on the system. Options include Disabled, PXE and iSCSI. Onboard LAN2 Option ROM Use this setting to select which firmware function is to be loaded for onboard LAN2 on the system.
  • Page 78 AS -4023S-TRT User's Manual Network Stack Configuration Network Stack This setting allows you to Enable or Disable the UEFI Network Stack. Ipv4 PXE Support This setting allows you to Enable or Disable IPv4 PXE boot support. If disabled, IPv4 PXE boot support will not be available.
  • Page 79 Chapter 6: BIOS (EPYC 7001 Series) SATA Information This section displays information on the detected SATA devices: • CPU1 SATA0 ~ CPU1 SATA7 iSCSI Configuration  iSCSI Initiator Name This feature allows the user to enter the unique name of the iSCSI Initiator in IQN format. Once the name of the iSCSI Initiator is entered into the system, configure the proper settings for the following items.

  • Page 80: Ipmi

    AS -4023S-TRT User's Manual 6.4 IPMI This tab allows you to configure the following IPMI settings for the system. Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. BMC Firmware Revision This item indicates the IPMI firmware revision used in your system. IPMI Status (Baseboard Management Controller) This item indicates the status of the IPMI firmware installed in your system.
  • Page 81 Chapter 6: BIOS (EPYC 7001 Series) Erasing Settings Erase SEL Select Yes, On next reset to erase all system event logs upon next system reboot. Select Yes, On every reset to erase all system event logs upon each system reboot. Select No to keep all system event logs after each system reboot.
  • Page 82 AS -4023S-TRT User's Manual Station IP Address This item displays the Station IP address for this computer. This should be in decimal and in dotted quad form. Subnet Mask This item displays the sub-network that this computer belongs to. The value of each three- digit number separated by dots should not exceed 255.

  • Page 83: Event Logs

    Chapter 6: BIOS (EPYC 7001 Series) 6.5 Event Logs This tab allows the user to configure the following event logs settings for the system. Change SMBIOS Event Log Settings  This feature allows the user to configure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during...
  • Page 84 AS -4023S-TRT User's Manual When Log is Full Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full. Select Do Nothing for the system to do nothing when the SMBIOS event log is full. The options are Do Nothing and Erase Immediately. SMBIOS Event Log Standard Settings Log System Boot Event Select Enabled to log system boot events.

  • Page 85: Security

    Chapter 6: BIOS (EPYC 7001 Series) 6.6 Security This tab allows you to configure the following security settings for the system. Administrator Password Press Enter to create a new, or change an existing Administrator password. Note that if the Administrator Password is erased, the User Password will be cleared as well. User Password Press Enter to create a new, or change an existing User password.
  • Page 86 AS -4023S-TRT User's Manual Secure Boot This option allows you specify when the Platform Key (PK) is enrolled. When enabled, the System Mode is user deployed, and the CSM function is disabled. Options include Enabled and Disabled. Secure Boot Mode Use this item to select the secure boot mode.
  • Page 87 Chapter 6: BIOS (EPYC 7001 Series) Append Key Select Yes to add the KEK from the manufacturer's defaults list to the existing KEK. Select No to load the KEK from a file. The options are Yes and No.  Authorized Signatures Set New Key Select Yes to load the database from the manufacturer's defaults.

  • Page 88: Boot

    AS -4023S-TRT User's Manual 6.7 Boot Use this tab to configure Boot Settings: Boot Mode Select Use this item to select the type of device that the system is going to boot from. The options are LEGACY, UEFI, and DUAL. The default setting is DUAL. Legacy to EFI Support This option Enables or Disables the system to boot to an EFI OS after the boot failed from the legacy boot order.
  • Page 89 Chapter 6: BIOS (EPYC 7001 Series)  UEFI Application Boot Priorities This feature allows the user to specify which UEFI devices are boot devices. • UEFI Boot Order #1  Hard Disk Drive BBS Priorities This feature allows the user to specify which hard disk drive devices are boot devices.

  • Page 90: Save & Exit

    AS -4023S-TRT User's Manual 6.8 Save & Exit Select the Save & Exit tab to enter the Save & Exit BIOS Setup screen. Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration, and reboot the computer.

  • Page 91: Updating Bios With Ipmi

    Chapter 6: BIOS (EPYC 7001 Series) Default Options Restore Defaults To set this feature, select Restore Defaults from the Save & Exit menu and press <Enter>. These are factory settings designed for maximum system stability, but not for maximum performance. Save as User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <Enter>.
  • Page 92 AS -4023S-TRT User's Manual 5. Click the Upload BIOS button. The message, "Uploading image & checking BIOS information… Please wait. This may take a while." appears 6. Please make sure the following three checkboxes (as shown below) are unchecked and verify the BIOS date you uploaded.

  • Page 93: Chapter 7 Bios (Epyc 7002 Series)

    Chapter 7: BIOS (EPYC 7002 Series) Chapter 7 BIOS (EPYC 7002 Series) 7.1 Introduction This chapter describes the AMIBIOS™ Setup utility for the H11DSi-NT motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 94: Main Setup

    Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The date's default value is 01/01/2015 after RTC reset. Supermicro H11DSi-NT BIOS Version This item displays the version of the BIOS firmware used in the system.
  • Page 95 Chapter 7: BIOS (EPYC 7002 Series) Build Date This item displays the date when the version of the BIOS firmware used in the system was built. CPLD Version This item displays the version of the CPLD firmware used in the system. Memory Information Total Memory This item displays the total size of memory available in the system.

  • Page 96: Advanced

    AS -4023S-TRT User's Manual 7.3 Advanced Use the arrow keys to select a top item and press <Enter> to access the submenu items. Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable.
  • Page 97 Chapter 7: BIOS (EPYC 7002 Series) Bootup NumLock State Use this feature to set the Power on state for the <Numlock> key. The options are On and Off. Wait For "F1" If Error Use this feature to force the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled.
  • Page 98 AS -4023S-TRT User's Manual PSP Firmware Versions  This section displays the Platform Security Processor (PSP) firmware versions. PSP Directory Level 1 (Fixed) • PSP Recovery BL Ver • SMU FW Version • ABL Version PSP Directory Level 2 (Updateable) •...
  • Page 99 Chapter 7: BIOS (EPYC 7002 Series) Serial Port 1 Configuration  Serial Port Select The options are Disabled and Enabled. Device Settings This item displays the status of a serial part specified by the user. Change Settings This feature specifies the base I/O port address and the Interrupt Request address of a serial port specified by the user.
  • Page 100 AS -4023S-TRT User's Manual Bits per second Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines.
  • Page 101 Chapter 7: BIOS (EPYC 7002 Series) Console Redirection Select Enabled to enable SOL console redirection support for a serial port specified by the user. The options are Disabled and Enabled. *If the item above set to Enabled, the following items will become available for user's configuration: Console Redirection Settings Terminal Type...
  • Page 102 AS -4023S-TRT User's Manual is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS. VT-UTFB Combo Key Support Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled.
  • Page 103 Chapter 7: BIOS (EPYC 7002 Series) *If the item above set to Enabled, the following items will become available for user's configuration: Console Redirection Settings Out-of-Band Mgmt Port The feature selects a serial port in a client server to be used by the Microsoft Windows Emergency Management Services (EMS) to communicate with a remote host server.
  • Page 104 AS -4023S-TRT User's Manual Stop Bits A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2. CPU Configuration ...
  • Page 105 Chapter 7: BIOS (EPYC 7002 Series) • Processor Family • Processor Model • Microcode Patch Level • L1 Instruction Cache (Size/Method) • L1 Data Cache (Size/Method) • L2 Cache (Size/Method) • L3 Cache per Scoket (Size/Method) CPU2 Information  These sections are for informational purposes. They will display some details about the detected CPUs on the motherboard, such as: •...
  • Page 106 AS -4023S-TRT User's Manual IOMMU Use this setting to enable/disable IOMMU. Options include Disabled, Enabled, and Auto. ACS Enable Use this setting to enable/disable ACS. Options include Enabled, Disabled and Auto. Package Power Limit Control Use this setting for Package Power Limit Control. Options include Manual and Auto. APBDIS Use this setting to set APBDIS.
  • Page 107 Chapter 7: BIOS (EPYC 7002 Series) DRAM Scrub Time This setting provides a value that is the number of hours to scrub memory. The options are Disabled, 1 hour, 4 hours, 8 hours, 16 hours, 24 hours, 48 hours and Auto. CPU1 Memory Information These sections are for informational purposes.
  • Page 108 AS -4023S-TRT User's Manual VGA Priority Use this setting to select between onboard or offboard VGA support The options are Onboard and Offboard NVMe Firmware Source Use this setting to select between the AMI Native firmware support or the device vendor- defined firmware support.
  • Page 109 Chapter 7: BIOS (EPYC 7002 Series) Onboard LAN2 Option ROM Use this setting to select which firmware function is to be loaded for onboard LAN2 on the system. Options include Disabled, PXE and iSCSI. P2_NVMe0 OpROM Use this setting to select which firmware function is to be loaded for P2_NVMe0 OpROM on the system.
  • Page 110 AS -4023S-TRT User's Manual IPv4 PXE Support This setting allows you to enable or disable IPv4 PXE boot support. If disabled, IPv4 PXE boot support will not be available. The options are Disabled and Enabled. IPv4 HTTP Support This setting allows you to enable or disable IPv4 HTTP boot support. If disabled, IPv4 HTTP boot support will not be available.
  • Page 111 Chapter 7: BIOS (EPYC 7002 Series) Port 60/64 Emulation Select Enabled for I/O port 60h/64h emulation support, which in turn, will provide complete legacy USB keyboard support for the operating systems that do not support legacy USB devices. The options include Disabled and Enabled. SATA Configuration This section displays the detected SATA devices installed on the system.
  • Page 112 AS -4023S-TRT User's Manual iSCSI Configuration iSCSI Initiator Name This feature allows the user to enter the unique name of the iSCSI Initiator in IQN format. Once the name of the iSCSI Initiator is entered into the system, configure the proper settings for the following items.

  • Page 113: Ipmi

    Chapter 7: BIOS (EPYC 7002 Series) 7.4 IPMI This tab allows you to configure the following IPMI settings for the system. Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. BMC Firmware Revision This item indicates the IPMI firmware revision used in your system. IPMI Status (Baseboard Management Controller) This item indicates the status of the IPMI firmware installed in your system.
  • Page 114 AS -4023S-TRT User's Manual Erasing Settings Erase SEL Select Yes, On next reset to erase all system event logs upon next system reboot. Select Yes, On every reset to erase all system event logs upon each system reboot. Select No to keep all system event logs after each system reboot.
  • Page 115 Chapter 7: BIOS (EPYC 7002 Series) Station IP Address This item displays the Station IP address for this computer. This should be in decimal and in dotted quad form. Subnet Mask This item displays the sub-network that this computer belongs to. The value of each three- digit number separated by dots should not exceed 255.

  • Page 116: Event Logs

    AS -4023S-TRT User's Manual 7.5 Event Logs This tab allows the user to configure the following event logs settings for the system. Change SMBIOS Event Log Settings This feature allows the user to configure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.
  • Page 117 Chapter 7: BIOS (EPYC 7002 Series) When Log is Full Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full. Select Do Nothing for the system to do nothing when the SMBIOS event log is full.

  • Page 118: Security

    AS -4023S-TRT User's Manual 7.6 Security This tab allows you to configure the following security settings for the system. Administrator Password Press Enter to create a new, or change an existing Administrator password. Note that if the Administrator Password is erased, the User Password will be cleared as well. User Password Press Enter to create a new, or change an existing User password.
  • Page 119 Chapter 7: BIOS (EPYC 7002 Series) Secure Boot This option allows you specify when the Platform Key (PK) is enrolled. When enabled, the System Mode is user deployed, and the CSM function is disabled. Options include Disabled and Enabled . Secure Boot Mode Use this item to select the secure boot mode.
  • Page 120 AS -4023S-TRT User's Manual Append Select Yes to add the KEK from the manufacturer's defaults list to the existing KEK. Select No to load the KEK from a file. The options are Yes and No. Authorized Signatures Update Select Yes to load the database from the manufacturer's defaults. Select No to load the DB from a file.

  • Page 121: Boot

    Chapter 7: BIOS (EPYC 7002 Series) 7.7 Boot Use this tab to configure Boot Settings: Boot Mode Select Use this item to select the type of device that the system is going to boot from. The options are Legacy, UEFI, and Dual. The default setting is Dual. Legacy to EFI Support This option enables or disables the system to boot to an EFI OS after the boot failed from the legacy boot order.
  • Page 122 AS -4023S-TRT User's Manual UEFI Application Boot Priorities This feature allows the user to specify which UEFI devices are boot devices. • Boot Option #1 Hard Disk Drive BBS Priorities This feature allows the user to specify which hard disk drive devices are boot devices. NETWORK Drive BBS Priorities This feature allows the user to specify which network drive devices are boot devices.

  • Page 123: Save & Exit

    Chapter 7: BIOS (EPYC 7002 Series) 7.8 Save & Exit Select the Save & Exit tab to enter the Save & Exit BIOS Setup screen. Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration, and reboot the computer.

  • Page 124: Updating Bios With Ipmi

    AS -4023S-TRT User's Manual Default Options Restore Optimized Defaults To set this feature, select Restore Defaults from the Save & Exit menu and press <Enter>. These are factory settings designed for maximum system stability, but not for maximum performance. Save as User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <Enter>.
  • Page 125 Chapter 7: BIOS (EPYC 7002 Series) 5. Click the Upload BIOS button. The message, "Uploading image & checking BIOS information… Please wait. This may take a while." appears 6. Please make sure the following three checkboxes (as shown below) are unchecked and verify the BIOS date you uploaded.

  • Page 126: Appendix A Standardized Warning Statements For Ac Systems

    Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our website at http://www.supermicro.com/about/...
  • Page 127 Appendix A: Standardized Warning Statements Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.
  • Page 128 A+ Server AS -4023S-TRT User's Manual . ٌ ‫ا ك ً ف حالة و ٌ يك أى تتسبب ف اصابة جسذ ة ٌ هذا الزهز ع ٌ خطز !تحذ ز‬ ‫قبل أى تعول عىل أي هعذات،يك عىل علن بالوخاطز ال ا ٌجوة عي الذوائز‬ ٍ...
  • Page 129 Appendix A: Standardized Warning Statements Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación. Attention Avant de brancher le système sur la source d'alimentation, consulter les directives d'installation. .‫יש...
  • Page 130 A+ Server AS -4023S-TRT User's Manual Warnung Dieses Produkt ist darauf angewiesen, dass im Gebäude ein Kurzschluss- bzw. Überstromschutz installiert ist. Stellen Sie sicher, dass der Nennwert der Schutzvorrichtung nicht mehr als: 250 V, 20 A beträgt. ¡Advertencia! Este equipo utiliza el sistema de protección contra cortocircuitos (o sobrecorrientes) del edificio.
  • Page 131 Appendix A: Standardized Warning Statements Power Disconnection Warning Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components. 電源切断の警告...
  • Page 132 A+ Server AS -4023S-TRT User's Manual ‫يجب فصم اننظاو من جميع مصادر انطاقت وإ ز انت سهك انكهرباء من وحدة امداد‬ ‫انطاقت قبم‬ ‫انىصىل إىن امنناطق انداخهيت نههيكم نتثبيج أو إ ز انت مكىناث الجهاز‬ 경고! 시스템에 부품들을 장착하거나 제거하기 위해서는 섀시 내부에 접근하기 전에 반드시 전원 공급장치로부터...
  • Page 133 Appendix A: Standardized Warning Statements Attention Il est vivement recommandé de confier l'installation, le remplacement et la maintenance de ces équipements à des personnels qualifiés et expérimentés. !‫אזהרה‬ .‫צוות מוסמך בלבד רשאי להתקין, להחליף את הציוד או לתת שירות עבור הציוד‬ ‫واملدربيه...
  • Page 134 A+ Server AS -4023S-TRT User's Manual Warnung Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen. Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich. ¡Advertencia! Esta unidad ha sido diseñada para instalación en áreas de acceso restringido. Sólo puede obtenerse acceso a una de estas áreas mediante la utilización de una herramienta especial, cerradura con llave u otro medio de seguridad.
  • Page 135 Appendix A: Standardized Warning Statements Battery Handling Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions 電池の取り扱い...
  • Page 136 A+ Server AS -4023S-TRT User's Manual ‫هناك خطر من انفجار يف حالة اسحبذال البطارية بطريقة غري صحيحة فعليل‬ ‫اسحبذال البطارية‬ ‫فقط بنفس النىع أو ما يعادلها مام أوصث به الرشمة املصنعة‬ ‫جخلص من البطاريات املسحعملة وفقا لحعليامت الرشمة الصانعة‬ 경고! 배터리가...
  • Page 137 Appendix A: Standardized Warning Statements ¡Advertencia! Puede que esta unidad tenga más de una conexión para fuentes de alimentación. Para cortar por completo el suministro de energía, deben desconectarse todas las conexiones. Attention Cette unité peut avoir plus d'une connexion d'alimentation. Pour supprimer toute tension et tout courant électrique de l'unité, toutes les connexions d'alimentation doivent être débranchées.
  • Page 138 A+ Server AS -4023S-TRT User's Manual Backplane Voltage Warning! Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. バックプレーンの電圧 システムの稼働中は危険な電圧または電力が、 バックプレーン上にかかっています。 修理する際には注意ください。 警告 当系统正在进行时，背板上有很危险的电压或能量，进行维修时务必小心。 警告 當系統正在進行時，背板上有危險的電壓或能量，進行維修時務必小心。 Warnung Wenn das System in Betrieb ist, treten auf der Rückwandplatine gefährliche Spannungen oder Energien auf.
  • Page 139 Appendix A: Standardized Warning Statements ‫هناك خطز مه التيار الكهزبايئ أوالطاقة املىجىدة عىل اللىحة‬ ‫عندما يكىن النظام يعمل كه حذ ر ا عند خدمة هذا الجهاس‬ 경고! 시스템이 동작 중일 때 후면판 (Backplane)에는 위험한 전압이나 에너지가 발생 합니다. 서비스 작업 시 주의하십시오. Waarschuwing Een gevaarlijke spanning of energie is aanwezig op de backplane wanneer het systeem in gebruik is.
  • Page 140 A+ Server AS -4023S-TRT User's Manual ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ .‫התקנת הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫تركيب املعدات الكهربائية يجب أن ميتثل للقىاويه املحلية والىطىية املتعلقة‬ ‫بالكهرباء‬ 경고! 현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다. Waarschuwing Bij installatie van de apparatuur moet worden voldaan aan de lokale en nationale elektriciteitsvoorschriften.
  • Page 141 Appendix A: Standardized Warning Statements Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent. ‫סילוק המוצר‬ !‫אזהרה‬ .‫סילוק סופי של מוצר זה חייב להיות בהתאם להנחיות וחוקי המדינה‬ ‫التخلص...
  • Page 142 A+ Server AS -4023S-TRT User's Manual Warnung Gefährlich Bewegende Teile. Von den bewegenden Lüfterblätter fern halten. Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt.
  • Page 143 Verbindungskabeln, Stromkabeln und/oder Adapater, die Ihre örtlichen Sicherheitsstandards einhalten. Der Gebrauch von anderen Kabeln und Adapter können Fehlfunktionen oder Feuer verursachen. Die Richtlinien untersagen das Nutzen von UL oder CAS zertifizierten Kabeln (mit UL/CSA gekennzeichnet), an Geräten oder Produkten die nicht mit Supermicro gekennzeichnet sind.
  • Page 144 ‫.قيرح وأ لطع يف ببستي دق ىرخأ تالوحمو تالباك يأ مادختسا .ميلسلا سباقلاو لصوملا مجح‬ ‫ لبق نم ةدمتعملا تالباكلا مادختسا تادعملاو ةيئابرهكلا ةزهجألل ةمالسلا نوناق رظحي‬UL ‫ وأ‬CSA ‫( ةمالع لمحت يتلاو‬UL/CSA) ‫ لبق نم ةددحملاو ةينعملا تاجتنملا ريغ ىرخأ تادعم يأ عم‬Supermicro.
  • Page 145 사항을 준수하여 제공되거나 지정된 연결 혹은 구매 케이블, 전원 케이블 및 AC 어댑터를 사용하십시오. 다른 케이블이나 어댑터를 사용하면 오작동이나 화재가 발생할 수 있습니다. 전기 용품 안전법은 UL 또는 CSA 인증 케이블 (코드에 UL / CSA가 표시된 케이블)을 Supermicro 가 지정한 제품 이외의 전기 장치에 사용하는 것을 금지합니다. Stroomkabel en AC-Adapter...

  • Page 146: Appendix B System Specifications

    A+ Server AS -4023S-TRT User's Manual Appendix B System Specifications Processors Dual EPYC 7001/7002 series processors in a Socket SP3 type socket Notes: AMD EPYC 7002 series processor drop-in support requires board revision 2.x. Please refer to the motherboard specifications pages on our website for updates to supported processors. Chipset AMD SoC (System on Chip) chipset BIOS...
  • Page 147 Appendix B: System Specifications Regulatory Compliance Electromagnetic Emissions: FCC Class A, EN 55032 Class A, EN 61000-3-2/3-3, CISPR 32 Class A Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11), CNS14336-1, CNS13438, GB4943.1-2011, GB9254-2008(Class A) and GB17625.1-2012 Safety: CSA/EN/IEC/UL 60950-1 Compliant, UL or CSA Listed (USA and Canada), CE Marking (Europe) Other: VCCI-CISPR 32 and AS/NZS CISPR 32 Environmental: Directive 2011/65/EU and Delegated Directive (EU) 2015/863 and Directive 2012/19/EU...

  • Page 148: Appendix C Uefi Bios Recovery

    Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update.
  • Page 149 USB flash drive with FAT16 or FAT32 format and rename the file to SUPER.ROM. Note: If you cannot locate the "SUPER.ROM" file in your driver disk, visit our website at www.supermicro.com to download the correct BIOS image into a USB flash device and rename it "SUPER.ROM".
  • Page 150 SUPERMICO BIOS Update: https://www.youtube.com/watch?v=S8z6iOEHGwY * If the BIOS flash recovery fails, contact our RMA Department to have the BIOS chip reprogrammed. This will require shipping the board to Supermicro for repair. Submit your RMA request at https://www.supermicro.com/support/rma Please make sure to follow all instructions when returning the motherboard.
