Summary of Contents for CYP COH-TR6

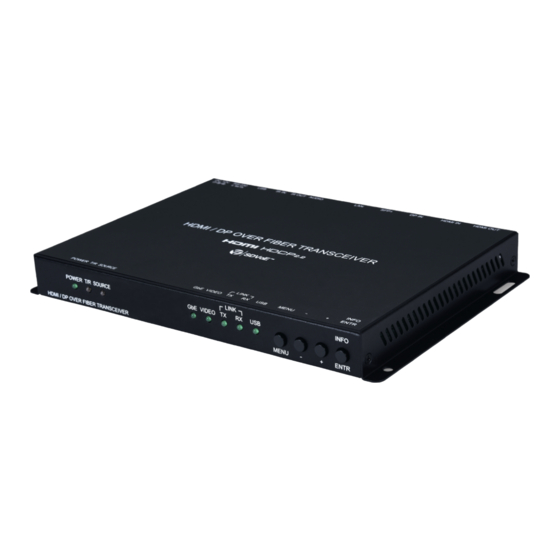

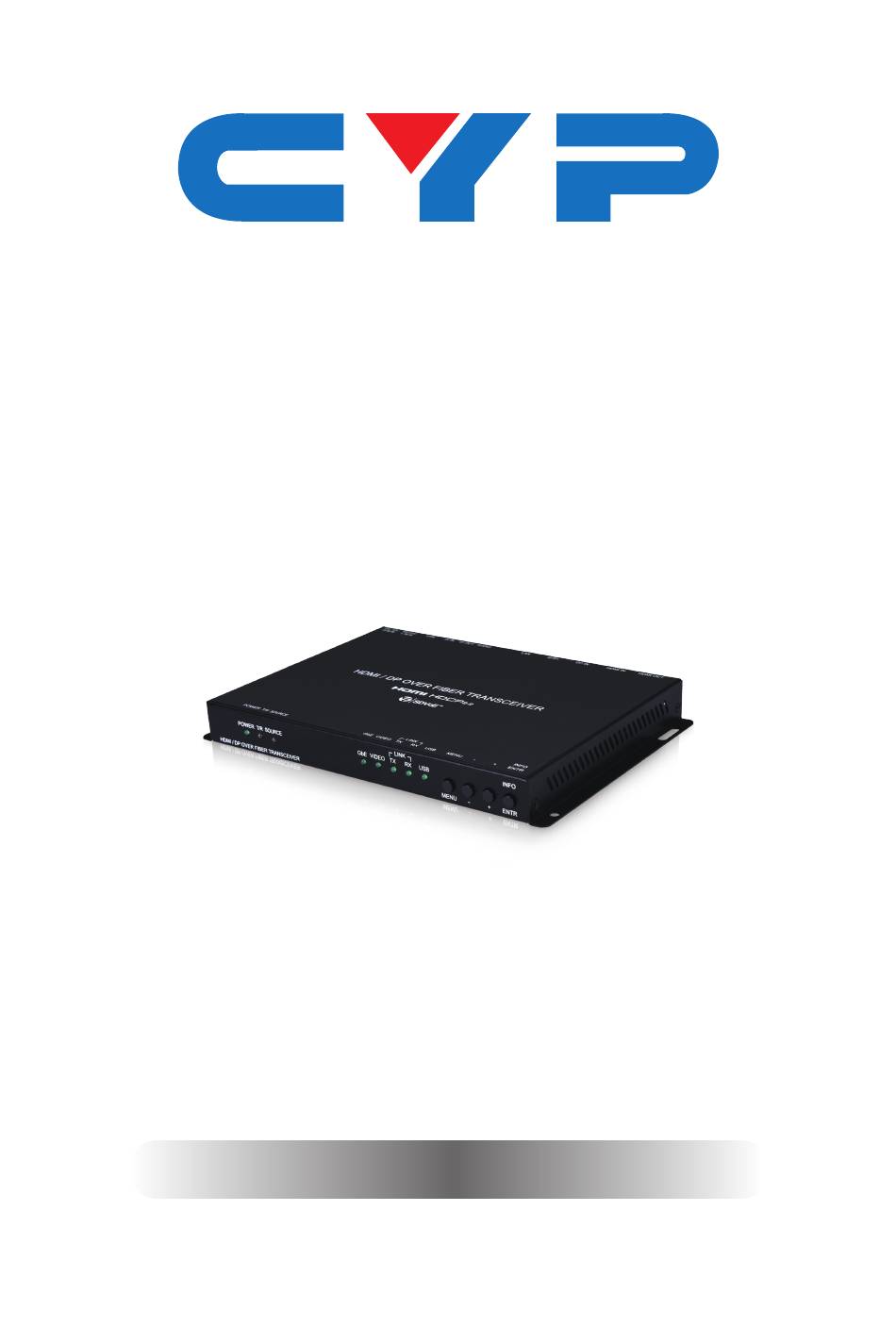

- Page 1 COH-TR6 4K UHD HDMI/DP over Fiber (10GbE) Transceiver Operation Manual Operation Manual...
- Page 2 ® registered trademarks of HDMI licensing Administrator, Inc.
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........2 4. System Requirements ........2 5. Features ............3 6. Operation Controls and Functions ....4 6.1 Front Panel ..........4 6.2 Rear Panel ..........5 6.3 IR Cable Pinouts ........7 6.4 RS-232 Bypass Pinout ......... -
Page 6: Introduction
1. INTRODUCTION This Transceiver is designed for high-quality, IP routable, AV extension with minimum latency. Every Transceiver can be configured to function as either a Transmitter or a Receiver, enhancing the flexibility of any installation. By using a sophisticated ultra-light compression scheme (lossless for most content) it’s a great solution for extending 4K audio/video streams (HDMI or DisplayPort) and data. -
Page 7: Package Contents
3. PACKAGE CONTENTS • 1×HDMI/DP over Fiber (10GbE) Transceiver • 1×12V/3A DC Power Adapter • 1×Power Cord • 1×3-pin Terminal Block to DE-9 (Male) Adapter Cable • 1×3-pin Terminal Block to DE-9 (Female) Adapter Cable • 1×USB Mini-B to Type-A Adapter Cable •... -
Page 8: Features
5. FEATURES • HDMI 2.0 and DVI 1.0 compatible • HDCP 2.2 and HDCP 1.x compliant • Can be configured to function as either a Transmitter or a Receiver • 1 HDMI and 1 DisplayPort input • 1 HDMI output (Functions as local monitor output in Transmitter mode) •... -
Page 9: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel LINK INFO POWER T/R SOURCE GbE VIDEO TX MENU ENTER HDMI / DP OVER FIBER TRANSCEIVER 1 2 3 POWER LED: This LED will illuminate to indicate the unit is on and receiving power. -
Page 10: Rear Panel
ENTER/INFO BUTTON: When inside an OSD menu, press to confirm a selection within the OSD or to go deeper into a menu item. When not in a menu, press to activate the Information OSD. 6.2 Rear Panel TX RX DC 12V HDMI OUT HDMI IN DP IN... - Page 11 IR IN PORT: Connect to an IR Extender to extend the IR control range of remotely located devices. Ensure that the remote being used is within direct line-of-sight of the IR Extender. USB PORT: Transmitter Mode: Connect directly to a PC or other USB host device to extend the USB functionality to the connected Receiver.
-
Page 12: Ir Cable Pinouts
6.3 IR Cable Pinouts IR Blaster IR Extender Cable Cable Power Infrared Infrared Power Not Used Ground 6.4 RS-232 Bypass Pinout 3-pin Terminal Block Serial Port Default Settings Baud Rate 57600 Data Bits Parity Bits None Stop Bits Flow Control None Note: The default Serial Port baud rate can only be changed by use of the optional control center or control software. -
Page 13: Osd Menu
6.5 OSD Menu Many functions of this unit can be controlled by using the OSD (On Screen Display) which is activated by pressing the Menu button on the front of the unit. Use the + (PLUS), − (MINUS), and ENTER buttons to navigate the OSD menu. - Page 14 EDID 2ND LEVEL 3RD LEVEL INTERNAL 1 HDMI EDID Internal 2 Internal 3 Internal 4 Internal 5 Internal 6 External A External B (Transmitter Mode only) User 1 User 2 INTERNAL 1 DP EDID Internal 2 Internal 3 Internal 4 DP EDID Internal 5 Internal 6...
- Page 15 Internal 1 1920×1080p@60Hz (148MHz), 8-bit LPCM 2.0 color Internal 2 1920×1080p@60Hz (148MHz), 8-bit LPCM 7.1 & color Bitstream Internal 3 3840×2160p@30Hz (297MHz), LPCM 2.0 Deep Color (8/10/12-bit) Internal 4 3840×2160p@30Hz (297MHz), LPCM 7.1 & Deep Color (8/10/12-bit) Bitstream Internal 5 3840×2160p@60Hz (594MHz), LPCM 2.0 Deep Color (8/10/12-bit)
- Page 16 ■ Follow Out: The input supports up to the HDCP version supported by the connected display. ■ Disable: HDCP support is completely disabled. ■ Follow API: Uses the HDCP setting defined by the IP Master Controller or control software. Note: Follow API is not valid in a Point-to-Point configuration. DEVICE SETTING 2ND LEVEL 3RD LEVEL...
- Page 17 INFORMATION 2ND LEVEL 3RD LEVEL Resolution Status FW Version [Show the current status of each item] LAN MAC USB MAC Fan Status 1) Information: Shows details of the unit’s current status including detected input resolution, transceiver mode, firmware version, IP address, LAN MAC address, USB MAC address, serial number and fan state.
-
Page 18: Basic Av Extension
6.6 Basic AV Extension • Point-to-Point Configuration and Operation The most basic extension configuration available is a point-to-point system with a single unit in Transmitter Mode connected directly to a single unit in Receiver Mode. In this configuration the HDMI input on the Transmitter is transmitted to the connected Receiver without modification to the audio or video format. -
Page 19: Advanced Av Extension
6.7 Advanced AV Extension • Configuration & Control When combined with the optional control center or control software, and a 10 gigabit fiber Ethernet switch, this extension system gains a large number of additional configuration options including: multi- in/multi-out matrix switching with breakaway audio, video wall creation, and multi-view composite output. - Page 20 - Video Wall Configuration 10GbE Fiber Network Switch - Multi-View (PiP or Quad) Configuration 10GbE Fiber Network Switch Note: The control center hardware/control software are optional components and are not included with the base unit. Please contact your authorized dealer for more information.
- Page 21 • Control Software The control software is a fully software based solution for controlling multiple Transmitters and Receivers, in a variety of configurations, providing full and detailed control over the functionality of each individual unit. This software requires installation on a Windows 7 (SP1 or later), Windows 8, or Windows 10 PC/Laptop.
- Page 22 • Control Center Hardware The Control Center is a hardware solution designed to provide a unified and easy method to access and control all of the Transmitters and Receivers in a system. It provides a user-friendly, and operating system agnostic, web-based interface allowing easy control over all of the most critical functions within a distribution system.
-
Page 23: Connection Diagram
7. CONNECTION DIAGRAM Local Monitor Media Player HDMI Stereo DisplayPort Input Input Input 1.5m HDMI 60° Bypassed Router Output 60° IR In & Out Power Supply TX RX DC 12V HDMI OUT HDMI IN DP IN SFP+ AUDIO IR OUT IR IN RS-232 Fiber... -
Page 24: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 600MHz/18Gbps Input Ports 1×HDMI 1×DisplayPort Output Port 1×HDMI Bidirectional Port 1×10GbE LAN (SFP+) Pass-through Ports 1×Analog Stereo (3.5mm) 1×IR Blaster (3.5mm) 1×IR Extender (3.5mm) 1×RS-232 (3-pin Terminal Block) 1×USB (Mini-B) Pass-through/Control Port 1×LAN (RJ-45) IR Frequency 30 –... -
Page 25: Video Specifications
8.2 Video Specifications Input Output 10GbE Supported Resolutions (Hz) HDMI HDMI Fiber 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 ... - Page 26 Input Output 10GbE Supported Resolutions (Hz) HDMI HDMI Fiber 1920×1200p@60RB 2560×1440p@60RB 2560×1600p@60RB 2048×1080p@24/25/30 2048×1080p@50/60 3840×2160p@24/25/30 3840×2160p@50/60 (4:2:0) ...
-
Page 27: Audio Specifications
8.3 Audio Specifications HDMI Input/Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48 Bitstream Supported Formats Standard & High-Definition Analog Input Max Audio Level 1Vrms Impedance 10kΩ Type Unbalanced Analog Output Max Audio Level 1Vrms THD+N < −80dB@0dBFS 1kHz (A-wt) >... -
Page 28: Cable Specifications
8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output DisplayPort Cable DisplayPort Input Fiber Cable Multi-mode Fiber (OM3) 300m Multi-mode Fiber (OM4) 550m Single-mode Fiber 30km... -
Page 29: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM 10GbE 10 Gigabit Ethernet ASCII American Standard Code for Information Interchange DHCP Dynamic Host Configuration Protocol DisplayPort Digital Visual Interface EDID Extended Display Identification Data Gigabit Ethernet High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range HDTV High-Definition Television... - Page 32 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
