AVX-501C-TR AVX over Cat. - UHD+ 2x1 HDMI/DP to HDMI Bi- directional Transceiver W/HID USB OPERATION MANUAL...
Page 3
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
Page 4
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
1. INTRODUCTION This Transceiver is designed for high-quality, IP routable, AV extension with minimum latency. Every Transceiver is capable of simultaneous bi- directional AV extension, enhancing the flexibility of any installation. By using a sophisticated ultra-light compression scheme (lossless for most content) it’s a great solution for extending 4K audio/video streams (HDMI or DisplayPort) and data.
4. SYSTEM REQUIREMENTS HDMI or DisplayPort source equipment such as a media player, video game console, PC, or set-top box HDMI receiving equipment such as an HDTV, monitor, or audio amplifier Analogue audio receiving equipment such as headphones, an audio amplifier, or powered speakers The use of Premium High Speed HDMI cables, and industry standard Cat.6A, or Cat.7 Ethernet cable is required.

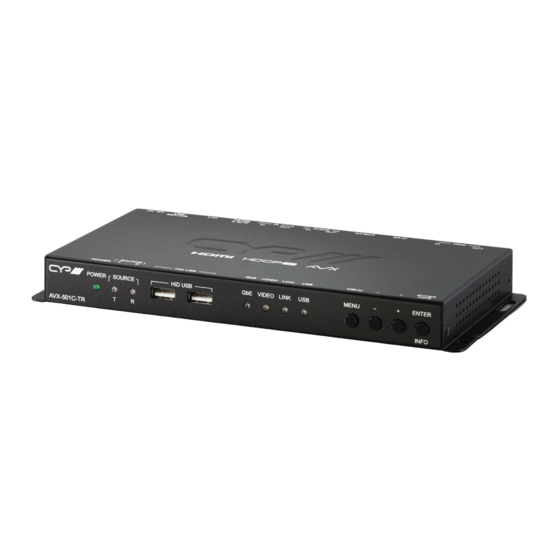

HID USB VIDEO LINK LINK MENU ENTER AVX-501C-TR INFO 1 2 3 POWER LED: This LED will illuminate to indicate the unit is on and receiving power. SOURCE T LED: The illumination of this LED indicates which AV input is currently selected to be the source transmitted as an AV over IP stream.
MENU Button: Press to enter the OSD menu, or to back out from menu items. Note: The OSD menu will be visible on the HDMI output of both connected transceivers so it is recommended to adjust the OSD position on one unit to avoid the menus overlapping.
Page 10
AUDIO PORTS: OUT Port: Connect to powered speakers or an amplifier for stereo analogue audio output. IN Port: Connect to the stereo analogue output of a device such as a CD player or PC. Note: Audio is routed directly from the IN Port to the opposite transceiver’s OUT Port.
6.3 IR Cable Pinouts IR Blaster IR Extender Cable Cable Power Infrared Infrared Power Not Used Ground 6.4 RS-232 Pinout and Defaults Serial Port Default Settings Baud Rate 57600 Data Bits Parity Bits None Stop Bits Flow Control None 3-pin Terminal Block Note: The default Serial Port baud rate can only be changed by use of the optional IP Master Controller or control software.
6.5 OSD Menu All functions of this unit can be controlled by using the OSD (On Screen Display) which is activated by pressing the MENU button on the front of the unit. Use the + (PLUS), − (MINUS), and ENTER buttons to navigate the OSD menu.
Page 13
2ND LEVEL 3RD LEVEL Display Information Information Timeout 10~40 Sec (10 Sec) Menu Timeout 10~40 Sec (10 Sec) 0~100 (10) Menu H Position 0~100 (10) Menu V Position 1) Display Information: Enable or disable the Information OSD. 2) Information Timeout: Set the display timeout for the Information OSD.
Page 15
This unit provides the following 6 default EDIDs: Unit’s default EDIDs FHD 2CH 1920×1080p@60Hz (4.95Gbps), 8-bit colour, LPCM 2.0 FHD MCH 1920×1080p@60Hz (4.95Gbps), 8-bit colour, LPCM 7.1 & Bitstream UHD 2CH 3840×2160p@30Hz (10.2Gbps), 12-bit Deep Colour, LPCM 2.0 UHD MCH 3840×2160p@30Hz (10.2Gbps), 12-bit Deep Colour, LPCM 7.1 &...
Page 16
HDCP 2ND LEVEL 3RD LEVEL HDMI HDCP Disable Follow out Follow in FOLLOW API DP HDCP Disable Follow out Follow in FOLLOW API VOIP HDCP FOLLOW IN 1) HDMI HDCP: Selects the HDCP logic to use with the HDMI input. Follow In: The input supports up to the HDCP version required ...
Page 17
DEVICE SETTING 2ND LEVEL 3RD LEVEL TRANSCEIVER Status HOST USB Control Mode Device INPUT 1 (HDMI) HDMI Out Source Input 2 (DP) Input 3 (VOIP) INPUT 1 (HDMI) VOIP Out Source Input 2 (DP) Input 3 (VOIP) HDMI Out Auto Mode AUTO SWITCH VOIP Out Auto Mode AUTO SWITCH...
Page 18
source selection mode. When enabled, the unit will automatically switch the input routed to the local HDMI output whenever a new source is detected or if the current source is lost. 6) VOIP Out Auto Mode: Enable or disable the AVoIP streaming output’s automatic source selection mode.
6.6 Basic AV Extension 6.6.1 Point-to-Point (One Way) The most basic extension configuration available is a point-to- point system with a single transceiver unit acting as a transmitter connected directly to a single transceiver unit acting as a receiver. In this configuration the HDMI/DP input on the transmitter side is transmitted to the connected receiver side without modification to the audio or video format.
7. CONNECTION DIAGRAM Media Player Stereo HDMI Input Input 1.5m 60° IR Input & Output Input 60° RS-232 HDMI Router Output Local Monitor Power Supply HDMI AUDIO TX RX DC 12V DP IN CAT6A/7 RS-232 USB/SERVICE Cat6A Cable POWER SOURCE HID USB VIDEO LINK...
Page 28
ACRONYM COMPLETE TERM Kilohertz Keyboard/Video/Mouse Local Area Network Light-Emitting Diode LPCM Linear Pulse-Code Modulation Media Access Control Megahertz On-Screen Display Picture in Picture Power over Ethernet Picture outside of Picture SDVoE Software Defined Video over Ethernet Signal-to-Noise Ratio Transmission Control Protocol THD+N Total Harmonic Distortion plus Noise TMDS...
