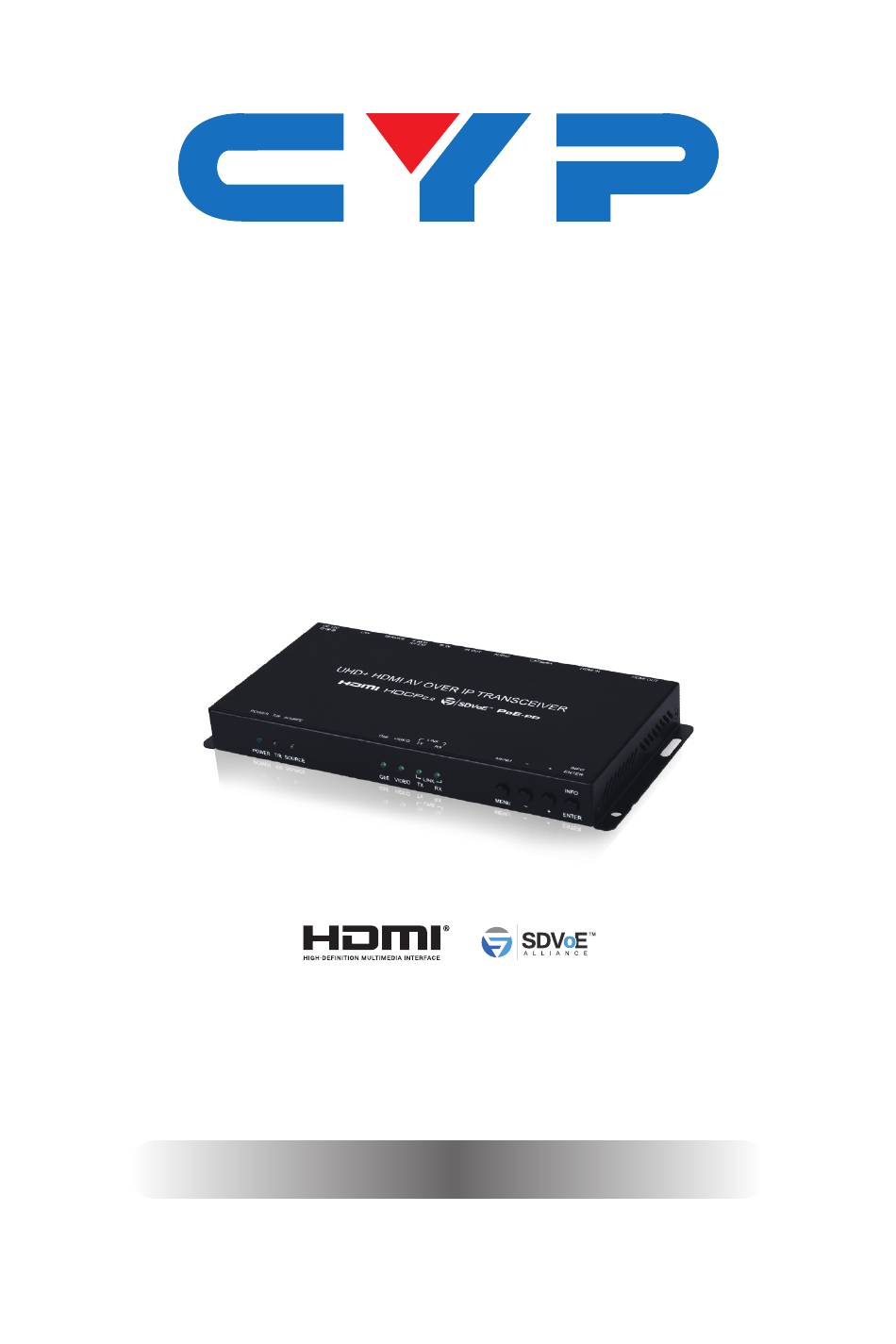

- Page 1 CH-V501TR 4K UHD+ HDMI over IP (10GbE) Transceiver Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications .............2 3. Package Contents ..........2 4. System Requirements ........2 5. Features ............3 6. Operation Controls and Functions ....4 6.1 Front Panel ..........4 6.2 Rear Panel ..........5 6.3 IR Cable Pinouts ........7 6.4 RS-232 Bypass Pinout ......... -
Page 6: Introduction
1. INTRODUCTION This Transceiver is designed for high-quality, IP routable, AV extension with minimum latency. Every Transceiver can be configured to function as either a Transmitter or a Receiver, enhancing the flexibility of any installation. By using a sophisticated ultra-light compression scheme (lossless for most content) it’s a great solution for extending 4K HDMI audio/video streams and data. -
Page 7: Applications
2. APPLICATIONS • Video, Audio, LAN, IR and RS-232 over Ethernet extension • Hotel or convention center display • Multi-monitor broadcast • Long distance data and video transmission immune to RF interference • Distributed video matrix system • Distributed video wall system 3. -
Page 8: Features
5. FEATURES • HDMI 2.0 and DVI 1.0 compatible • HDCP 2.2 and HDCP 1.x compliant • Can be configured to function as either a Transmitter or a Receiver • 1 HDMI input • 1 HDMI output (Functions as local monitor output in Transmitter Mode) •... -
Page 9: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel INFO LINK – POWER T/R SOURCE GbE VIDEO MENU ENTER 1 2 3 POWER LED: This LED will illuminate to indicate the unit is on and receiving power. T/R LED: This LED indicates if the unit is in Transmitter (Green LED) or Receiver (Amber LED) mode. -
Page 10: Rear Panel
6.2 Rear Panel TX RX AUDIO IR OUT IR IN DC 12V HDMI OUT HDMI IN CAT5e/6A RS-232 SERVICE HDMI OUT PORT: Connect to an HDMI TV, monitor or amplifier for digital video and audio output. HDMI IN PORT: Connect to HDMI source equipment such as a media player, game console or set-top box. - Page 11 local network as appropriate to extend the network between the Transmitter and Receiver. DC 12V PORT: Plug the 12V DC power adapter into this port and connect it to an AC wall outlet for power (Optional, not required if the unit is powered via PoE).
-
Page 12: Ir Cable Pinouts
6.3 IR Cable Pinouts IR Blaster IR Extender Cable Cable Power Infrared Infrared Power Not Used Ground 6.4 RS-232 Bypass Pinout 3-pin Terminal Block Serial Port Default Settings Baud Rate 57600 Data Bits Parity Bits None Stop Bits Flow Control None Note: The default Serial Port baud rate can only be changed by use of the optional control center or control software. -
Page 13: Osd Menu
6.5 OSD Menu Many functions of this unit can be controlled by using the OSD (On Screen Display) which is activated by pressing the Menu button on the front of the unit. Use the + (PLUS), − (MINUS), and ENTER buttons to navigate the OSD menu. - Page 14 EDID 2ND LEVEL 3RD LEVEL INTERNAL 1 EDID Select Internal 2 Internal 3 Internal 4 Internal 5 Internal 6 External A External B (Transmitter Mode only) User 1 User 2 1) EDID Select: Select the EDID to send to the HDMI input. This unit provides the following 6 Internal EDIDs: Internal 1 1920×1080p@60Hz (148MHz), 8-bit...
- Page 15 HDCP 2ND LEVEL 3RD LEVEL HDMI HDCP Follow In FOLLOW OUT Disable 1) HDMI HDCP: Set the HDCP behavior of the HDMI input. ■ Follow In: The input supports up to the HDCP version required by the connected source. ■ Follow Out: The input supports up to the HDCP version supported by the connected display.
- Page 16 the HDMI input. When enabled, the unit will automatically switch to the HDMI input if a live signal is present. Note: Only available when the unit is in Receiver Mode. INFORMATION 2ND LEVEL 3RD LEVEL Resolution Status FW Version [Show the current status of each item] Fan Status 1) Information: Shows details of the unit’s current status including...
-
Page 17: Basic Av Extension
6.6 Basic AV Extension • Point-to-Point Configuration and Operation The most basic extension configuration available is a point-to-point system with a single unit in Transmitter Mode connected directly to a single unit in Receiver Mode. In this configuration the HDMI input on the Transmitter is transmitted to the connected Receiver without modification to the audio or video format. -
Page 18: Advanced Av Extension
6.7 Advanced AV Extension • Configuration & Control When combined with the optional control center or control software, and a 10 gigabit Ethernet switch, this extension system gains a large number of additional configuration options including: multi-in/multi-out matrix switching with breakaway audio, video wall creation, and multi- view composite output. - Page 19 - Video Wall Configuration 10GbE Network Switch - Multi-View (PiP or Quad) Configuration 10GbE Network Switch Note: The control center hardware/control software are optional components and are not included with the base unit. Please contact your authorized dealer for more information.
- Page 20 • Control Software The control software is a fully software based solution for controlling multiple Transmitters and Receivers, in a variety of configurations, providing full and detailed control over the functionality of each individual unit. This software requires installation on a Windows 7 (SP1 or later), Windows 8, or Windows 10 PC/Laptop.
- Page 21 • Control Center Hardware The Control Center is a hardware solution designed to provide a unified and easy method to access and control all of the Transmitters and Receivers in a system. It provides a user-friendly, and operating system agnostic, web-based interface allowing easy control over all of the most critical functions within a distribution system.
-
Page 22: Connection Diagram
7. CONNECTION DIAGRAM Local Monitor Media Player HDMI Stereo Input Input 1.5m HDMI 60° Bypassed Router Output 60° IR In & Out Power Supply TX RX AUDIO IR OUT IR IN DC 12V HDMI OUT HDMI IN CAT5e/6A RS-232 SERVICE Cat.6A Cable Power... -
Page 23: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 600MHz/18Gbps Input Port 1×HDMI Output Port 1×HDMI Bidirectional Port 1×10GbE LAN (RJ-45) Pass-through Ports 1×Analog Stereo (3.5mm) 1×IR Blaster (3.5mm) 1×IR Extender (3.5mm) 1×RS-232 (3-pin Terminal Block) Control/Pass-through Port 1×LAN (RJ-45) IR Frequency 30 –... -
Page 24: Video Specifications
8.2 Video Specifications Input Output 10GbE Supported Resolutions (Hz) HDMI HDMI Cat.6a 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 800×600p@56/60/72/75/85 848×480p@60 ... -
Page 25: Audio Specifications
Input Output 10GbE Supported Resolutions (Hz) HDMI HDMI Cat.6a 1920×1200p@60RB 2560×1440p@60RB 2560×1600p@60RB 2048×1080p@24/25/30 2048×1080p@50/60 3840×2160p@24/25/30 3840×2160p@50/60 (4:2:0) 3840×2160p@24/25/30, HDR10 ... -
Page 26: Cable Specifications
Analog Input Max Audio Level 1Vrms Impedance 10kΩ Type Unbalanced Analog Output Max Audio Level 1Vrms THD+N < −80dB@0dBFS 1kHz (A-wt) > 80dB@0dBFS Frequency Response < ±1dB@20Hz~20kHz Crosstalk < −80dB@10kHz Impedance 470Ω Type Unbalanced 8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length... -
Page 27: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM 10GbE 10 Gigabit Ethernet ASCII American Standard Code for Information Interchange Cat.5e Enhanced Category 5 cable Cat.6A Augmented Category 6 cable Cat.7 Category 7 cable DHCP Dynamic Host Configuration Protocol Digital Visual Interface EDID Extended Display Identification Data Gigabit Ethernet High-Definition HDCP... - Page 28 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
