  • Page 1 CH-V502TR 4K UHD+ HDMI over IP Transceiver with USB Extension Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ............1 2. Applications .............2 3. Package Contents ..........2 4. System Requirements ........2 5. Features ............3 6. Operation Controls and Functions ....4 6.1 Front Panel ..........4 6.2 Rear Panel ..........5 6.3 IR Cable Pinouts ........7 6.4 RS-232 Bypass Pinout .........
  • Page 6: Introduction

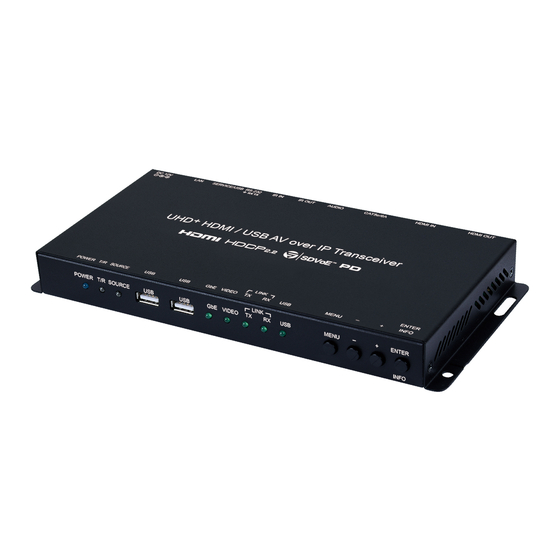

    1. INTRODUCTION This HDMI over IP Transceiver with USB Extension is designed for high- quality, IP routable, AV extension with minimum latency. Every transceiver can be configured to function as either a transmitter or a receiver, enhancing the flexibility of any installation. By using a sophisticated ultra-light compression scheme (lossless for most content) it’s a great solution for extending 4K HDMI audio/video streams and data.
  • Page 7: Applications

    2. APPLICATIONS • Video, Audio, LAN, IR, and USB extension • Hotel or convention center display • Multi-monitor broadcast • Distributed video matrix system • Distributed video wall system • Remote KVM system control 3. PACKAGE CONTENTS • 1× 4K UHD HDMI over IP Transceiver •...
  • Page 8: Features

    5. FEATURES • HDMI 2.0 and DVI 1.0 compatible • HDCP 2.2 and HDCP 1.x compliant • Configurable as either a transmitter or a receiver • 1 HDMI input • 1 HDMI output (Functions as local monitor output in Transmitter Mode) •...
  • Page 9: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel LINK POWER T/R SOURCE GbE VIDEO INFO – MENU ENTER 1 2 3 POWER LED: This LED will illuminate to indicate the unit is on and receiving power. T/R LED: This LED indicates if the unit is in Transmitter (Green LED) or Receiver (Amber LED) mode.
  • Page 10: Rear Panel

    + (Plus) BUTTON: Press to move up or adjust selections within OSD menus. When not in a menu, press to manually toggle between inputs. ENTER/INFO BUTTON: When inside an OSD menu, press to confirm a selection or to go deeper into a menu item. When not in a menu, press to activate the Information OSD.
  • Page 11 sight of the IR Blaster. Note: Currently, only 38KHz IR signal extension is supported. IR IN PORT: Connect to an IR Extender to receive IR control signals and extend them to devices connected to a connected transmitter/receiver. Ensure that the remote being used is within direct line-of-sight of the IR Extender.
  • Page 12: Ir Cable Pinouts

    6.3 IR Cable Pinouts IR Blaster IR Extender Cable Cable Power Infrared Infrared Power Not Used Ground 6.4 RS-232 Bypass Pinout 3-pin Terminal Block Serial Port Default Settings Baud Rate 57600 Data Bits Parity Bits None Stop Bits Flow Control None...
  • Page 13: Osd Menu

    6.5 OSD Menu All functions of this unit can be controlled by using the OSD (On Screen Display) which is activated by pressing the MENU button on the front of the unit. Use the + (PLUS), − (MINUS), and ENTER buttons to navigate the OSD menu.
  • Page 14 3) Menu Timeout: Set the display timeout for the OSD Menu. 4) Menu H Position: Set the horizontal position of the OSD Menu. Note: Independent values are saved for Transmitter and Receiver modes. 5) Menu V Position: Set the display timeout for the OSD Menu. Note: Independent values are saved for Transmitter and Receiver modes.
  • Page 15 UHD+ (2Ch) 3840×2160p@60Hz (600MHz) LPCM 2.0 12-bit Deep Color UHD+ (MCh) 3840×2160p@60Hz (600MHz) LPCM 7.1 & Bitstream 12-bit Deep Color Note: In some rare cases it is possible for custom or external EDIDs to cause compatibility issues with certain sources. If this happens, it is recommended to switch to one of the 6 internal EDIDs for maximum compatibility.
  • Page 16 DEVICE SETTING 2ND LEVEL 3RD LEVEL USB Control Mode Host DEVICE USB Virtual Hub (USB Device Mode only) Input Input 1 INPUT 2 (Receiver Mode only) Local Priority (Receiver mode only) 1) Status: Set the operational mode of the transceiver. After changing the operation mode, the unit will automatically reboot.
  • Page 17 6) Local Priority: Enable or disable the priority auto switch mode for the HDMI input. When enabled, the unit will automatically switch to the HDMI input if a live signal is present. Note: Only available when the unit is in Receiver Mode. INFORMATION 2ND LEVEL 3RD LEVEL...
  • Page 18: Basic Av Extension

    6.6 Basic AV Extension 6.6.1 Point-to-Point Configuration The most basic extension configuration available is a point-to-point system with a single unit in Transmitter Mode connected directly to a single unit in Receiver Mode. In this configuration the HDMI input on the Transmitter is transmitted to the connected Receiver without modification to the audio or video format.
  • Page 19: Advanced Av Extension

    6.7 Advanced AV Extension 6.7.1 IP Master Controller The IP Master Controller is a hardware solution designed to provide a unified and easy method to access and control all of the transmitters and receivers in a system. It provides a user-friendly, and operating system agnostic, web-based interface allowing easy control over all of the most critical functions within a distribution system.
  • Page 20: Configuration Examples

    6.7.2 Configuration Examples When combined with the IP Master Controller, and a 10 Gigabit Ethernet switch, this extension system gains a large number of additional configuration options including: multi-in/multi-out matrix switching with breakaway audio, video wall creation, and a multiview output mode.
  • Page 21 (2) Video Wall Configuration 10GbE Network Switch (3) Multiview (PiP/PoP/Quad/etc.) Configuration 10GbE Network Switch...
  • Page 22 (4) KVM Switch Configuration...
  • Page 23: Connection Diagram

    7. CONNECTION DIAGRAM Tower PC HDMI Stereo Input Input 1.5m 60° RS-232 IR Input & Output 60° HDMI Router Output Local Monitor Power Supply TX RX DC 12V HDMI OUT HDMI IN CAT5e/6A AUDIO IR OUT IR IN RS-232 Cat.5e/6/7 Cable LINK POWER T/R SOURCE...
  • Page 24: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 18Gbps Ethernet Bandwidth 10Gbps Input Port 1×HDMI (Type-A) Output Port 1×HDMI (Type-A) Bi-directional Port 1×10GbE LAN (RJ-45) Pass-through Ports 1×Stereo Audio (3.5mm) 1×RS-232 (3-pin Terminal Block) 1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 2×USB 2.0 (Type A) 1×USB 2.0 (Mini B) Pass-through/Control Port 1×LAN (RJ-45)
  • Page 25: Video Specifications

    8.2 Video Specifications Input Output Streaming Supported Resolutions (Hz) HDMI HDMI 10GbE 720×400p@70/85    640×480p@60/72/75/85    720×480i@60    720×480p@60    720×576i@50    720×576p@50    800×600p@56/60/72/75/85    848×480p@60 ...
  • Page 26 Input Output Streaming Supported Resolutions (Hz) HDMI HDMI 10GbE 1920×1200p@60RB    2560×1440p@60RB    2560×1600p@60RB    2048×1080p@24/25/30    2048×1080p@50/60    3840×2160p@24/25/30    3840×2160p@50/60 (4:2:0)    3840×2160p@24, HDR10 ...
  • Page 27: Audio Specifications

    8.3 Audio Specifications 8.3.1 Digital Audio HDMI Input/Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48 Bitstream Supported Formats Standard & High-Definition 8.3.2 Analog Audio Analog Input Max Audio Level 1Vrms Impedance 10kΩ Type Unbalanced Analog Output Max Audio Level 1Vrms THD+N...
  • Page 28: Cable Specifications

    8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output Ethernet Cable Cat.5e/6 100m Cat.6A/7 100m 100m • 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit color - Data rates lower than 5.3Gbps or below 225MHz TMDS clock •...
  • Page 29: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM 10GbE 10 Gigabit Ethernet Analog-to-Digital Converter Audio/Video Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6A Augmented Category 6 cable Cat.7 Category 7 cable Digital-to-Analog Converter DHCP Dynamic Host Configuration Protocol Digital Visual Interface EDID Extended Display Identification Data Gigabit Ethernet...
  • Page 30 ACRONYM COMPLETE TERM Personal Computer SDVoE Software Defined Video over Ethernet Signal-to-Noise Ratio Transmission Control Protocol THD+N Total Harmonic Distortion plus Noise 4K UHD 4K Ultra-High-Definition (10.2Gbps max) 4K UHD 4K Ultra-High-Definition (18Gbps max) UHDTV Ultra-High-Definition Television Universal Serial Bus Video Graphics Array VLAN Virtual LAN...
  • Page 32 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
