Summary of Contents for CYP COH-TR7

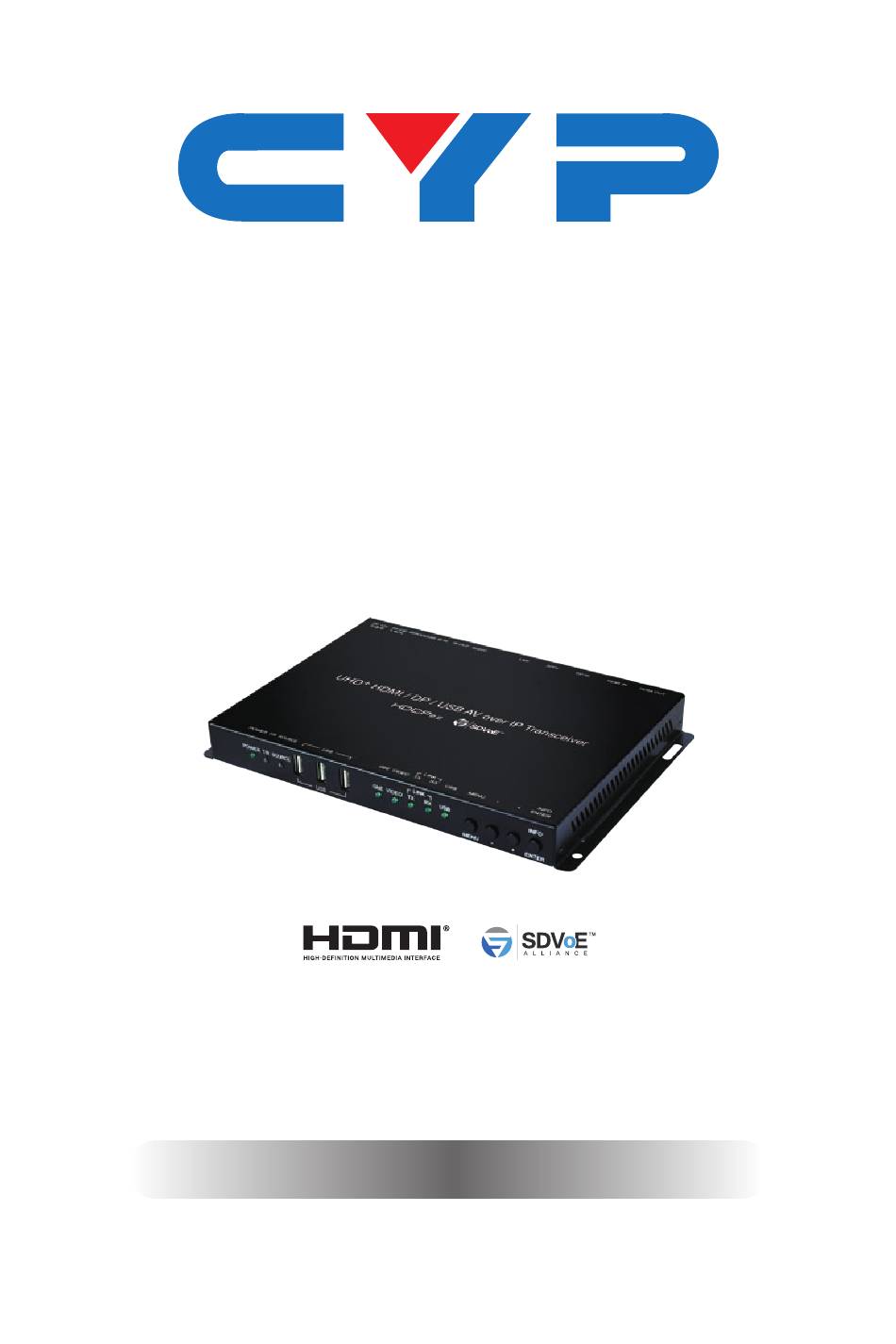

  • Page 1 COH-TR7 HDMI/DisplayPort over IP Transceiver with USB Extension Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ............1 2. Applications .............2 3. Package Contents ..........2 4. System Requirements ........2 5. Features ............3 6. Operation Controls and Functions ....4 6.1 Front Panel ..........4 6.2 Rear Panel ..........5 6.3 IR Cable Pinouts ........7 6.4 RS-232 Bypass Pinout .........
  • Page 6: Introduction

    1. INTRODUCTION This Transceiver is designed for high-quality, IP routable, AV extension with minimum latency. Every Transceiver can be configured to function as either a Transmitter or a Receiver, enhancing the flexibility of any installation. By using a sophisticated ultra-light compression scheme (lossless for most content) it’s a great solution for extending 4K audio/video streams (HDMI or DisplayPort) and data.
  • Page 7: Applications

    2. APPLICATIONS • Video, Audio, LAN, IR, and USB over fiber extension • Long distance data and video transmission immune to RF interference • Hotel or convention center display • Multi-monitor broadcast • Distributed video matrix system • Distributed video wall system •...
  • Page 8: Features

    5. FEATURES • HDMI 2.0 and DVI 1.0 compatible • HDCP 2.2 and HDCP 1.x compliant • Can be configured to function as either a Transmitter or a Receiver • 1 HDMI and 1 DisplayPort input • 1 HDMI output (Functions as local monitor output in Transmitter mode) •...
  • Page 9: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel LINK INFO POWER T/R SOURCE GbE VIDEO TX MENU ENTER 1 2 3 POWER LED: This LED will illuminate to indicate the unit is on and receiving power. T/R LED: This LED indicates if the unit is in Transmitter (Green LED) or Receiver (Amber LED) mode.
  • Page 10: Rear Panel

    MENU Button: Press to enter the OSD menu, or to back out from menu items. − (MINUS) Button: Press to move up or adjust selections within OSD menus. When not in a menu, press to manually switch between inputs. + (PLUS) Button: Press to move up or adjust selections within OSD menus.
  • Page 11 AUDIO Port: Transmitter Mode: Connect to the stereo analog output of a device such as a CD player or PC. Receiver Mode: Connect to powered speakers or an amplifier for stereo analog audio output. Note: The signal is passed directly from the audio port on the transmitter to the audio port on the receiver in Point-to-Point configurations.
  • Page 12: Ir Cable Pinouts

    6.3 IR Cable Pinouts IR Blaster IR Extender Cable Cable Power Infrared Infrared Power Not Used Ground 6.4 RS-232 Bypass Pinout 3-pin Terminal Block Serial Port Default Settings Baud Rate 57600 Data Bits Parity Bits None Stop Bits Flow Control None Note: The default Serial Port baud rate can only be changed by use of the optional IP Master Controller or control software.
  • Page 13: Osd Menu

    6.5 OSD Menu Many functions of this unit can be controlled by using the OSD (On Screen Display) which is activated by pressing the Menu button on the front of the unit. Use the + (PLUS), − (MINUS), and ENTER buttons to navigate the OSD menu.
  • Page 14 3) Menu Timeout: Set the display timeout for the OSD Menu. 4) Menu H Position: Set the horizontal position of the OSD Menu. Note: Independent values are saved for Transmitter and Receiver modes. 5) Menu V Position: Set the vertical position of the OSD Menu. Note: Independent values are saved for Transmitter and Receiver modes.
  • Page 15 1) HDMI EDID: Select the EDID to send to the HDMI input. 2) DP EDID: Select the EDID to send to the DisplayPort input. This unit provides the following 6 Internal EDIDs: FHD (2Ch) 1920×1080p@60Hz (4.95Gbps), 8-bit color, LPCM 2.0 1920×1080p@60Hz (4.95Gbps), 8-bit color, FHD (MCh) LPCM 7.1 &...
  • Page 16 2) DP HDCP: Set the HDCP behavior of the DisplayPort input. ■ Follow In: The input supports up to the HDCP version required by the connected source. ■ Follow Out: The input supports up to the HDCP version supported by the connected display. ■...
  • Page 17 3) USB Control Mode: Enable or disable the USB 2.0 (Mini B) port for connection to USB host devices such as a PC or laptop. Selecting Device mode enables the USB 2.0 (Mini B) port. Selecting Host mode disables the USB 2.0 (Mini B) port. Note: The default setting in Transmitter Mode is Device.
  • Page 18: Basic Av Extension

    FACTORY SETTING 2ND LEVEL 3RD LEVEL Are you sure? 1) Factory Setting: Selecting YES will reset the unit’s settings back to their factory defaults. Note: The transceiver mode will not be reset. 6.6 Basic AV Extension 6.6.1 Point-to-Point Configuration The most basic extension configuration available is a point-to-point system with a single unit in Transmitter Mode connected directly to a single unit in Receiver Mode.
  • Page 19: Configuration Examples

    The IP Master Controller hardware is an optional component and is not included with individual transmitter, receiver, or transceiver units. Please contact your authorized dealer for more information. Note: Interface images are for example only and may differ from the delivered product.
  • Page 20 (1) Matrix Configuration (2) Video Wall Configuration...
  • Page 21 (3) Multi-View (PiP/PoP/Quad/etc.) Configuration (4) KVM Switch Configuration...
  • Page 22: Connection Diagram

    7. CONNECTION DIAGRAM Local Monitor Media Player HDMI Stereo Input Input DisplayPort 1.5m Input HDMI 60° Bypass Router Output 60° IR In & Out Power Supply TX RX DC 12V HDMI OUT HDMI IN DP IN SFP+ AUDIO IR OUT IR IN RS-232 Fiber Cable...
  • Page 23: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 18Gbps DisplayPort Bandwidth 21.6Gbps Fiber Bandwidth 10Gbps Input Ports 1×HDMI (Type-A) 1×DisplayPort Output Ports 1×HDMI (Type-A) Bi-directional Port 1×10GbE LAN (SFP+) Pass-through Ports 1×Stereo Audio (3.5mm) 1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 1×RS-232 (3-pin Terminal Block) 1×Ethernet (RJ-45) 3×USB 2.0 (Type A) Pass-through/Service Port...
  • Page 24: Video Specifications

    8.2 Video Specifications Input Output 10GbE Supported Resolutions (Hz) HDMI HDMI Fiber 720×400p@70/85     640×480p@60/72/75/85     720×480i@60     720×480p@60     720×576i@50     720×576p@50   ...
  • Page 25: Audio Specifications

    Input Output 10GbE Supported Resolutions (Hz) HDMI HDMI Fiber 1920×1200p@60RB     2560×1440p@60RB     2560×1600p@60RB     2048×1080p@24/25/30     2048×1080p@50/60     3840×2160p@24/25/30     3840×2160p@50/60 (4:2:0) ...
  • Page 26: Analog Audio

    DisplayPort Input LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48 Bitstream Supported Formats Standard & High-Definition Fiber Input / Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48 Bitstream Supported Formats Standard & High-Definition Analog Input Max Audio Level 1Vrms...
  • Page 27 8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output DisplayPort Cable DisplayPort Input Fiber Cable Multi-mode Fiber (OM3) 300m 300m 300m 300m Multi-mode Fiber (OM4) 550m 550m 550m 550m Single-mode Fiber...
  • Page 28: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM 10GbE 10 Gigabit Ethernet Analog-to-Digital Converter Audio/Video Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6A Augmented Category 6 cable Cat.7 Category 7 cable Digital-to-Analog Converter DHCP Dynamic Host Configuration Protocol DisplayPort Digital Visual Interface EDID Extended Display Identification Data Gigabit Ethernet...
  • Page 29 ACRONYM COMPLETE TERM Media Access Control Megahertz Optical Multi-mode On-Screen Display Personal Computer SDVoE Software Defined Video over Ethernet Signal-to-Noise Ratio Transmission Control Protocol THD+N Total Harmonic Distortion plus Noise TMDS Transition-Minimized Differential Signaling Ultra-High-Definition (10.2Gbps) UHD+ Ultra-High-Definition Plus (18Gbps) UHDTV Ultra-High-Definition Television Universal Serial Bus...
  • Page 32 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
