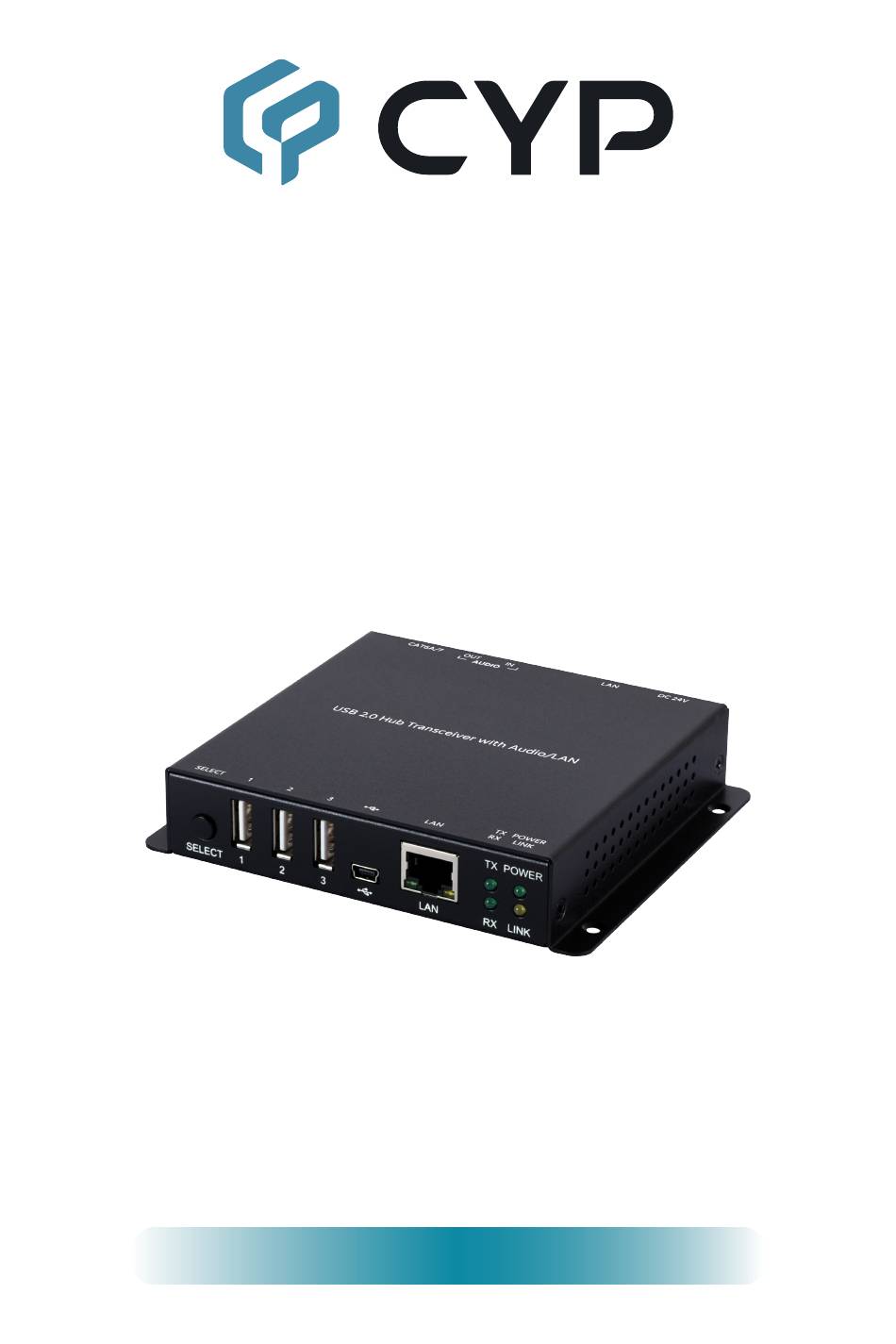

- Page 1 CH-701TR USB 2.0 Hub Transceiver with Audio/LAN Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications ............. 1 3. Package Contents ........... 1 4. System Requirements ........1 5. Features............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel........... 4 7. Connection Diagram ........5 8. -
Page 6: Introduction
1. INTRODUCTION Currently, USB is the most prevalent interface standard in use today, and almost every webcam, storage device, and HID (Human Interface Device) uses it. Applications for USB are everywhere, so naturally the need to extend the range of a USB connection is just as common. This USB 2.0 Hub Transceiver with Audio/LAN provides a simple and efficient way to extend not only USB 2.0 signals, but also stereo audio, and LAN connectivity. -
Page 7: Features
5. FEATURES • 1 USB 2.0 host and 3 USB 2.0 device ports • 2 100BaseT LAN ports with switching hub functionality • 2 3.5mm stereo audio ports (1 input, 1 output) • HDBaseT feature support: Stereo Audio, 100BaseT Ethernet, and PoC (bi-directional) •... -
Page 8: Operation Controls And Functions

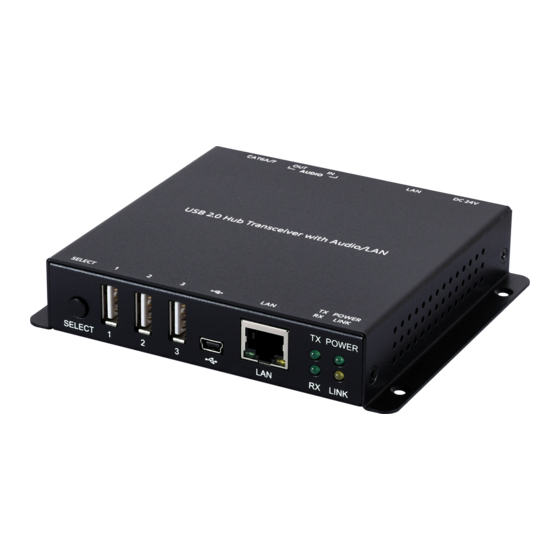

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel TX POWER SELECT RX LINK SELECT Button: Press this button to manually toggle the unit between Tx and Rx mode. Note: The connected transceiver device will also change modes. USB 2.0 (Type A) Device Ports: Connect directly to standard USB devices such as a mouse, keyboard or flash drive to extend their USB functionality to the currently active USB Host Port. -
Page 9: Rear Panel
6.2 Rear Panel AUDIO DC 24V CAT6A/7 DC 24V Port: Plug the 24V DC power adapter into this port and connect it to an AC wall outlet for power. (Optional). Note: This connection is not required if the unit is receiving PoC from a compatible transceiver. -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM PC/Laptop TX POWER AUDIO SELECT RX LINK DC 24V CAT6A/7 HDBaseT TX POWER AUDIO SELECT RX LINK DC 24V CAT6A/7 Power Supply Webcam Network Router Powered Speakers... -
Page 11: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDBaseT Bandwidth 500Mbps Input Ports 1×Analog Stereo (3.5mm) Output Ports 1×Analog Stereo (3.5mm) Bi-Directional Port 1×HDBaseT (RJ-45) Pass-through Ports 3×USB 2.0 (Type A) 1×USB 2.0 (Mini B) 2×LAN (RJ-45) Baud Rate Up to 19200 Power Supply 24V/2.7A DC (US/EU standards, CE/FCC/UL certified) or PoC from a connected transceiver... -
Page 12: Audio Specifications
8.2 Audio Specifications 8.2.1 Analog Audio Analog Input Max Audio Level 2Vrms Impedance 10kΩ Type Unbalanced Analog Output Max Audio Level 2Vrms THD+N < −80dB@0dBFS 1kHz (A-wt) > 80dB@0dBFS Frequency Response < ±1dB@20Hz~20kHz Crosstalk < −80dB@10kHz Impedance 470Ω Type Unbalanced... -
Page 13: Cable Specifications
8.3 Cable Specifications Cable Length Ethernet Cable Cat.5e/6 Cat.6A/7 100m 8.4 HDBaseT Features HDBaseT Feature Set Transmitter Mode Video & Audio Extension Supported (Audio only) LAN Extension Supported Send power to Receiver Supported (PoC) Accept power from Receiver Supported (PoC) IR Extension Unsupported RS-232 Extension... -
Page 14: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM AVoIP Audio/Video over IP Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6A Augmented Category 6 cable Cat.7 Category 7 cable Decibel Gbps Gigabits per second HDBT HDBaseT Kilohertz Keyboard/Video/Mouse Local Area Network Light-Emitting Diode LPCM Linear Pulse-Code Modulation Megahertz... - Page 16 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
