Summary of Contents for CYP PUV-3150TR-UEAO

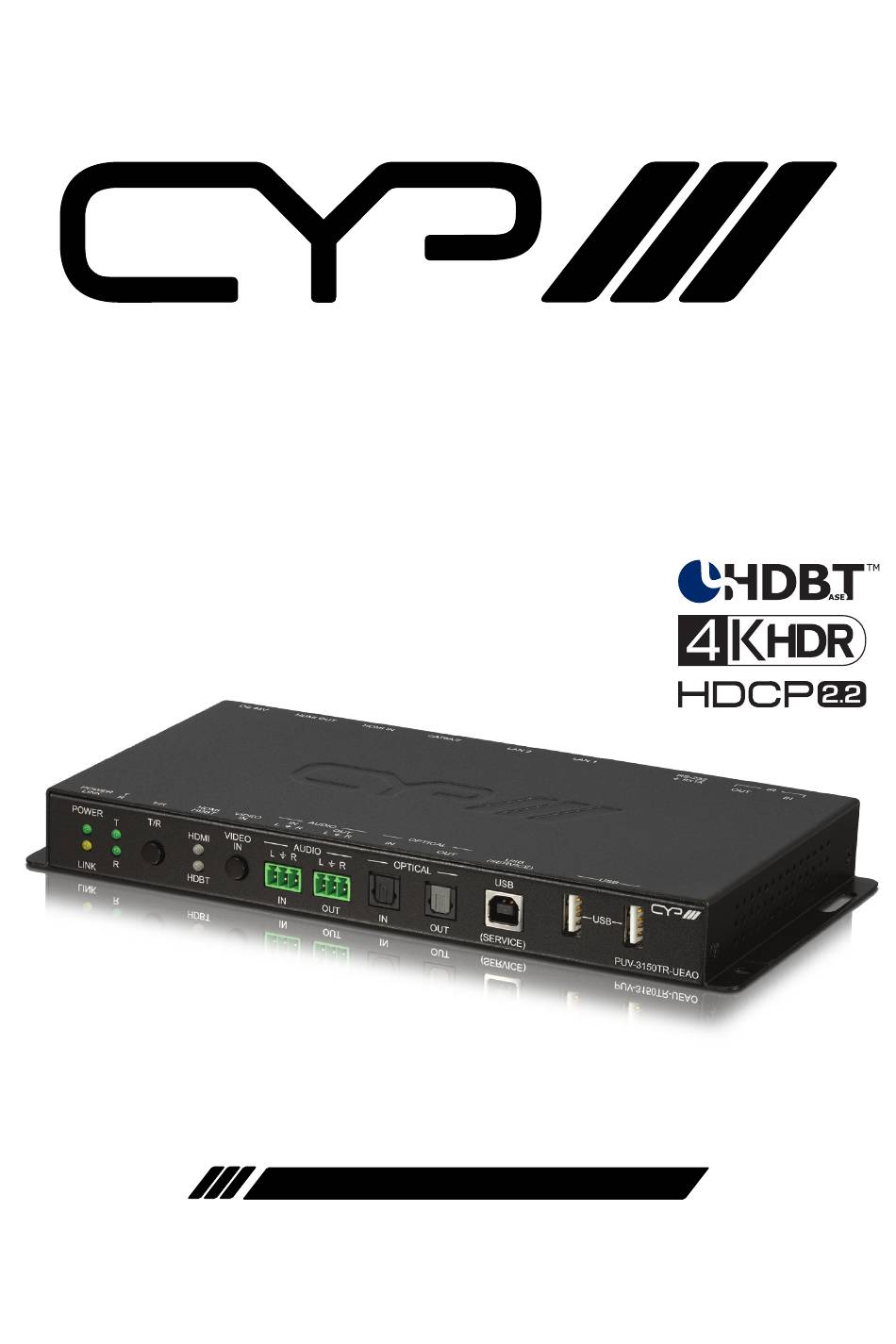

- Page 1 PUV-3150TR-UEAO UHD+ HDMI over HDBaseT 3.0 Transceiver with USB, KVM, LAN with Analogue & Digital Audio Pathways OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents .........2 3.1 Single Unit ..............2 3.2 Dual Unit Set ............2 4. System Requirements ........2 5. Features ............3 6. Operation Controls and Functions ....4 6.1 Front Panel .............4 6.2 Rear Panel ...............6 6.3 IR Cable Pinouts ...........7 6.4 RS-232 Pinout ............7 7. -
Page 6: Introduction
1. INTRODUCTION This 4K UHD HDMI over HDBaseT Transceiver uses HDBaseT 3.0, the newest generation of HDBaseT technology, and is the perfect solution for extending full bandwidth (18Gbps) HDMI 2.0, 4K@60Hz (4:4:4, 8-bit) video with HD audio as well as Ethernet and control via a single run of Cat.6A/7 cable over distances of up to 100 meters. -
Page 7: Package Contents
3. PACKAGE CONTENTS 3.1 Single Unit 1× UHD HDMI over HDBaseT Transceiver with USB KVM 1× 48V/0.83A DC Power Adapter 3× 3-pin Terminal Block 1× Operation Manual 3.2 Dual Unit Set 2× UHD HDMI over HDBaseT Transceiver with USB KVM 1×... -
Page 8: Features
5. FEATURES HDMI 2.0 and DVI 1.0 compatible HDCP 2.2 and HDCP 1.x compliant HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0) Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output over both HDMI and HDBaseT Supports Deep Colour input and output up to 12-bit Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output Supports CEC bypass... -
Page 9: Operation Controls And Functions
OPTICAL HDMI HDBT LINK (SERVICE) PUV-3150TR-UEAO POWER LED: This LED will illuminate to indicate the unit is on and receiving power. LINK LED: This LED will illuminate solidly when a live connection with a compatible transmitter/receiver is active. T & R LEDs: These LEDs will illuminate to indicate if the unit is in transmitter (T) or receiver (R) mode. - Page 10 OPTICAL IN Port: Connect to the optical audio output of a device such as a media player or game console using an appropriate optical cable. Audio is sent to the optical audio output on the connected compatible transmitter/receiver. OPTICAL OUT Port: Connect to powered speakers or an amplifier for digital audio output using an appropriate optical cable.
-
Page 11: Rear Panel
6.2 Rear Panel TX RX RS-232 LAN 1 LAN 2 CAT6A/7 HDMI IN HDMI OUT DC 48V IR IN Port: Connect to an IR Extender to receive local IR control signals and extend them to devices connected to the other end of the HDBaseT connection. -
Page 12: Ir Cable Pinouts
6.3 IR Cable Pinouts IR Blaster IR Extender Cable Cable Power Infrared Infrared Power Not Used Ground 6.4 RS-232 Pinout 3-pin Terminal Block... -
Page 13: Connection Diagram
TX RX RS-232 LAN 1 LAN 2 CAT6A/7 HDMI IN HDMI OUT DC 48V POWER VIDEO AUDIO OPTICAL HDMI HDBT LINK (SERVICE) PUV-3150TR-UEAO Cat.5e/6/7 Cable POWER VIDEO AUDIO OPTICAL HDMI HDBT LINK (SERVICE) PUV-3150TR-UEAO TX RX RS-232 LAN 1 LAN 2... -
Page 14: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 18Gbps HDBaseT Bandwidth 18Gbps Input Ports 1×HDMI (Type-A) 1×Digital Audio (TOSLINK) 1×Analogue Audio (3-pin Terminal Block) Output Ports 1×HDMI (Type-A) 1×Digital Audio (TOSLINK) 1×Analogue Audio (3-pin Terminal Block) Bi-directional Port 1×HDBaseT (RJ-45) Pass-through Ports 1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 1×RS-232 (3-pin Terminal Block) - Page 15 Chassis Colour Black Operating Temperature 0˚C – 40˚C/32˚F – 104˚F Storage Temperature -20˚C – 60˚C/-4˚F – 140˚F Relative Humidity 20 – 90% RH (Non-condensing) Power Consumption 30.48W...
-
Page 16: Video Specifications
8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI HDBT HDMI HDBT 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 ... - Page 17 Input Output Supported Resolutions (Hz) HDMI HDBT HDMI HDBT 1920×1080p@24/25/30 1920×1080p@50/60 1920×1200p@60RB 2560×1440p@60RB 2560×1600p@60RB 2048×1080p@24/25/30 2048×1080p@50/60 ...
-
Page 18: Audio Specifications
8.3 Audio Specifications 8.3.1 Digital Audio HDMI & HDBaseT Input / Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard & High-Definition S/PDIF Input / Output LPCM Max Channels 2 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192... -
Page 19: Analogue Audio
8.3.2 Analogue Audio Analogue Input Max Audio Level 2Vrms Impedance 10kΩ Type Unbalanced Analogue Output Max Audio Level 2Vrms THD+N < −80dB@0dBFS 1kHz (A-wt) > 93dB@0dBFS Frequency Response < ±0.5dB@20Hz~20kHz Crosstalk < −71dB@10kHz Impedance 500Ω Type Unbalanced... -
Page 20: Cable Specifications
8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output Ethernet Cable Cat.5e/6 100m Cat.6A/7 100m 100m 100m Bandwidth Category Examples: 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit colour - Data rates lower than 5.3Gbps or below 225MHz TMDS clock 4K30 (4K UHD Video) - 4K@24/25/30Hz &... -
Page 21: Hdbaset Features
8.5 HDBaseT Features HDBaseT Feature Set Transmitter Mode Video & Audio Extension Supported LAN Extension Supported Send power to Receiver Supported (PoH) Accept power from Receiver Supported (PoH) IR Extension Supported RS-232 Extension Supported USB 2.0 Extension Supported HDBaseT Feature Set Receiver Mode Video &... -
Page 22: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Analogue-to-Digital Converter ASCII American Standard Code for Information Interchange Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6A Augmented Category 6 cable Cat.7 Category 7 cable Consumer Electronics Control Digital-to-Analogue Converter Decibel DHCP Dynamic Host Configuration Protocol Digital Visual Interface EDID Extended Display Identification Data... - Page 23 ACRONYM COMPLETE TERM LPCM Linear Pulse-Code Modulation Megahertz Powered Device Power over HDBaseT Power Sourcing Equipment S/PDIF Sony/Philips Digital Interface Format Signal-to-Noise Ratio Transmission Control Protocol THD+N Total Harmonic Distortion plus Noise TMDS Transition-Minimised Differential Signaling 4K UHD 4K Ultra-High-Definition (10.2Gbps max) 4K UHD 4K Ultra-High-Definition (18Gbps max) Universal Serial Bus...
- Page 24 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
