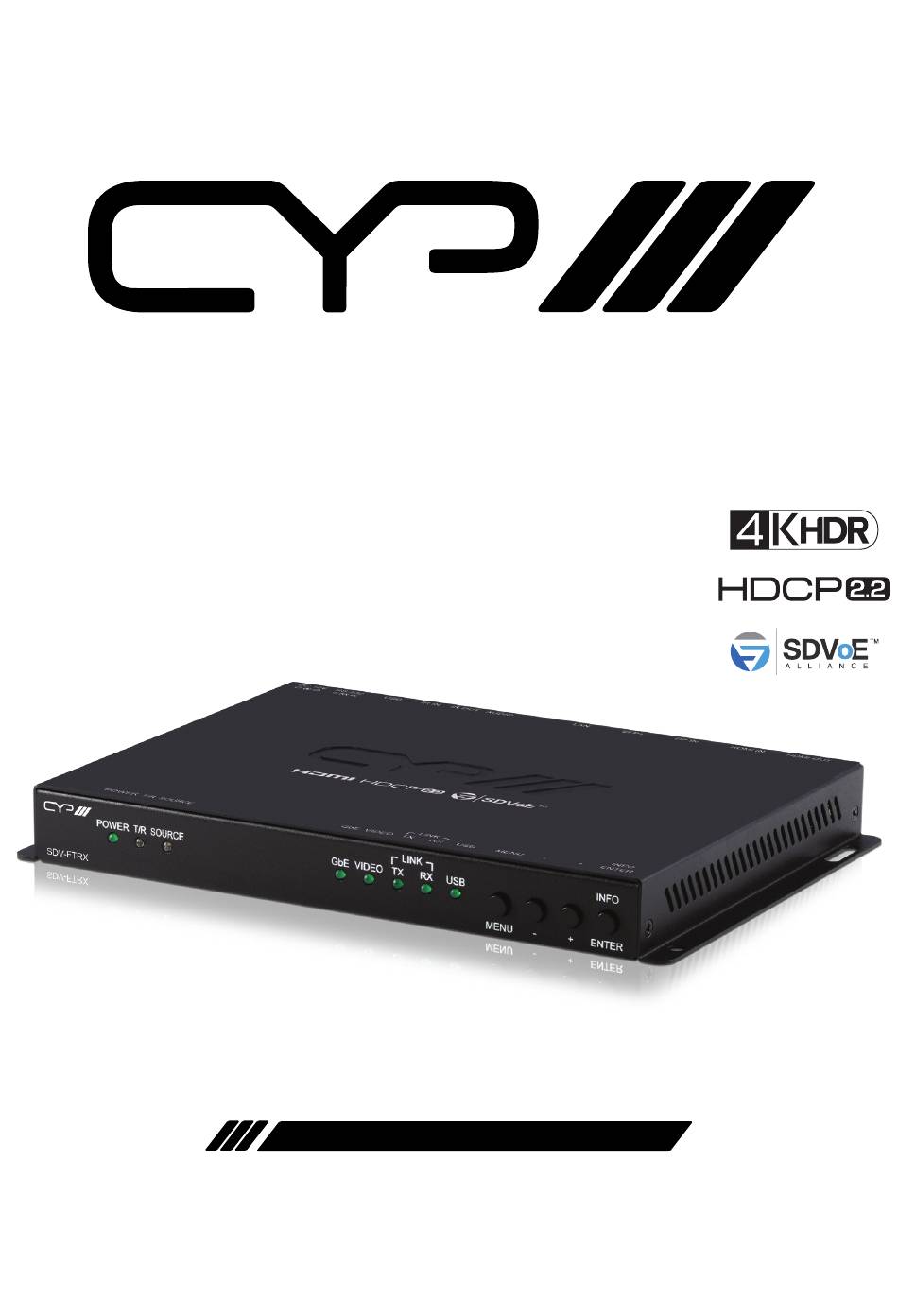

- Page 1 SDV-FTRX Full HDR and 4K SDVoE Transceiver over FIBER (10GbE). OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........8 6. Operation Controls and Functions ..9 6.1 Front Panel ........... 9 6.2 Rear Panel ...........10 6.3 IR Cable Pinouts ........11 6.4 OSD Menu ..........12 6.5 Basic AV Extension ........16 7. -
Page 6: Introduction
1. INTRODUCTION This Transceiver is designed for high-quality, IP routable, AV extension with minimum latency. Every Transceiver can be configured to function as either a Transmitter or a Receiver, enhancing the flexibility of any installation. By using a sophisticated ultra-light compression scheme (lossless for most content) it’s a great solution for extending 4K audio/ video streams (HDMI or DisplayPort) and data. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS HDMI or DisplayPort source equipment such as a media player, video game console, PC, or set-top box HDMI receiving equipment such as an HDTV, monitor, or audio amplifier Analogue audio receiving equipment such as headphones, an audio amplifier or powered speakers. -
Page 8: Operation Controls And Functions
POWER T/R SOURCE GbE VIDEO TX MENU ENTER SDV-FTRX 1 2 3 POWER LED: This LED will illuminate to indicate the unit is on and receiving power. T/R LED: This LED indicates if the unit is in Transmitter (Green LED) or Receiver (Amber LED) mode. -
Page 9: Rear Panel
6.2 Rear Panel TX RX DC 12V HDMI OUT HDMI IN DP IN SFP+ AUDIO IR OUT IR IN RS-232 HDMI OUT PORT: Connect to an HDMI TV, monitor or amplifier for digital video and audio output. HDMI IN PORT: Connect to HDMI source equipment such as a media player, game console or set-top box. -
Page 10: Ir Cable Pinouts
of remotely located devices. Ensure that the remote being used is within direct line-of-sight of the IR Extender. USB PORT: Transmitter Mode: Connect directly to a PC or other USB host device to extend the USB functionality to the connected Receiver. Receiver Mode: Connect directly to USB peripherals such as a keyboard and mouse, to control the USB host device connected to the Transmitter. -
Page 11: Osd Menu
6.4 OSD Menu Many functions of this unit can be controlled by using the OSD (On Screen Display) which is activated by pressing the Menu button on the front of the unit. Use the + (PLUS), − (MINUS), and ENTER buttons to navigate the OSD menu. - Page 12 EDID 2ND LEVEL 3RD LEVEL INTERNAL 1 HDMI EDID Internal 2 Internal 3 Internal 4 Internal 5 Internal 6 External A External B (Transmitter Mode only) User 1 User 2 INTERNAL 1 DP EDID Internal 2 Internal 3 Internal 4 DP EDID Internal 5 Internal 6...
- Page 13 Internal 1 1920×1080p@60Hz (148MHz), LPCM 2.0 8-bit colour Internal 2 1920×1080p@60Hz (148MHz), LPCM 7.1 & 8-bit colour Bitstream Internal 3 3840×2160p@30Hz (297MHz), LPCM 2.0 Deep Colour (8/10/12-bit) Internal 4 3840×2160p@30Hz (297MHz), LPCM 7.1 & Deep Colour (8/10/12-bit) Bitstream Internal 5 3840×2160p@60Hz (594MHz), LPCM 2.0 Deep Colour (8/10/12-bit)
- Page 14 Disable: HDCP support is completely disabled. DEVICE SETTING 2ND LEVEL 3RD LEVEL TRANSMITTER Status Receiver FOLLOW TEMP Fan Mode Always On INPUT 1 Input Input 2 Input 3 Local Priority HDMI 1) Status: Set the operational mode of the Transceiver. After changing the operation mode, the unit will automatically reboot.
- Page 15 INFORMATION 2ND LEVEL 3RD LEVEL Resolution Status FW Version [Show the current status of each item] LAN MAC USB MAC Fan Status 1) Information: Shows details of the unit’s current status including detected input resolution, transceiver mode, firmware version, IP address, LAN MAC address, USB MAC address, serial number and fan state.
-
Page 16: Basic Av Extension
6.6 Basic AV Extension Point-to-Point Configuration and Operation The most basic extension configuration available is a point-to-point system with a single unit in Transmitter Mode connected directly to a single unit in Receiver Mode. In this configuration the HDMI input on the Transmitter is transmitted to the connected Receiver without modification to the audio or video format. -
Page 17: Connection Diagram
7. CONNECTION DIAGRAM Local Monitor Media Player HDMI Stereo DisplayPort Input Input Input 1.5m HDMI 60° Bypassed Router Output 60° IR In & Out Power Supply TX RX DC 12V HDMI OUT HDMI IN DP IN SFP+ AUDIO IR OUT IR IN RS-232 Fiber... -
Page 18: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 600MHz/18Gbps Input Ports 1×HDMI 1×DisplayPort Output Port 1×HDMI Bidirectional Port 1×10GbE LAN (SFP+) Pass-through Ports 1×Analogue Stereo (3.5mm) 1×IR Blaster (3.5mm) 1×IR Extender (3.5mm) 1×RS-232 (3-pin Terminal Block) 1×USB (Mini-B) Pass-through/Control Port 1×LAN (RJ-45) IR Frequency 30 –... -
Page 19: Video Specifications
8.2 Video Specifications Input Output 10GbE Supported Resolutions (Hz) HDMI HDMI Fiber 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 ... - Page 20 Input Output 10GbE Supported Resolutions (Hz) HDMI HDMI Fiber 1920×1080p@50/60 1920×1200p@60RB 2560×1440p@60RB 2560×1600p@60RB 2048×1080p@24/25/30 2048×1080p@50/60 3840×2160p@24/25/30 ...
-
Page 21: Audio Specifications
8.3 Audio Specifications HDMI Input/Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48 Bitstream Supported Formats Standard & High-Definition Analogue Input Max Audio Level 1Vrms Impedance 10kΩ Type Unbalanced Analogue Output Max Audio Level 1Vrms THD+N < −80dB@0dBFS 1kHz (A-wt) >... -
Page 22: Cable Specifications
8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output DisplayPort Cable DisplayPort Input Fiber Cable Multi-mode Fiber (OM3) 300m Multi-mode Fiber (OM4) 550m Single-mode Fiber 30km... -
Page 23: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM 10GbE 10 Gigabit Ethernet ASCII American Standard Code for Information Interchange DHCP Dynamic Host Configuration Protocol DisplayPort Digital Visual Interface EDID Extended Display Identification Data Gigabit Ethernet High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range HDTV High-Definition Television... - Page 24 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
