IP to IR Command Converter for Velocity Control System
AT-VCC-IR3-KIT

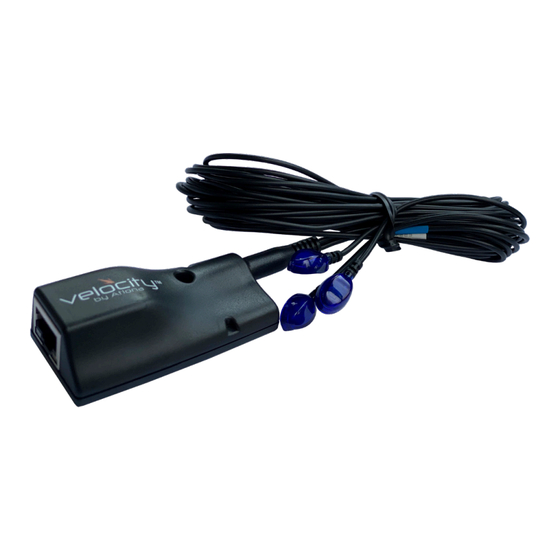

The Atlona AT-VCC-IR3-KIT is an accessory for the Atlona Velocity™ Control System that
provides conversion from IP control commands to IR. This Velocity Control Converter is very
compact and can be placed anywhere a device requires IR control. The VCC-IR3-KIT is remotely
powered through Power over Ethernet (PoE), or locally from a USB power source. The primary
unit installs onto any surface via a convenient mounting dock. A simple "click" locks it into place
for a secure, reliable installation. The IR adapter module includes three IR emitters attached by
a 3.5mm cable. Each emitter is independently addressable, allowing discrete IR control of three
different AV devices.
Package Contents
1 x AT-VCC
1 x AT-VCC-IR3
Operating Notes
•
The Velocity Command Converter must be on the same network as the Velocity Gateway
(AT-VGW-HW) or it will be unable to sync for control.
•
The AT-VCC-IR3-KIT is PoE, to power the unit, simply plug it into a PoE compatible network
switch. If the network switch is not PoE capable, a PoE injector
can be used.
•
All devices (AT-VCC, Velocity, AT-VTP, switchers, etc) should be set to static IPs or the
DHCP IP address reserved for each individual device.
IMPORTANT: Velocity Gateway (AT-VGW-HW) must be set up before the AT-VCC-IR3-KIT
is fully functional.
(purchased separately)
1
Installation Guide
AT-VCC-IR3-KIT
or USB
Advertisement
Related Manuals for Panduit ATLONA AT-VCC-IR3
Summary of Contents for Panduit ATLONA AT-VCC-IR3
- Page 1 IP to IR Command Converter for Velocity Control System AT-VCC-IR3-KIT The Atlona AT-VCC-IR3-KIT is an accessory for the Atlona Velocity™ Control System that provides conversion from IP control commands to IR. This Velocity Control Converter is very compact and can be placed anywhere a device requires IR control. The VCC-IR3-KIT is remotely powered through Power over Ethernet (PoE), or locally from a USB power source.
-
Page 2: Panel Description
Installation Guide AT-VCC-IR3-KIT Panel Description IR Window 3.5mm Connector Use to learn IR commands from a device’s Connect the 3.5mm connector to the IR remote control. 3.5mm port of the VCC. Ethernet 3 x IR Emitters Connect an Ethernet cable from this Connect up to three 3.5mm IR receivers to port to the same network as the Velocity the 3-3.5mm ports. - Page 3 Installation Guide AT-VCC-IR3-KIT Double click on the VCC (to determine the correct one, look on the bottom of the VCC for the MAC address). The PC default browser will open to the AT-VCC webGUI. Select Network Settings to open the IP configuration page. Select the DHCP Enabled header, this will disable DHCP and allows IP settings to be edited.
- Page 4 Installation Guide AT-VCC-IR3-KIT Select the + button located at the top right corner of the room. A new menu will open. Press the scan network button. All Atlona devices found will appear in the unassigned list. Select the Add button next to the VCC. A new pop up will appear. Select the VCC IR Triport (based on device/function) from the drop down menu.
- Page 5 Installation Guide AT-VCC-IR3-KIT Select edit on the controlled device’s tile. A new window will slide open. *Optional* If the device has multiple Control Types, select IR from the Control Type drop down menu. Select the VCC from the IR Port drop down menu. *Optional* Repeat for up to three devices when using the VCC triport.
- Page 6 Installation Guide AT-VCC-IR3-KIT IR Learning The VCC IR has the ability to learn IR codes from a device’s IR remote. Create equipment with IR control easier and without manually entering a list of IR command using the IR remote control with the VCC IR.
- Page 7 Installation Guide AT-VCC-IR3-KIT Select the IP of the VCC IR from the Learn Device drop down menu. Press the NEW COMMAND button. A new line will appear above the button. NOTE: If a device was duplicated, remove all the previous commands using the delete link.
- Page 8 Installation Guide AT-VCC-IR3-KIT Select the learn link. An information pop up will appear. Press OK. Point the device’s IR remote at the IR learn window located halfway down the VCC and press the button to be learned. NOTE: Use quick button presses to learn, do not hold the button down. When the command is successfully learned, a pop up will appear with the learned IR command.
-
Page 9: Firmware Update
Installation Guide AT-VCC-IR3-KIT Firmware Update To update the VCC the most recent vHelp software will be needed. The vHelp has the firmware built into the software and will automatically detect if the VCC is on the most recent firmware. Connect the AT-VCC to a network switch (PoE is best if a PoE switch is not available, a power injector or mini USB to USB cable may be used). - Page 10 Installation Guide AT-VCC-IR3-KIT Atlona, Inc. (“Atlona”) Limited Product Warranty Coverage Atlona warrants its products will substantially perform to their published specifications and will be free from defects in materials and workmanship under normal use, conditions and service. Under its Limited Product Warranty, Atlona, at its sole discretion, will either: •...
- Page 11 Installation Guide AT-VCC-IR3-KIT Atlona, Inc. (“Atlona”) Limited Product Warranty Cont. Exclusions This Limited Product Warranty excludes: • Damage, deterioration or malfunction caused by any alteration, modification, improper use, neglect, improper packaging or shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature.
- Page 12 Installation Guide AT-VCC-IR3-KIT English Declaration of Conformity The English version can be found under the resources tab at: https://atlona.com/product/at-vcc-ir3-kit/. Chinese Declaration of Conformity 中国RoHS合格声明 由SKU列出於: https://atlona.com/about-us/china-rohs/. Toll free US International atlona.com 877.536.3976 41.43.508.4321 • • © 2020 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners.
