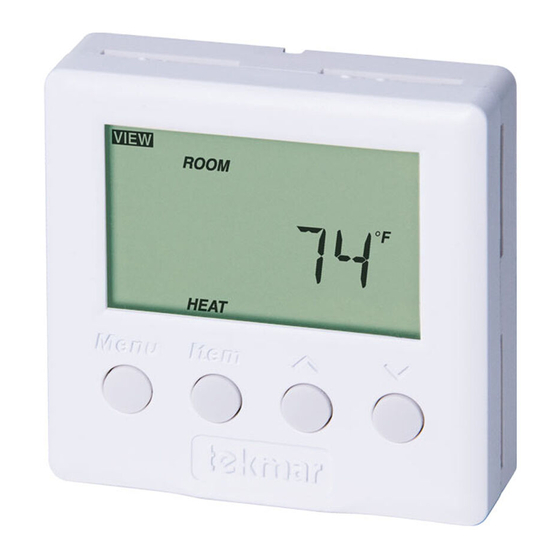

Thermostat 507
Congratulations on the installation of your tekmar Control Systems' thermostat. This thermostat
has been designed with state of the art technology and packaged in a compact and attractive
enclosure. The large display and easy to use buttons make this thermostat extremely user
friendly. This tekmar Control Systems' thermostat is designed to increase the comfort level of
your home. At the same time these thermostats have been designed to be simple to use.
Table of Contents
Display / Keypad Operation ..............pg 1
Setting the Temperatures .................pg 2
Units of Display .................................pg 2
Display / Keypad Operation
The thermostat's display has four distinct fields. These fields are the Menu field, the Item
field, the Number field and the Status field. The four buttons on the face of the thermostat are
used to navigate through the menus and items to view and/or adjust the desired settings.
Displays the
current
menu
Displays the current
status of the
thermostat's inputs,
outputs and operation
- User Brochure
Setting the Mode of Operation .........pg 3
Warranty ...........................................pg 4
Displays an abbreviated
name of the selected item
Selects Menus, Items
and adjusts settings
1 of 4
U 507
Displays the current value
of the selected item
© 2007
U 507 - 05/07
05/07
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Tekmar 507
Summary of Contents for Tekmar 507
- Page 1 The large display and easy to use buttons make this thermostat extremely user friendly. This tekmar Control Systems’ thermostat is designed to increase the comfort level of your home. At the same time these thermostats have been designed to be simple to use.
- Page 2 Adjust Menu is reached. Menu Step Two: Press and release the button until the current temperature unit Item begins to flash. Step Three: Use the button to select between Fahrenheit and Celsius. © 2007 U 507 - 05/07 2 of 4...
- Page 3 Off and Heat setting. Off: In the Off mode, the thermostat does not operate the heating device. Heat: In the Heat mode, the thermostat operates to maintain the room at the required heating temperature. 3 of 4 © 2007 U 507 - 05/07...
- Page 4 Prod- uct was not installed in compliance with tekmar’s instructions and / or the local codes and ordinances; or if due to defective installation of the Product; or if the Product was not used in compliance with tekmar’s instructions.
